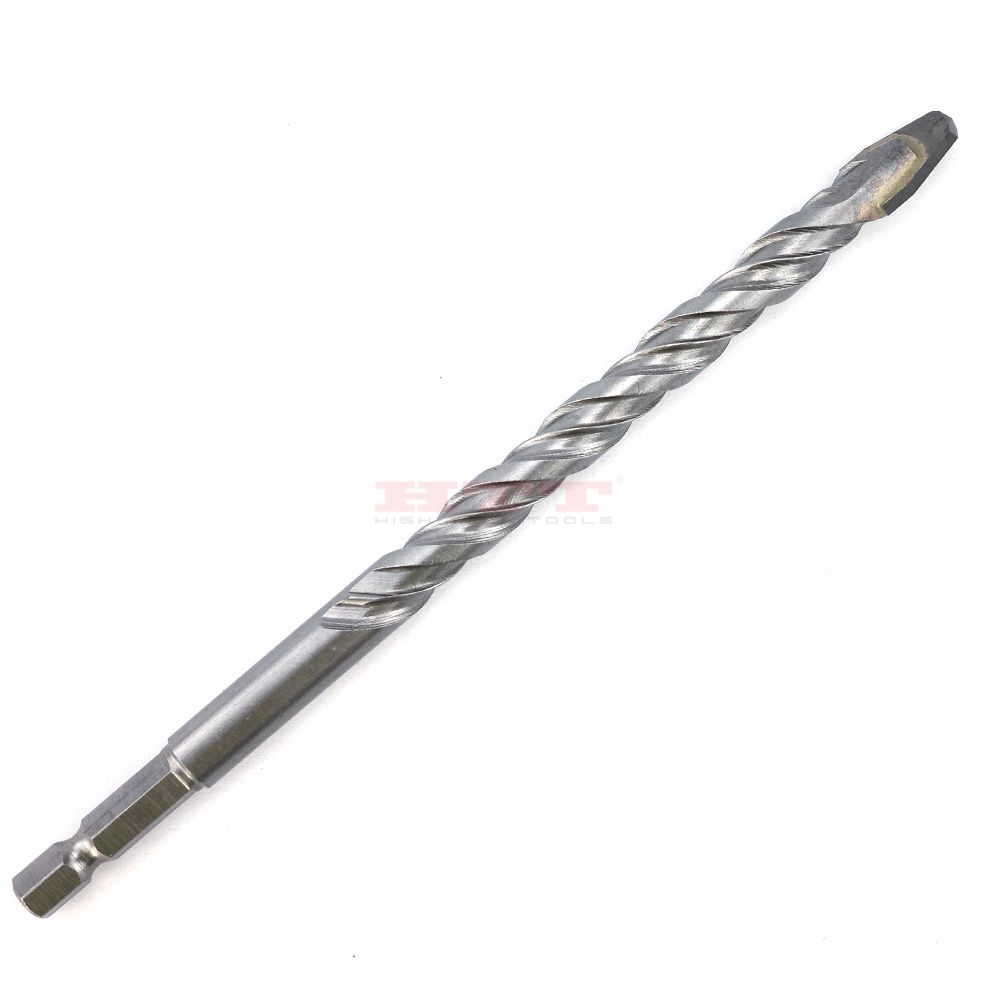

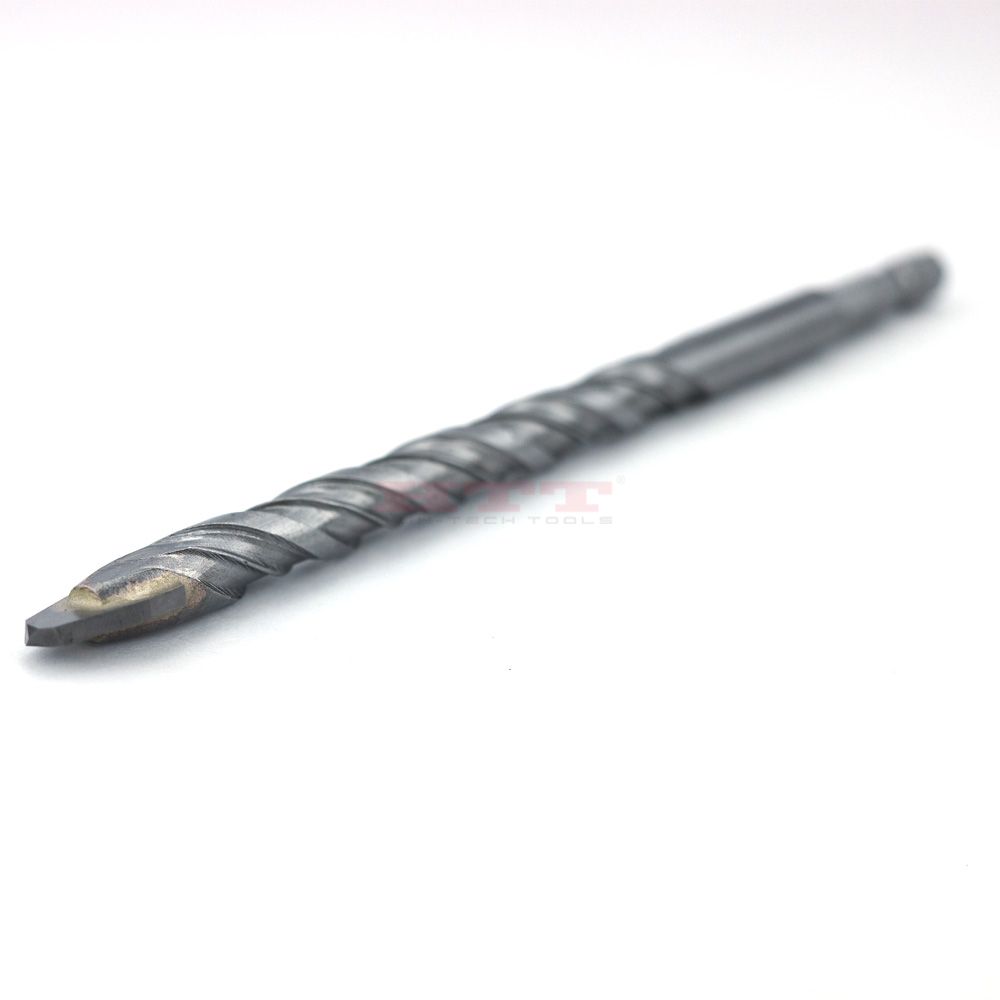

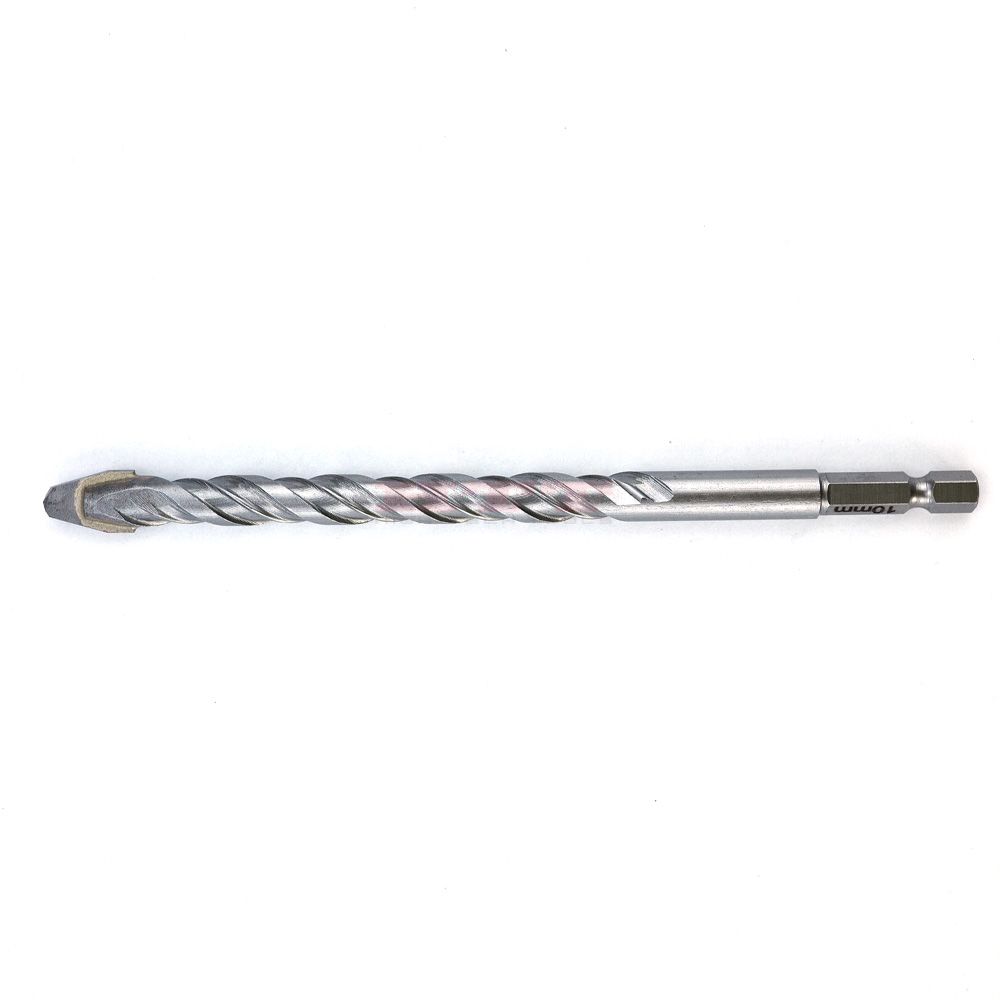

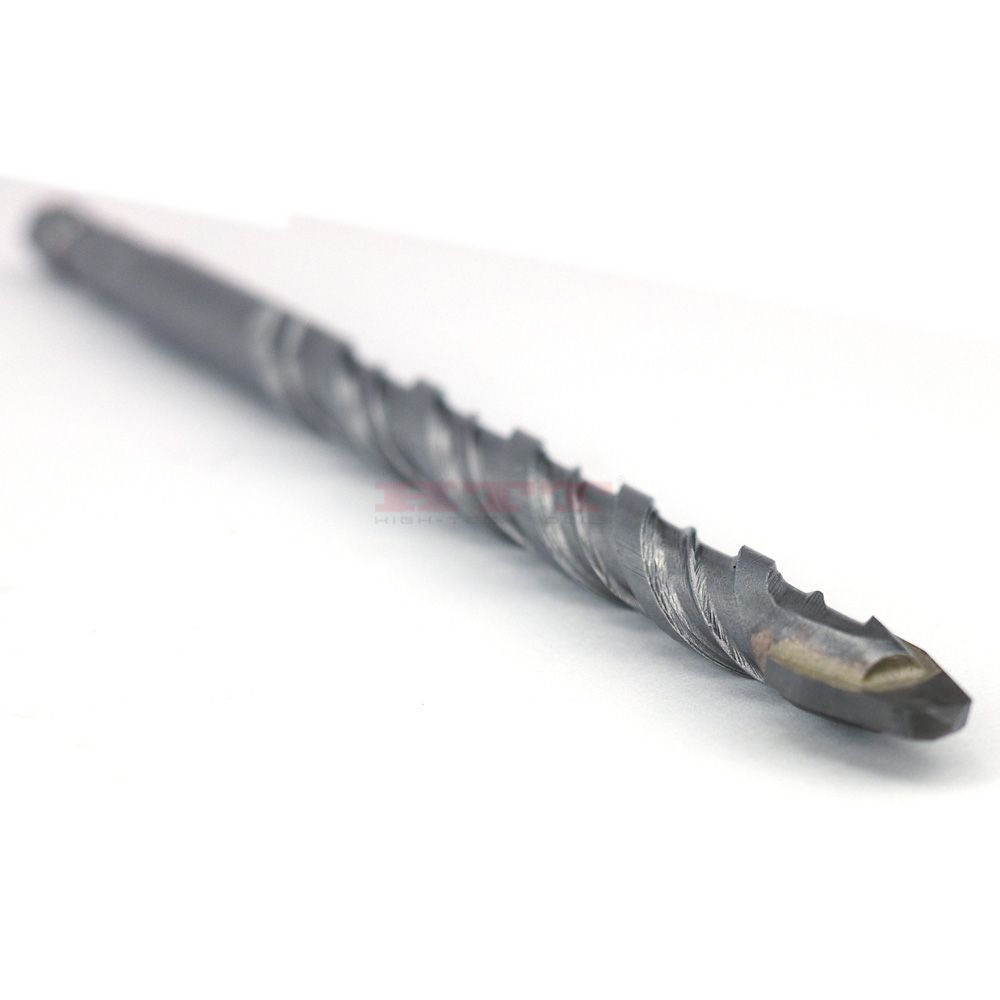

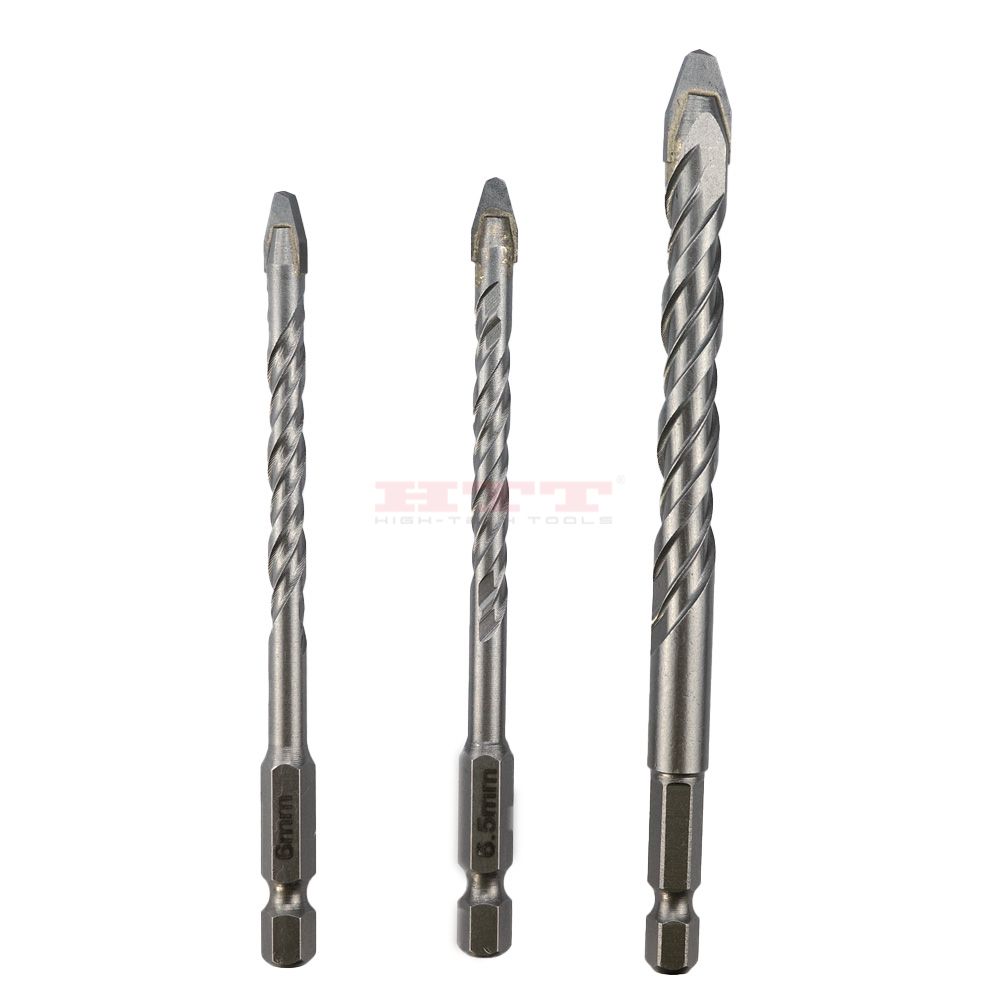

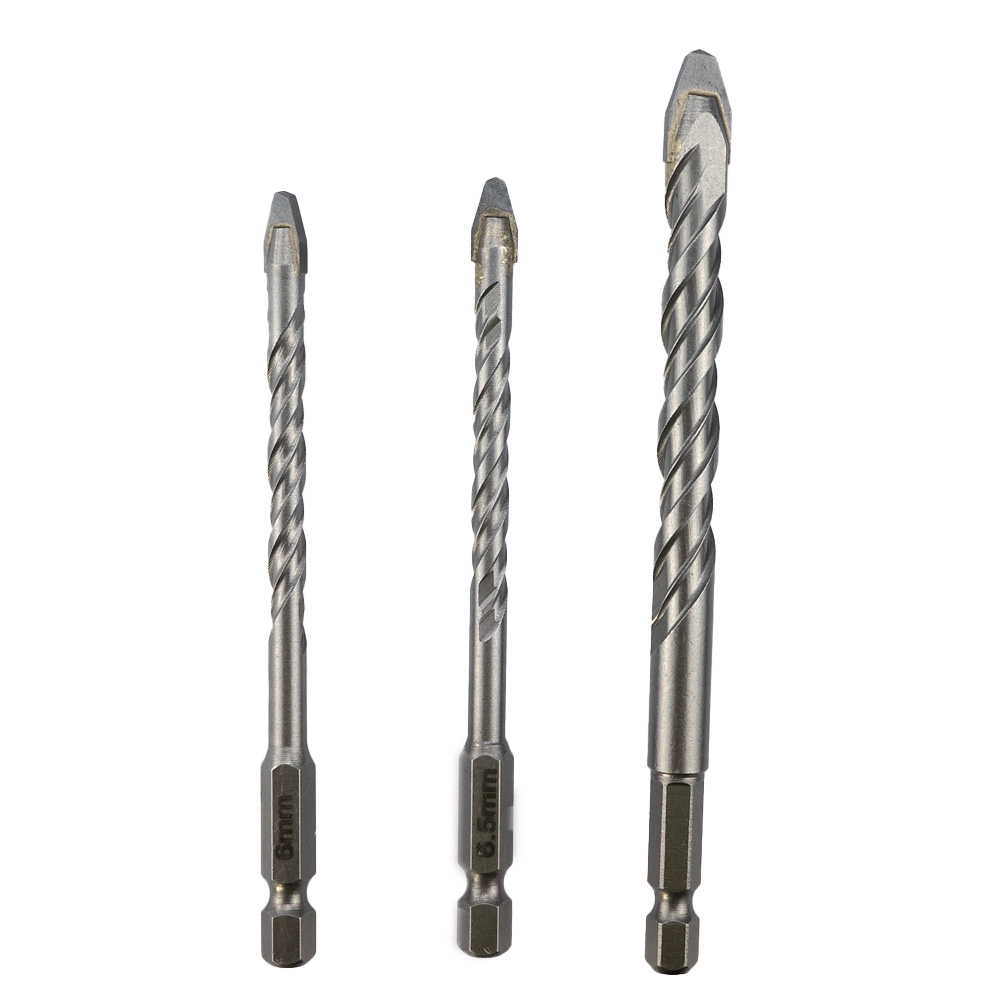

6037
HTT, OEM, 3WIN
OPP+
To cut holes in rough wood, plain, laminated-coated board, plywood, paper-base laminate, PVC, glass fibre, reinforced plastic, gas concrete, ytong stone, plaster board, clay tiles and hollow gauge brick, tiles up to scratch hardness 6.
6037
3 to 16mm
DIN6.35E
Masonry work, Metal work, Wood work
| Quantity: | |
|---|---|
Size Table:
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) | Shank Shape, Size(mm) |
| 6037.030070 | 3 | 30 | 70 | DIN6.35E |
| 6037.040075 | 4 | 35 | 75 | DIN6.35E |
| 6037.050080 | 5 | 40 | 80 | DIN6.35E |
| 6037.050150 | 5 | 100 | 150 | DIN6.35E |
| 6037.055085 | 5.5 | 45 | 85 | DIN6.35E |
| 6037.055150 | 5.5 | 100 | 150 | DIN6.35E |
| 6037.060100 | 6 | 60 | 100 | DIN6.35E |
| 6037.060150 | 6 | 100 | 150 | DIN6.35E |
| 6037.065100 | 6.5 | 60 | 100 | DIN6.35E |
| 6037.065150 | 6.5 | 100 | 150 | DIN6.35E |
| 6037.070100 | 7 | 60 | 100 | DIN6.35E |
| 6037.070150 | 7 | 100 | 150 | DIN6.35E |
| 6037.080120 | 8 | 80 | 120 | DIN6.35E |
| 6037.080150 | 8 | 100 | 150 | DIN6.35E |
| 6037.085120 | 8.5 | 80 | 120 | DIN6.35E |
| 6037.085150 | 8.5 | 100 | 150 | DIN6.35E |
| 6037.090120 | 9 | 80 | 120 | DIN6.35E |
| 6037.090150 | 9 | 100 | 150 | DIN6.35E |
| 6037.095120 | 9.5 | 80 | 120 | DIN6.35E |
| 6037.100130 | 10 | 90 | 130 | DIN6.35E |
| 6037.100150 | 10 | 100 | 150 | DIN6.35E |
| 6037.110130 | 11 | 90 | 130 | DIN6.35E |
| 6037.110150 | 11 | 100 | 150 | DIN6.35E |
| 6037.120130 | 12 | 90 | 130 | DIN6.35E |
| 6037.120150 | 12 | 100 | 150 | DIN6.35E |
| 6037.130150 | 13 | 100 | 150 | DIN6.35E |
| 6037.140150 | 14 | 100 | 150 | DIN6.35E |
| 6037.150150 | 15 | 100 | 150 | DIN6.35E |
| 6037.160150 | 16 | 100 | 150 | DIN6.35E |
