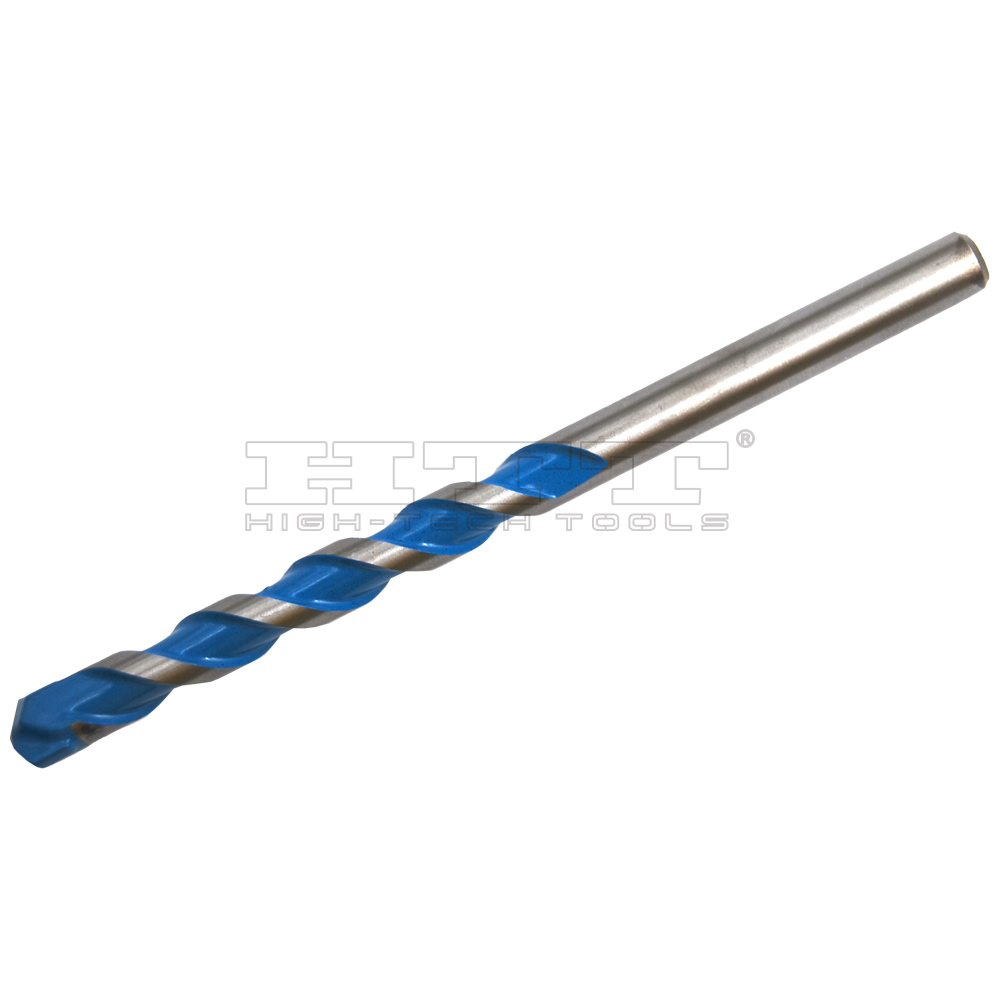

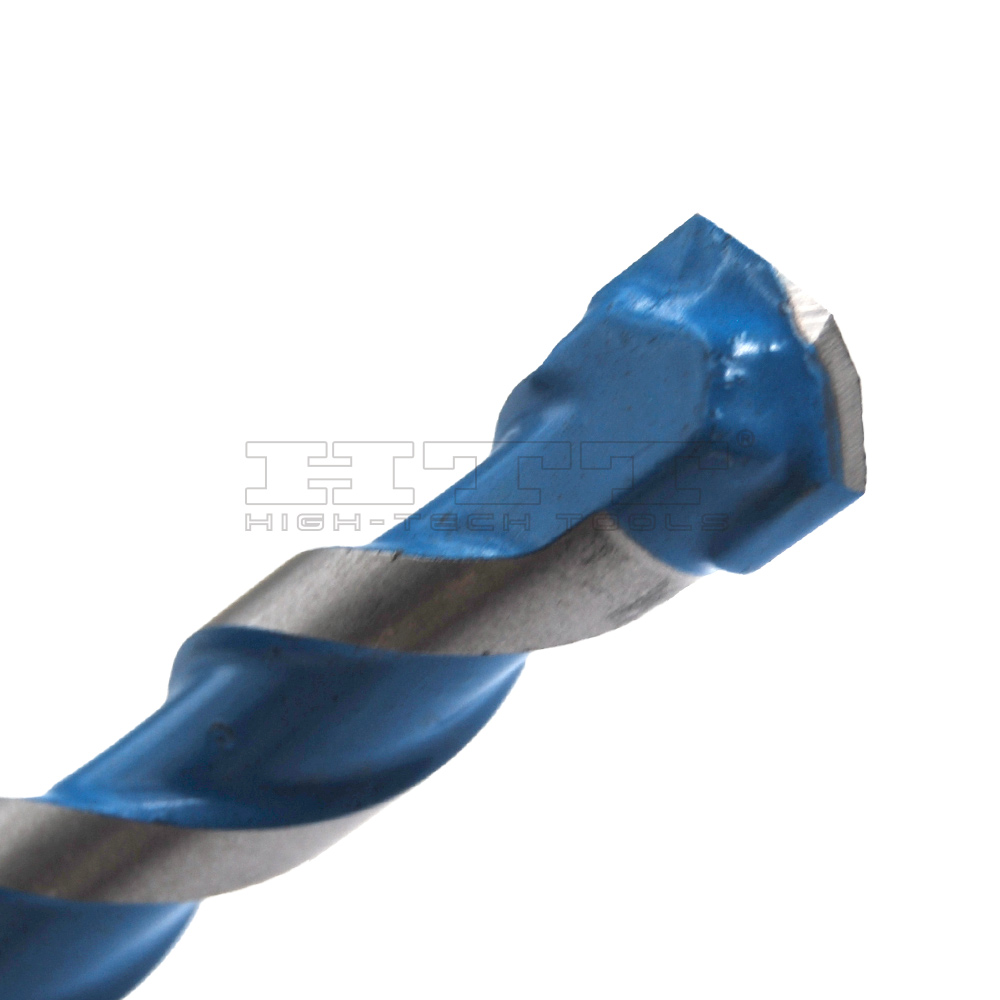

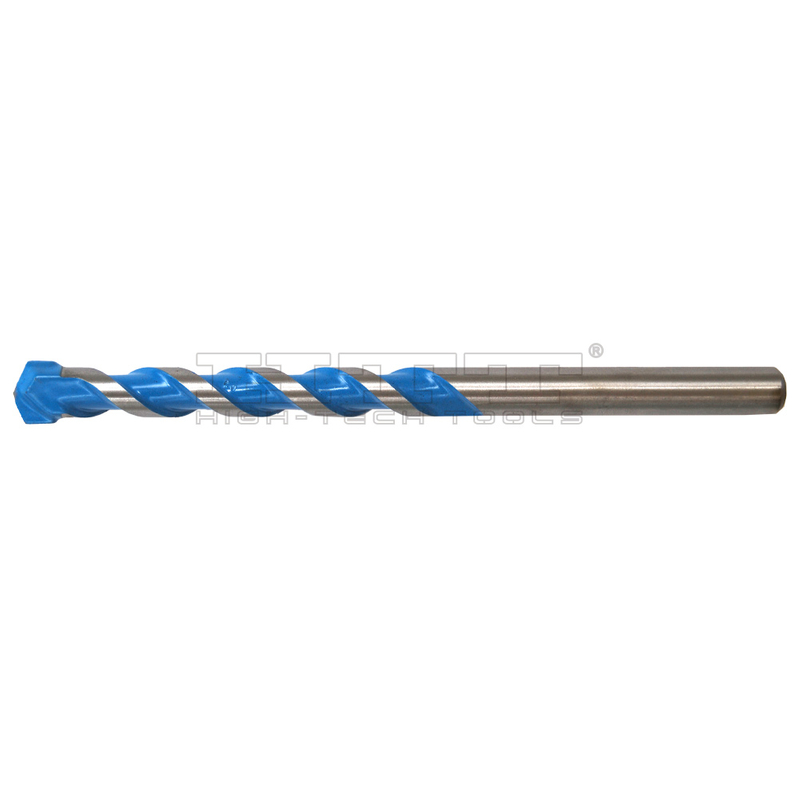

3753 Series
HTT , OEM job
HPP
To drill holes in various concrete, masonry building material wall, floor, metal sheet, iron, rough wood, chipboard, plywood, etc.
3753
3 to 14mm
Cylinder
Masonry work, Metal work, Wood work
| Quantity: | |
|---|---|
Size Table:
*Note: Diameter 14mm with reduced cylinder shank 10mm.
| Item No. | Diameter(mm) | Working Length(mm) | Overall Length(mm) | Shank Diameter(mm) |
| 3753.030060 | 3 | 30 | 60 | 2.8 |
| 3753.030070 | 3 | 40 | 70 | 2.8 |
| 3753.030075 | 3 | 45 | 75 | 2.8 |
| 3753.030085 | 3 | 45 | 152 | 2.8 |
| 3753.035060 | 3.5 | 30 | 60 | 3.1 |
| 3753.035070 | 3.5 | 40 | 70 | 3.1 |
| 3753.035075 | 3.5 | 45 | 75 | 3.1 |
| 3753.035085 | 3.5 | 45 | 152 | 3.1 |
| 3753.040070 | 4 | 40 | 70 | 3.75 |
| 3753.040075 | 4 | 45 | 75 | 3.75 |
| 3753.040085 | 4 | 50 | 105 | 3.75 |
| 3753.040150 | 4 | 110 | 152 | 3.75 |
| 3753.045070 | 4.5 | 40 | 70 | 3.75 |
| 3753.045075 | 4.5 | 45 | 75 | 3.75 |
| 3753.045085 | 4.5 | 50 | 85 | 3.75 |
| 3753.050085 | 5 | 45 | 85 | 4.5 |
| 3753.050095 | 5 | 50 | 115 | 4.5 |
| 3753.050150 | 5 | 110 | 152 | 4.5 |
| 3753.050250 | 5 | 200 | 250 | 4.5 |
| 3753.050300 | 5 | 250 | 300 | 4.5 |
| 3753.050400 | 5 | 260 | 400 | 4.5 |
| 3753.050500 | 5 | 360 | 500 | 4.5 |
| 3753.055095 | 5.5 | 50 | 95 | 5.5 |
| 3753.055150 | 5.5 | 110 | 150 | 5.5 |
| 3753.060100 | 6 | 60 | 100 | 5.5 |
| 3753.060150 | 6 | 110 | 120 | 5.5 |
| 3753.060200 | 6 | 130 | 200 | 5.5 |
| 3753.060300 | 6 | 230 | 300 | 5.5 |
| 3753.060400 | 6 | 340 | 400 | 5.5 |
| 3753.060600 | 6 | 460 | 600 | 5.5 |
| 3753.065100 | 6.5 | 60 | 120 | 6 |
| 3753.065150 | 6.5 | 110 | 152 | 6 |
| 3753.065200 | 6.5 | 130 | 200 | 6 |
| 3753.065300 | 6.5 | 230 | 300 | 6 |
| 3753.065400 | 6.5 | 340 | 400 | 6 |
| 3753.070100 | 7 | 60 | 100 | 6.5 |
| 3753.070150 | 7 | 110 | 150 | 6.5 |
| 3753.070300 | 7 | 230 | 300 | 6.5 |
| 3753.070400 | 7 | 340 | 400 | 6.5 |
| 3753.070500 | 7 | 360 | 500 | 6.5 |
| 3753.080120 | 8 | 80 | 135 | 7.6 |
| 3753.080150 | 8 | 110 | 152 | 7.6 |
| 3753.080200 | 8 | 130 | 200 | 7.6 |
| 3753.080300 | 8 | 230 | 300 | 7.6 |
| 3753.080400 | 8 | 340 | 400 | 7.6 |
| 3753.080600 | 8 | 460 | 600 | 7.6 |
| 3753.090120 | 9 | 80 | 152 | 7.6 |
| 3753.100120 | 10 | 80 | 120 | 9 |
| 3753.100150 | 10 | 110 | 152 | 9 |
| 3753.100200 | 10 | 135 | 200 | 9 |
| 3753.100300 | 10 | 230 | 300 | 9 |
| 3753.100400 | 10 | 340 | 400 | 9 |
| 3753.100600 | 10 | 460 | 600 | 9 |
| 3753.110130 | 11 | 80 | 135 | 9.98 |
| 3753.110160 | 11 | 90 | 152 | 9.98 |
| 3753.120130 | 12 | 80 | 130 | 9.98 |
| 3753.120160 | 12 | 90 | 150 | 9.98 |
| 3753.120200 | 12 | 150 | 200 | 9.98 |
| 3753.120300 | 12 | 230 | 300 | 9.98 |
| 3753.120400 | 12 | 340 | 400 | 9.98 |
| 3753.120600 | 12 | 460 | 600 | 9.98 |
| 3753.130150 | 13 | 90 | 135 | 9.98 |
| 3753.130200 | 13 | 135 | 152 | 9.98 |
| 3753.140150 | 14 | 90 | 150 | 10 |
| 3753.140200 | 14 | 135 | 200 | 10 |
| 3753.140260 | 14 | 200 | 260 | 10 |
| 3753.140300 | 14 | 230 | 300 | 10 |
| 3753.140400 | 14 | 340 | 400 | 10 |
| 3753.140600 | 14 | 460 | 600 | 10 |
