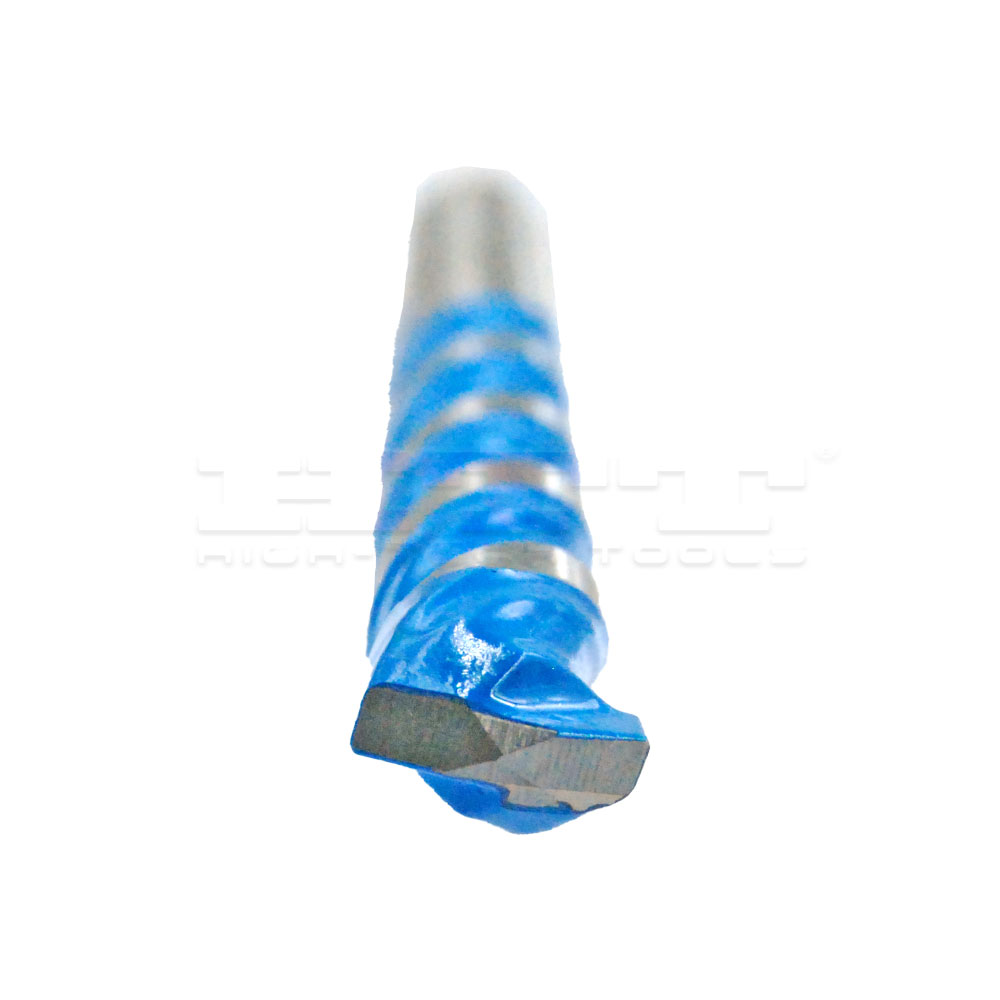

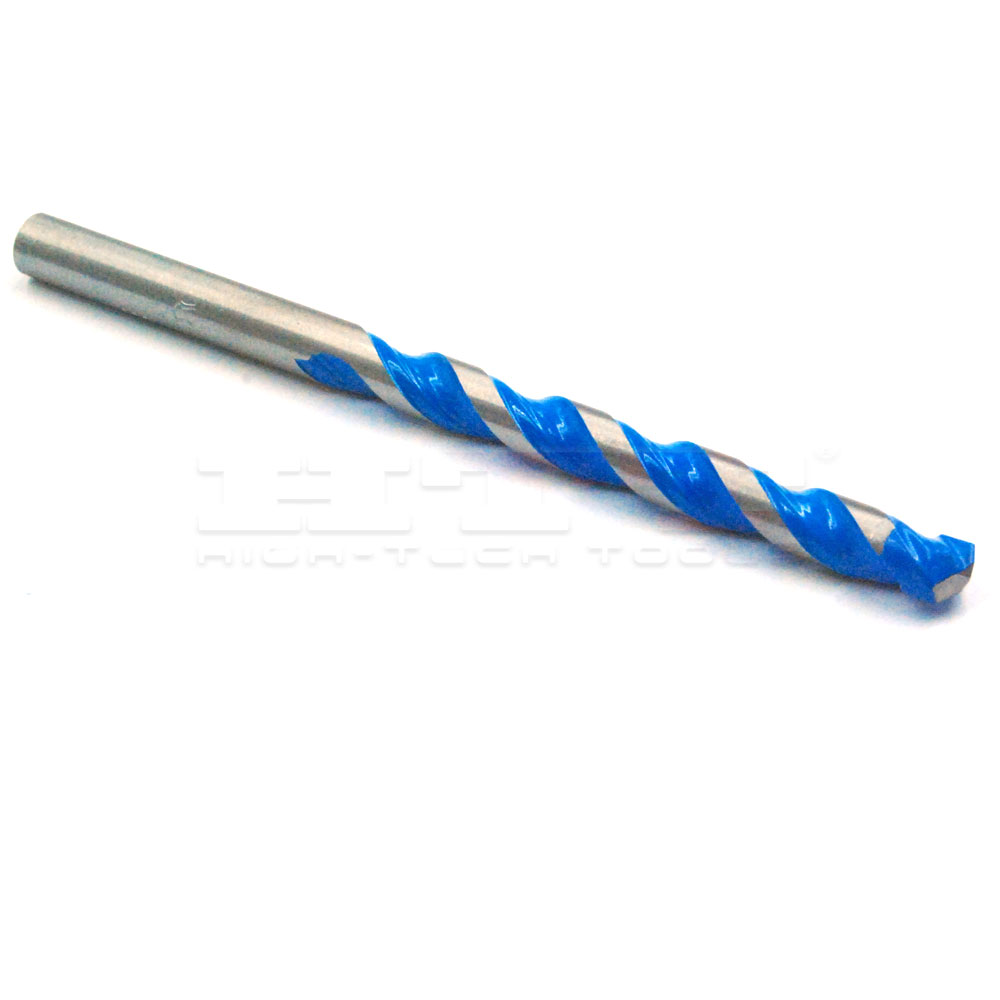

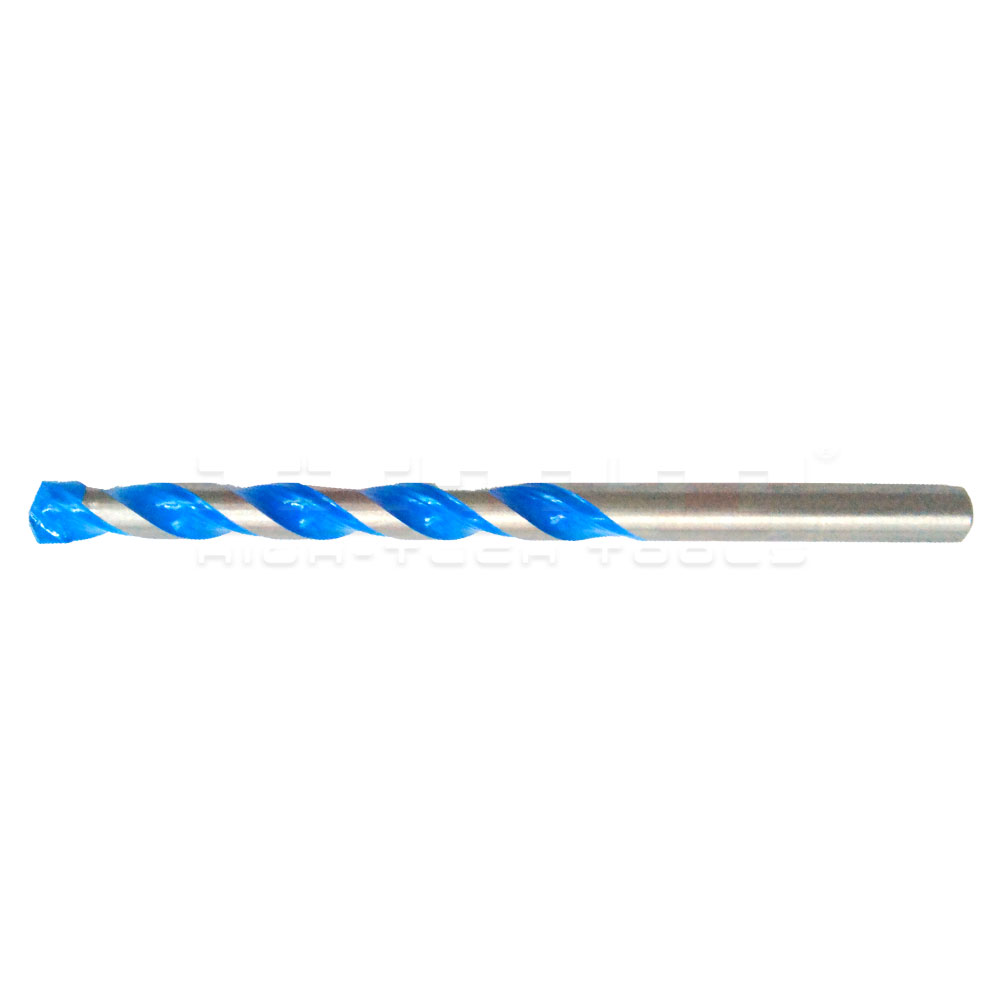

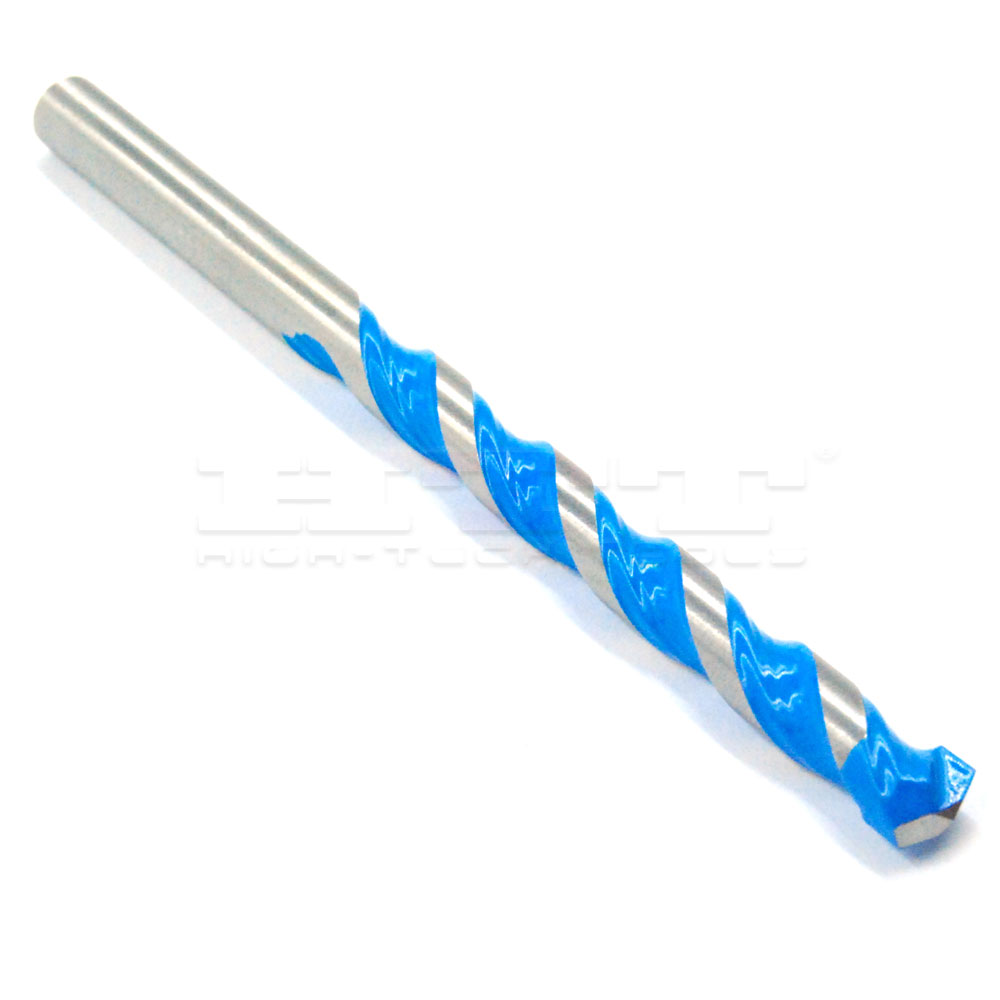

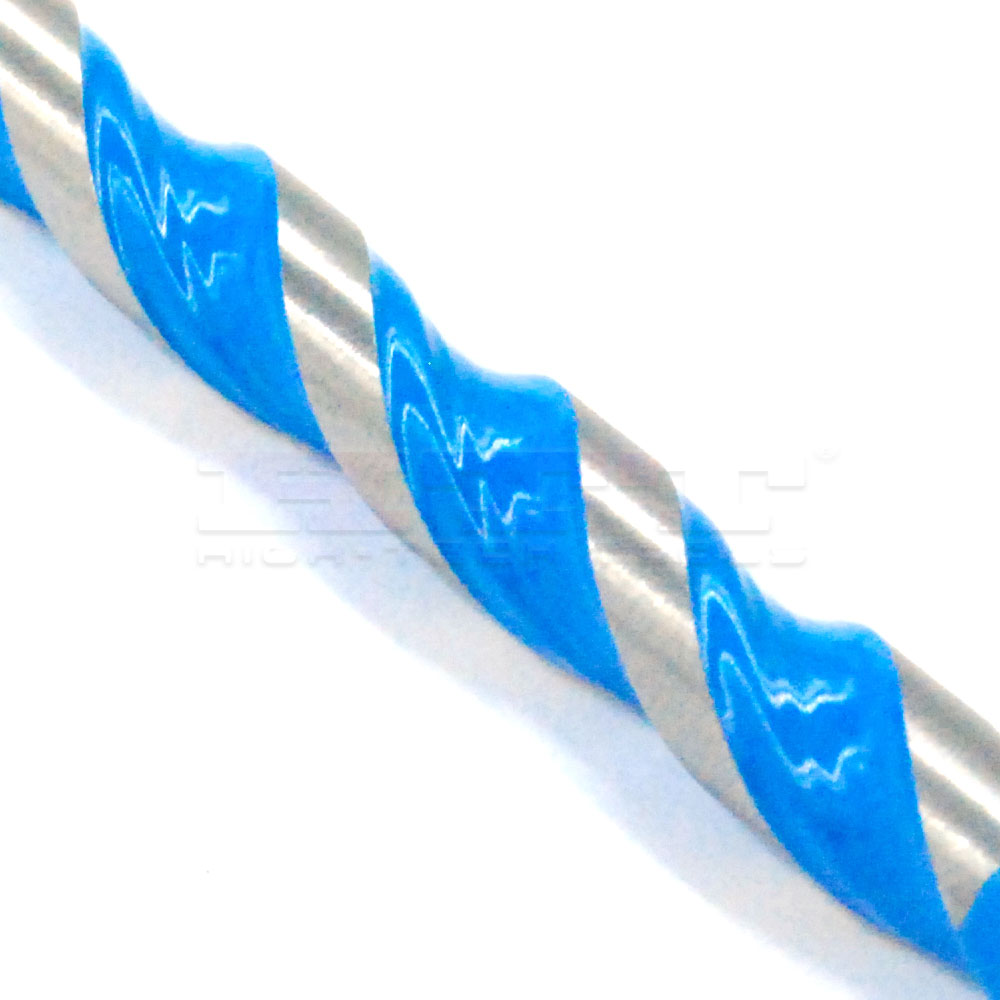

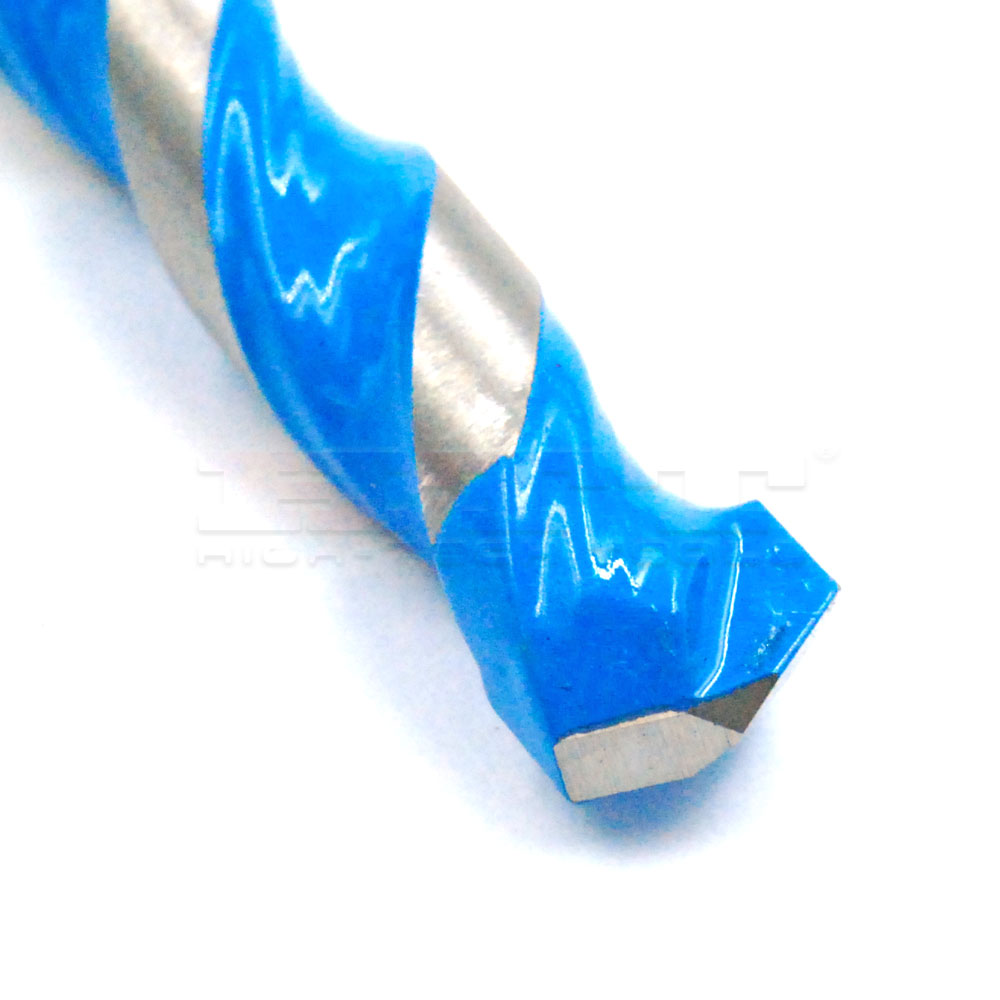

3772 Series
HTT, OEM job
HPP
To drill holes in various concrete, masonry building material wall, floor tile, wood, chipboard, steel sheet, non-ferrous materialsetc.
3772
3mm to 16mm
Cylinder
Masonry work, Metal work, Wood work
| Quantity: | |
|---|---|
Size Table:
*
Download Data 3772 Series.pdf
| Item Number | Diameter（mm） | Working Length（mm） | Overall Length（mm） | Shank Diameter（mm） |
| 3772.030060 | 3 | 30 | 60 | 2.8 |
| 3772.030070 | 3 | 35 | 70 | 2.8 |
| 3772.030085 | 3 | 45 | 85 | 2.8 |
| 3772.030100 | 3 | 60 | 100 | 2.8 |
| 3772.035060 | 3.5 | 30 | 60 | 2.8 |
| 3772.035070 | 3.5 | 35 | 70 | 2.8 |
| 3772.035085 | 3.5 | 45 | 85 | 2.8 |
| 3772.040075 | 4 | 35 | 75 | 3.75 |
| 3772.040085 | 4 | 45 | 85 | 3.75 |
| 3772.040090 | 4 | 50 | 90 | 3.75 |
| 3772.040150 | 4 | 110 | 150 | 3.75 |
| 3772.045085 | 4.5 | 45 | 85 | 3.75 |
| 3772.045090 | 4.5 | 50 | 90 | 3.75 |
| 3772.045150 | 4.5 | 110 | 150 | 3.75 |
| 3772.050085 | 5 | 45 | 85 | 4.5 |
| 3772.050090 | 5 | 45 | 90 | 4.5 |
| 3772.050095 | 5 | 50 | 95 | 4.5 |
| 3772.050100 | 5 | 60 | 100 | 4.5 |
| 3772.050150 | 5 | 110 | 150 | 4.5 |
| 3772.050250 | 5 | 200 | 250 | 4.5 |
| 3772.050300 | 5 | 250 | 300 | 4.5 |
| 3772.050400 | 5 | 260 | 400 | 4.5 |
| 3772.050500 | 5 | 360 | 500 | 4.5 |
| 3772.055085 | 5.5 | 45 | 85 | 5.5 |
| 3772.055095 | 5.5 | 50 | 95 | 5.5 |
| 3772.055100 | 5.5 | 60 | 100 | 5.5 |
| 3772.055150 | 5.5 | 110 | 150 | 5.5 |
| 3772.060100 | 6 | 60 | 100 | 5.5 |
| 3772.060115 | 6 | 70 | 115 | 5.5 |
| 3772.060150 | 6 | 110 | 150 | 5.5 |
| 3772.060200 | 6 | 130 | 200 | 5.5 |
| 3772.060250 | 6 | 180 | 250 | 5.5 |
| 3772.060260 | 6 | 190 | 260 | 5.5 |
| 3772.060300 | 6 | 230 | 300 | 5.5 |
| 3772.060400 | 6 | 340 | 400 | 5.5 |
| 3772.060600 | 6 | 460 | 600 | 5.5 |
| 3772.065100 | 6.5 | 60 | 100 | 6 |
| 3772.065115 | 6.5 | 70 | 115 | 6 |
| 3772.065150 | 6.5 | 110 | 150 | 6 |
| 3772.065200 | 6.5 | 130 | 200 | 6 |
| 3772.065260 | 6.5 | 190 | 260 | 6 |
| 3772.065300 | 6.5 | 230 | 300 | 6 |
| 3772.065400 | 6.5 | 340 | 400 | 6 |
| 3772.070100 | 7 | 60 | 100 | 6.5 |
| 3772.070115 | 7 | 70 | 115 | 6.5 |
| 3772.070120 | 7 | 80 | 120 | 6.5 |
| 3772.070150 | 7 | 110 | 150 | 6.5 |
| 3772.070300 | 7 | 230 | 300 | 6.5 |
| 3772.070400 | 7 | 340 | 400 | 6.5 |
| 3772.070500 | 7 | 360 | 500 | 6.5 |
| 3772.080120 | 8 | 80 | 120 | 7.6 |
| 3772.080150 | 8 | 110 | 150 | 7.6 |
| 3772.080200 | 8 | 130 | 200 | 7.6 |
| 3772.080250 | 8 | 180 | 250 | 7.6 |
| 3772.080260 | 8 | 190 | 260 | 7.6 |
| 3772.080300 | 8 | 230 | 300 | 7.6 |
| 3772.080400 | 8 | 340 | 400 | 7.6 |
| 3772.080600 | 8 | 460 | 600 | 7.6 |
| 3772.090120 | 9 | 80 | 120 | 7.6 |
| 3772.090150 | 9 | 110 | 150 | 7.6 |
| 3772.095120 | 9.5 | 80 | 120 | 7.6 |
| 3772.095150 | 9.5 | 110 | 150 | 7.6 |
| 3772.100120 | 10 | 80 | 120 | 9 |
| 3772.100150 | 10 | 110 | 150 | 9 |
| 3772.100200 | 10 | 135 | 200 | 9 |
| 3772.100250 | 10 | 180 | 250 | 9 |
| 3772.100260 | 10 | 190 | 260 | 9 |
| 3772.100300 | 10 | 230 | 300 | 9 |
| 3772.100400 | 10 | 340 | 400 | 9 |
| 3772.100600 | 10 | 460 | 600 | 9 |
| 3772.110120 | 11 | 80 | 120 | 9 |
| 3772.110150 | 11 | 110 | 150 | 9 |
| 3772.120130 | 12 | 80 | 130 | 9.98 |
| 3772.120150 | 12 | 90 | 150 | 9.98 |
| 3772.120200 | 12 | 150 | 200 | 9.98 |
| 3772.120250 | 12 | 180 | 250 | 9.98 |
| 3772.120260 | 12 | 190 | 260 | 9.98 |
| 3772.120300 | 12 | 230 | 300 | 9.98 |
| 3772.120400 | 12 | 340 | 400 | 9.98 |
| 3772.120600 | 12 | 460 | 600 | 9.98 |
| 3772.130130 | 13 | 80 | 130 | 9.98 |
| 3772.130160 | 13 | 90 | 150 | 9.98 |
| 3772.140150 | 14 | 90 | 150 | reduced 10 |
| 3772.140200 | 14 | 135 | 200 | reduced 10 |
| 3772.140250 | 14 | 190 | 250 | reduced 10 |
| 3772.140260 | 14 | 200 | 260 | reduced 10 |
| 3772.140300 | 14 | 230 | 300 | 10 |
| 3772.140400 | 14 | 340 | 400 | 10 |
| 3772.140600 | 14 | 460 | 600 | 10 |
| 3772.160150 | 16 | 90 | 150 | 10 |
| 3772.160200 | 16 | 135 | 200 | 10 |
| 3772.160250 | 16 | 200 | 260 | 10 |
| 3772.160300 | 16 | 230 | 300 | 10 |
| 3772.160400 | 16 | 340 | 400 | 10 |
| 3772.160600 | 16 | 460 | 600 | 10 |
