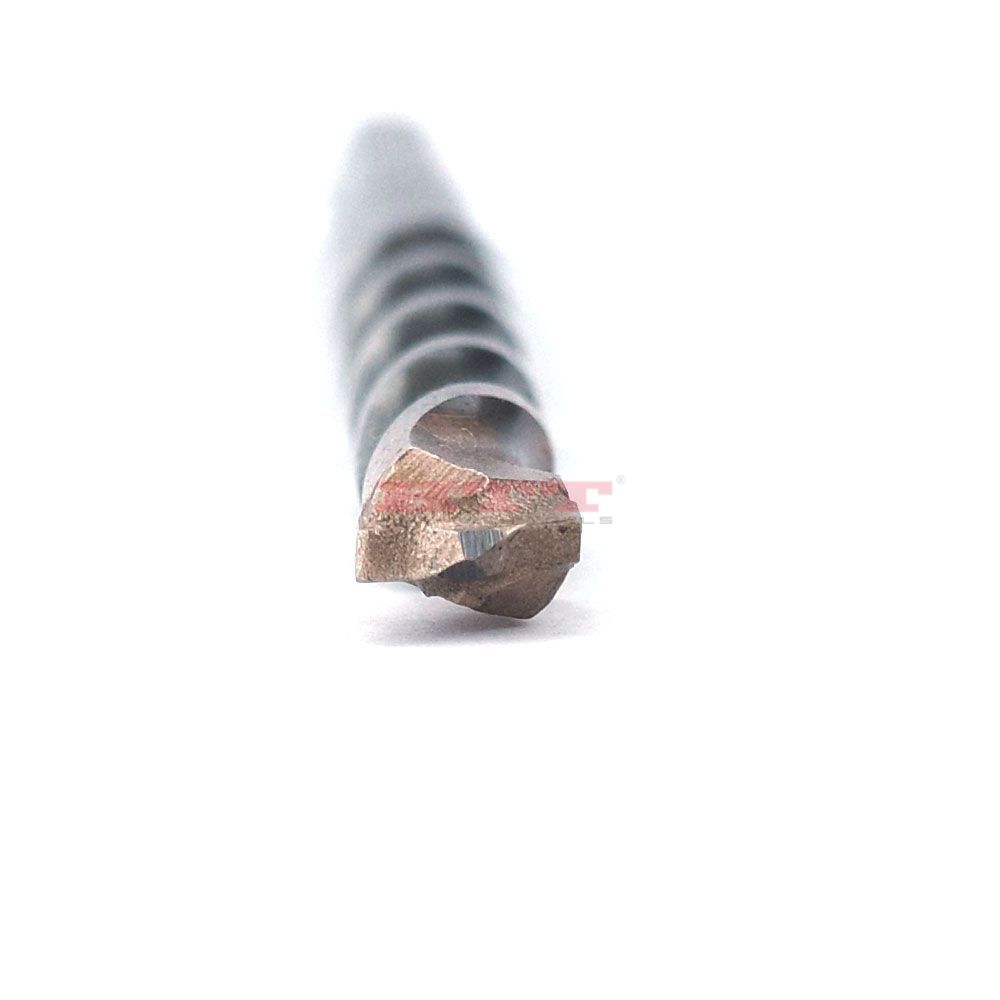

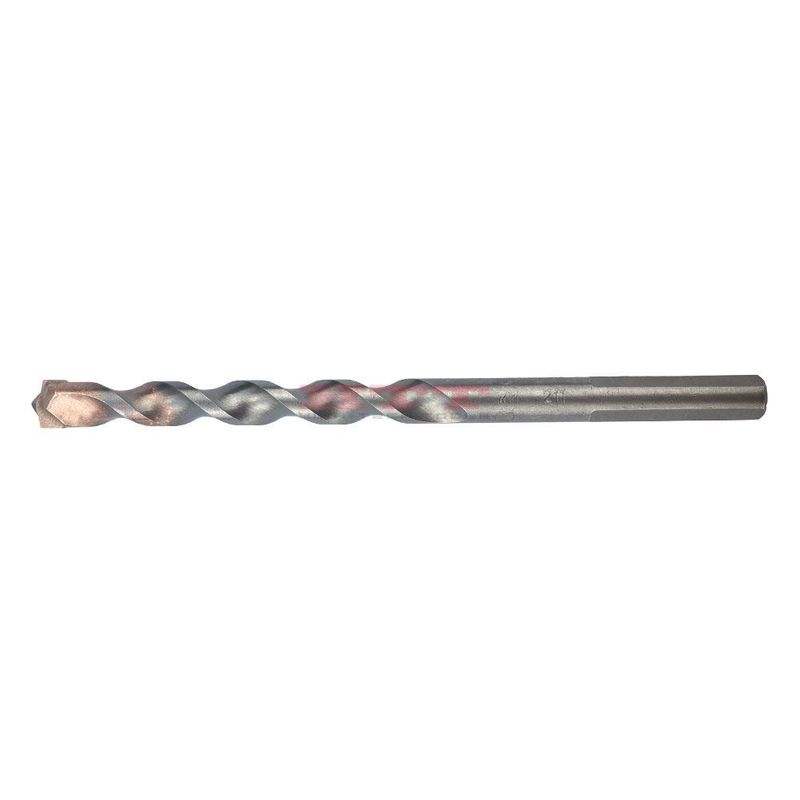

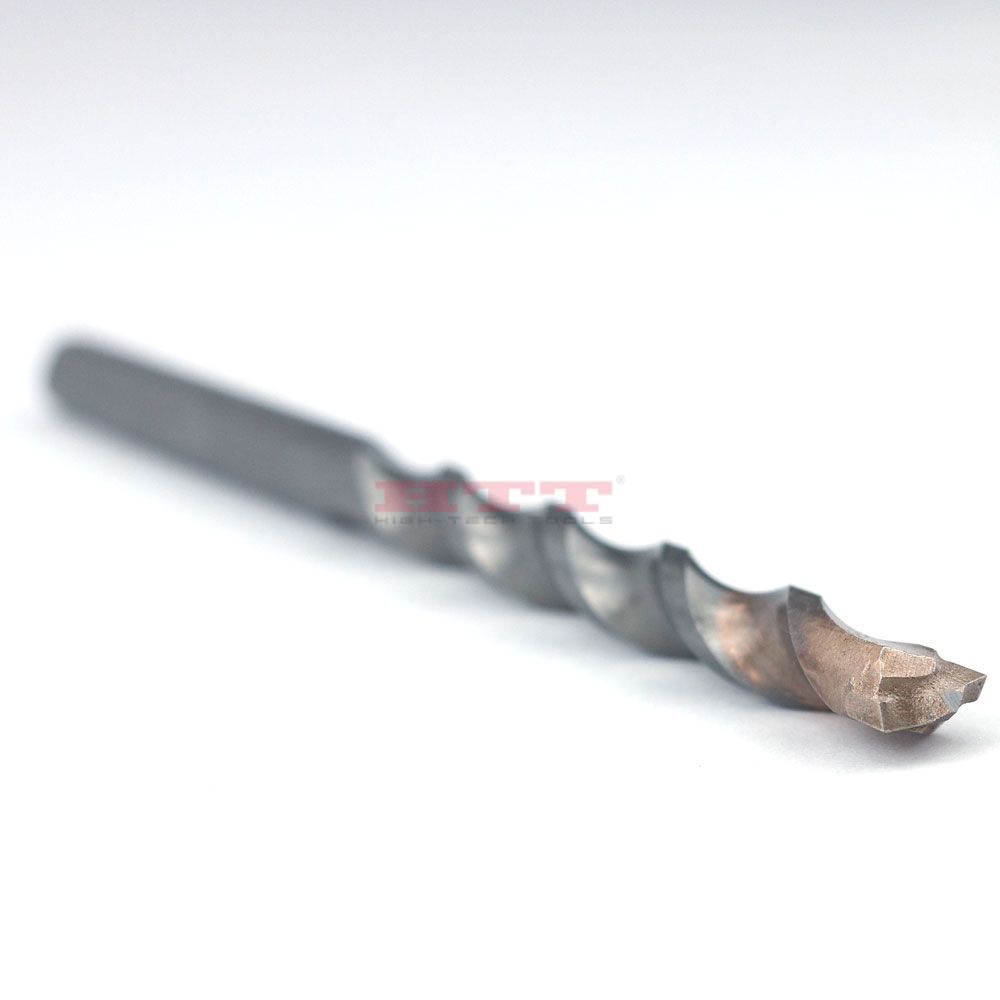

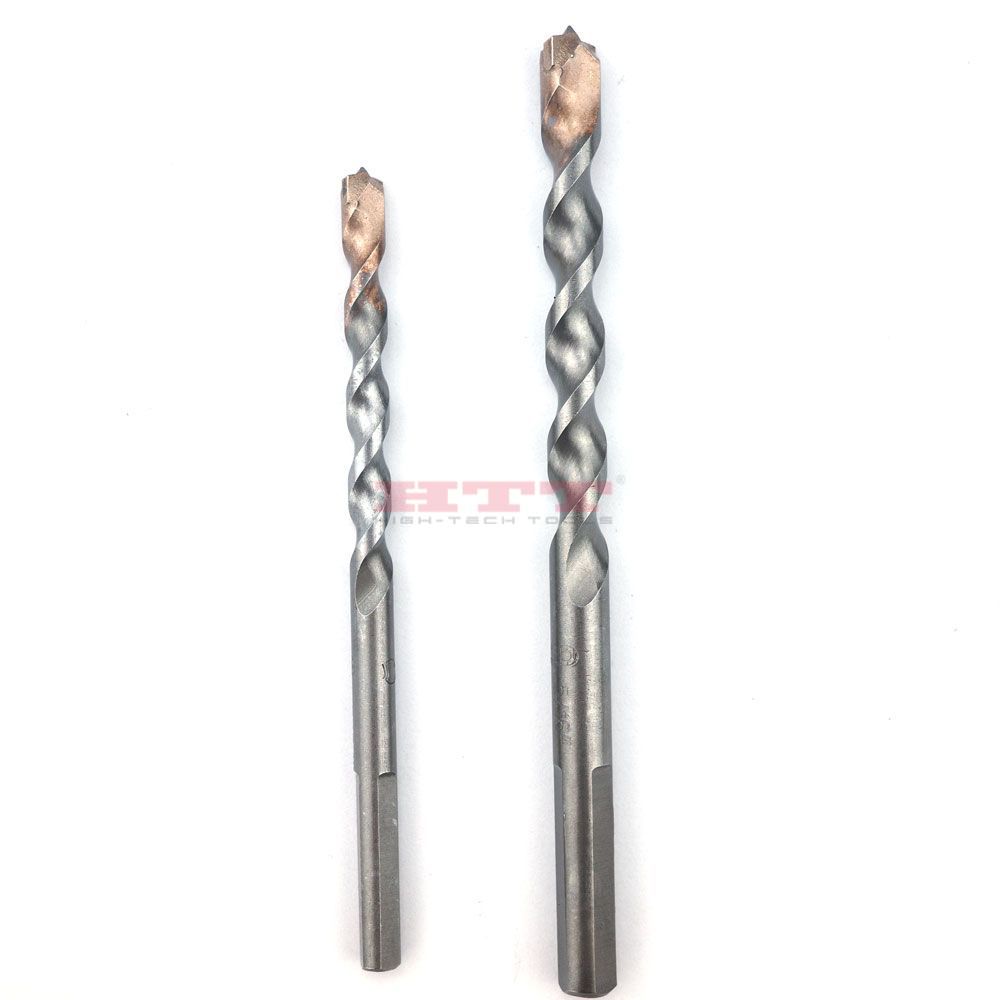

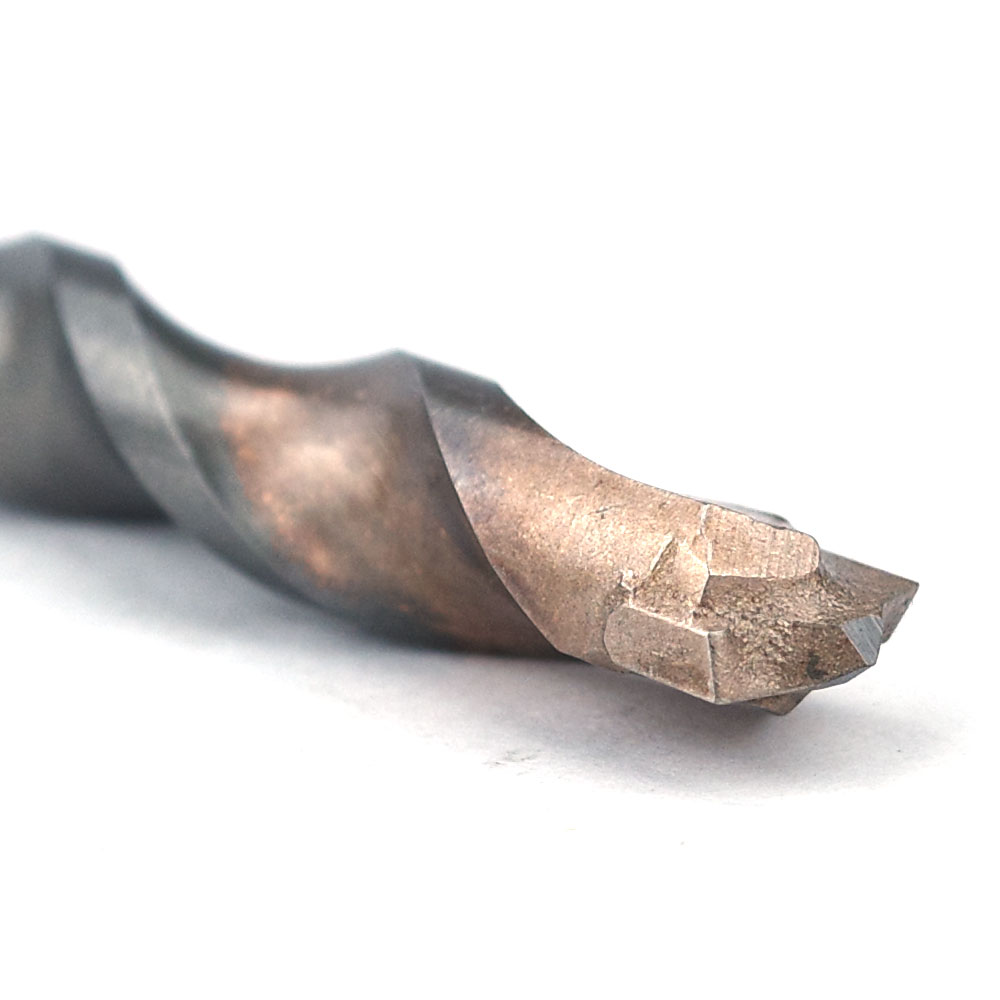

3307 Series
HTT, OEM job
HPP
To drill holes in various concrete, masonry building material stone, granit, etc.
3307
4 to 20mm
Tri-flat
Masonry work
| Quantity: | |
|---|---|
Size Table:
*Note:
4mm to 5.5mm ones with cylinder shank
6mm to 12mm ones with tri-flat shank
13mm to 20mm ones with reduced tri-flat shank.
| Item No. | Diameter(mm) | Working Length(mm) | Overall Length(mm) | Shank Diameter(mm) |
| 3307.040085 | 4 | 45 | 85 | 3.75 |
| 3307.040150 | 4 | 110 | 150 | 3.75 |
| 3307.050095 | 5 | 50 | 95 | 4.5 |
| 3307.050150 | 5 | 110 | 150 | 4.5 |
| 3307.050250 | 5 | 200 | 250 | 4.5 |
| 3307.050300 | 5 | 250 | 300 | 4.5 |
| 3307.050400 | 5 | 260 | 400 | 4.5 |
| 3307.050500 | 5 | 360 | 500 | 4.5 |
| 3307.055095 | 5.5 | 50 | 95 | 5.5 |
| 3307.055150 | 5.5 | 110 | 150 | 5.5 |
| 3307.060100 | 6 | 60 | 100 | 5.5 |
| 3307.060150 | 6 | 110 | 150 | 5.5 |
| 3307.060200 | 6 | 130 | 200 | 5.5 |
| 3307.060300 | 6 | 230 | 300 | 5.5 |
| 3307.060400 | 6 | 340 | 400 | 5.5 |
| 3307.060600 | 6 | 460 | 600 | 5.5 |
| 3307.065100 | 6.5 | 60 | 100 | 6 |
| 3307.065150 | 6.5 | 110 | 150 | 6 |
| 3307.065200 | 6.5 | 130 | 200 | 6 |
| 3307.065300 | 6.5 | 230 | 300 | 6 |
| 3307.065400 | 6.5 | 340 | 400 | 6 |
| 3307.070100 | 7 | 60 | 100 | 6.5 |
| 3307.070150 | 7 | 110 | 150 | 6.5 |
| 3307.070300 | 7 | 230 | 300 | 6.5 |
| 3307.070400 | 7 | 340 | 400 | 6.5 |
| 3307.070500 | 7 | 360 | 500 | 6.5 |
| 3307.080120 | 8 | 80 | 120 | 7.6 |
| 3307.080150 | 8 | 110 | 150 | 7.6 |
| 3307.080200 | 8 | 130 | 200 | 7.6 |
| 3307.080300 | 8 | 230 | 300 | 7.6 |
| 3307.080400 | 8 | 340 | 400 | 7.6 |
| 3307.080600 | 8 | 460 | 600 | 7.6 |
| 3307.090120 | 9 | 80 | 120 | 7.6 |
| 3307.100120 | 10 | 80 | 120 | 9 |
| 3307.100150 | 10 | 110 | 150 | 9 |
| 3307.100200 | 10 | 135 | 200 | 9 |
| 3307.100300 | 10 | 230 | 300 | 9 |
| 3307.100400 | 10 | 340 | 400 | 9 |
| 3307.100600 | 10 | 460 | 600 | 9 |
| 3307.120130 | 12 | 80 | 130 | 9.98 |
| 3307.120160 | 12 | 90 | 150 | 9.98 |
| 3307.120200 | 12 | 150 | 200 | 9.98 |
| 3307.120300 | 12 | 230 | 300 | 9.98 |
| 3307.120400 | 12 | 340 | 400 | 9.98 |
| 3307.120600 | 12 | 460 | 600 | 9.98 |
| 3307.130150 | 13 | 90 | 150 | 10 |
| 3307.130400 | 13 | 340 | 400 | 10 |
| 3307.140150 | 14 | 90 | 150 | 10 |
| 3307.140200 | 14 | 135 | 200 | 10 |
| 3307.140260 | 14 | 200 | 260 | 10 |
| 3307.140300 | 14 | 230 | 300 | 10 |
| 3307.140400 | 14 | 340 | 400 | 10 |
| 3307.140600 | 14 | 460 | 600 | 10 |
| 3307.160150 | 16 | 90 | 150 | 10 |
| 3307.160200 | 16 | 135 | 200 | 10 |
| 3307.160250 | 16 | 200 | 260 | 10 |
| 3307.160300 | 16 | 230 | 300 | 10 |
| 3307.160400 | 16 | 340 | 400 | 10 |
| 3307.160600 | 16 | 460 | 600 | 10 |
| 3307.180160 | 18 | 100 | 160 | 10 |
| 3307.180200 | 18 | 135 | 200 | 10 |
| 3307.180300 | 18 | 230 | 300 | 10 |
| 3307.180400 | 18 | 340 | 400 | 10 |
| 3307.180600 | 18 | 460 | 600 | 10 |
| 3307.200160 | 20 | 100 | 160 | 10 |
| 3307.200200 | 20 | 135 | 200 | 10 |
| 3307.200260 | 20 | 200 | 260 | 10 |
| 3307.200300 | 20 | 230 | 300 | 10 |
| 3307.200400 | 20 | 340 | 400 | 10 |
| 3307.200600 | 20 | 460 | 600 | 10 |
