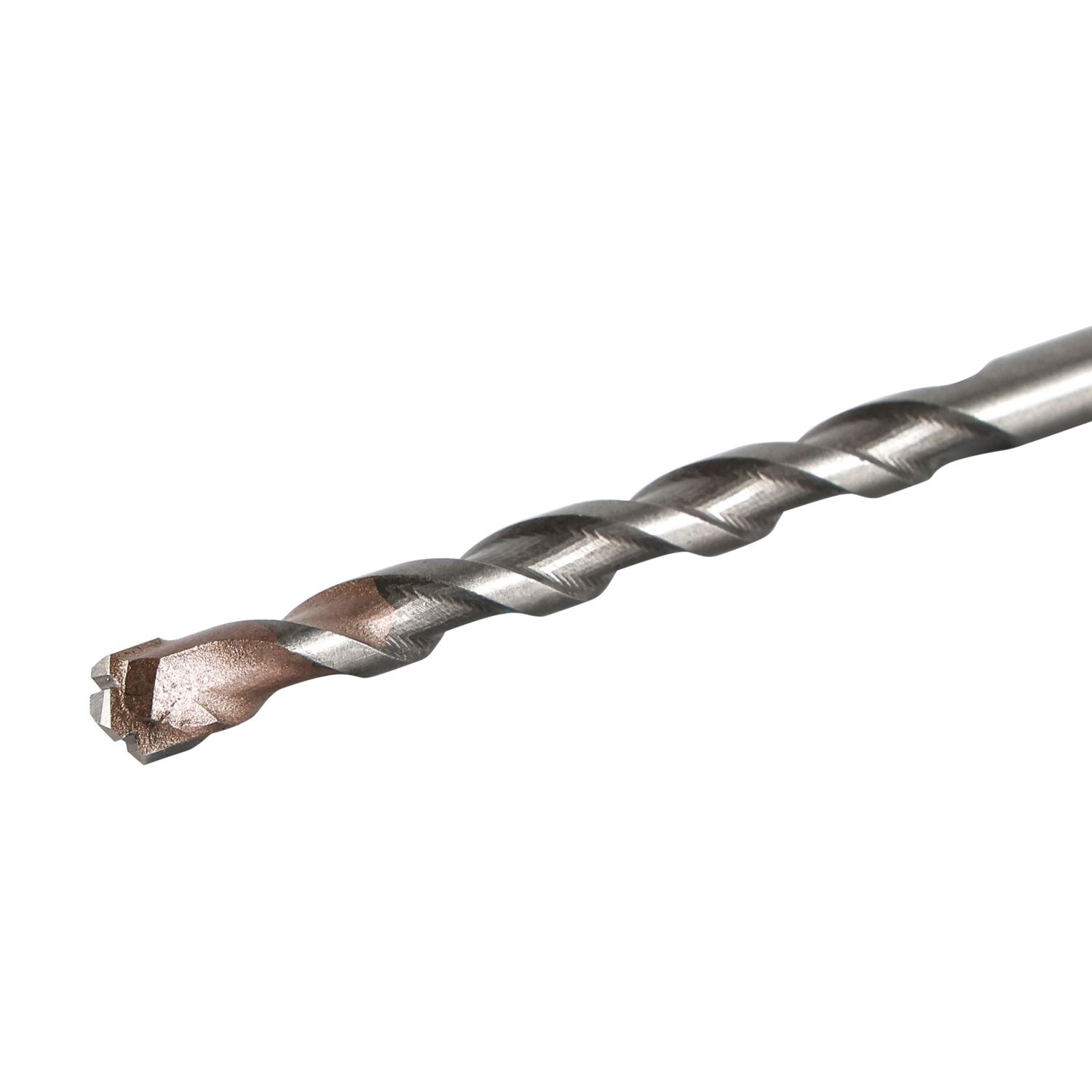

3773 Series
HTT , OEM job
MPP+
To drill holes in various tile, ceramic, porcelain, brick, plastic, wood, granite, marble, masonry building material wall, floor, metal sheet, iron, rough wood, chipboard, plywood, etc.
3773
3 to 14mm
Cylinder
Masonry work Metal work Wood work
| Quantity: | |
|---|---|
Size Table:
*Note: Diameter 14mm with reduced cylinder shank 10mm.
*
Download Data Sheet 3773 series.pdf
| Item No. | Diameter(mm) | Working Length(mm) | Overall Length(mm) | Shank Diameter(mm) |
| 3773.040070 | 4 | 40 | 70 | 3.75 |
| 3773.040075 | 4 | 45 | 75 | 3.75 |
| 3773.040085 | 4 | 50 | 105 | 3.75 |
| 3773.040150 | 4 | 110 | 152 | 3.75 |
| 3773.045070 | 4.5 | 40 | 70 | 3.75 |
| 3773.045075 | 4.5 | 45 | 75 | 3.75 |
| 3773.045085 | 4.5 | 50 | 85 | 3.75 |
| 3773.050085 | 5 | 45 | 85 | 4.5 |
| 3773.050095 | 5 | 50 | 115 | 4.5 |
| 3773.050150 | 5 | 110 | 152 | 4.5 |
| 3773.055095 | 5.5 | 50 | 95 | 5.5 |
| 3773.055150 | 5.5 | 110 | 150 | 5.5 |
| 3773.060100 | 6 | 60 | 100 | 5.5 |
| 3773.060150 | 6 | 110 | 120 | 5.5 |
| 3773.065100 | 6.5 | 60 | 120 | 6 |
| 3773.065150 | 6.5 | 110 | 152 | 6 |
| 3773.070100 | 7 | 60 | 100 | 6.5 |
| 3773.070150 | 7 | 110 | 150 | 6.5 |
| 3773.080120 | 8 | 80 | 135 | 7.6 |
| 3773.080150 | 8 | 110 | 152 | 7.6 |
| 3773.090120 | 9 | 80 | 152 | 7.6 |
| 3773.100120 | 10 | 80 | 120 | 9 |
| 3773.100150 | 10 | 110 | 152 | 9 |
| 3773.110130 | 11 | 80 | 135 | 9.98 |
| 3773.110160 | 11 | 90 | 152 | 9.98 |
| 3773.120130 | 12 | 80 | 130 | 9.98 |
| 3773.120160 | 12 | 90 | 150 | 9.98 |
| 3773.130150 | 13 | 90 | 135 | 9.98 |
| 3773.140150 | 14 | 90 | 150 | 10 |
