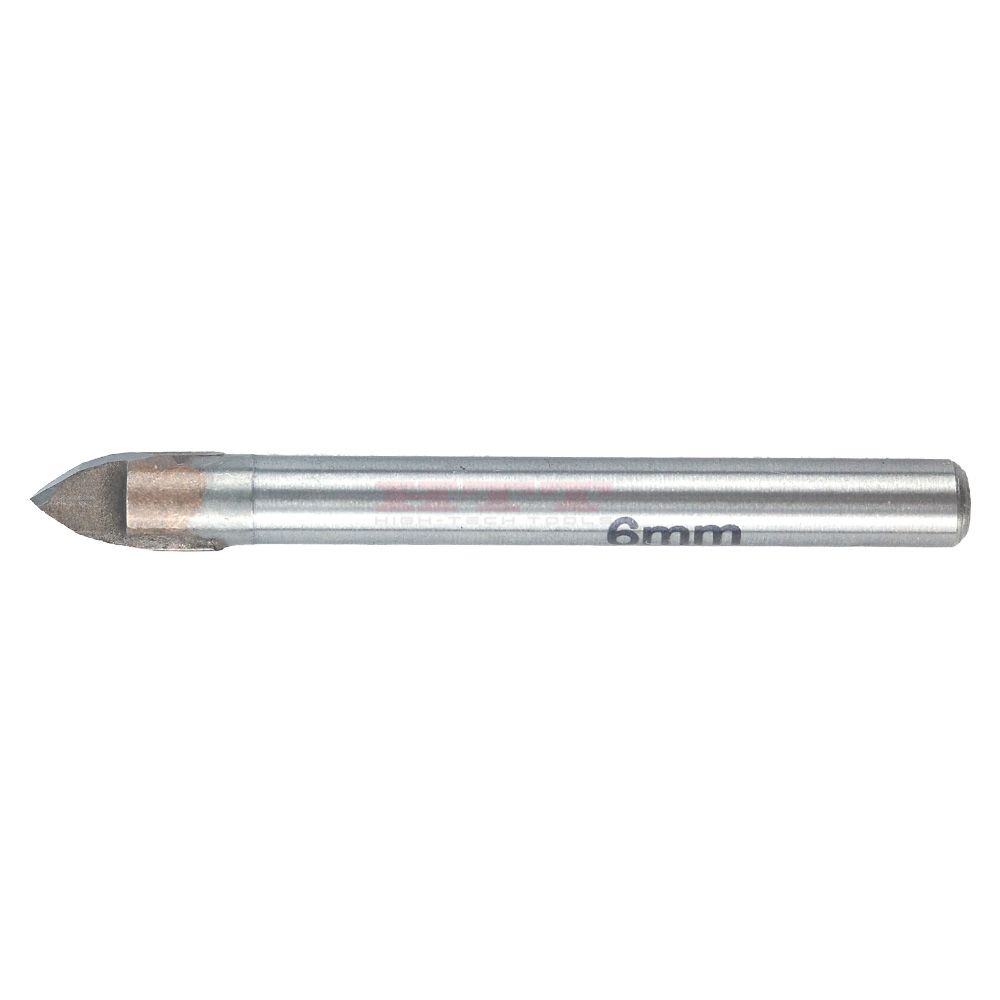

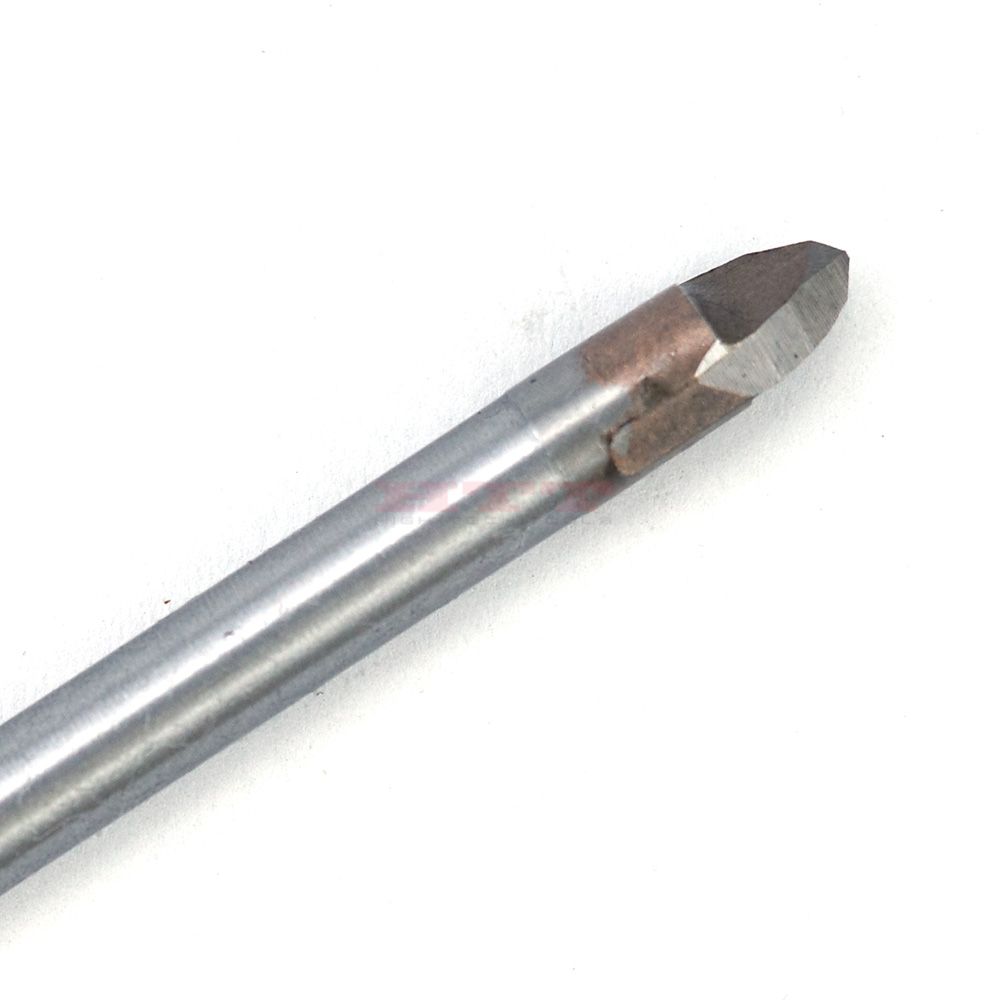

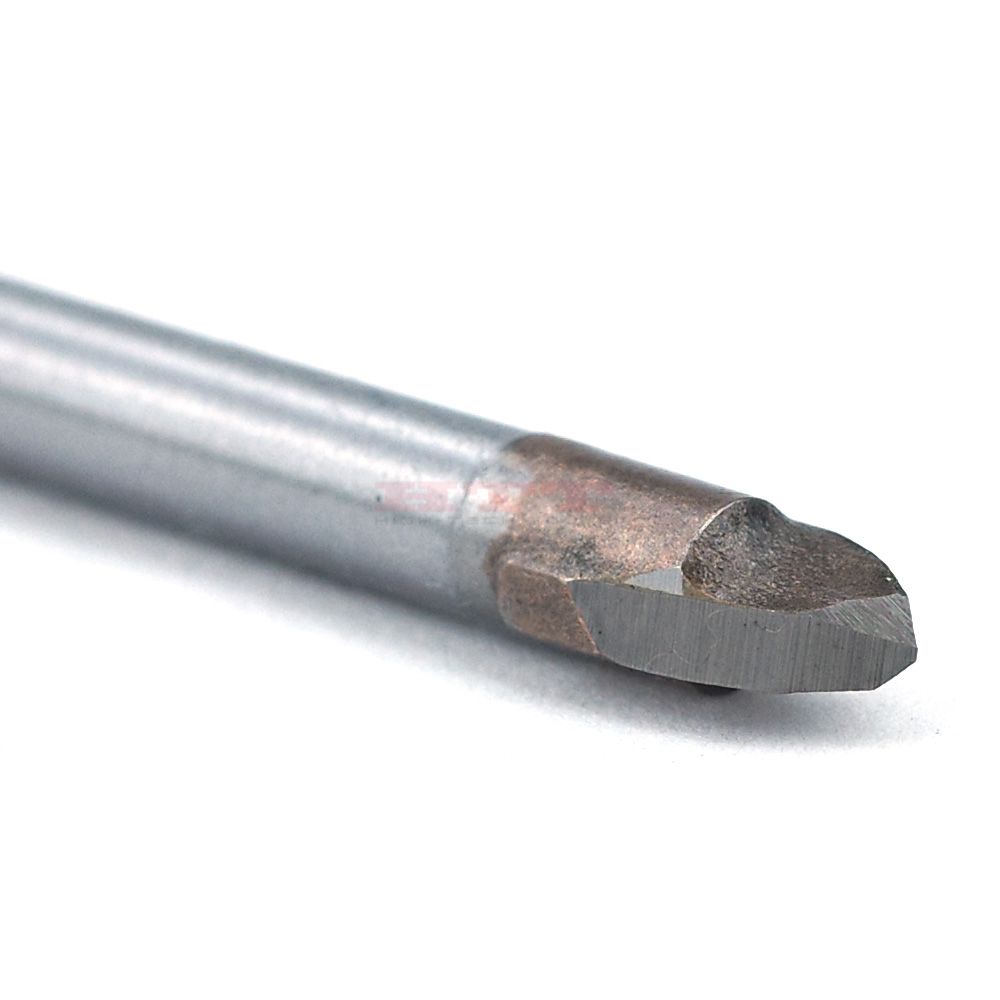

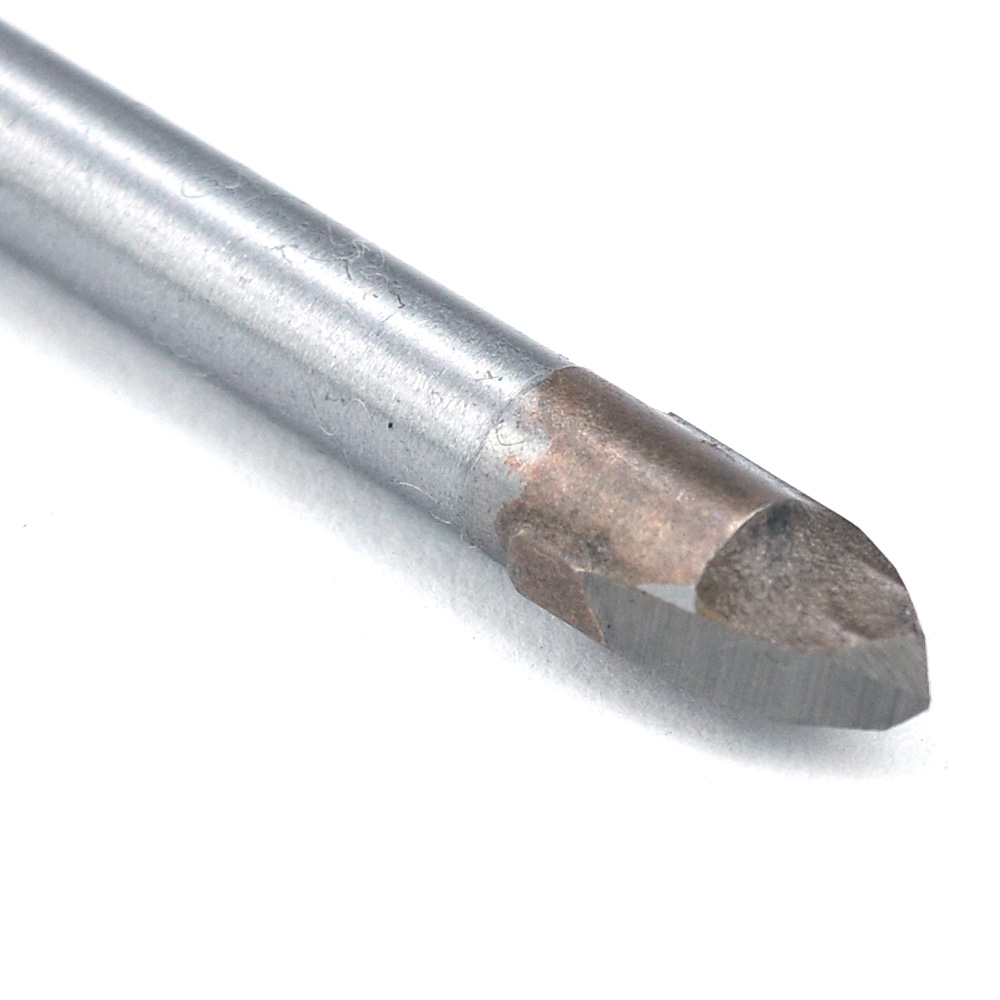

6113 Series
HTT , OEM job
HPP
To drill holes in non-tempered glass, plastic, ceramic, tile, plastic, composite, brick, marble, etc.
6113
3 to 14mm
Cylinder
Masonry work
Availability: | |
---|---|
Quantity: | |
Size Table:
Item Number | Diameter(mm) | Overall Length(mm) |
6113.030060 | 3 | 60 |
6113.035060 | 3.5 | 60 |
6113.040070 | 4 | 70 |
6113.045070 | 4.5 | 70 |
6113.050080 | 5 | 80 |
6113.055090 | 5.5 | 80 |
6113.060080 | 6 | 80 |
6113.065080 | 6.5 | 80 |
6113.070100 | 7 | 100 |
6113.080100 | 8 | 100 |
6113.085100 | 8.5 | 100 |
6113.090100 | 9 | 100 |
6113.095100 | 9.5 | 100 |
6113.100100 | 10 | 100 |
6113.120100 | 12 | 100 |
6113.130100 | 13 | 100 |
6114.140100 | 14 | 100 |
*Diameter 14mm with the reduced cylindrical shank 9.5mm.
