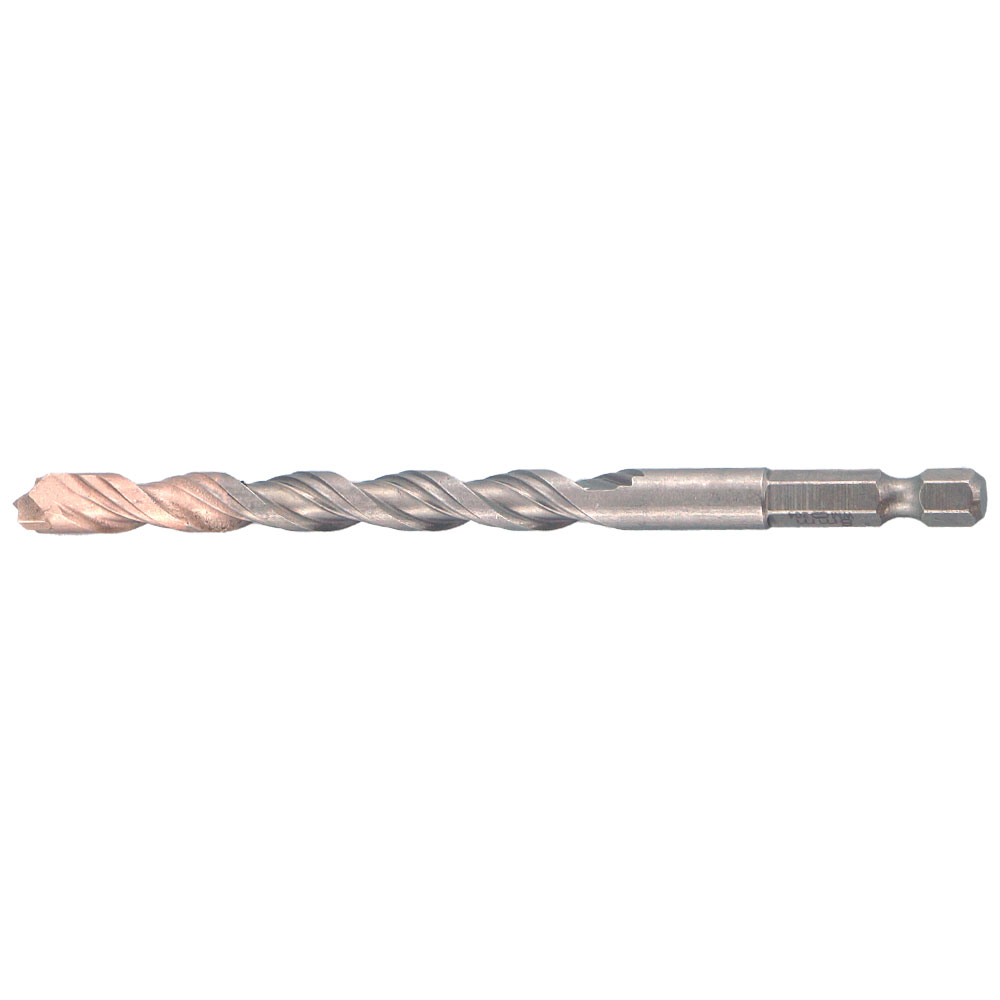

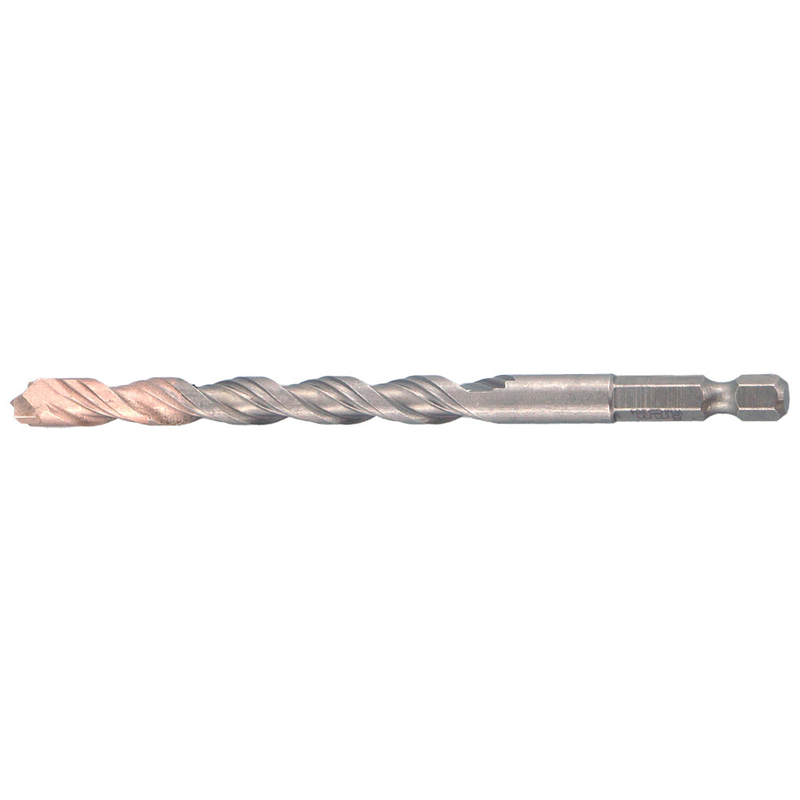

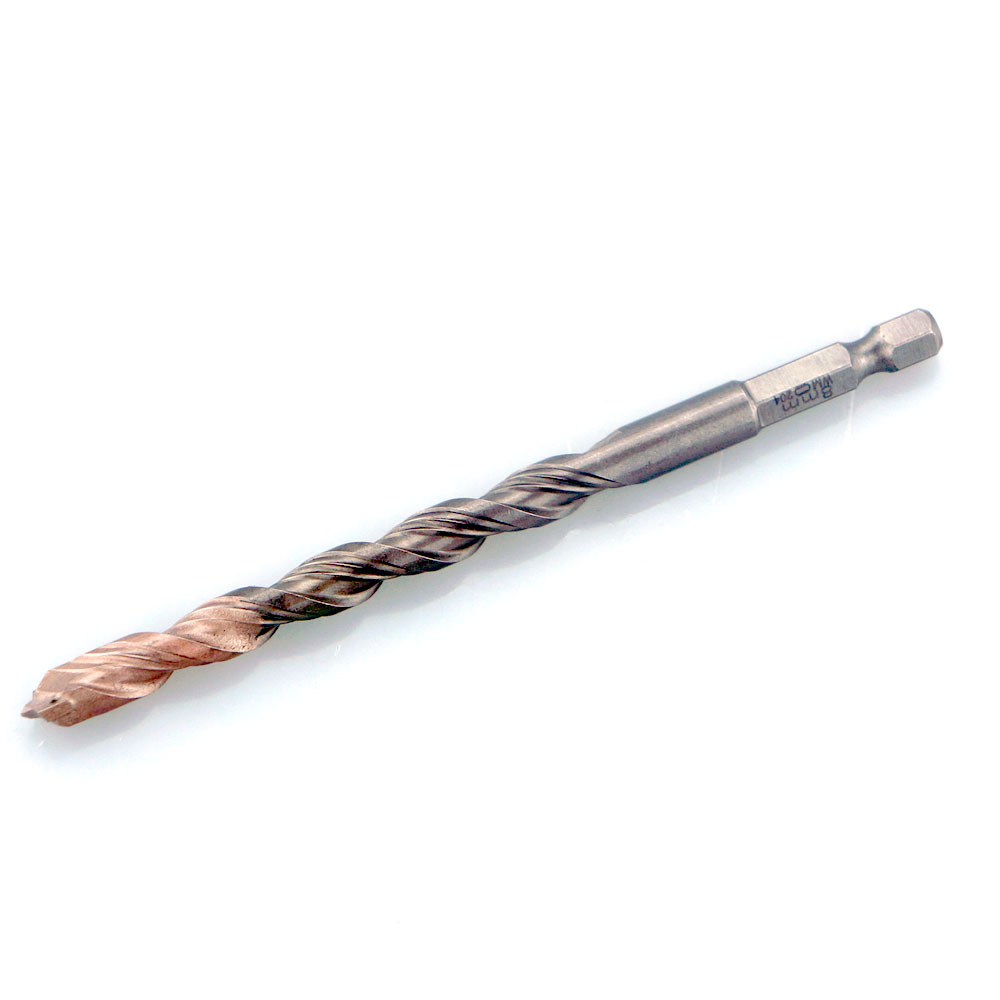

Quick Change Natural stone/Granite Drill Bit DIN6.35E

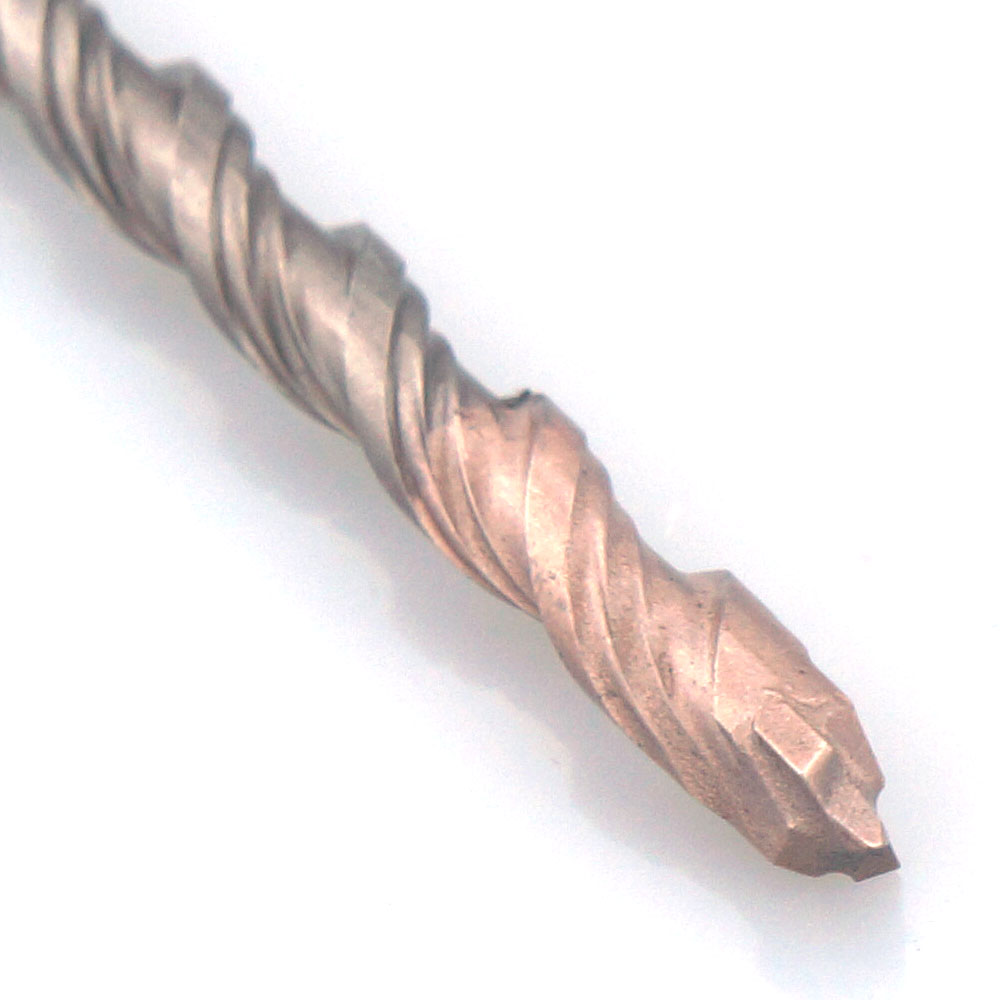

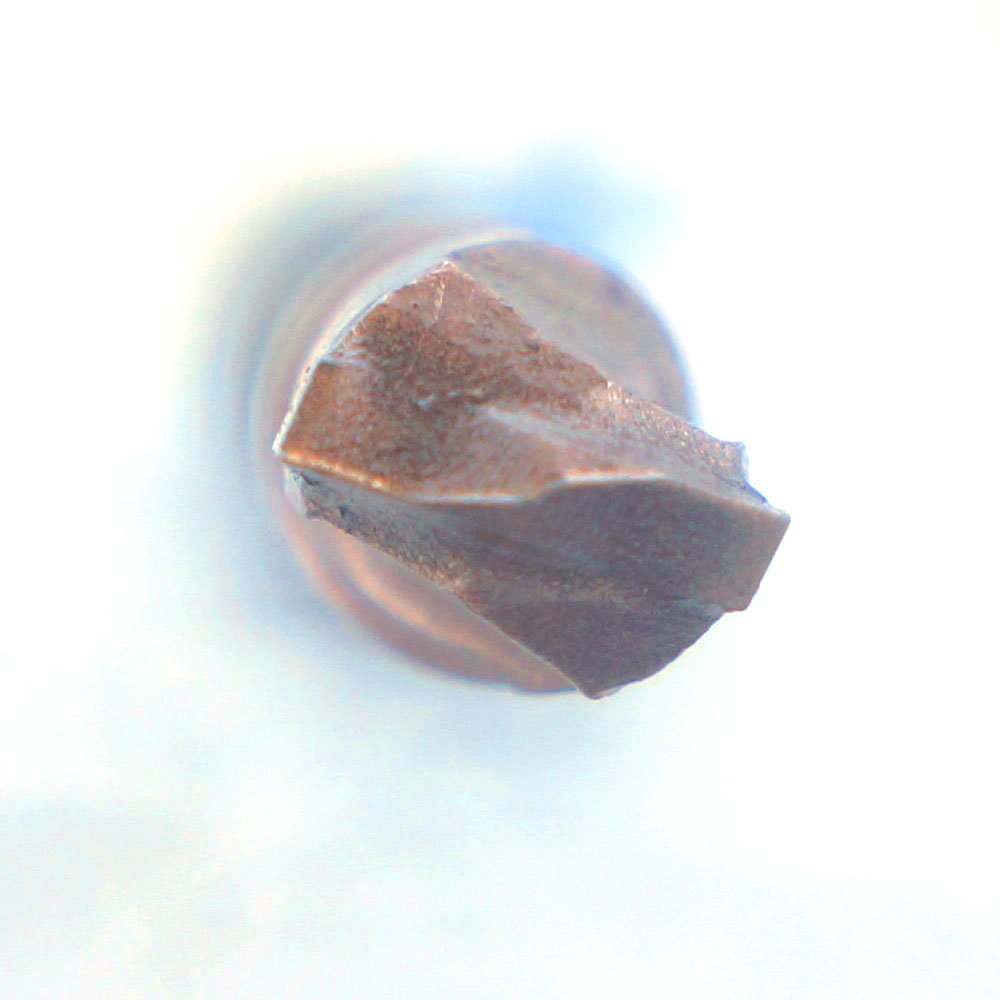

* W type of middle centring carbide tip for fast position and drilling various stone, brick , concrete, granite, etc.

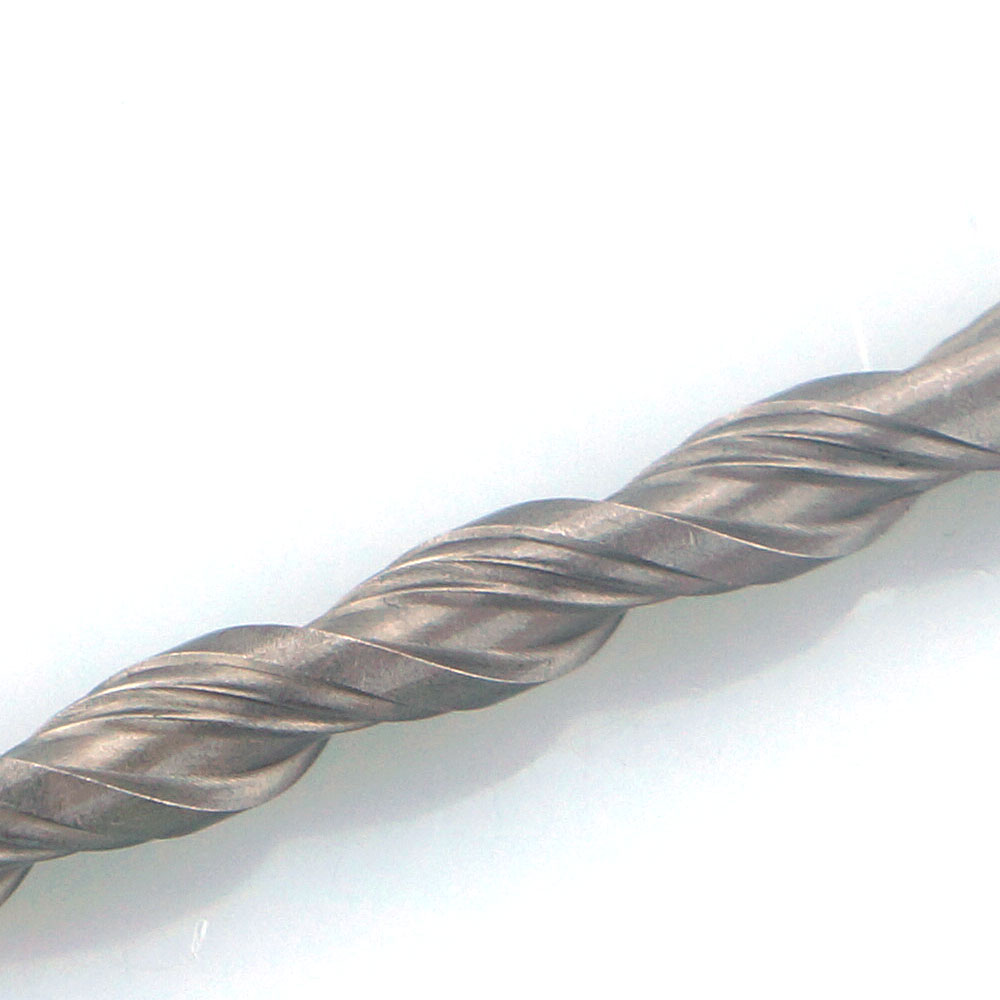

* 3DMax designed flutes to speed the dust rejection for higher drilling speed in various masonry building materials.
* DIN6.35E quick change hex shank to avoid the slide-grip and secure the drill under heavy drilling work. To fit those quick changes DIN6.35E standard drill chuck and quick connectors.

  • 3111

  • HTT , OEM job

  • HPP

  • To drill holes in various concrete, masonry building material stone, granite, etc.

  • 3111

  • 3 to 16mm

  • DIN6.35E

  • Masonry work

Availability:
Quantity:
Inquire Add to Basket

Size Table:

Item Number Diameter（mm） Working Length（mm） Overall Length（mm） Shank Standard
3111.030060 3 25 60 DIN6.35E
3111.030070 3 30 70 DIN6.35E
3111.030085 3 40 85 DIN6.35E
3111.030090 3 50 90 DIN6.35E
3111.030095 3 50 95 DIN6.35E
3111.030100 3 50 100 DIN6.35E
3111.040075 4 30 75 DIN6.35E
3111.040085 4 40 85 DIN6.35E
3111.040090 4 50 90 DIN6.35E
3111.040100 4 60 100 DIN6.35E
3111.040105 4 60 105 DIN6.35E
3111.040150 4 110 150 DIN6.35E
3111.050085 5 40 85 DIN6.35E
3111.050090 5 45 90 DIN6.35E
3111.050095 5 50 95 DIN6.35E
3111.050100 5 60 100 DIN6.35E
3111.050105 5 60 105 DIN6.35E
3111.050150 5 110 150 DIN6.35E
3111.050250 5 200 250 DIN6.35E
3111.050300 5 250 300 DIN6.35E
3111.050400 5 260 400 DIN6.35E
3111.050500 5 360 500 DIN6.35E
3111.055085 5.5 40 85 DIN6.35E
3111.055090 5.5 50 90 DIN6.35E
3111.055095 5.5 50 95 DIN6.35E
3111.055100 5.5 60 100 DIN6.35E
3111.055150 5.5 110 150 DIN6.35E
3111.060085 6 40 85 DIN6.35E
3111.060090 6 50 90 DIN6.35E
3111.060100 6 60 100 DIN6.35E
3111.060115 6 65 115 DIN6.35E
3111.060150 6 110 150 DIN6.35E
3111060200 6 130 200 DIN6.35E
3111.060250 6 180 250 DIN6.35E
3111.060300 6 230 300 DIN6.35E
3111.060400 6 340 400 DIN6.35E
3111.060600 6 460 600 DIN6.35E
3111.065100 6.5 60 100 DIN6.35E
3111.065115 6.5 65 115 DIN6.35E
3111.065150 6.5 110 150 DIN6.35E
3111.065200 6.5 130 200 DIN6.35E
3111.065250 6.5 180 250 DIN6.35E
3111.065300 6.5 230 300 DIN6.35E
3111.065400 6.5 340 400 DIN6.35E
3111.070090 7 50 90 DIN6.35E
3111.070100 7 60 100 DIN6.35E
3111.070120 7 80 120 DIN6.35E
3111.070150 7 110 150 DIN6.35E
3111.070300 7 230 300 DIN6.35E
3111.070400 7 340 400 DIN6.35E
3111.070500 7 360 500 DIN6.35E
3111.080100 8 60 100 DIN6.35E
3111.080120 8 80 120 DIN6.35E
3111.080125 8 80 125 DIN6.35E
3111.080150 8 110 150 DIN6.35E
3111.080200 8 130 200 DIN6.35E
3111.080260 8 190 260 DIN6.35E
3111.080300 8 230 300 DIN6.35E
3111.080400 8 340 400 DIN6.35E
3111.080600 8 460 600 DIN6.35E
3111.090120 9 80 120 DIN6.35E
3111.090150 9 110 150 DIN6.35E
3111.100120 10 80 120 DIN6.35E
3111.100150 10 110 150 DIN6.35E
3111.100200 10 135 200 DIN6.35E
3111.100260 10 190 260 DIN6.35E
3111.100300 10 230 300 DIN6.35E
3111.100400 10 340 400 DIN6.35E
3111.100600 10 460 600 DIN6.35E
3111.120130 12 80 130 DIN6.35E
3111.120150 12 90 150 DIN6.35E
3111.120200 12 150 200 DIN6.35E
3111.120260 12 150 260 DIN6.35E
3111.120300 12 230 300 DIN6.35E
3111.120400 12 340 400 DIN6.35E
3111.120600 12 460 600 DIN6.35E
3111.130130 13 80 130 DIN6.35E
3111.130160 13 90 150 DIN6.35E
3111.140150 14 90 150 DIN6.35E
3111.140200 14 135 200 DIN6.35E
3111.140260 14 200 260 DIN6.35E
3111.140300 14 230 300 DIN6.35E
3111.140400 14 340 400 DIN6.35E
3111.140600 14 460 600 DIN6.35E
3111.160150 16 90 150 DIN6.35E
3111.160200 16 135 200 DIN6.35E
3111.160250 16 200 260 DIN6.35E
3111.160300 16 230 300 DIN6.35E
3111.160400 16 340 400 DIN6.35E
3111.160600 16 460 600 DIN6.35E
3111-8
