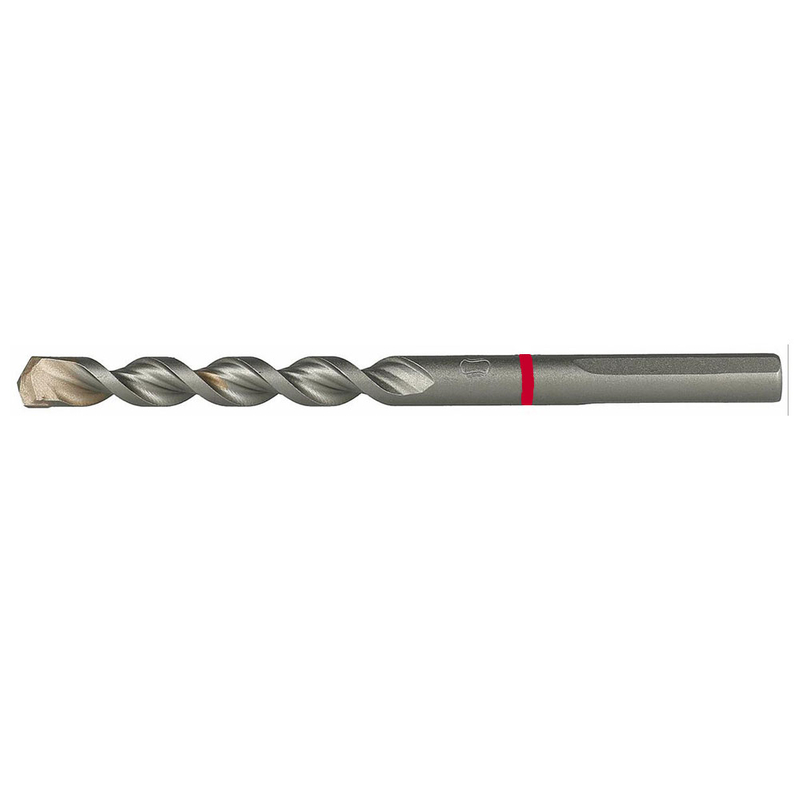

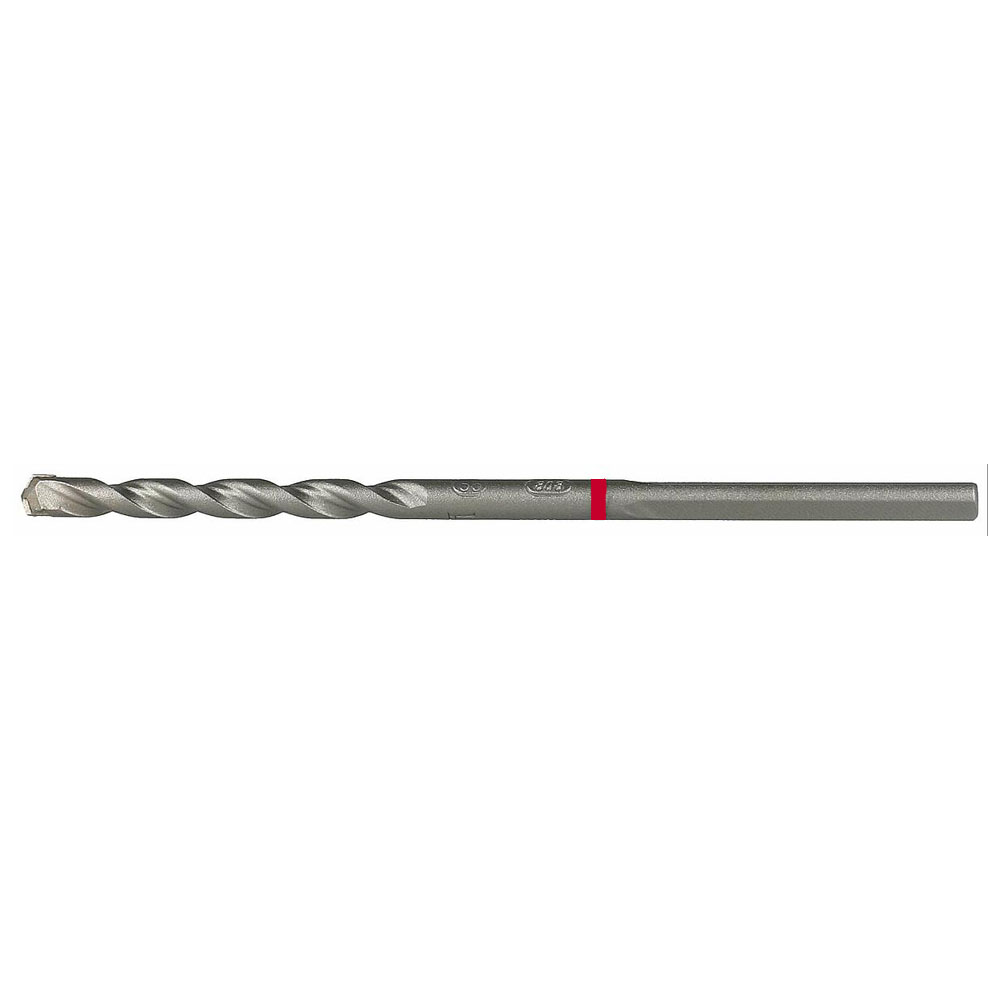

Pro Concrete&Natural Stone Drill Bit

1, Our best impact masonry drill bit for extreme requirements in concrete and natural stone.
2, Powerful. Durable. Convenient: The multi-talent for concrete and all natural stone types with superior performance.
3, Longest service life and excellent position behaviour.
4, 3-edged "Tri" shank (5-16mm diameter drill except 3 and 4mm diameter drill with cylinder shank)prevents slipping in the drill chuck.
5, A wide range of applications and perfect centring thanks to ground carbide plate and high-strength tip soldering.

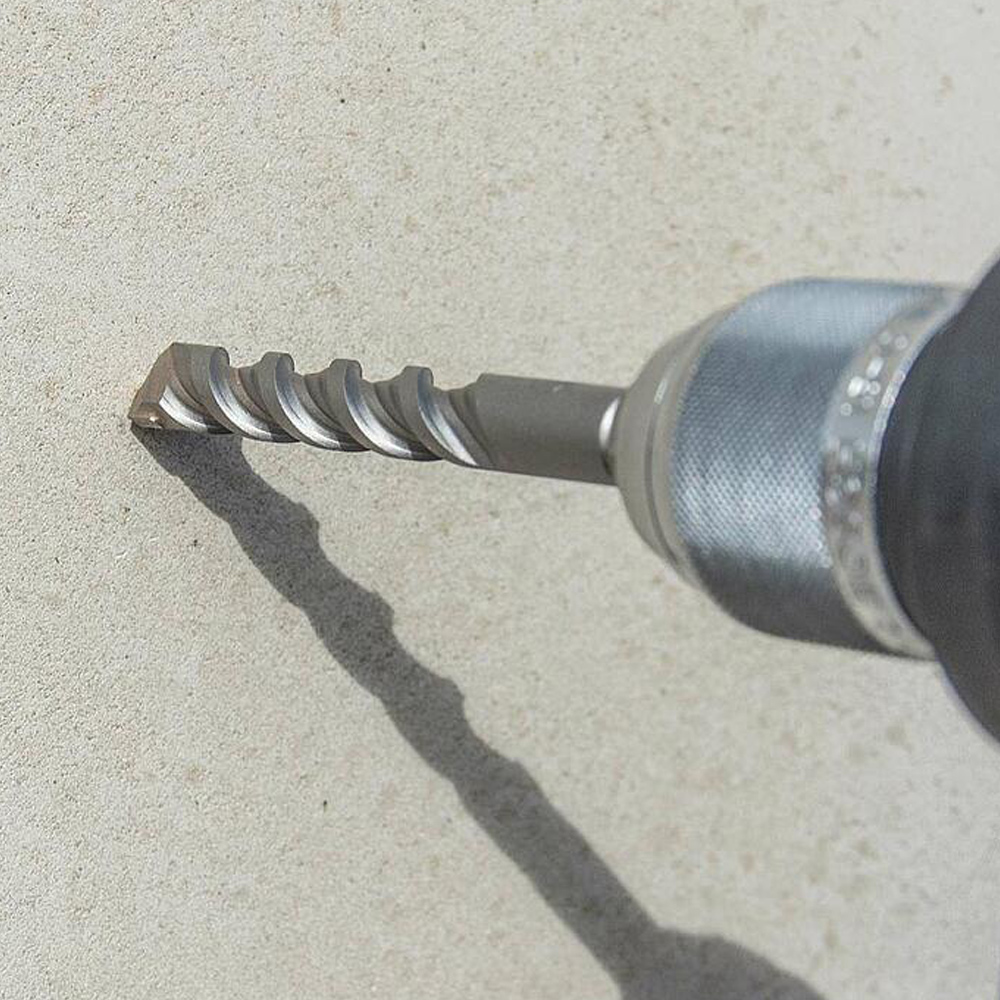

6, Specially designed for challenging drilling, e.g., in concrete, granite, marble and vertically perforated bricks.
7, Extremely high speed thanks to optimal tip geometry and large-volume helix design.
8, Speciall treatment of the steel blanks ensures extreme performance characteristics and break resilience.
9, Can be used for hammer drilling and rotary drilling.
  • 3750 Series

  • HTT, OEM

  • HPP

  • to drill holes in various concrete, sand stone, lime stone, brick, marble, granite, masonry building materials,etc.

  • 3750

  • 3-16mm

  • Try-flat

  • Masonry work

Availability:
Quantity:

Size Table:

*Download Data Sheet 3750 series.pdf

Item Number Diameter(mm) Working Length(mm) Overall Length(mm) Shank Diameter(mm)
3750.030085  3 45 85 2.8 , Cylinder
3750.040150  4 45 115 3.75, Cylinder
3750.050100  5 50 115 4.5, Tri-flat
3750.050250  5 135 200 4.5, Tri-flat
3750.055100  5.5 50 115 5.5, Tri-flat
3750.060115  6 60 125 5.5, Tri-flat
3750.060150  6 110 175 5.5, Tri-flat
3750.060250  6 180 250 5.5, Tri-flat
3750.065150  6.5 60 125 6, Tri-flat
3750.070120  7 60 125 6.5, Tri-flat
3750.080150  8 80 145 7.6, Tri-flat
3750.080250  8 180 250 7.6, Tri-flat
3750.090150  9 80 145 7.6, Tri-flat
3750.100150  10 80 145 9, Tri-flat
3750.100250  10 180 250 9, Tri-flat
3750.110150  11 80 145 9, Tri-flat
3750.120150  12 90 150 9.98, Tri-flat
3750.140150  14 90 150 10, Tri-flat reduced
3750.160150  16 90 150 10, Tri-flat reduced
