Multi Cross Carbide Tipped Hammer Drill Bit SDS-max

1, Special designed the combination of Ceratizit carbide main cutter and YG9 carbide side cutter to realize that best joint point of function and prices to get that HPP professional drilling performance.
2, 4H-plus flute design maximizes the drilling dust rejection to get faster drilling feeding speed with the higher working efficiency.
3, AVS. technology welding guarantees the heavy-duty drilling purpose on higher welding strength.
4, Extra long wear-resistance of the alloy steel body reduces the max. vibrations during the drilling progress to make more comfortable and easy for hammer drilling work.
5, SDS-max shank is finished under Bosch audited size drawing and gouge to better fit those various branded rotary hammer SDS-max chuck in the global market.
  • 5719 Series

  • OEM, HTT

  • HPP

  • To drill holes in various concrete, brick, stone, Aerated concrete, masonry ,etc.

  • 5719

  • 12mm to 42mm

  • SDS-max

  • Masonry work

Availability:
Quantity:

Size Table:

*Other special sizes are available on the customers' special requests.

Item Number Diameter(mm) Working Length(mm) Overall Length(mm)
5719.120300 12 160 300
5719.120340 12 200 340
5719.120540 12 400 540
5719.120690 12 550 690
5719.120920 12 800 920
5719.130340 13 200 340
5719.130540 13 400 540
5719.130690 13 550 690
5719.130920 13 800 920
5719.140340 14 200 340
5719.140540 14 400 540
5719.140690 14 550 690
5719.140920 14 800 920
5719.141320 14 1200 1320
5719.150340 15 200 340
5719.150540 15 400 540
5719.150690 15 550 690
5719.150920 15 800 920
5719.151320 15 1200 1320
5719.160340 16 200 340
5719.160540 16 400 540
5719.160690 16 550 690
5719.160920 16 800 920
5719.161320 16 1200 1320
5719.180340 18 200 340
5719.180540 18 400 540
5719.180690 18 550 690
5719.180920 18 800 920
5719.181320 18 1200 1320
5719.190340 19 200 340
5719.190540 19 400 540
5719.190690 19 550 690
5719.190920 19 800 920
5719.200340 20 200 340
5719.200540 20 400 540
5719.200690 20 550 690
5719.200920 20 800 920
5719.201320 20 1200 1320
5719.220340 22 200 340
5719.220540 22 400 540
5719.220690 22 550 690
5719.220920 22 800 920
5719.221320 22 1200 1320
5719.240340 24 200 340
5719.240540 24 400 540
5719.240690 24 550 690
5719.240920 24 800 920
5719.241320 24 1200 1320
5719.250340 25 200 340
5719.250540 25 400 540
5719.250690 25 550 690
5719.250920 25 800 920
5719.251320 25 1200 1320
5719.260340 26 200 340
5719.260540 26 400 540
5719.260670 26 550 670
5719.260920 26 800 920
5719.261320 26 1200 1320
5719.280370 28 250 370
5719.280570 28 450 570
5719.280670 28 550 670
5719.280920 28 800 920
5719.281320 28 1200 1320
5719.300370 30 250 370
5719.300570 30 450 570
5719.300670 30 550 670
5719.300920 30 800 920
5719.301320 30 1200 1320
5719.320370 32 250 370
5719.320570 32 450 570
5719.320670 32 550 670
5719.320920 32 800 920
5719.321320 32 1200 1320
5719.321500 32 1380 1500
5719.350370 35 250 370
5719.350570 35 450 570
5719.350670 35 550 670
5719.350920 35 800 920
5719.351320 35 1200 1320
5719.360370 36 250 370
5719.360570 36 450 570
5719.360670 36 550 670
5719.360920 36 800 920
5719.361320 36 1200 1320
5719.380370 38 250 370
5719.380570 38 450 570
5719.380670 38 550 670
5719.380920 38 800 920
5719.381320 38 1200 1320
5719.400370 40 250 370
5719.400570 40 450 570
5719.400670 40 550 670
5719.400920 40 800 920
5719.401320 40 1200 1320
5719.420370 42 250 370
5719.420570 42 450 570
5719.420670 42 550 670
5719.420920 42 800 920
5719.421320 42 1200 1320

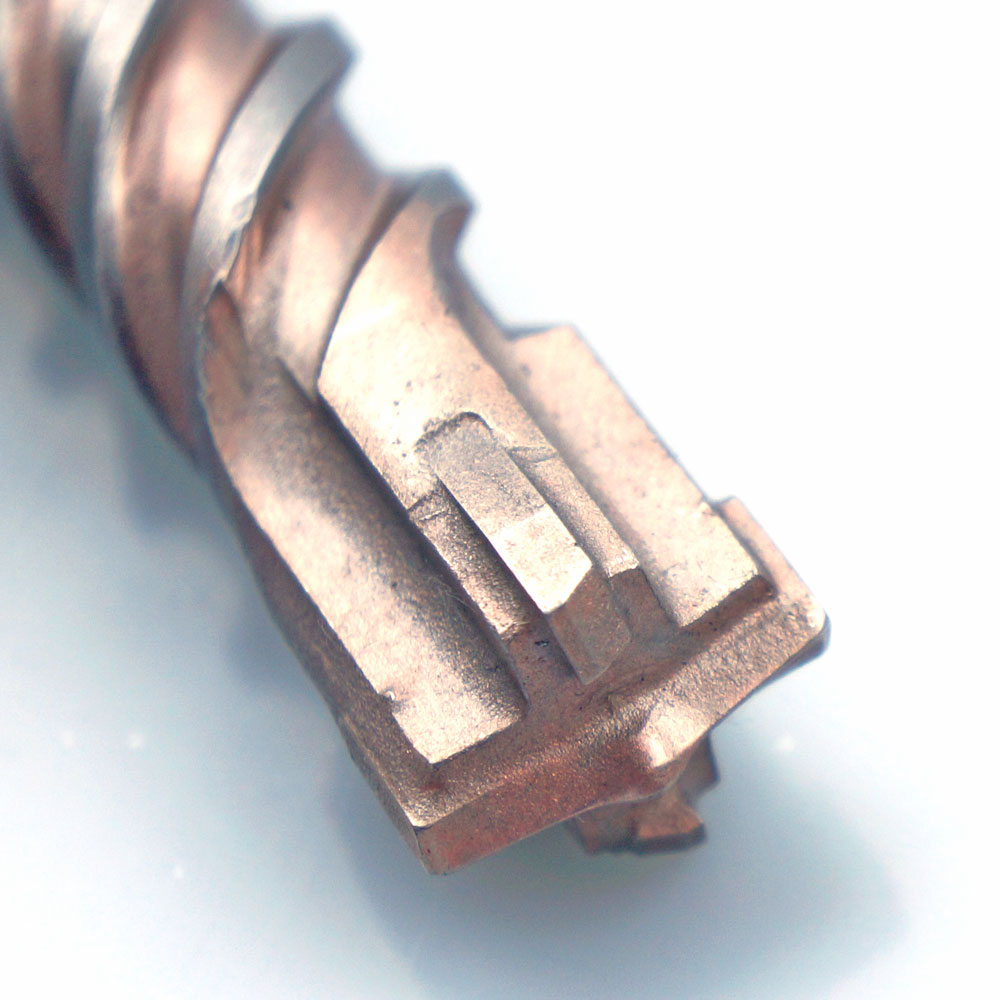

5719-detail
