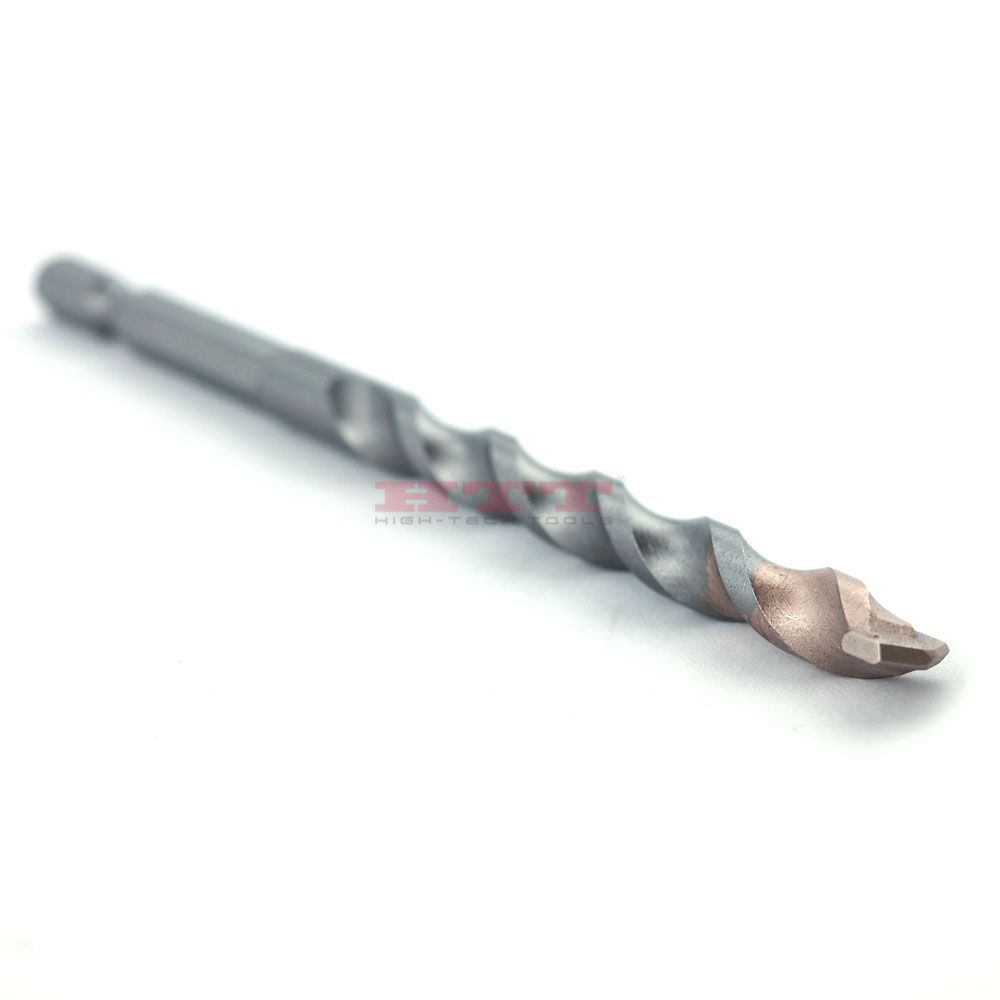

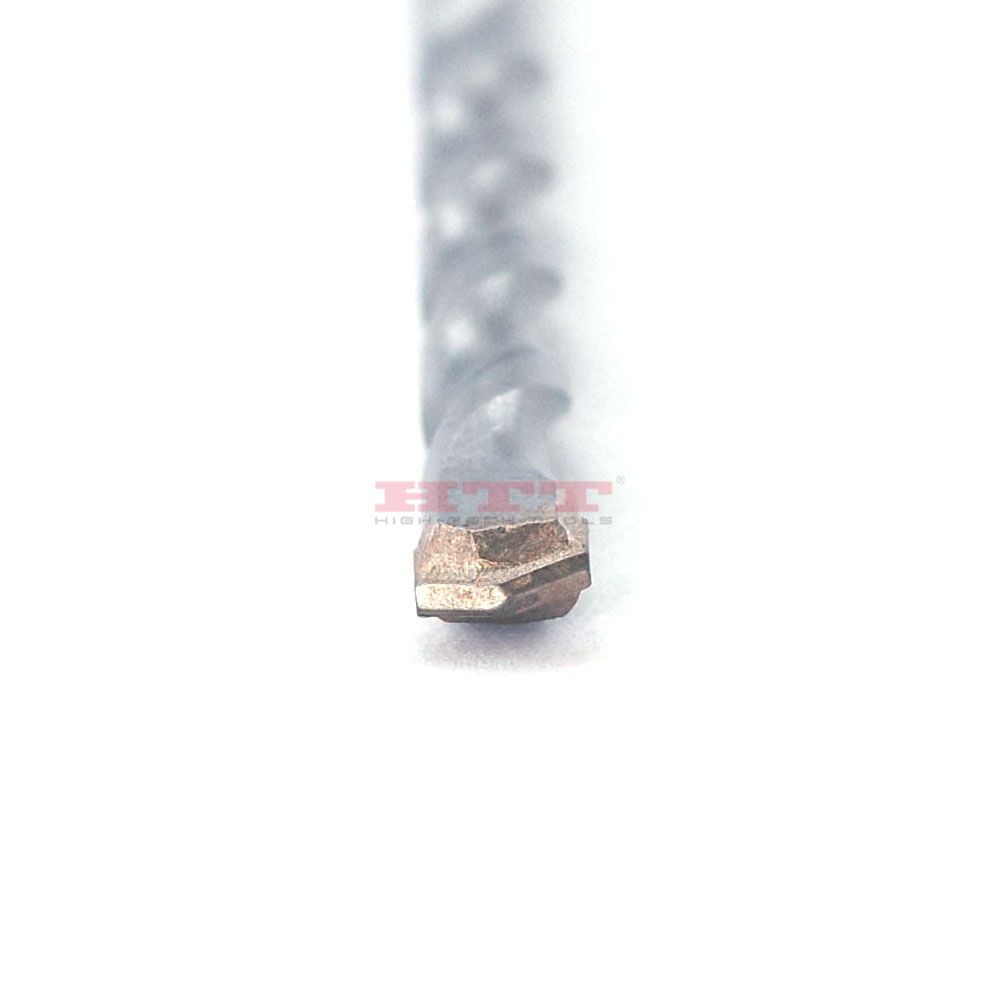

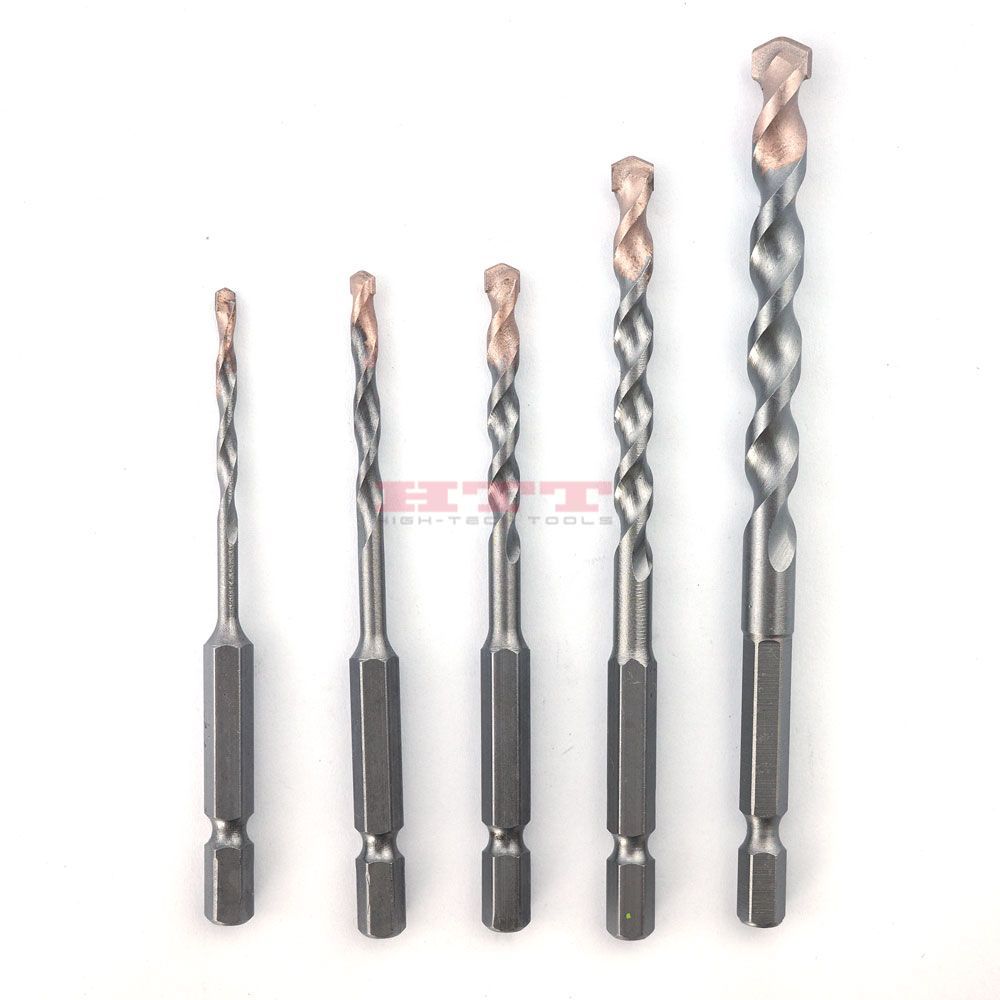

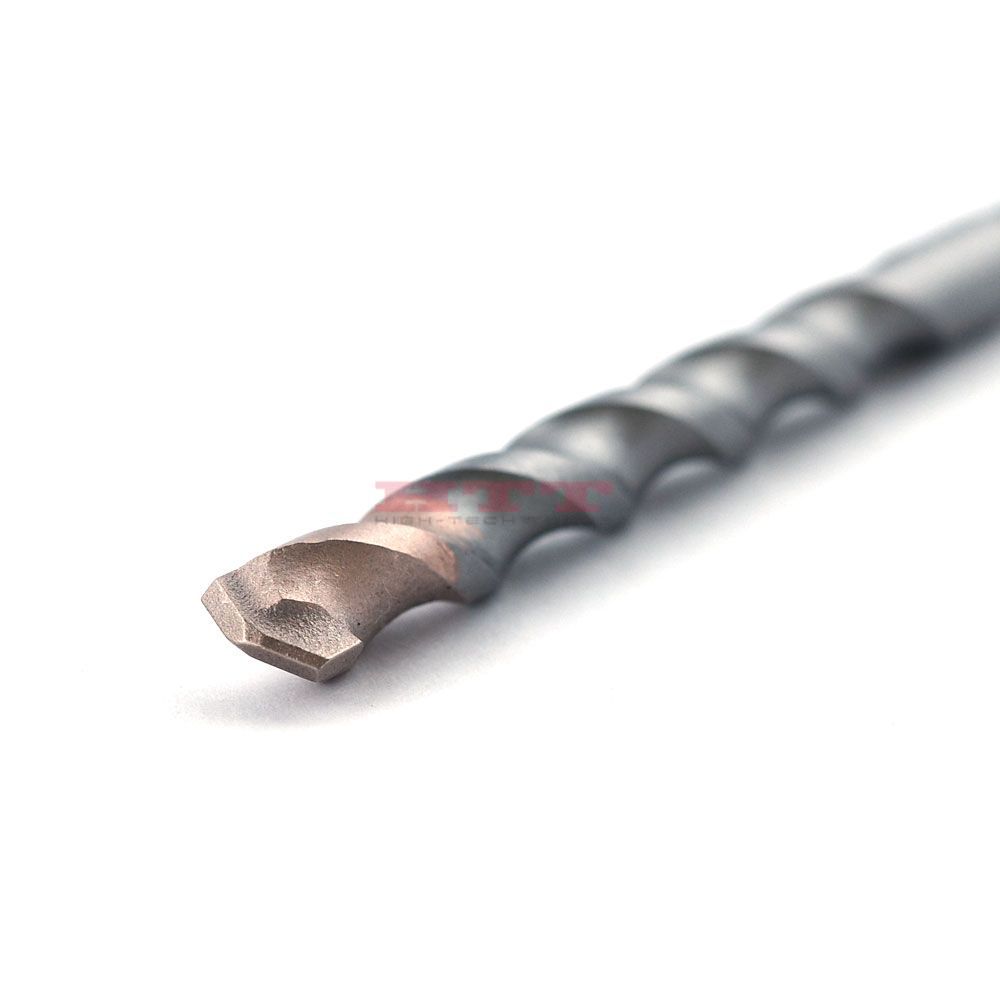

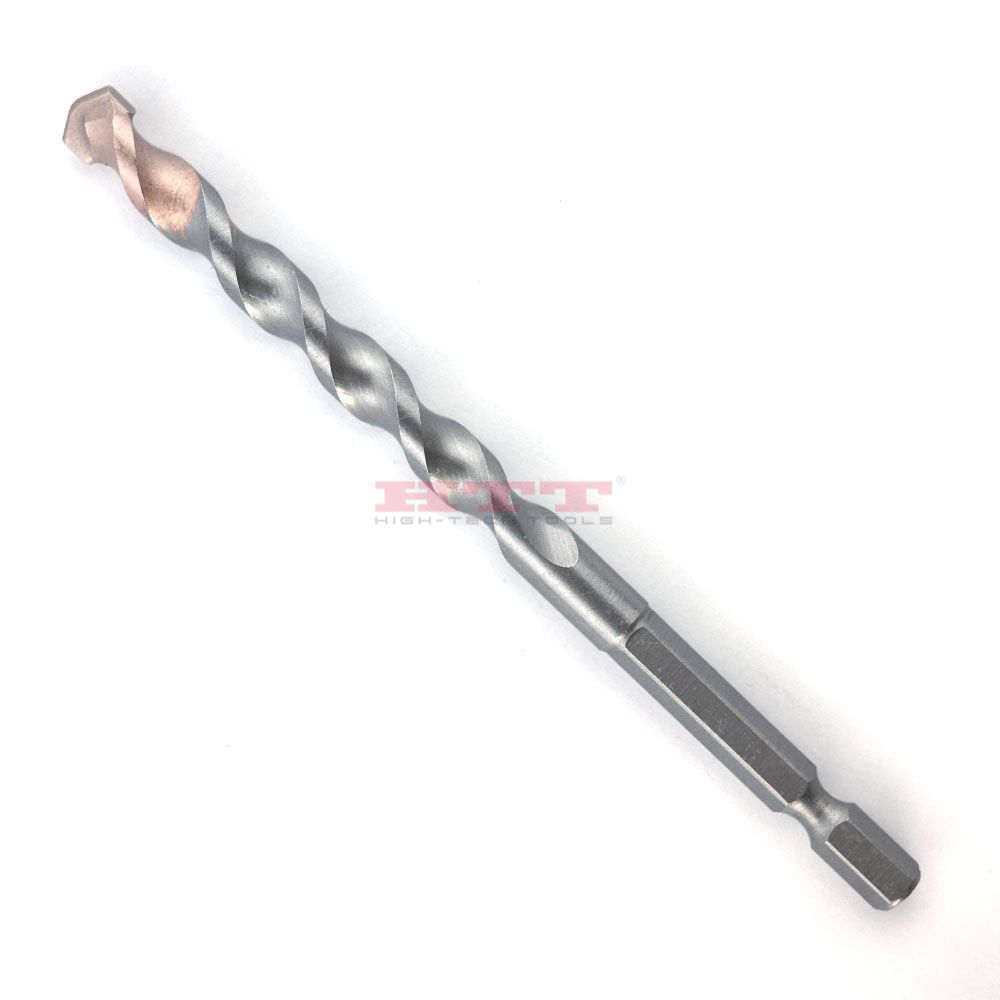

3376J Series
HTT, OEM job
MPP
To drill holes in various concrete, masonry building material wall, floor, etc.
3376J
2.5 to 14.5mm

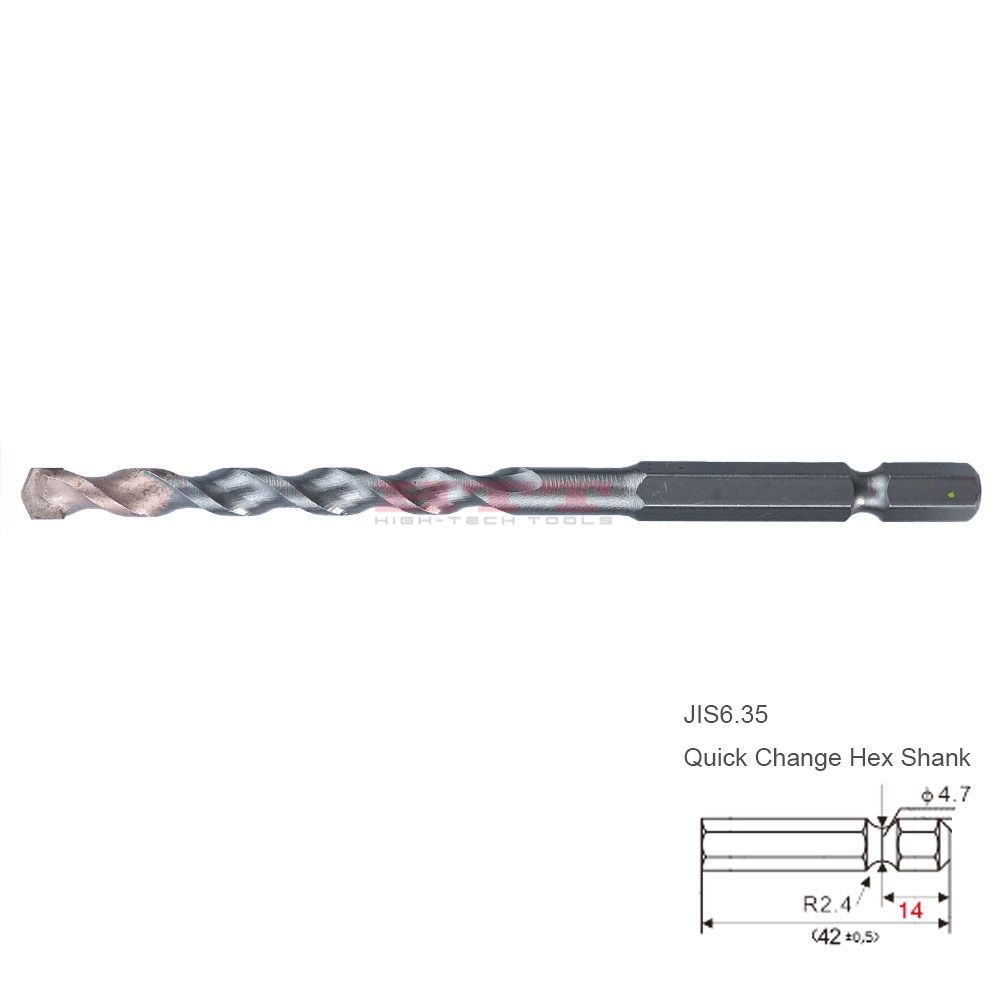

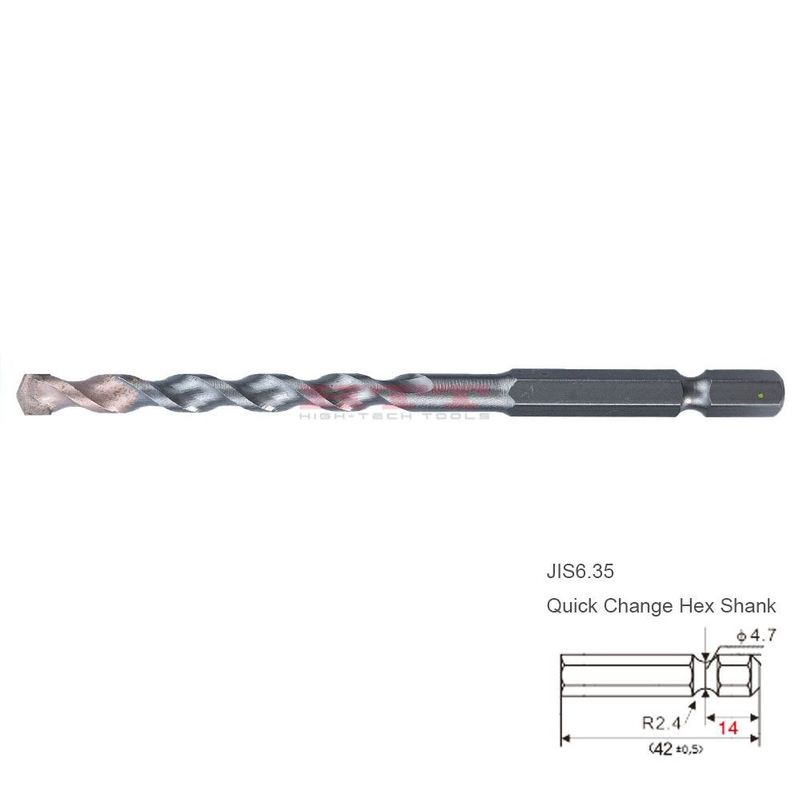

JIS6.35
Masonry work
| Quantity: | |
|---|---|
Size Table:
| Diameter(mm) | Carbide real diameter range(mm) | Working Length(mm) | Overall Length(mm) |
| 2.5 | 2.50-2.70 | 42 | 90 |
| 2.8 | 2.80-3.00 | 42 | 90 |
| 3.0 | 3.00-3.20 | 42 | 90 |
| 3.2 | 3.20-3.40 | 42 | 90 |
| 3.3 | 3.30-3.50 | 42 | 90 |
| 3.4 | 3.40-3.60 | 42 | 90 |
| 3.5 | 3.50-3.70 | 42 | 90 |
| 3.6 | 3.60-3.80 | 50 | 95 |
| 3.7 | 3.70-3.90 | 50 | 95 |
| 3.8 | 3.80-4.00 | 50 | 95 |
| 4.0 | 4.00-4.20 | 50 | 95 |
| 4.2 | 4.20-4.40 | 50 | 95 |
| 4.3 | 4.30-4.50 | 50 | 95 |
| 4.5 | 4.50-4.70 | 50 | 95 |
| 4.8 | 4.80-5.00 | 50 | 95 |
| 5.0 | 5.00-5.20 | 50 | 95 |
| 5.2 | 5.20-5.40 | 65 | 110 |
| 5.3 | 5.30-5.50 | 65 | 110 |
| 5.4 | 5.40-5.60 | 65 | 110 |
| 5.5 | 5.50-5.70 | 65 | 110 |
| 5.8 | 5.80-6.00 | 65 | 110 |
| 6.0 | 6.00-6.20 | 65 | 110 |
| 6.4 | 6.40-6.65 | 65 | 110 |
| 6.5 | 6.50-6.75 | 65 | 110 |
| 7.0 | 7.00-7.25 | 75 | 125 |
| 7.2 | 7.20-7.45 | 75 | 125 |
| 7.5 | 7.50-7.75 | 75 | 125 |
| 8.0 | 8.00-8.25 | 75 | 125 |
| 8.5 | 8.50-8.75 | 75 | 125 |
| 8.7 | 8.70-8.95 | 90 | 150 |
| 9.0 | 9.00-9.25 | 90 | 150 |
| 9.5 | 9.50-9.75 | 90 | 150 |
| 10.0 | 10.00-10.25 | 90 | 150 |
| 10.5 | 10.50-10.80 | 90 | 150 |
| 11.0 | 11.00-11.30 | 90 | 150 |
| 11.5 | 11.50-11.80 | 120 | 170 |
| 12.0 | 12.00-12.30 | 120 | 170 |
| 12.5 | 12.50-12.80 | 120 | 170 |
| 12.7 | 12.70-13.00 | 120 | 170 |
| 13.0 | 13.00-13.30 | 120 | 170 |
| 13.5 | 13.50-13.80 | 120 | 170 |
| 14.0 | 14.00-14.30 | 120 | 170 |
| 14.3 | 14.30-14.60 | 120 | 170 |
| 14.5 | 14.50-14.80 | 120 | 170 |
| 3.2 | 3.20-3.40 | 90 | 150 |
| 3.4 | 3.40-3.60 | 90 | 150 |
| 3.5 | 3.50-3.70 | 90 | 150 |
| 4.0 | 4.00-4.20 | 90 | 150 |
| 4.3 | 4.30-4.50 | 90 | 150 |
| 4.5 | 4.50-4.70 | 90 | 150 |
| 4.8 | 4.80-5.00 | 90 | 150 |
| 5.0 | 5.00-5.20 | 90 | 150 |
| 5.5 | 5.50-5.70 | 90 | 150 |
| 6.0 | 6.00-6.20 | 90 | 150 |
Size Table:
| Diameter(mm) | Carbide real diameter range(mm) | Working Length(mm) | Overall Length(mm) |
| 2.5 | 2.50-2.70 | 42 | 90 |
| 2.8 | 2.80-3.00 | 42 | 90 |
| 3.0 | 3.00-3.20 | 42 | 90 |
| 3.2 | 3.20-3.40 | 42 | 90 |
| 3.3 | 3.30-3.50 | 42 | 90 |
| 3.4 | 3.40-3.60 | 42 | 90 |
| 3.5 | 3.50-3.70 | 42 | 90 |
| 3.6 | 3.60-3.80 | 50 | 95 |
| 3.7 | 3.70-3.90 | 50 | 95 |
| 3.8 | 3.80-4.00 | 50 | 95 |
| 4.0 | 4.00-4.20 | 50 | 95 |
| 4.2 | 4.20-4.40 | 50 | 95 |
| 4.3 | 4.30-4.50 | 50 | 95 |
| 4.5 | 4.50-4.70 | 50 | 95 |
| 4.8 | 4.80-5.00 | 50 | 95 |
| 5.0 | 5.00-5.20 | 50 | 95 |
| 5.2 | 5.20-5.40 | 65 | 110 |
| 5.3 | 5.30-5.50 | 65 | 110 |
| 5.4 | 5.40-5.60 | 65 | 110 |
| 5.5 | 5.50-5.70 | 65 | 110 |
| 5.8 | 5.80-6.00 | 65 | 110 |
| 6.0 | 6.00-6.20 | 65 | 110 |
| 6.4 | 6.40-6.65 | 65 | 110 |
| 6.5 | 6.50-6.75 | 65 | 110 |
| 7.0 | 7.00-7.25 | 75 | 125 |
| 7.2 | 7.20-7.45 | 75 | 125 |
| 7.5 | 7.50-7.75 | 75 | 125 |
| 8.0 | 8.00-8.25 | 75 | 125 |
| 8.5 | 8.50-8.75 | 75 | 125 |
| 8.7 | 8.70-8.95 | 90 | 150 |
| 9.0 | 9.00-9.25 | 90 | 150 |
| 9.5 | 9.50-9.75 | 90 | 150 |
| 10.0 | 10.00-10.25 | 90 | 150 |
| 10.5 | 10.50-10.80 | 90 | 150 |
| 11.0 | 11.00-11.30 | 90 | 150 |
| 11.5 | 11.50-11.80 | 120 | 170 |
| 12.0 | 12.00-12.30 | 120 | 170 |
| 12.5 | 12.50-12.80 | 120 | 170 |
| 12.7 | 12.70-13.00 | 120 | 170 |
| 13.0 | 13.00-13.30 | 120 | 170 |
| 13.5 | 13.50-13.80 | 120 | 170 |
| 14.0 | 14.00-14.30 | 120 | 170 |
| 14.3 | 14.30-14.60 | 120 | 170 |
| 14.5 | 14.50-14.80 | 120 | 170 |
| 3.2 | 3.20-3.40 | 90 | 150 |
| 3.4 | 3.40-3.60 | 90 | 150 |
| 3.5 | 3.50-3.70 | 90 | 150 |
| 4.0 | 4.00-4.20 | 90 | 150 |
| 4.3 | 4.30-4.50 | 90 | 150 |
| 4.5 | 4.50-4.70 | 90 | 150 |
| 4.8 | 4.80-5.00 | 90 | 150 |
| 5.0 | 5.00-5.20 | 90 | 150 |
| 5.5 | 5.50-5.70 | 90 | 150 |
| 6.0 | 6.00-6.20 | 90 | 150 |
