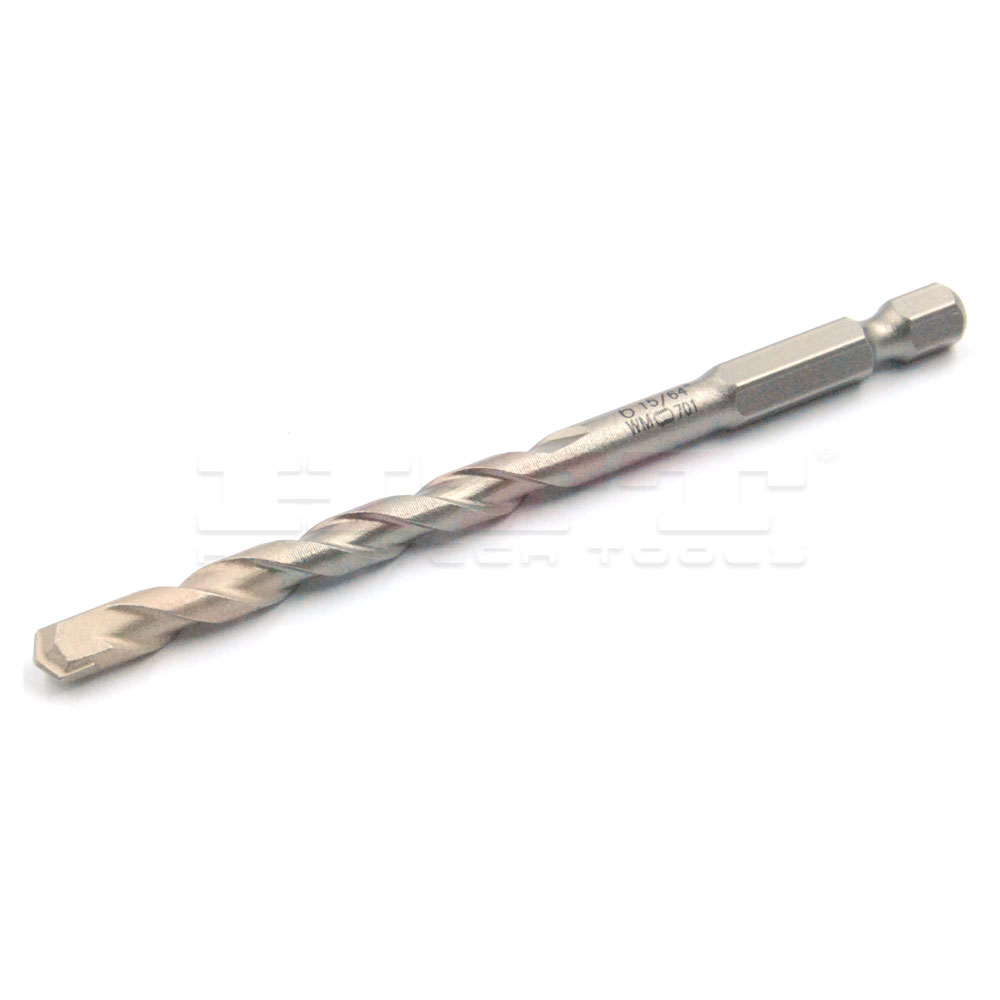

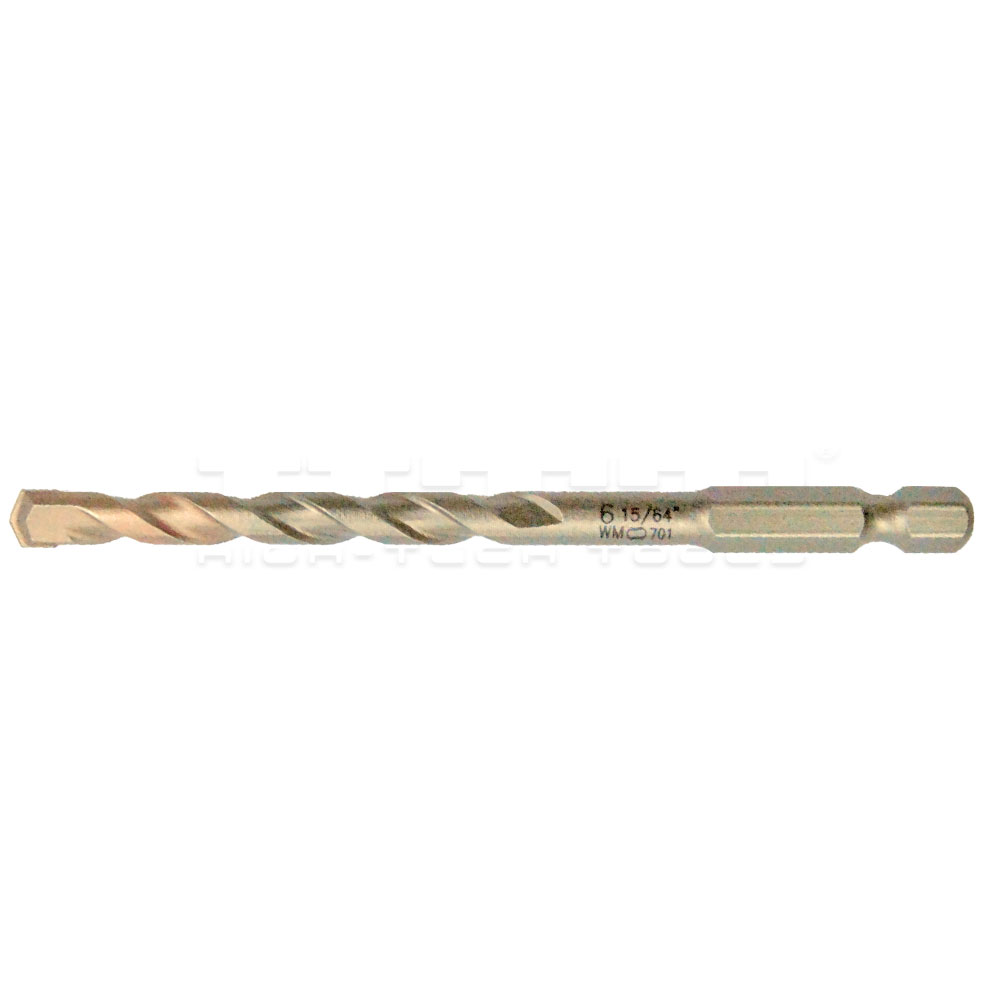

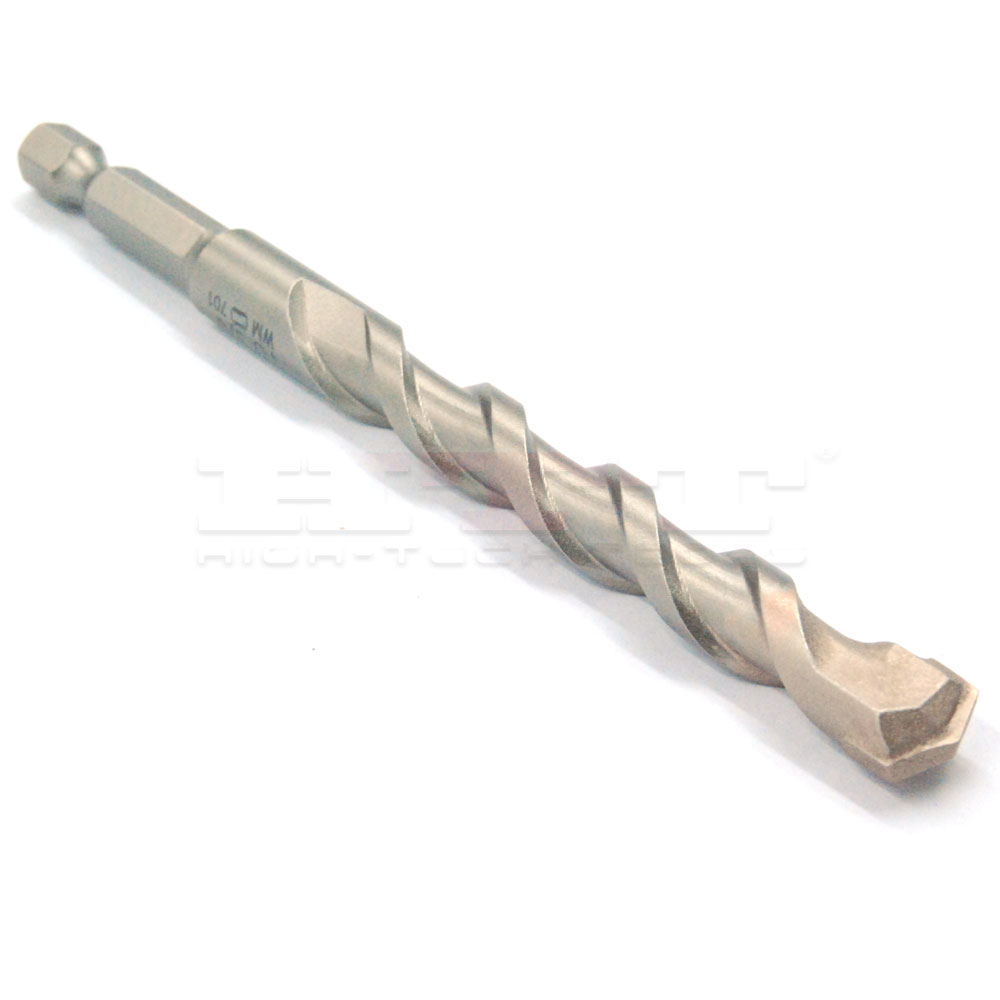

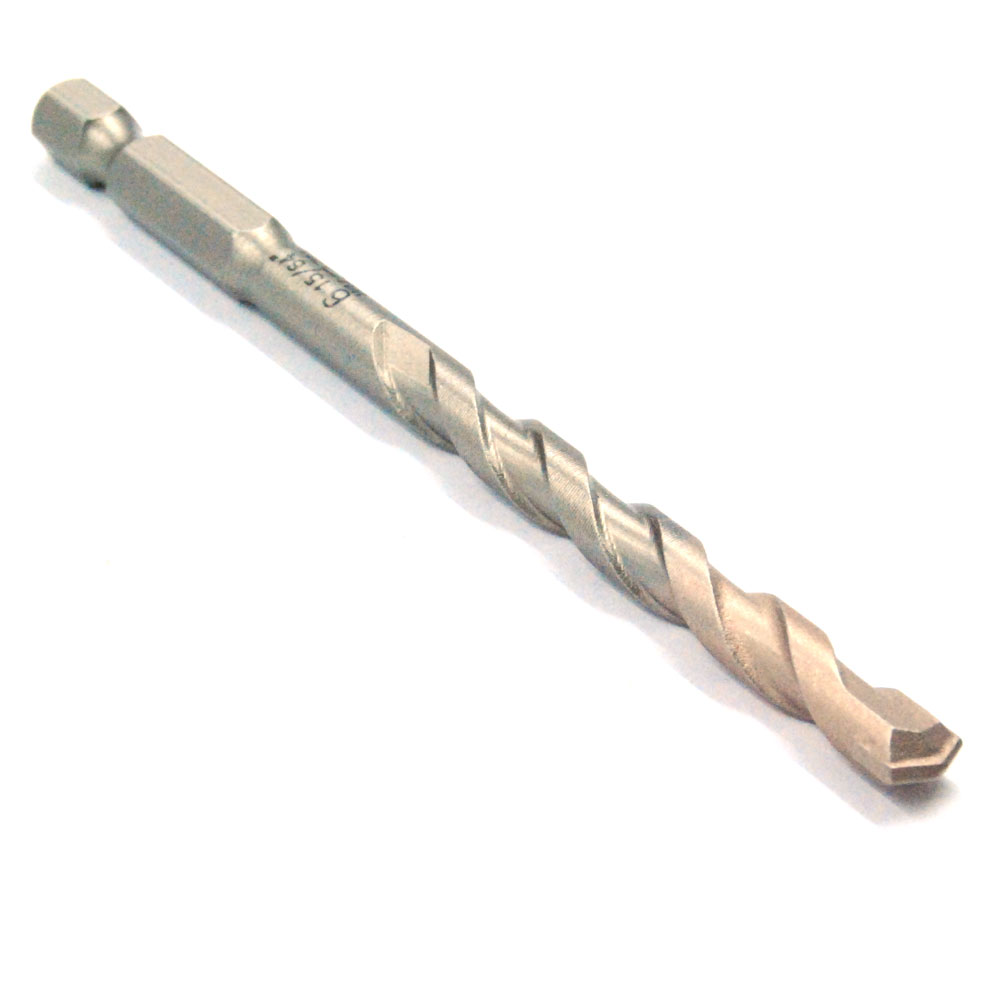

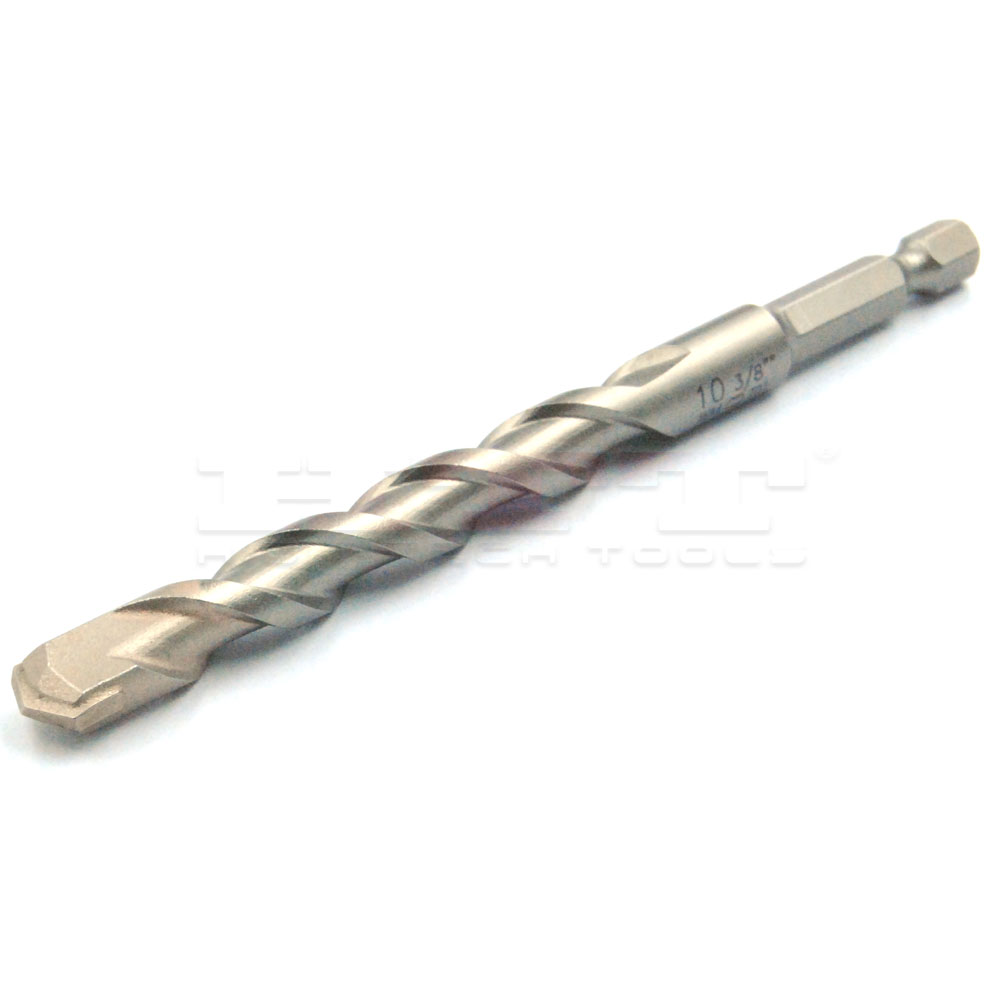

Masonry Drill Bit DIN6.35E Quick Change Hex Shank

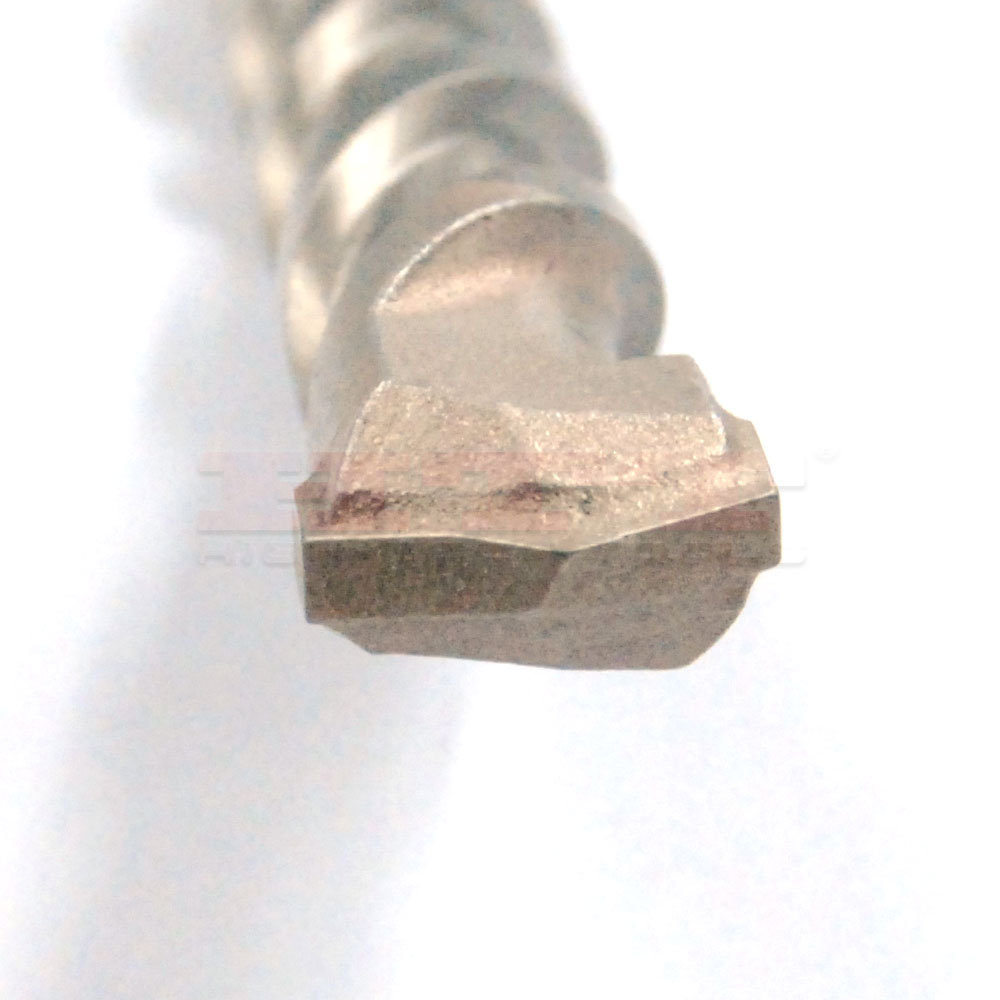

1, High drilling speed thanks to wide Twinmax spiral.
2, Special surface hardening technique by blasting guarantees extreme breaking strength.
3, Developed for frequent use in concrete and stone.
4, Certified by the PGM in accordance with the requirements of the Deutsches Institute fur Bautechnik(DIBt).
5, DIN6.35E quick change hex shank with 1pc structure to gaurantee the professional best torque and running concentricity.
  • 3376 Series
  • HTT, OEM job
  • MPP
  • To drill holes in various concrete, masonry building material wall, floor, etc.
  • 3376
  • 3 to 16mm
  • DIN6.35E
  • Masonry work
Quantity:

Size Table:

Item NumberDiameter(mm)Working Length(mm)Overall Length(mm)Shank Standard
3376.030060 32560DIN6.35E
3376.030070 33070DIN6.35E
3376.030085 34085DIN6.35E
3376.030090 35090DIN6.35E
3376.030095 35095DIN6.35E
3376.030100 350100DIN6.35E
3376.040075 43075DIN6.35E
3376.040085 44085DIN6.35E
3376.040090 45090DIN6.35E
3376.040100 460100DIN6.35E
3376.040105 460105DIN6.35E
3376.040150 4110150DIN6.35E
3376.050085 54085DIN6.35E
3376.050090 54590DIN6.35E
3376.050095 55095DIN6.35E
3376.050100 560100DIN6.35E
3376.050105 560105DIN6.35E
3376.050150 5110150DIN6.35E
3376.050250 5200250DIN6.35E
3376.050300 5250300DIN6.35E
3376.050400 5260400DIN6.35E
3376.050500 5360500DIN6.35E
3376.055085 5.54085DIN6.35E
3376.055090 5.55090DIN6.35E
3376.055095 5.55095DIN6.35E
3376.055100 5.560100DIN6.35E
3376.055150 5.5110150DIN6.35E
3376.060085 64085DIN6.35E
3376.060090 65090DIN6.35E
3376.060100 660100DIN6.35E
3376.060115 665115DIN6.35E
3376.060150 6110150DIN6.35E
3376.060200 6130200DIN6.35E
3376.060250 6180250DIN6.35E
3376.060300 6230300DIN6.35E
3376.060400 6340400DIN6.35E
3376.060600 6460600DIN6.35E
3376.065100 6.560100DIN6.35E
3376.065115 6.565115DIN6.35E
3376.065150 6.5110150DIN6.35E
3376.065200 6.5130200DIN6.35E
3376.065250 6.5180250DIN6.35E
3376.065300 6.5230300DIN6.35E
3376.065400 6.5340400DIN6.35E
3376.070090 75090DIN6.35E
3376.070100 760100DIN6.35E
3376.070120 780120DIN6.35E
3376.070150 7110150DIN6.35E
3376.070300 7230300DIN6.35E
3376.070400 7340400DIN6.35E
3376.070500 7360500DIN6.35E
3376.080100 860100DIN6.35E
3376.080120 880120DIN6.35E
3376.080125 880125DIN6.35E
3376.080150 8110150DIN6.35E
3376.080200 8130200DIN6.35E
3376.080260 8190260DIN6.35E
3376.080300 8230300DIN6.35E
3376.080400 8340400DIN6.35E
3376.080600 8460600DIN6.35E
3376.090120 980120DIN6.35E
3376.090150 9110150DIN6.35E
3376.100120 1080120DIN6.35E
3376.100150 10110150DIN6.35E
3376.100200 10135200DIN6.35E
3376.100260 10190260DIN6.35E
3376.100300 10230300DIN6.35E
3376.100400 10340400DIN6.35E
3376.100600 10460600DIN6.35E
3376.120130 1280130DIN6.35E
3376.120150 1290150DIN6.35E
3376.120200 12150200DIN6.35E
3376.120260 12150260DIN6.35E
3376.120300 12230300DIN6.35E
3376.120400 12340400DIN6.35E
3376.120600 12460600DIN6.35E
3376.130130 1380130DIN6.35E
3376.130160 1390150DIN6.35E
3376.140150 1490150DIN6.35E
3376.140200 14135200DIN6.35E
3376.140260 14200260DIN6.35E
3376.140300 14230300DIN6.35E
3376.140400 14340400DIN6.35E
3376.140600 14460600DIN6.35E
3376.160150 1690150DIN6.35E
3376.160200 16135200DIN6.35E
3376.160250 16200260DIN6.35E
3376.160300 16230300DIN6.35E
3376.160400 16340400DIN6.35E
3376.160600 16460600DIN6.35E
