3882
OEM, 3WIN, HTT
HPP

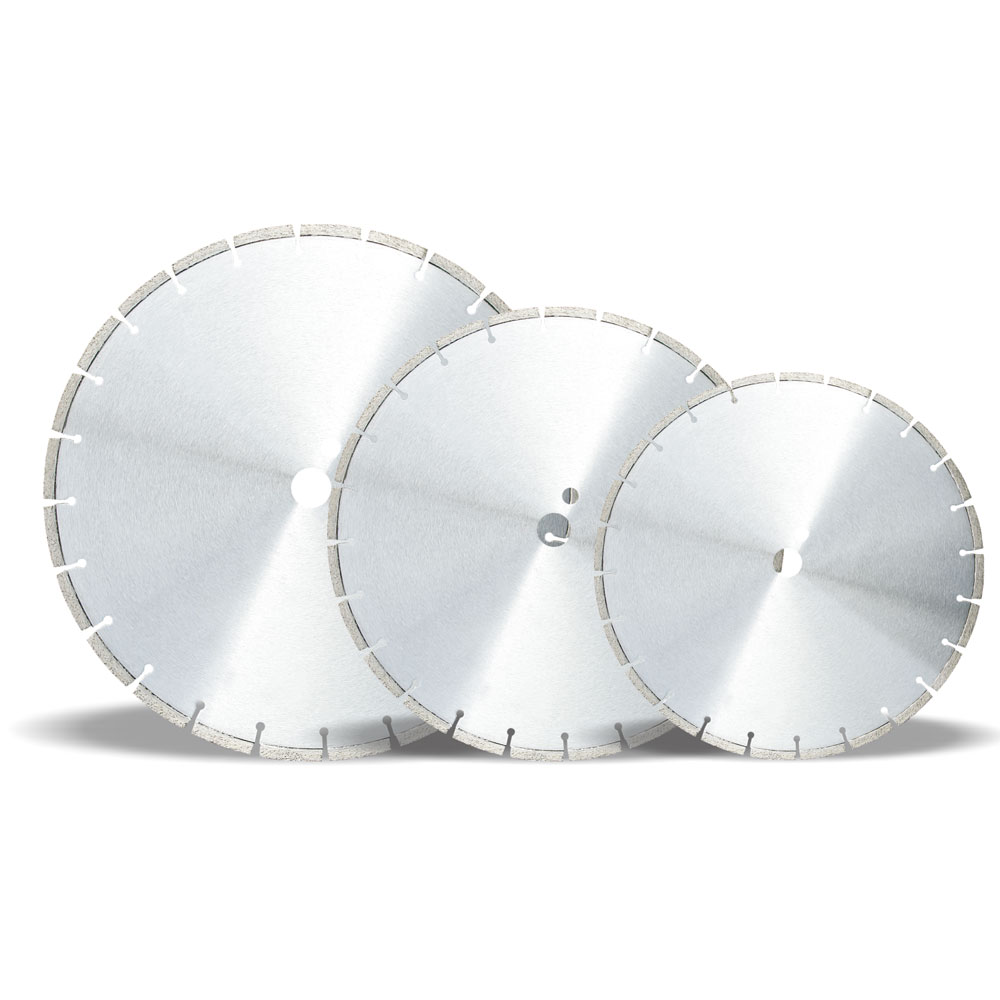

To cut various concrete, stone, brick, etc.
3882
105mm to 600mm
Arbor hole with washer
Masonry work
| Quantity: | |
|---|---|
Size Table:
| Item Number | Diameter(mm) | Diameter(inch) | Segment Size (mm) | Segment QTY. | Segment Height(mm) | Arbor Hole |
| 3882.1051201 | 105 | 4" | 32x2.0x12 | 8 | 12 | 16-20-22.23mm |
| 3882.1151201 | 115 | 4.5" | 32x2.0x12 | 9 | 12 | 20-22.23mm |
| 3882.1251201 | 125 | 5" | 32x2.2x12 | 10 | 12 | 20-22.23mm |
| 3882.1501201 | 150 | 6" | 33x2.2x12 | 12 | 12 | 22.23mm |
| 3882.1801201 | 180 | 7" | 36x2.4x12 | 13 | 12 | 22.23mm |
| 3882.2001201 | 200 | 8" | 40x2.4x12 | 13 | 12 | 22.23-25.4mm |
| 3882.2301201 | 230 | 9" | 38x2.6x12 | 16 | 12 | 22.23mm |
| 3882.2501201 | 250 | 10" | 38x2.6x12 | 18 | 12 | 22.23mm |
| 3882.3001201 | 300 | 12" | 40x3.0x12 | 20 | 12 | 20-25.4mm |
| 3882.3501201 | 350 | 14" | 40x3.2x12 | 24 | 12 | 20-25.4mm |
| 3882.4001201 | 400 | 16" | 40x3.4x12 | 28 | 12 | 25.4-50mm |
| 3882.4501201 | 450 | 18" | 40x3.6x12 | 32 | 12 | 25.4-50mm |
| 3882.5001201 | 500 | 20" | 40x3.6x12 | 35 | 12 | 25.4-50mm |
| 3882.6001201 | 600 | 24" | 40x4.2x12 | 42 | 12 | 25.4-50mm |
| 3882.1051001 | 105 | 4" | 32x2.0x10 | 8 | 10 | 16-20-22.23mm |
| 3882.1151001 | 115 | 4.5" | 32x2.0x10 | 9 | 10 | 20-22.23mm |
| 3882.1251001 | 125 | 5" | 32x2.2x10 | 10 | 10 | 20-22.23mm |
| 3882.1501001 | 150 | 6" | 33x2.2x10 | 12 | 10 | 22.23mm |
| 3882.1801001 | 180 | 7" | 36x2.4x10 | 13 | 10 | 22.23mm |
| 3882.2001001 | 200 | 8" | 40x2.4x10 | 13 | 10 | 22.23-25.4mm |
| 3882.2301001 | 230 | 9" | 38x2.6x10 | 16 | 10 | 22.23mm |
| 3882.2501001 | 250 | 10" | 38x2.6x10 | 18 | 10 | 22.23mm |
| 3882.3001001 | 300 | 12" | 40x3.0x10 | 20 | 10 | 20-25.4mm |
| 3882.3501001 | 350 | 14" | 40x3.2x10 | 24 | 10 | 20-25.4mm |
| 3882.4001001 | 400 | 16" | 40x3.4x10 | 28 | 12 | 25.4-50mm |
| 3882.4501001 | 450 | 18" | 40x3.6x10 | 32 | 12 | 25.4-50mm |
| 3882.5001001 | 500 | 20" | 40x3.6x10 | 35 | 12 | 25.4-50mm |
| 3882.6001001 | 600 | 24" | 40x4.2x10 | 42 | 12 | 25.4-50mm |
| 3882.1050801 | 105 | 4" | 32x2.0x8 | 8 | 8 | 16-20-22.23mm |
| 3882.1150801 | 115 | 4.5" | 32x2.0x8 | 9 | 8 | 20-22.23mm |
| 3882.1250801 | 125 | 5" | 32x2.2x8 | 10 | 8 | 20-22.23mm |
| 3882.1500801 | 150 | 6" | 33x2.2x8 | 12 | 8 | 22.23mm |
| 3882.1800801 | 180 | 7" | 36x2.4x8 | 13 | 8 | 22.23mm |
| 3882.2000801 | 200 | 8" | 40x2.4x8 | 13 | 8 | 22.23-25.4mm |
| 3882.2300801 | 230 | 9" | 38x2.6x8 | 16 | 8 | 22.23mm |
| 3882.2500801 | 250 | 10" | 38x2.6x8 | 18 | 8 | 22.23mm |
| 3882.3000801 | 300 | 12" | 40x3.0x8 | 20 | 8 | 20-25.4mm |
| 3882.3500801 | 350 | 14" | 40x3.2x8 | 24 | 8 | 20-25.4mm |
| 3882.4000801 | 400 | 16" | 40x3.4x8 | 28 | 8 | 25.4-50mm |
| 3882.4500801 | 450 | 18" | 40x3.6x8 | 32 | 8 | 25.4-50mm |
| 3882.5000801 | 500 | 20" | 40x3.6x8 | 35 | 8 | 25.4-50mm |
| 3882.6000801 | 600 | 24" | 40x4.2x8 | 42 | 8 | 25.4-50mm |
