3880
OEM, 3WIN, HTT
HPP

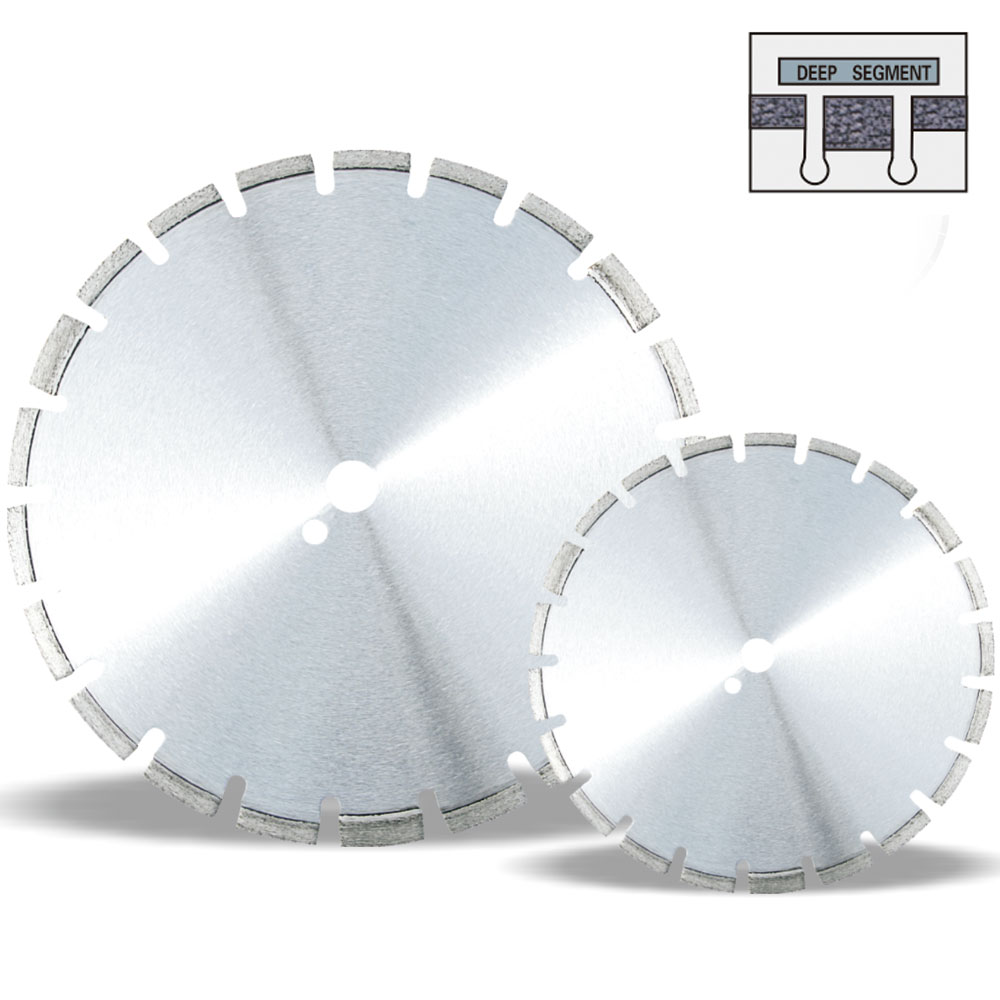

To cut various concrete, stone, brick, asphalt, etc.
3880
105mm to 600mm
Arbor hole with washer
Masonry work
| Quantity: | |
|---|---|
Size Table:
| Item Number | Diameter(mm) | Diameter(inch) | Segment Size (mm) | Segment QTY. | Segment Height(mm) | Arbor Hole |
| 3880.1801401 | 180 | 7" | 36x2.4x14 | 13 | 14 | 22.23mm |
| 3880.2001401 | 200 | 8" | 40x2.4x14 | 13 | 14 | 22.23-25.4mm |
| 3880.2301401 | 230 | 9" | 38x2.6x14 | 16 | 14 | 22.23mm |
| 3880.2501401 | 250 | 10" | 38x2.6x14 | 18 | 14 | 22.23mm |
| 3880.3001401 | 300 | 12" | 40x3.0x14 | 20 | 14 | 20-25.4mm |
| 3880.3501401 | 350 | 14" | 40x3.2x14 | 24 | 14 | 20-25.4mm |
| 3880.4001401 | 400 | 16" | 40x3.4x14 | 28 | 14 | 25.4-50mm |
| 3880.4501401 | 450 | 18" | 40x3.6x14 | 32 | 14 | 25.4-50mm |
| 3880.5001401 | 500 | 20" | 40x3.6x14 | 35 | 14 | 25.4-50mm |
| 3880.6001401 | 600 | 24" | 40x4.2x14 | 42 | 14 | 25.4-50mm |
| 3880.7001401 | 700 | 28" | 45x4.5x14 | 48 | 14 | 25.4-50mm |
| 3880.8001401 | 800 | 32" | 45x4.5x14 | 55 | 14 | 25.4-50mm |
| 3880.9001401 | 900 | 36" | 45x5.2x14 | 62 | 14 | 25.4-50mm |
| 3880.1801201 | 180 | 7" | 36x2.4x12 | 13 | 12 | 22.23mm |
| 3880.2001201 | 200 | 8" | 40x2.4x12 | 13 | 12 | 22.23-25.4mm |
| 3880.2301201 | 230 | 9" | 38x2.6x12 | 16 | 12 | 22.23mm |
| 3880.2501201 | 250 | 10" | 38x2.6x12 | 18 | 12 | 22.23mm |
| 3880.3001201 | 300 | 12" | 40x3.0x12 | 20 | 12 | 20-25.4mm |
| 3880.3501201 | 350 | 14" | 40x3.2x12 | 24 | 12 | 20-25.4mm |
| 3880.4001201 | 400 | 16" | 40x3.4x12 | 28 | 12 | 25.4-50mm |
| 3880.4501201 | 450 | 18" | 40x3.6x12 | 32 | 12 | 25.4-50mm |
| 3880.5001201 | 500 | 20" | 40x3.6x12 | 35 | 12 | 25.4-50mm |
| 3880.6001201 | 600 | 24" | 40x4.2x12 | 42 | 12 | 25.4-50mm |
| 3880.7001201 | 700 | 28" | 45x4.5x12 | 48 | 12 | 25.4-50mm |
| 3880.8001201 | 800 | 32" | 45x4.5x12 | 55 | 12 | 25.4-50mm |
| 3880.9001201 | 900 | 36" | 45x5.2x12 | 62 | 12 | 25.4-50mm |
| 3880.1801001 | 180 | 7" | 36x2.4x10 | 13 | 10 | 22.23mm |
| 3880.2001001 | 200 | 8" | 40x2.4x10 | 13 | 10 | 22.23-25.4mm |
| 3880.2301001 | 230 | 9" | 38x2.6x10 | 16 | 10 | 22.23mm |
| 3880.2501001 | 250 | 10" | 38x2.6x10 | 18 | 10 | 22.23mm |
| 3880.3001001 | 300 | 12" | 40x3.0x10 | 20 | 10 | 20-25.4mm |
| 3880.3501001 | 350 | 14" | 40x3.2x10 | 24 | 10 | 20-25.4mm |
| 3880.4001001 | 400 | 16" | 40x3.4x10 | 28 | 10 | 25.4-50mm |
| 3880.4501001 | 450 | 18" | 40x3.6x10 | 32 | 10 | 25.4-50mm |
| 3880.5001001 | 500 | 20" | 40x3.6x10 | 35 | 10 | 25.4-50mm |
| 3880.6001001 | 600 | 24" | 40x4.2x10 | 42 | 10 | 25.4-50mm |
| 3880.7001001 | 700 | 28" | 45x4.5x10 | 48 | 10 | 25.4-50mm |
| 3880.8001001 | 800 | 32" | 45x4.5x10 | 55 | 10 | 25.4-50mm |
| 3880.9001001 | 900 | 36" | 45x5.2x10 | 62 | 10 | 25.4-50mm |
