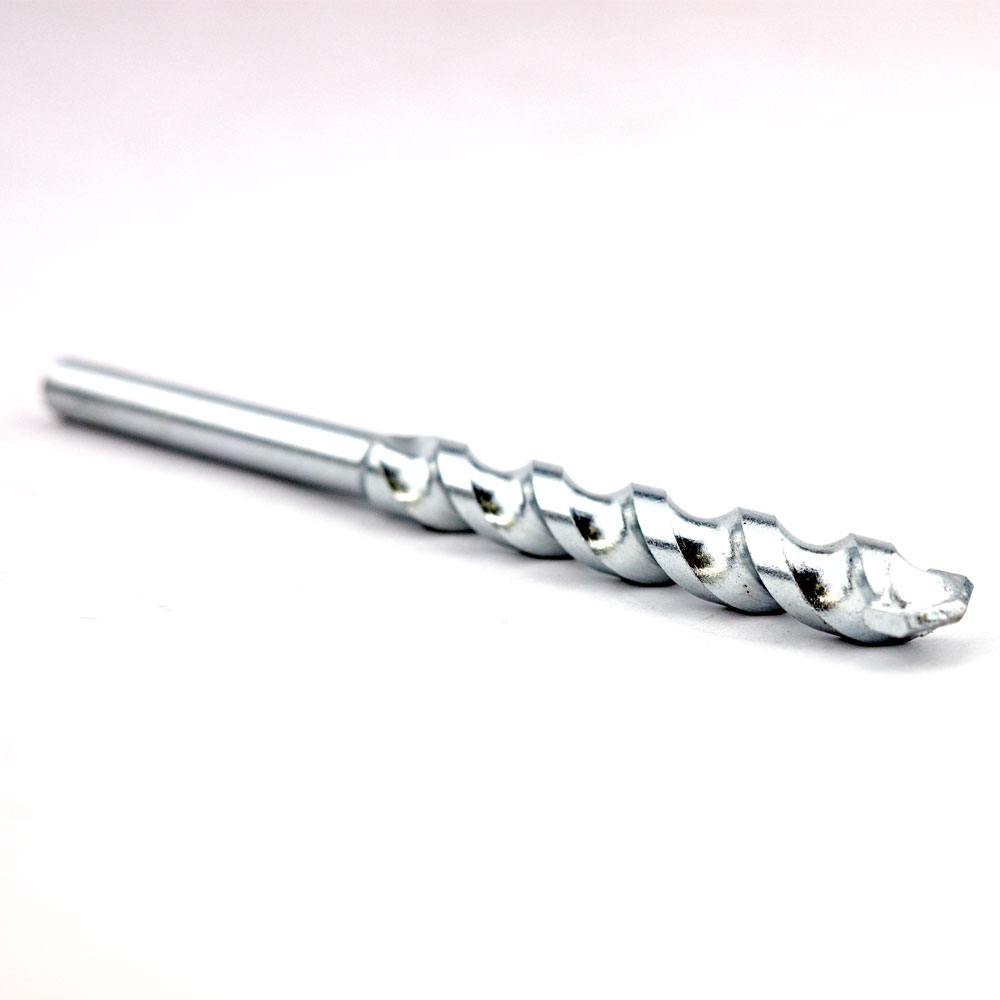

3019-ZN
OEM, HTT, 3WIN
OPP
To drill holes in various concrete, brick, stone, Aerated concrete, masonry ,etc.
3019-ZN
3 to 25mm
Cylindrical
Masonry work
| Quantity: | |
|---|---|
Size Table:
*Other special sizes are available on the customers' special requests.
*Diameter 6-25mm U flute with step end for go-through drilling application on higher speed.
*Diameter 13mm to 22mm drill bits are with the reduced cylindrical shank diameter 9.5mm
*Diameter 24-25mm drill bits are with the reduced cylindrical shank diameter 12.7mm
| Item Number | Diameter（mm） | Working Lengt（mm） | Overall Length（mm） |
| 3019.030060 | 3 | 30 | 60 |
| 3019.030070 | 3 | 35 | 70 |
| 3019.030085 | 3 | 45 | 85 |
| 3019.035060 | 3.5 | 30 | 60 |
| 3019.035070 | 3.5 | 35 | 70 |
| 3019.040075 | 4 | 35 | 75 |
| 3019.040085 | 4 | 45 | 85 |
| 3019.040090 | 4 | 50 | 90 |
| 3019.040150 | 4 | 110 | 150 |
| 3019.045075 | 4.5 | 35 | 75 |
| 3019.045085 | 4.5 | 45 | 85 |
| 3019.050090 | 5 | 45 | 90 |
| 3019.050095 | 5 | 50 | 95 |
| 3019.050100 | 5 | 60 | 100 |
| 3019.050150 | 5 | 110 | 150 |
| 3019.050200 | 5 | 130 | 200 |
| 3019.050250 | 5 | 200 | 250 |
| 3019.050300 | 5 | 250 | 300 |
| 3019.050400 | 5 | 260 | 400 |
| 3019.050500 | 5 | 360 | 500 |
| 3019.055085 | 5.5 | 45 | 85 |
| 3019.055095 | 5.5 | 50 | 95 |
| 3019.055100 | 5.5 | 60 | 100 |
| 3019.055150 | 5.5 | 110 | 150 |
| 3019.060100 | 6 | 60 | 100 |
| 3019.060150 | 6 | 110 | 150 |
| 3019.060200 | 6 | 130 | 200 |
| 3019.060260 | 6 | 190 | 260 |
| 3019.060300 | 6 | 230 | 300 |
| 3019.060400 | 6 | 340 | 400 |
| 3019.060600 | 6 | 460 | 600 |
| 3019.065100 | 6.5 | 60 | 100 |
| 3019.065150 | 6.5 | 110 | 150 |
| 3019.065200 | 6.5 | 130 | 200 |
| 3019.065260 | 6.5 | 190 | 260 |
| 3019.065300 | 6.5 | 230 | 300 |
| 3019.065400 | 6.5 | 340 | 400 |
| 3019.070100 | 7 | 60 | 100 |
| 3019.070120 | 7 | 80 | 120 |
| 3019.070150 | 7 | 110 | 150 |
| 3019.070200 | 7 | 130 | 200 |
| 3019.070300 | 7 | 230 | 300 |
| 3019.070400 | 7 | 340 | 400 |
| 3019.070500 | 7 | 360 | 500 |
| 3019.075100 | 7.5 | 60 | 100 |
| 3019.075120 | 7.5 | 80 | 120 |
| 3019.075150 | 7.5 | 110 | 150 |
| 3019.080120 | 8 | 80 | 120 |
| 3019.080150 | 8 | 110 | 150 |
| 3019.080200 | 8 | 130 | 200 |
| 3019.080260 | 8 | 190 | 260 |
| 3019.080300 | 8 | 230 | 300 |
| 3019.080400 | 8 | 340 | 400 |
| 3019.080600 | 8 | 460 | 600 |
| 3019.085120 | 8.5 | 80 | 120 |
| 3019.085150 | 8.5 | 110 | 150 |
| 3019.085200 | 8.5 | 130 | 200 |
| 3019.090120 | 9 | 80 | 120 |
| 3019.090150 | 9 | 110 | 150 |
| 3019.095120 | 9 | 80 | 120 |
| 3019.095150 | 9 | 110 | 150 |
| 3019.100120 | 10 | 80 | 120 |
| 3019.100150 | 10 | 110 | 150 |
| 3019.100200 | 10 | 135 | 200 |
| 3019.100260 | 10 | 190 | 260 |
| 3019.100300 | 10 | 230 | 300 |
| 3019.100400 | 10 | 340 | 400 |
| 3019.100600 | 10 | 460 | 600 |
| 3019.110120 | 11 | 80 | 120 |
| 3019.110150 | 11 | 110 | 150 |
| 3019.110200 | 11 | 135 | 200 |
| 3019.115120 | 11.5 | 80 | 120 |
| 3019.115150 | 11.5 | 110 | 150 |
| 3019.115200 | 11.5 | 135 | 200 |
| 3019.120130 | 12 | 80 | 130 |
| 3019.120150 | 12 | 90 | 150 |
| 3019.120200 | 12 | 150 | 200 |
| 3019.120260 | 12 | 150 | 260 |
| 3019.120300 | 12 | 230 | 300 |
| 3019.120400 | 12 | 340 | 400 |
| 3019.120600 | 12 | 460 | 600 |
| 3019.121000 | 12 | 900 | 1000 |
| 3019.125130 | 12.5 | 80 | 130 |
| 3019.125150 | 12.5 | 90 | 150 |
| 3019.125200 | 12.5 | 150 | 200 |
| 3019.130150 | 13 | 90 | 150 |
| 3019.130200 | 13 | 150 | 200 |
| 3019.130300 | 13 | 230 | 300 |
| 3019.135150 | 13.5 | 90 | 150 |
| 3019.135200 | 13.5 | 150 | 200 |
| 3019.140150 | 14 | 90 | 150 |
| 3019.140200 | 14 | 135 | 200 |
| 3019.140260 | 14 | 200 | 260 |
| 3019.140300 | 14 | 230 | 300 |
| 3019.140400 | 14 | 340 | 400 |
| 3019.140600 | 14 | 460 | 600 |
| 3019.145150 | 14.5 | 90 | 150 |
| 3019.145200 | 14.5 | 135 | 200 |
| 3019.150150 | 15 | 90 | 150 |
| 3019.150200 | 15 | 135 | 200 |
| 3019.160150 | 16 | 90 | 150 |
| 3019.160200 | 16 | 135 | 200 |
| 3019.160250 | 16 | 200 | 260 |
| 3019.160300 | 16 | 230 | 300 |
| 3019.160400 | 16 | 340 | 400 |
| 3019.160600 | 16 | 460 | 600 |
| 3019.180160 | 18 | 100 | 160 |
| 3019.180200 | 18 | 135 | 200 |
| 3019.180300 | 18 | 230 | 300 |
| 3019.180400 | 18 | 340 | 400 |
| 3019.180600 | 18 | 460 | 600 |
| 3019.190160 | 19 | 100 | 160 |
| 3019.190200 | 19 | 135 | 200 |
| 3019.200160 | 20 | 100 | 160 |
| 3019.200200 | 20 | 135 | 200 |
| 3019.200260 | 20 | 200 | 260 |
| 3019.200300 | 20 | 230 | 300 |
| 3019.200400 | 20 | 340 | 400 |
| 3019.200600 | 20 | 460 | 600 |
| 3019.220160 | 22 | 100 | 160 |
| 3019.220200 | 22 | 135 | 200 |
| 3019.220300 | 22 | 230 | 300 |
| 3019.220400 | 22 | 340 | 400 |
| 3019.220600 | 22 | 460 | 600 |
| 3019.250160 | 25 | 100 | 160 |
| 3019.250200 | 25 | 135 | 200 |
| 3019.250300 | 25 | 230 | 300 |
| 3019.250400 | 25 | 340 | 400 |
| 3019.250600 | 25 | 460 | 600 |
