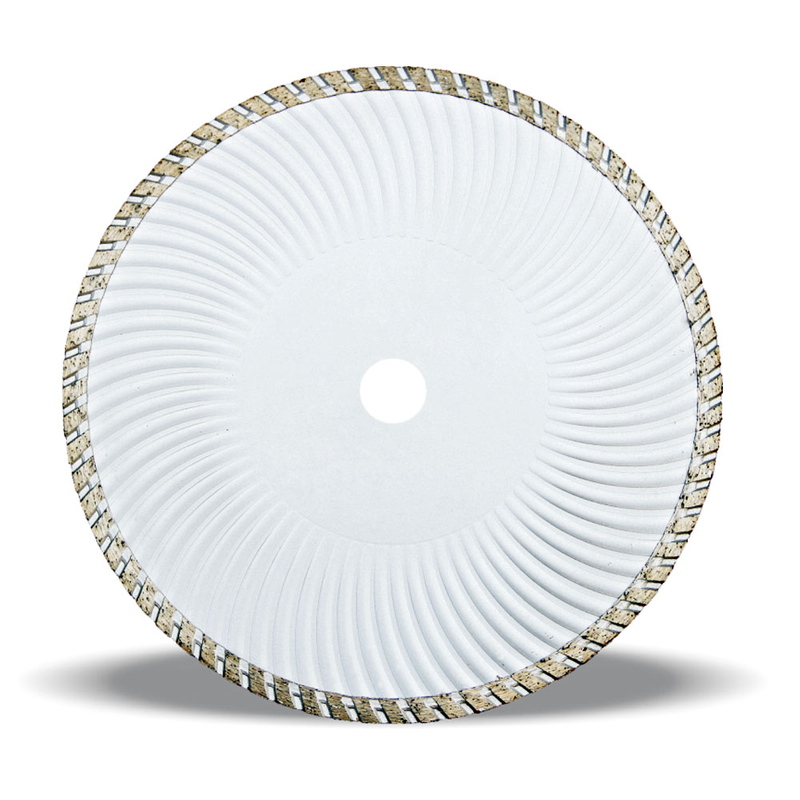

3876
OEM, 3WIN, HTT
MPP
To cut various tiles, ceramics, porcelains, granite, marble, concrete, cement, stone, brick, limestone, etc.
3876
105mm to 300mm
Arbor hole with washer
Masonry work
| Quantity: | |
|---|---|
Size Table:
| Item Number | Diameter (mm) | Diameter (inch) | Rim Height(mm) | Kerf (mm) | Arbor hole |
| 3876.1051201 | 105 | 4" | 12 | 2.5 | 16-20-22.23mm |
| 3876.1101201 | 110 | 4.3" | 12 | 2.5 | 16-20-22.23mm |
| 3876.1151201 | 115 | 4.5" | 12 | 2.5 | 20-22.23mm |
| 3876.1251201 | 125 | 5" | 12 | 2.5 | 20-22.23mm |
| 3876.1501201 | 150 | 6" | 12 | 2.8 | 22.23mm |
| 3876.1801201 | 180 | 7" | 12 | 2.8 | 22.23mm |
| 3876.2001201 | 200 | 8" | 12 | 3.0 | 22.23-25.4mm |
| 3876.2301201 | 230 | 9" | 12 | 3.1 | 22.23mm |
| 3876.2501201 | 250 | 10" | 12 | 3.4 | 22.23-25.4mm |
| 3876.3001201 | 300 | 12" | 12 | 3.4 | 20-25.4mm |
| 3876.1051001 | 105 | 4" | 10 | 2.5 | 16-20-22.23mm |
| 3876.1101001 | 110 | 4.3" | 10 | 2.5 | 16-20-22.23mm |
| 3876.1151001 | 115 | 4.5" | 10 | 2.5 | 20-22.23mm |
| 3876.1251001 | 125 | 5" | 10 | 2.5 | 20-22.23mm |
| 3876.1501001 | 150 | 6" | 10 | 2.8 | 22.23mm |
| 3876.1801001 | 180 | 7" | 10 | 2.8 | 22.23mm |
| 3876.2001001 | 200 | 8" | 10 | 3.0 | 22.23-25.4mm |
| 3876.2301001 | 230 | 9" | 10 | 3.1 | 22.23mm |
| 3876.2501001 | 250 | 10" | 10 | 3.4 | 22.23-25.4mm |
| 3876.3001001 | 300 | 12" | 10 | 3.4 | 20-25.4mm |
| 3876.1050701 | 105 | 4" | 7 | 2.5 | 16-20-22.23mm |
| 3876.1100701 | 110 | 4.3" | 7 | 2.5 | 16-20-22.23mm |
| 3876.1150701 | 115 | 4.5" | 7 | 2.5 | 20-22.23mm |
| 3876.1250701 | 125 | 5" | 7 | 2.5 | 20-22.23mm |
| 3876.1500701 | 150 | 6" | 7 | 2.8 | 22.23mm |
| 3876.1800701 | 180 | 7" | 7 | 2.8 | 22.23mm |
| 3876.2000701 | 200 | 8" | 7 | 3.0 | 22.23-25.4mm |
| 3876.2300701 | 230 | 9" | 7 | 3.1 | 22.23mm |
| 3876.2500701 | 250 | 10" | 7 | 3.4 | 22.23-25.4mm |
| 3876.3000701 | 300 | 12" | 7 | 3.4 | 20-25.4mm |
