3875
OEM, 3WIN, HTT
MPP

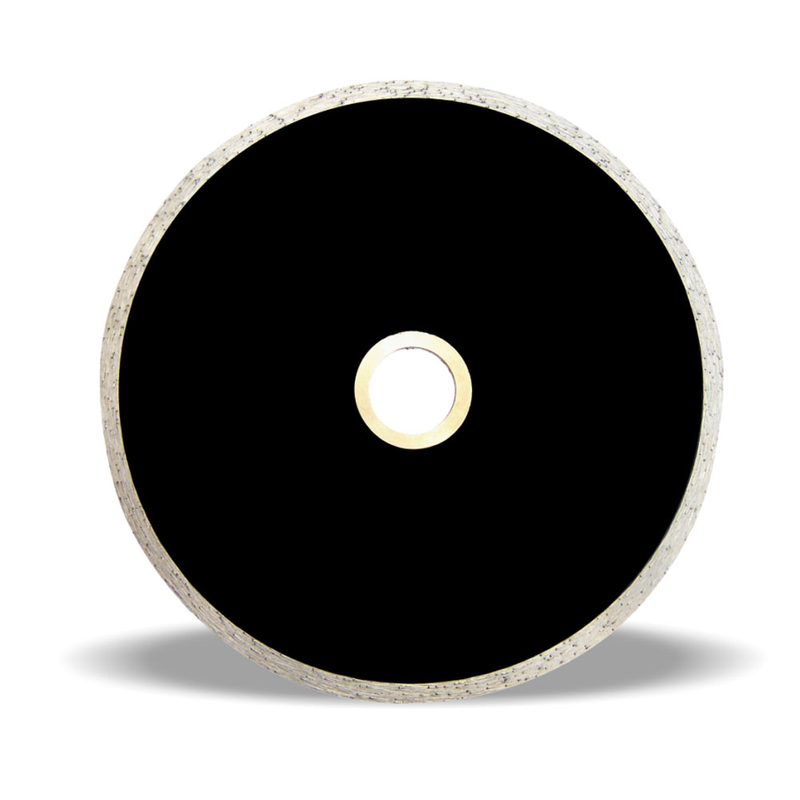

To cut various ceramics, tiles, porcelain and various stone slab materials, etc.
3875
105mm to 350mm
Arbor hole with washer
Masonry work
| Quantity: | |
|---|---|
Size Table:
| Item Number | Diameter (mm) | Diameter (inch) | Rim Height(mm) | Kerf (mm) | Arbor hole |
| 3875.1051001 | 105 | 4" | 10 | 1.8 | 16-20-22.23mm |
| 3875.1101001 | 110 | 4.3" | 10 | 1.9 | 16-20-22.23mm |
| 3875.1151001 | 115 | 4.5" | 10 | 1.9 | 20-22.23mm |
| 3875.1251001 | 125 | 5" | 10 | 1.9 | 20-22.23mm |
| 3875.1501001 | 150 | 6" | 10 | 1.9 | 20-22.23mm |
| 3875.1801001 | 180 | 7" | 10 | 2.2 | 22.23mm |
| 3875.2001001 | 200 | 8" | 10 | 2.4 | 22.23-25.4mm |
| 3875.2301001 | 230 | 9" | 10 | 2.6 | 22.23mm |
| 3875.2501001 | 250 | 10" | 10 | 3.0 | 22.23mm |
| 3875.3001001 | 300 | 12" | 10 | 3.2 | 20-25.4mm |
| 3875.3501001 | 350 | 14" | 10 | 3.2 | 20-25.4mm |
| 3875.1050701 | 105 | 4" | 7 | 1.8 | 16-20-22.23mm |
| 3875.1100701 | 110 | 4.3" | 7 | 1.9 | 16-20-22.23mm |
| 3875.1150701 | 115 | 4.5" | 7 | 1.9 | 20-22.23mm |
| 3875.1250701 | 125 | 5" | 7 | 1.9 | 20-22.23mm |
| 3875.1500701 | 150 | 6" | 7 | 1.9 | 20-22.23mm |
| 3875.1800701 | 180 | 7" | 7 | 2.2 | 22.23mm |
| 3875.2000701 | 200 | 8" | 7 | 2.4 | 22.23-25.4mm |
| 3875.2300701 | 230 | 9" | 7 | 2.6 | 22.23mm |
| 3875.2500701 | 250 | 10" | 7 | 3.0 | 22.23mm |
| 3875.3000701 | 300 | 12" | 7 | 3.2 | 20-25.4mm |
| 3875.3500701 | 350 | 14" | 7 | 3.2 | 20-25.4mm |
| 3875.1050501 | 105 | 4" | 5 | 1.8 | 16-20-22.23mm |
| 3875.1100501 | 110 | 4.3" | 5 | 1.9 | 16-20-22.23mm |
| 3875.1150501 | 115 | 4.5" | 5 | 1.9 | 20-22.23mm |
| 3875.1250501 | 125 | 5" | 5 | 1.9 | 20-22.23mm |
| 3875.1500501 | 150 | 6" | 5 | 1.9 | 20-22.23mm |
| 3875.1800501 | 180 | 7" | 5 | 2.2 | 22.23mm |
| 3875.2000501 | 200 | 8" | 5 | 2.4 | 22.23-25.4mm |
| 3875.2300501 | 230 | 9" | 5 | 2.6 | 22.23mm |
| 3875.2500501 | 250 | 10" | 5 | 3.0 | 22.23mm |
| 3875.3000501 | 300 | 12" | 5 | 3.2 | 20-25.4mm |
| 3875.3500501 | 350 | 14" | 5 | 3.2 | 20-25.4mm |
