3035
OEM, HTT, 3WIN
OPP

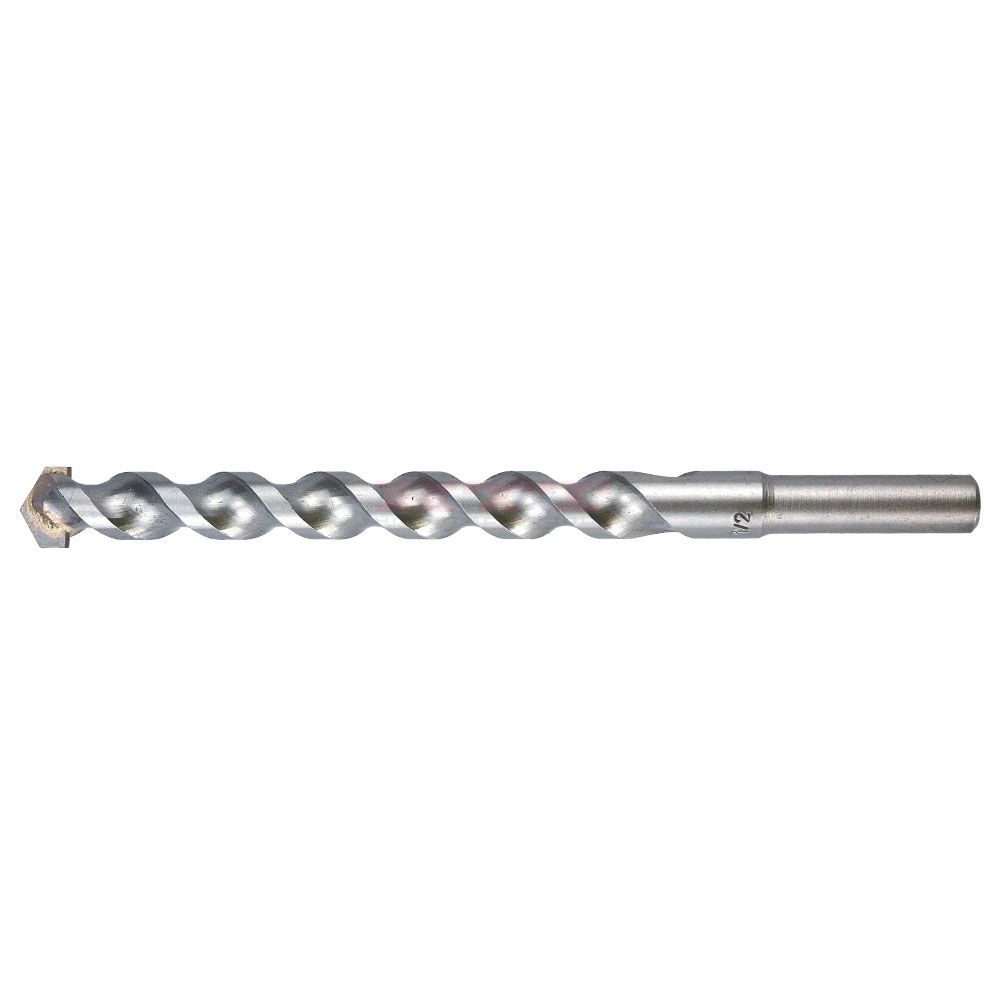

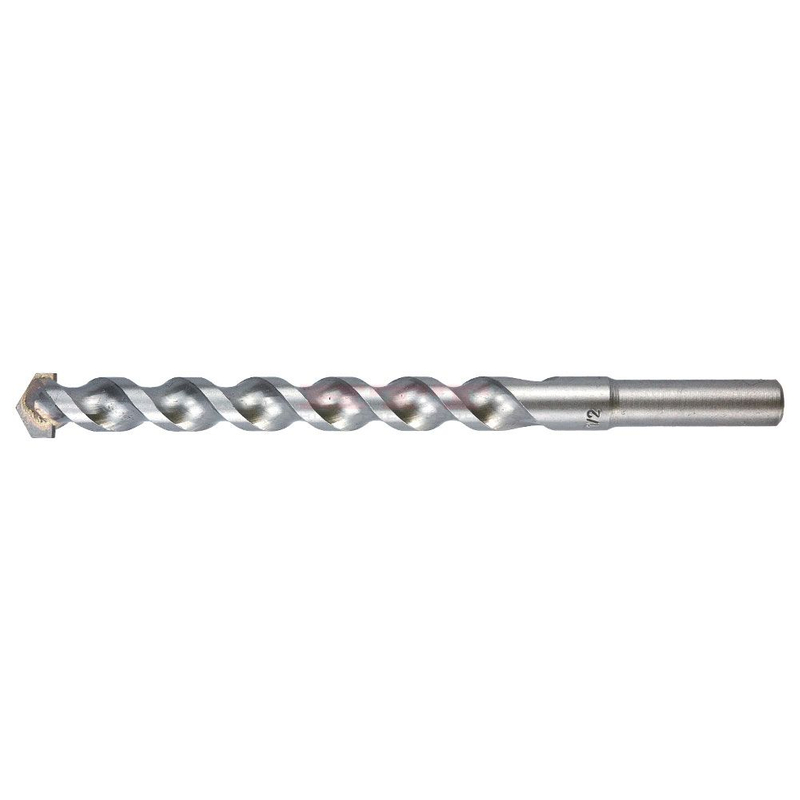

To drill holes in various concrete, brick, stone, Aerated concrete, masonry ,etc.
3035
1/8" to 1"
Cylindrical
Masonry work
| Quantity: | |
|---|---|
Size Table:
*Other special sizes are available on the customers' special requests.
*Diameter 1/2" to 3/4" drill bits are with the reduced cylindrical shank diameter 3/8"
*Diameter 7/8" to 1" drill bits are with the reduced cylindrical shank diamater 1/2"
| Item Number | Diameter(inch) | Working Length(inch) | Overall Length（inch) |
| 3035.0108003 | 1/8" | 1-3/4" | 3" |
| 3035.0108312 | 1/8" | 2-1/4" | 3-1/2" |
| 3035.0532003 | 5/32" | 2" | 3" |
| 3035.0532312 | 5/32" | 2-1/4" | 3-1/2" |
| 3035.0532006 | 5/32" | 4" | 6" |
| 3035.0316003 | 3/16" | 2" | 3" |
| 3035.0316004 | 3/16" | 2-1/2" | 4" |
| 3035.0316006 | 3/16" | 4" | 6" |
| 3035.0732312 | 7/32" | 2-1/4" | 3-1/2" |
| 3035.0732004 | 7/32" | 2-1/2" | 4" |
| 3035.0732006 | 7/32" | 4" | 6" |
| 3035.0104004 | 1/4" | 2-1/2" | 4" |
| 3035.0104006 | 1/4" | 4" | 6" |
| 3035.0104008 | 1/4" | 6" | 8" |
| 3035.0104010 | 1/4" | 7" | 10" |
| 3035.0104012 | 1/4" | 9" | 12" |
| 3035.0104014 | 1/4" | 12" | 14" |
| 3035.0104016 | 1/4" | 14” | 16" |
| 3035.0104018 | 1/4" | 16" | 18" |
| 3035.0104024 | 1/4" | 20" | 24" |
| 3035.0104030 | 1/4" | 25" | 30" |
| 3035.0516004 | 5/16" | 2-1/2" | 4" |
| 3035.0516006 | 5/16" | 4" | 6" |
| 3035.0516008 | 5/16" | 6" | 8" |
| 3035.0516010 | 5/16" | 7" | 10" |
| 3035.0516012 | 5/16" | 9" | 12" |
| 3035.0516014 | 5/16" | 12" | 14" |
| 3035.0516016 | 5/16" | 14“ | 16" |
| 3035.0516018 | 5/16" | 16" | 18" |
| 3035.0516024 | 5/16" | 20" | 24" |
| 3035.0516030 | 5/16" | 25" | 30" |
| 3035.0308006 | 3/8" | 4" | 6" |
| 3035.0308008 | 3/8" | 6" | 8" |
| 3035.0308010 | 3/8" | 7" | 10" |
| 3035.0308012 | 3/8" | 9" | 12" |
| 3035.0308014 | 3/8" | 12" | 14" |
| 3035.0308016 | 3/8" | 14“ | 16" |
| 3035.0308018 | 3/8" | 16" | 18" |
| 3035.0308024 | 3/8" | 20" | 24" |
| 3035.0308030 | 3/8" | 25" | 30" |
| 3035.0716005 | 7/16" | 3" | 5" |
| 3035.0716006 | 7/16" | 4" | 6" |
| 3035.0716008 | 7/16" | 6" | 8" |
| 3035.0716014 | 7/16" | 12" | 14" |
| 3035.0102006 | 1/2“ | 4" | 6" |
| 3035.0102008 | 1/2” | 6" | 8" |
| 3035.0102012 | 1/2“ | 9" | 12" |
| 3035.0102014 | 1/2“ | 12" | 14" |
| 3035.0102016 | 1/2“ | 14” | 16" |
| 3035.0102018 | 1/2“ | 16" | 18" |
| 3035.0102024 | 1/2“ | 20" | 24" |
| 3035.0102030 | 1/2“ | 25" | 30" |
| 3035.0916006 | 9/16“ | 4" | 6" |
| 3035.0916008 | 9/16“ | 6" | 8" |
| 3035.0916010 | 9/16“ | 7" | 10" |
| 3035.0916012 | 9/16“ | 9" | 12" |
| 3035.0916014 | 9/16“ | 12" | 14" |
| 3035.0916016 | 9/16“ | 14 | 16" |
| 3035.0916018 | 9/16“ | 16" | 18" |
| 3035.0916024 | 9/16“ | 20" | 24" |
| 3035.0508006 | 5/8“ | 4" | 6" |
| 3035.0508008 | 5/8“ | 6" | 8" |
| 3035.0508010 | 5/8“ | 7" | 10" |
| 3035.0508012 | 5/8“ | 9" | 12" |
| 3035.0508014 | 5/8“ | 12" | 14" |
| 3035.0508016 | 5/8“ | 14“ | 16" |
| 3035.0508018 | 5/8“ | 16" | 18" |
| 3035.0508024 | 5/8“ | 20" | 24" |
| 3035.1116006 | 11/16“ | 4" | 6" |
| 3035.1116008 | 11/16“ | 6" | 8" |
| 3035.1116012 | 11/16“ | 9" | 12" |
| 3035.1116016 | 11/16“ | 14“ | 16" |
| 3035.1116024 | 11/16“ | 20" | 24" |
| 3035.0304006 | 3/4“ | 4" | 6" |
| 3035.0304008 | 3/4” | 6" | 8" |
| 3035.0304014 | 3/4” | 12" | 14" |
| 3035.0304018 | 3/4” | 16" | 18" |
| 3035.0304024 | 3/4” | 20" | 24" |
| 3035.0708006 | 7/8“ | 4" | 6" |
| 3035.0708008 | 7/8“ | 6" | 8" |
| 3035.0708012 | 7/8“ | 9" | 12" |
| 3035.0708014 | 7/8“ | 12" | 14" |
| 3035.0708016 | 7/8“ | 14“ | 16" |
| 3035.0708018 | 7/8“ | 16" | 18" |
| 3035.0708024 | 7/8“ | 20" | 24" |
| 3035.0001006 | 1“ | 4" | 6" |
| 3035.0001008 | 1” | 6" | 8" |
| 3035.0001012 | 1“ | 9" | 12" |
| 3035.0001014 | 1“ | 12" | 14" |
| 3035.0001016 | 1” | 14“ | 16" |
| 3035.0001018 | 1” | 16" | 18" |
| 3035.0001024 | 1“ | 20" | 24" |
