3832HEX Series
HTT, or OEM job
HPP
To drill holes in stone ware drilling of 4 and 5 class, especially glaze, sandstone, glazed sandstone, sandware, Terracota, marble, tiles upto 5th class.
3832HEX
6mm to 110mm
Hex
Masonry work
| Quantity: | |
|---|---|
Size Table:
| Item Number | Diameter(mm) | Max. Cutting Depth(mm) | Cooling Way | Overall Length(mm) |

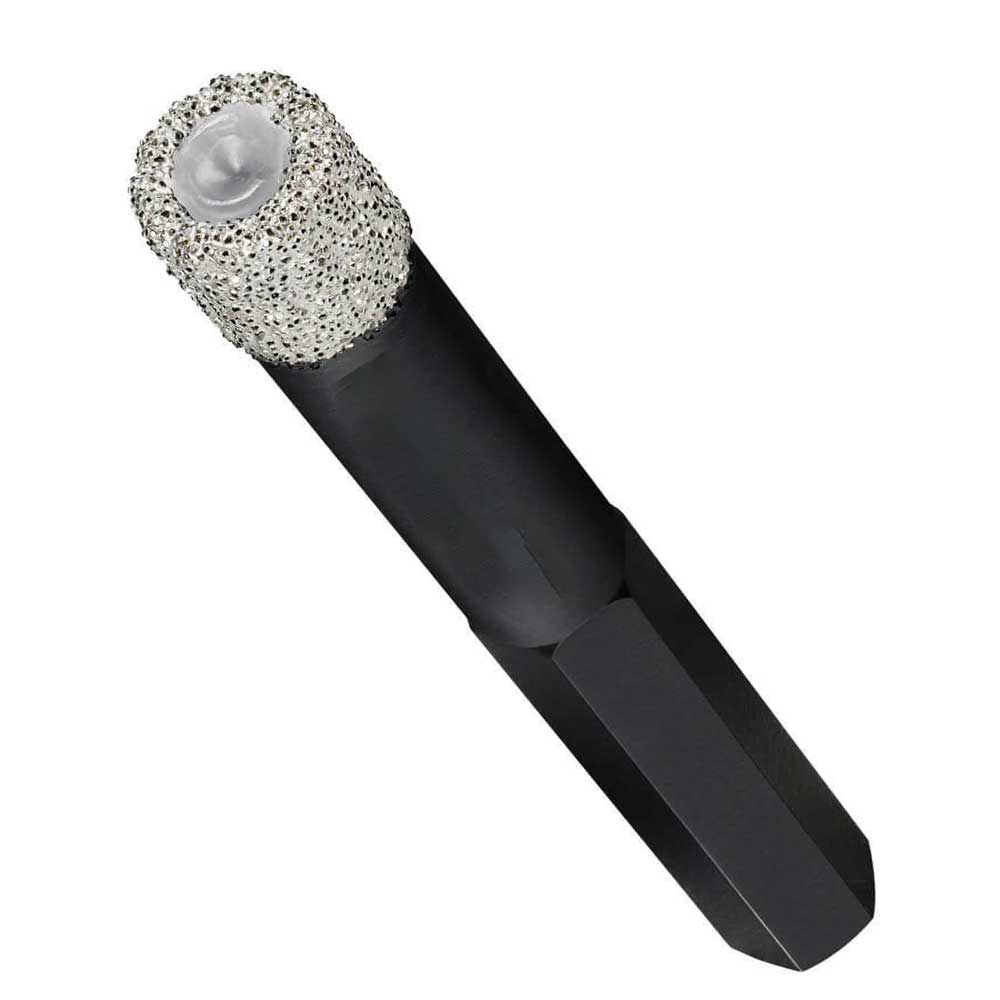

| 3832HEX.0603567 | 6 | 35 | Inserted Wax | 67 |
| 3832HEX.0653567 | 6.5 | 35 | Inserted Wax | 67 |
| 3832HEX.0703567 | 7 | 35 | Inserted Wax | 67 |
| 3832HEX.0805080 | 8 | 50 | Inserted Wax | 80 |
| 3832HEX.0905080 | 9 | 50 | Inserted Wax | 80 |
| 3832HEX.0955080 | 9.5 | 50 | Inserted Wax | 80 |
| 3832HEX.1005080 | 10 | 50 | Inserted Wax | 80 |
| 3832HEX.1205080 | 12 | 50 | Inserted Wax | 80 |
| 3832HEX.1305080 | 13 | 50 | Inserted Wax | 80 |
| 3832HEX.1505080 | 15 | 50 | Inserted Wax | 80 |
| 3832HEX.1605080 | 16 | 50 | Inserted Wax | 80 |
| 3832HEX.1805080 | 18 | 50 | Inserted Wax | 80 |

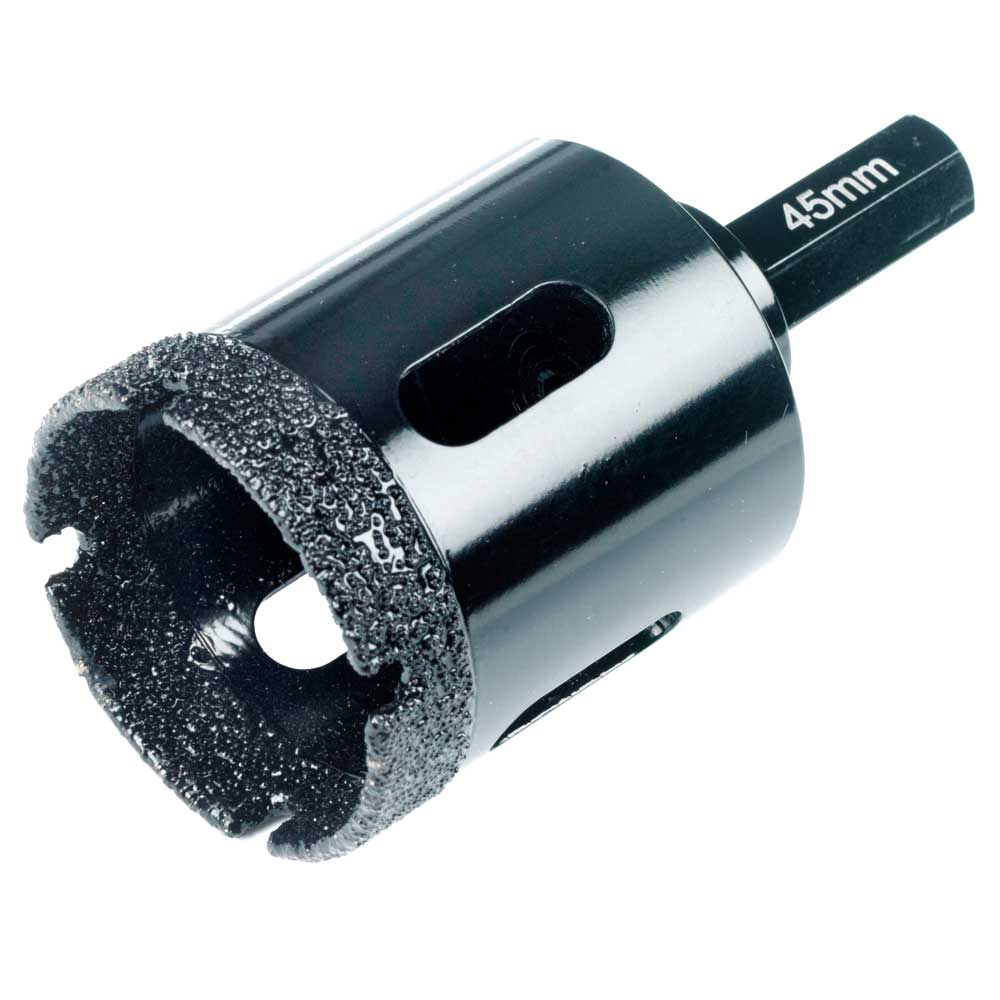

| 3832HEX.1905090 | 19 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.2005090 | 20 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.2205090 | 22 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.2505090 | 25 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.2805090 | 28 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.3005090 | 30 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.3205090 | 32 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.3505090 | 35 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.3805090 | 38 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.4005090 | 40 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.4205090 | 42 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.4505090 | 45 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.5005090 | 50 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.5505090 | 55 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.6005090 | 60 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.6205090 | 62 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.6505090 | 65 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.6805090 | 68 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.7005090 | 70 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.7505090 | 75 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.8005090 | 80 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.8505090 | 85 | 50 | Slots with Wind cooling | 90 |
| 3832HEX.9005090 | 90 | 50 | Slots with Wind cooling | 90 |
