3832M14 Series
HTT, or OEM job
HPP
To drill holes in stone ware drilling of 4 and 5 class, especially glaze, sandstone, glazed sandstone, sandware, Terracota, marble, tiles upto 5th class.
3832M14
6mm to 18mm
Female M14
Masonry work
| Quantity: | |
|---|---|
Size Table:
| Item Number | Diameter(mm) | Max. Cutting Depth(mm) | Cooling Way | Overall Length(mm) |

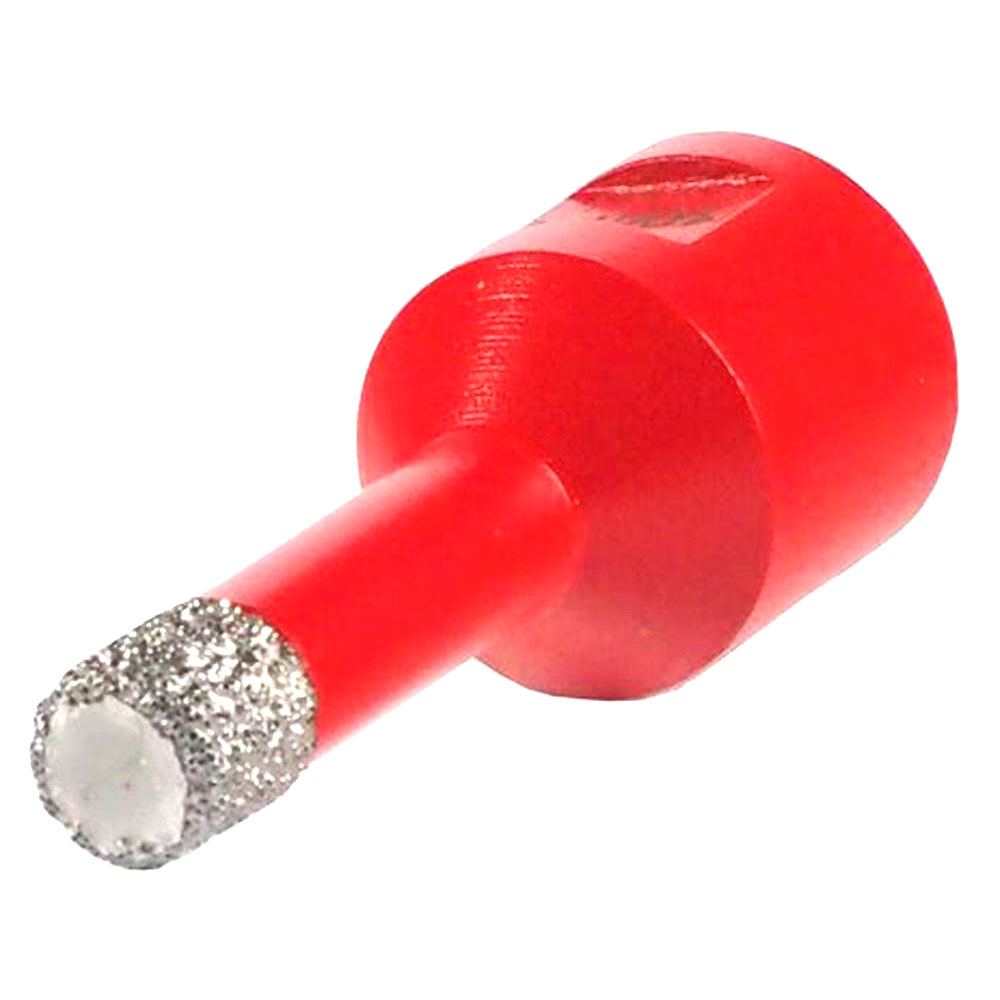

| 3832M14.0603567 | 6 | 35 | Inserted Wax | 70 |
| 3832M14.0653567 | 6.5 | 35 | Inserted Wax | 70 |
| 3832M14.0703567 | 7 | 35 | Inserted Wax | 70 |
| 3832M14.0805080 | 8 | 50 | Inserted Wax | 85 |
| 3832M14.0905080 | 9 | 50 | Inserted Wax | 85 |
| 3832M14.0955080 | 9.5 | 50 | Inserted Wax | 85 |
| 3832M14.1005085 | 10 | 50 | Inserted Wax | 85 |
| 3832M14.1205085 | 12 | 50 | Inserted Wax | 85 |
| 3832M14.1305085 | 13 | 50 | Inserted Wax | 85 |
| 3832M14.1505085 | 15 | 50 | Inserted Wax | 85 |
| 3832M14.1605085 | 16 | 50 | Inserted Wax | 85 |
| 3832M14.1805085 | 18 | 50 | Inserted Wax | 85 |

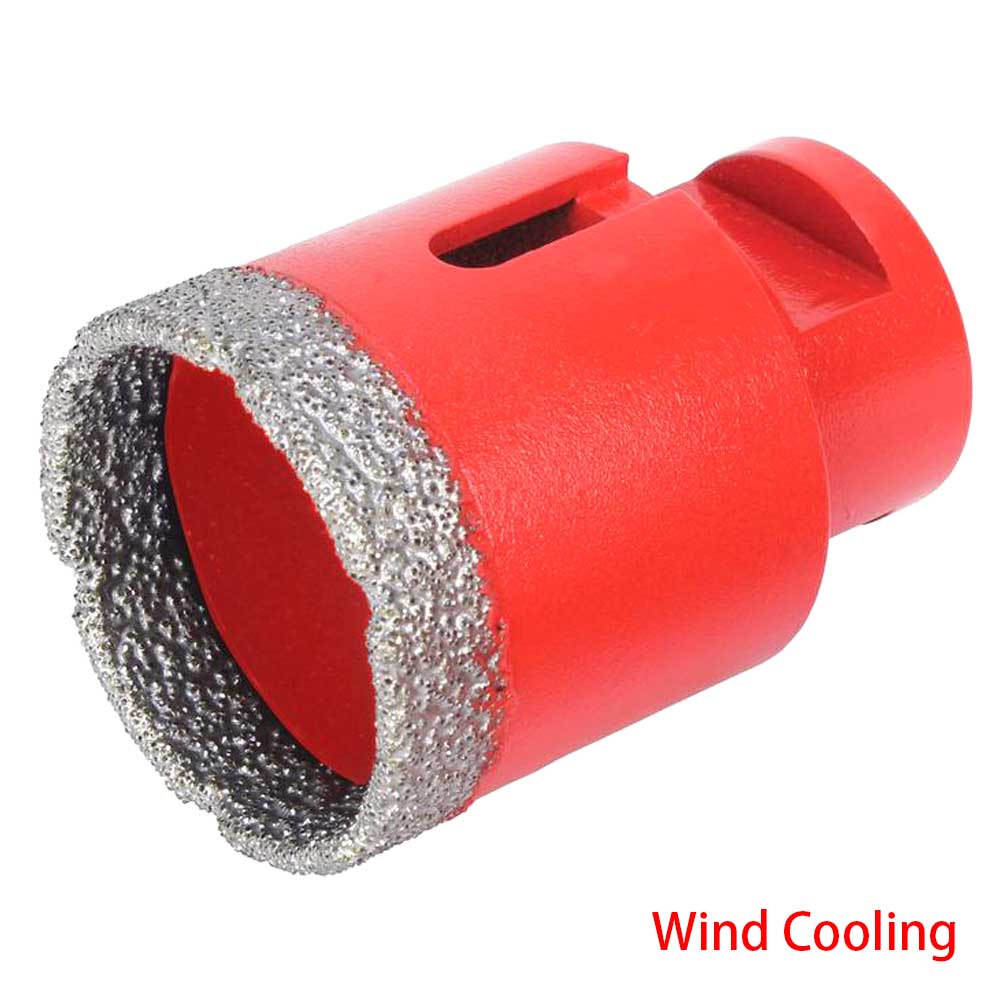

| 3832M14.2005095 | 20 | 50 | Slotted with wind cooling | 95 |
| 3832M14.2205095 | 22 | 50 | Slotted with wind cooling | 95 |
| 3832M14.2505095 | 25 | 50 | Slotted with wind cooling | 95 |
| 3832M14.2805095 | 28 | 50 | Slotted with wind cooling | 95 |
| 3832M14.3005095 | 30 | 50 | Slotted with wind cooling | 95 |
| 3832M14.3205095 | 32 | 50 | Slotted with wind cooling | 95 |
| 3832M14.3505095 | 35 | 50 | Slotted with wind cooling | 95 |
| 3832M14.3805095 | 38 | 50 | Slotted with wind cooling | 95 |
| 3832M14.4005095 | 40 | 50 | Slotted with wind cooling | 95 |
| 3832M14.4205095 | 42 | 50 | Slotted with wind cooling | 95 |
| 3832M14.4505095 | 45 | 50 | Slotted with wind cooling | 95 |
| 3832M14.4805095 | 48 | 50 | Slotted with wind cooling | 95 |
| 3832M14.5005095 | 50 | 50 | Slotted with wind cooling | 95 |
| 3832M14.5505095 | 55 | 50 | Slotted with wind cooling | 95 |
| 3832M14.6005095 | 60 | 50 | Slotted with wind cooling | 95 |
| 3832M14.6205095 | 62 | 50 | Slotted with wind cooling | 95 |
| 3832M14.6505095 | 65 | 50 | Slotted with wind cooling | 95 |
| 3832M14.6805095 | 68 | 50 | Slotted with wind cooling | 95 |
| 3832M14.7005100 | 70 | 50 | Slotted with wind cooling | 100 |
| 3832M14.8005100 | 80 | 50 | Slotted with wind cooling | 100 |
| 3832M14.9005100 | 90 | 50 | Slotted with wind cooling | 100 |
| 3832M14.1005100 | 100 | 50 | Slotted with wind cooling | 100 |
| 3832M14.1105100 | 110 | 50 | Slotted with wind cooling | 100 |
