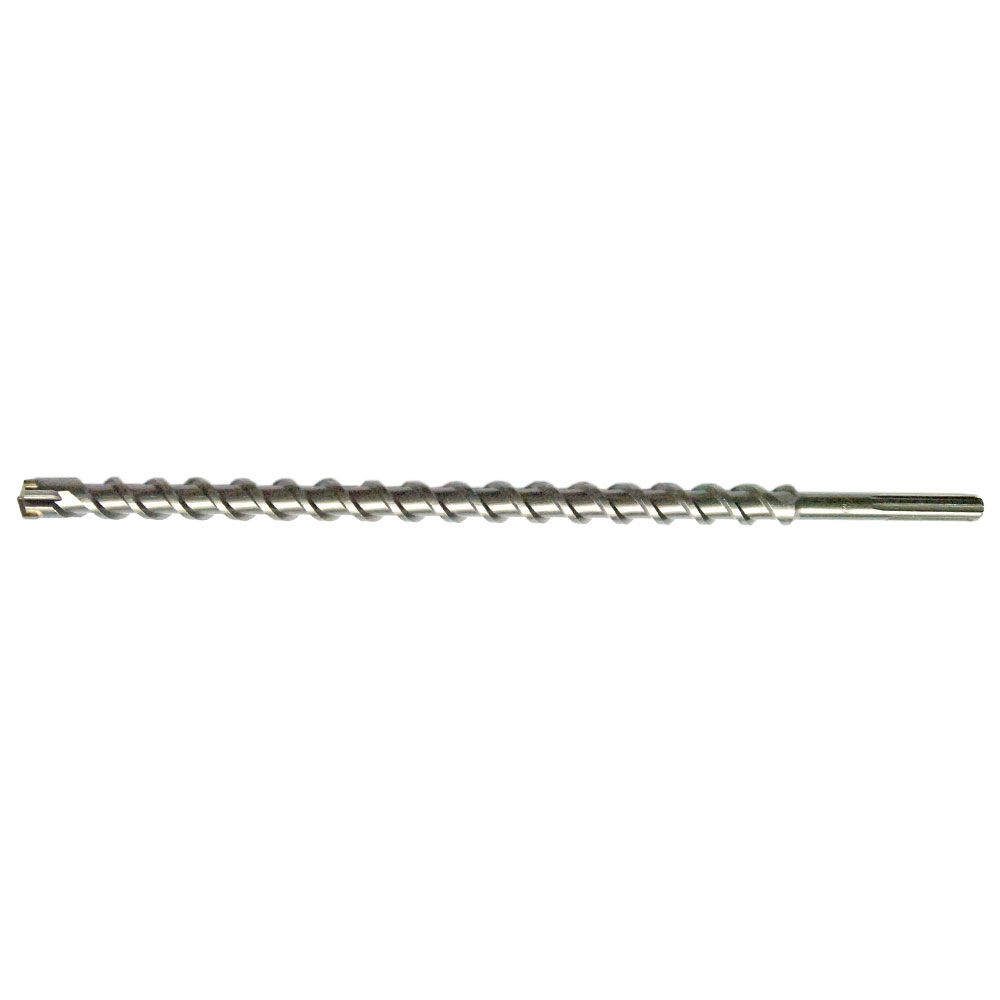

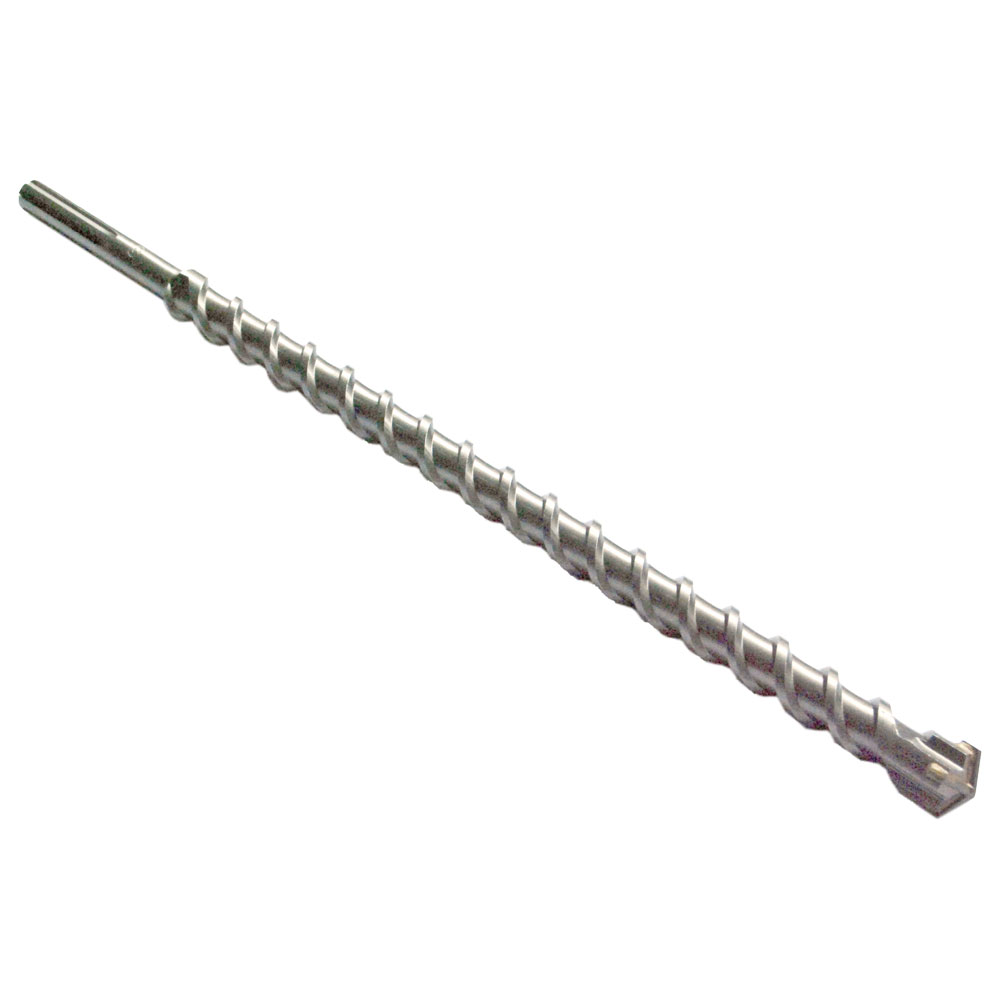

Cross 4Cutter Hammer Drill SDS-max

1, Cross 4 cutter carbide tipped for durable heavy-duty drilling.
2, SDS-max shank under Bosch audited to fit branded rotary hammers.
3, H-plus type of flute maximizes the dust-rejection rate in faster drilling.
4, Special hardened steel blank guaratees that best durability to unify the carbide drilling life.
5, Fast spiral flute angle design to increase drilling efficiency in building material.
6, Design for all concrete drilling.
7, The self-centering tip support more precision.

  • 5014 Series

  • HTT , OEM job

  • OPP+

  • To drill various concrete, brick, stone, wall cements, etc.

  • 5014

  • 10 to 40mm

  • SDS-max

  • Masonry work

Diameter x Woking Length x Overall Length:
12 x 200 x 340mm
14 x 200 x 340mm
16 x 200 x 340mm
18 x 200 x 340mm
20 x 200 x 340mm
22 x 400 x 540mm
25 x 400 x 540mm
28 x 450 x 570mm
30 x 450 x 570mm
32 x 450 x 570mm
32 x 550 x 670mm
35 x 450 x 570mm
35 x 550 x 670mm
Availability:
Quantity:
Inquire Add to Basket

Size Table:

Item NumberDiameter(mm)Working Length(mm)Overall Length(mm)
5014.100300 10160300
5014.100340 10200340
5014.100540 10400540
5014.100690 10550690
5014.100920 10800920
5014.120300 12160300
5014.120340 12200340
5014.120540 12400540
5014.120690 12550690
5014.120920 12800920
5014.130340 13200340
5014.130540 13400540
5014.130690 13550690
5014.130920 13800920
5014.140340 14200340
5014.140540 14400540
5014.140690 14550690
5014.140920 14800920
5014.141320 1412001320
5014.150340 15200340
5014.150540 15400540
5014.150690 15550690
5014.150920 15800920
5014.151320 1512001320
5014.160340 16200340
5014.160540 16400540
5014.160690 16550690
5014.160920 16800920
5014.161320 1612001320
5014.180340 18200340
5014.180540 18400540
5014.180690 18550690
5014.180920 18800920
5014.181320 1812001320
5014.190340 19200340
5014.190540 19400540
5014.190690 19550690
5014.190920 19800920
5014.200340 20200340
5014.200540 20400540
5014.200690 20550690
5014.200920 20800920
5014.201320 2012001320
5014.220340 22200340
5014.220540 22400540
5014.220690 22550690
5014.220920 22800920
5014.221320 2212001320
5014.240340 24200340
5014.240540 24400540
5014.240690 24550690
5014.240920 24800920
5014.241320 2412001320
5014.250340 25200340
5014.250540 25400540
5014.250690 25550690
5014.250920 25800920
5014.251320 2512001320
5014.260340 26200340
5014.260540 26400540
5014.260670 26550670
5014.260920 26800920
5014.261320 2612001320
5014.280370 28250370
5014.280570 28450570
5014.280670 28550670
5014.280920 28800920
5014.281302 2812001320
5014.300370 30250370
5014.300570 30450570
5014.300670 30550670
5014.300920 30800920
5014.301320 3012001320
5014.320370 32250370
5014.320570 32450570
5014.320670 32550670
5014.320920 32800920
5014.321320 3212001320
5014.350370 35250370
5014.350570 35450570
5014.350670 35550670
5014.350920 35800920
5014.351320 3512001320
5014.360370 36250370
5014.360570 36450570
5014.360670 36550670
5014.360920 36800920
5014.361320 3612001320
5014.380370 38250370
5014.380570 38450570
5014.380670 38550670
5014.380920 38800920
5014.381320 3812001320
5014.400370 40250370
5014.400570 40450570
5014.400670 40550670
5014.400920 40800920
5014.401320 4012001320
5014.121500 1214501500
5014.131500 1314501500
5014.141500 1414501500
5014.151500 1514501500
5014.161500 1614501500
5014.181500 1814501500
5014.191500 1914501500
5014.201500 2014501500
5014.221500 2214501500
5014.241500 2414501500
5014.251500 2514501500
5014.261500 2614501500
5014.281500 2814501500
5014.301500 3014501500
5014.351500 3514501500
