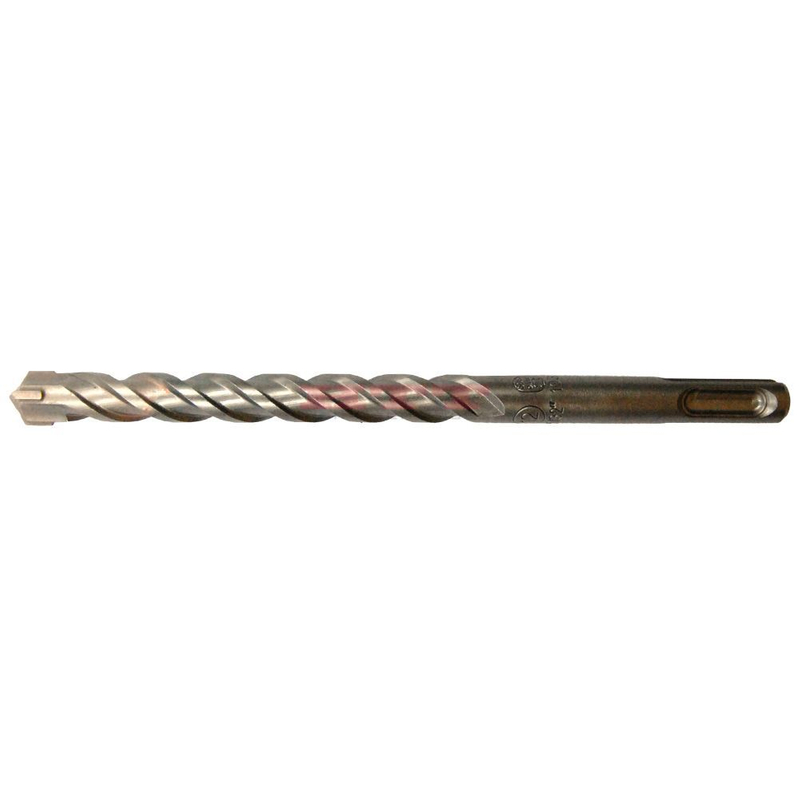

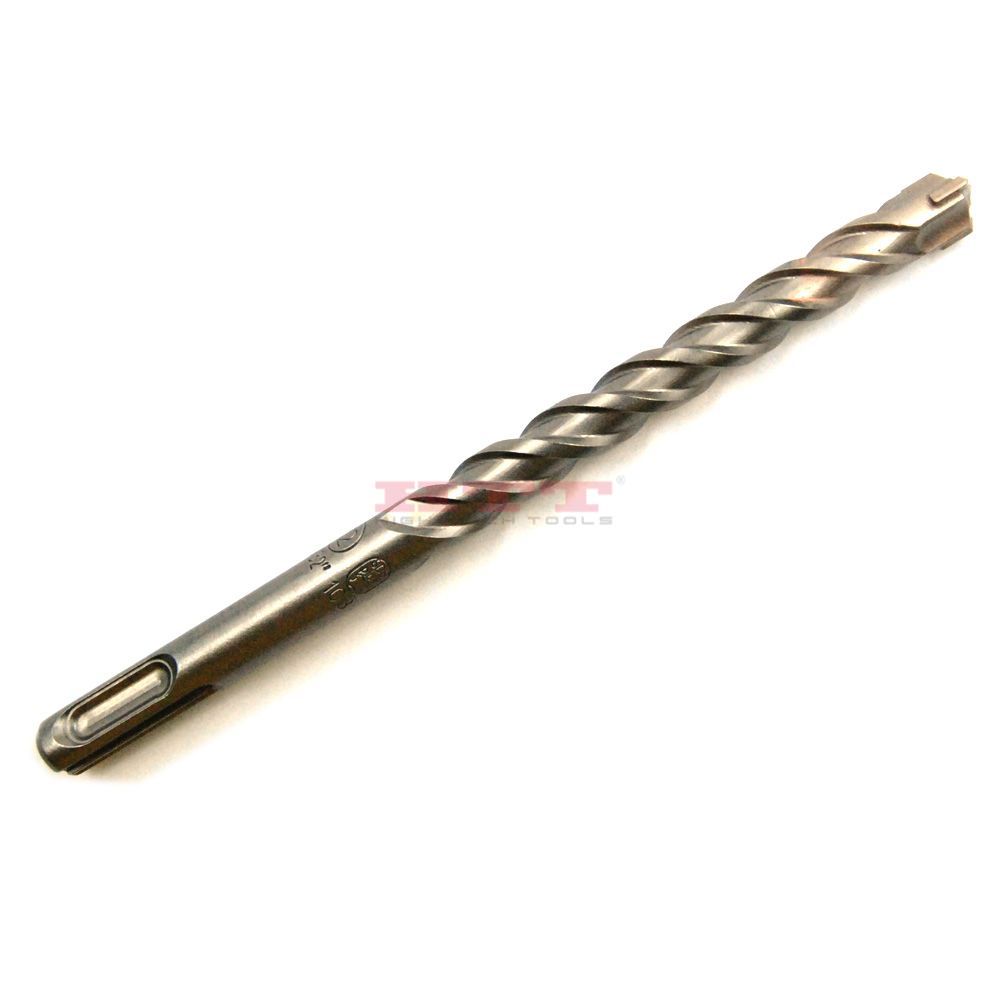

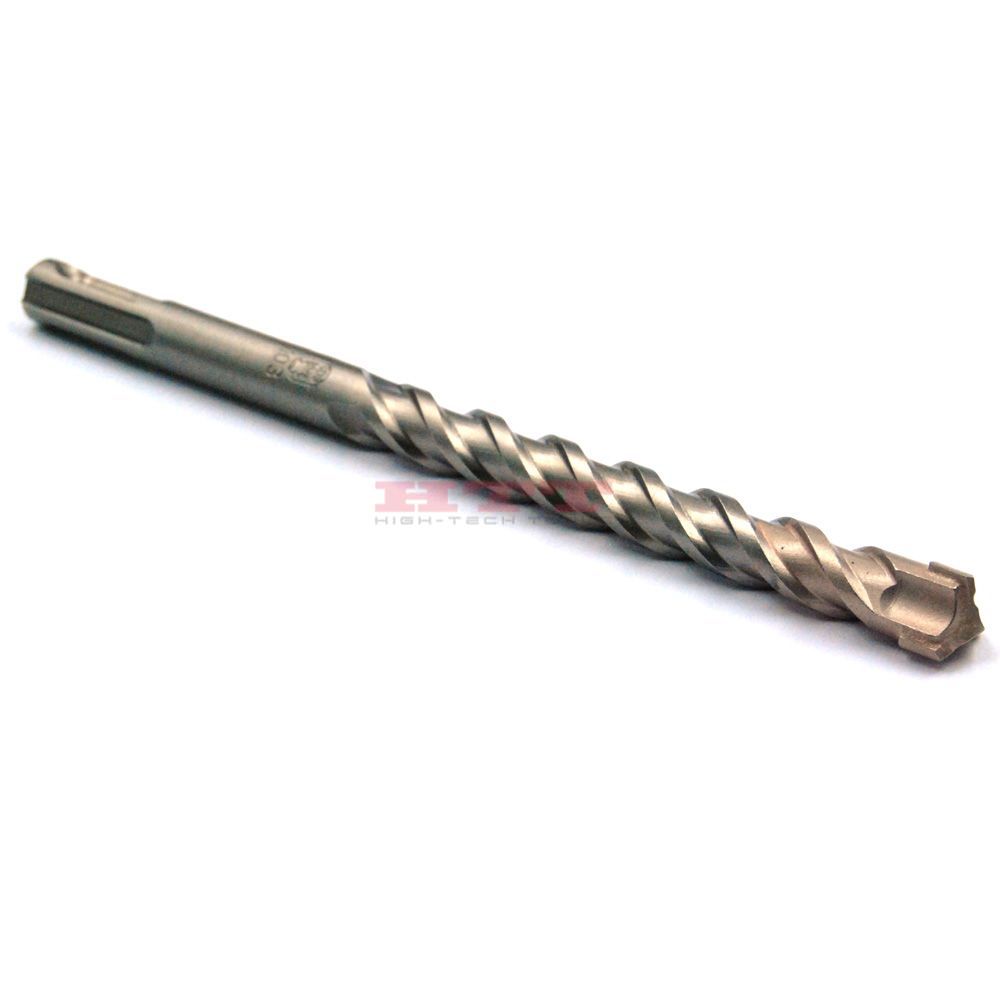

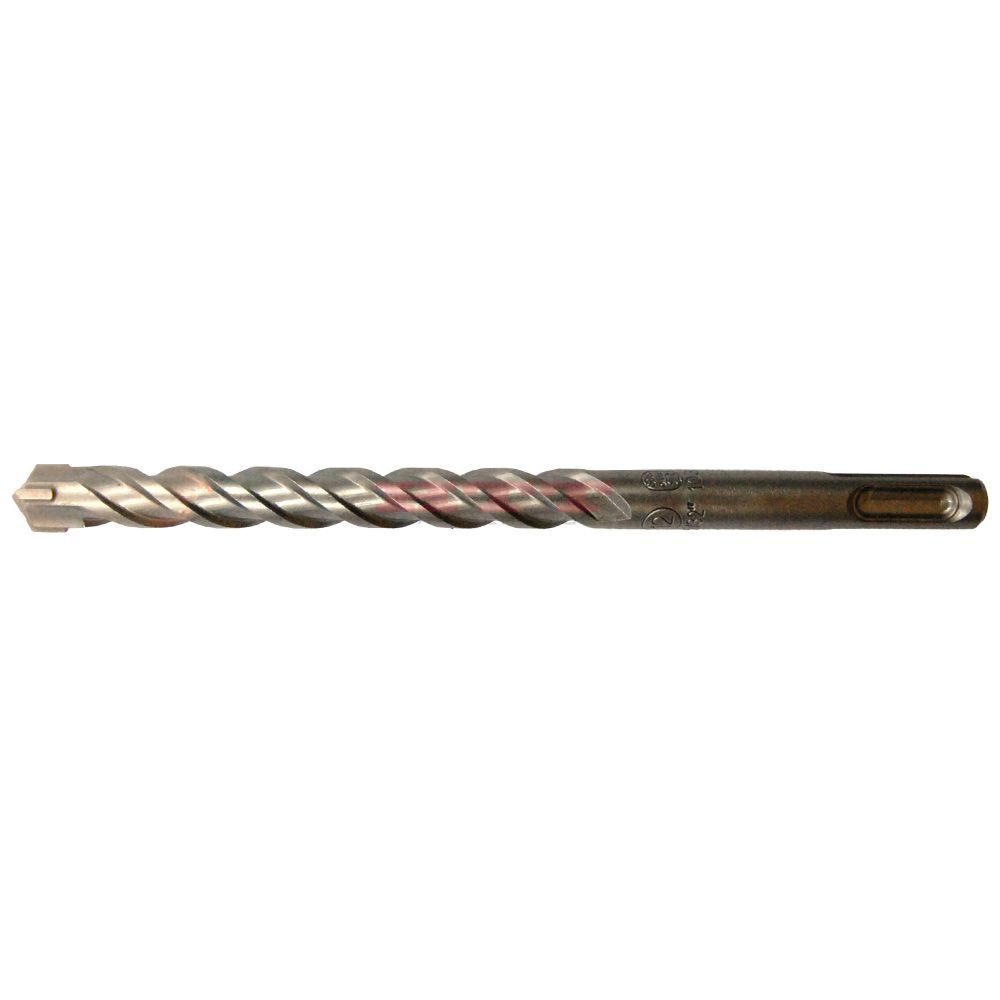

Y 3Cutter Hammer Drill Bit SDS-plus

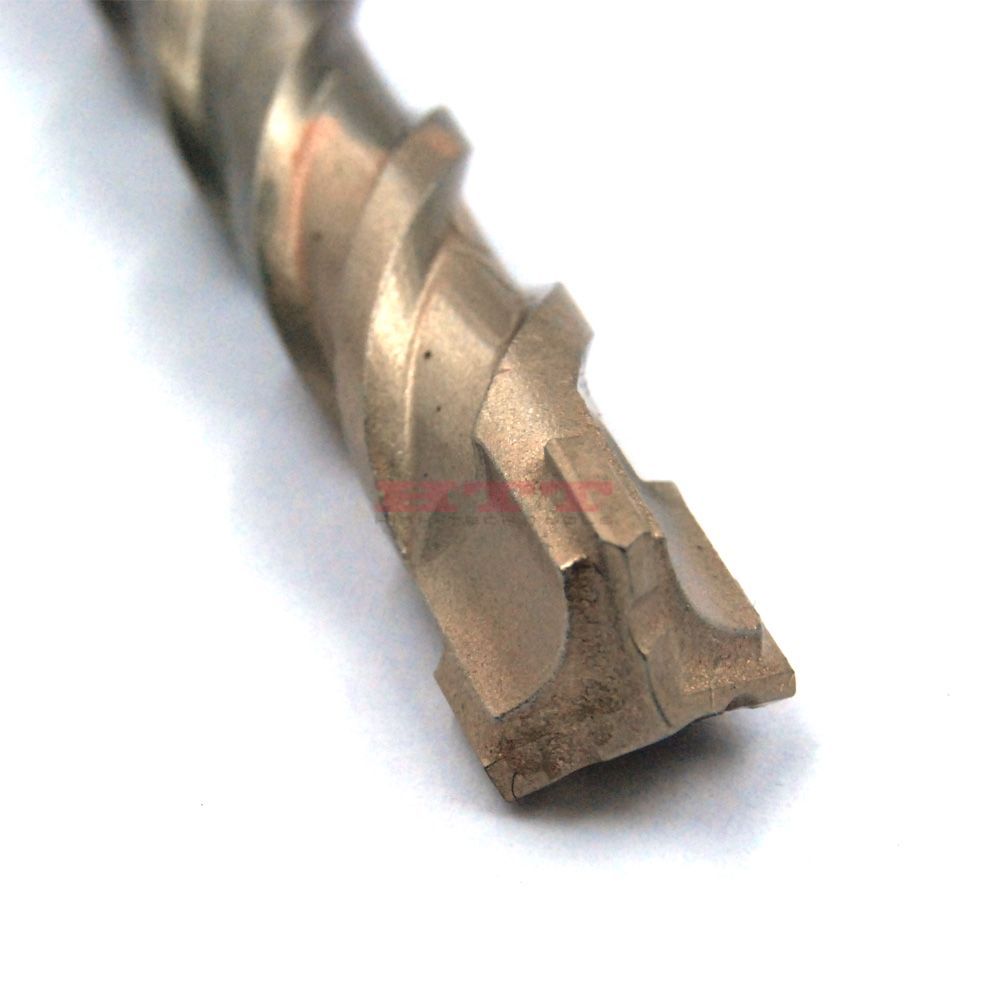

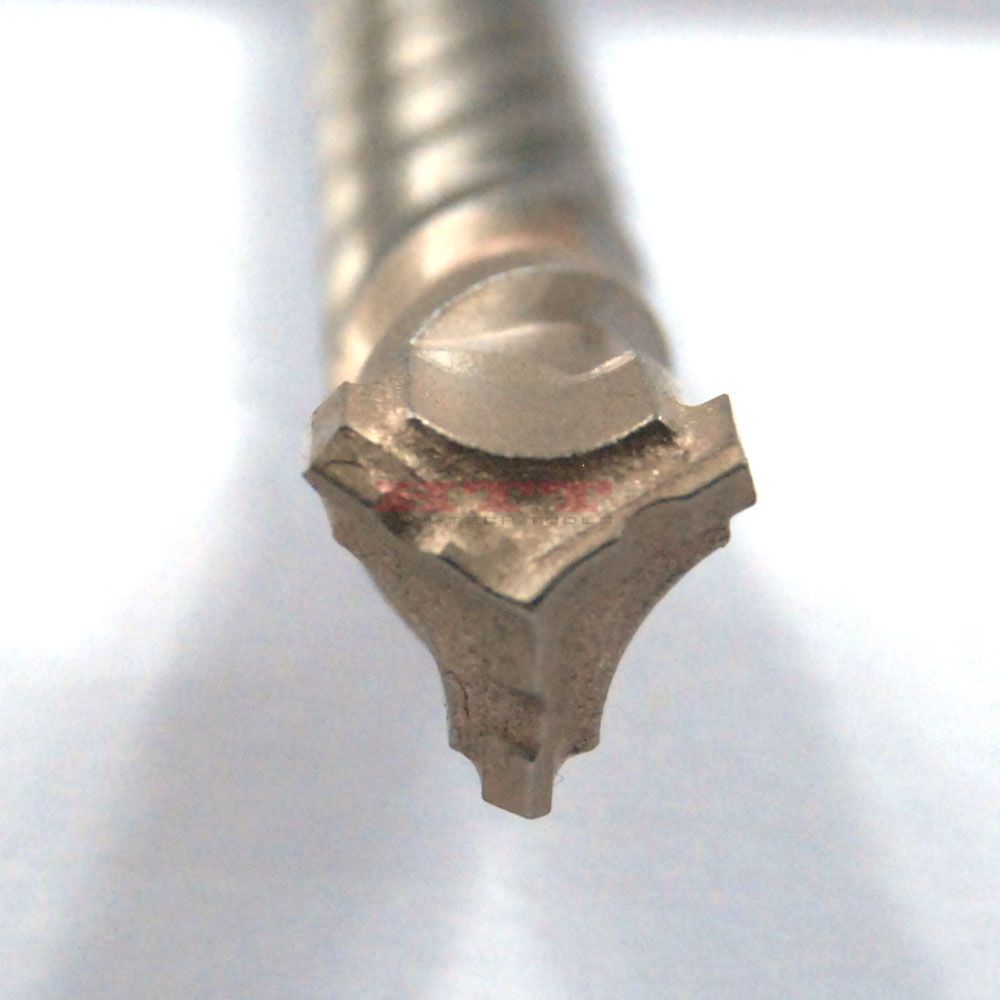

1, SYD series carbide with 3cutter Y shape design and self-centering point.
2, SDS-plus shank under Bosch audited to fit branded rotary hammers.
3, 3H-plus type of flute maximizes the dust-rejection rate in faster drilling.
4, Special hardened steel blank guaratees that best durability to unify the carbide drilling life.
5, Fast spiral flute angle design to increase drilling efficiency in building material.
6, Design for all concrete drilling.
7, The self-centering tip support more precision.
8, Vacuum soldering holds the best welding strength of those heavy duty drilling

  • 2616 Series

  • HTT, OEM job

  • MPP+

  • To drill various concrete, brick, stone, wall cements, etc.

  • 2616

  • 5 to 28mm

  • SDS-plus

  • Masonry work

Diameter x Working Length x Overall Length:
5 x 60 x 110mm
5.5 x 60 x 110mm
6 x 60 x 110mm
6.5 x 60 x 110mm
8 x 60 x 110mm
10 x 60 x 110mm
5 x 110 x 160mm
5.5 x 110 x 160mm
6 x 110 x 160mm
6.5 x 110 x 160mm
8 x 110 x 160mm
10 x 110 x 160mm
12 x 110 x 160mm
14 x 110 x 160mm
16 x 110 x 160mm
6 x 160 x 210mm
8 x 160 x 210mm
10 x 160 x 210mm
12 x 160 x 210mm
14 x 160 x 210mm
16 x 160 x 210mm
18 x 160 x 210mm
6 x 210 x 260mm
8 x 210 x 260mm
10 x 210 x 260mm
12 x 210 x 260mm
14 x 210 x 260mm
16 x 210 x 260mm
18 x 210 x 260mm
20 x 210 x 260mm
22 x 210 x 260mm
Availability:
Quantity:
Inquire Add to Basket

Size table:

Item No. Diameter(mm) Working Length(mm) Overall Length(mm)
2616.050110  5 60 110
2616.055110  5.5 60 110
2616.060110  6 60 110
2616.065110  6.5 60 110
2616.070110  7 60 110
2616.080110  8 60 110
2616.090110  9 60 110
2616.100110  10 60 110
2616.110110  11 60 110
2616.050160  5 110 160
2616.055160  5.5 110 160
2616.060160  6 110 160
2616.065160  6.5 110 160
2616.070160  7 110 160
2616.080160  8 110 160
2616.090160  9 110 160
2616.100160  10 110 160
2616.110160  11 110 160
2616.120160  12 110 160
2616.130160  13 110 160
2616.140160  14 110 160
2616.150160  15 110 160
2616.160160  16 110 160
2616.180160  18 110 160
2616.190160  19 110 160
2616.200160  20 110 160
2616.220160  22 110 160
2616.240160  24 110 160
2616.250160  25 110 160
2616.260160  26 110 160
2616.280160  28 110 160
2616.050180  5 130 180
2616.055180  5.5 130 180
2616.060180  6 130 180
2616.065180  6.5 130 180
2616.080180  8 130 180
2616.100180  10 130 180
2616.050210  5 160 210
2616.055210  5.5 160 210
2616.060210  6 160 210
2616.065210  6.5 160 210
2616.070210  7 160 210
2616.080210  8 160 210
2616.090210  9 160 210
2616.100210  10 160 210
2616.110210  11 160 210
2616.120210  12 160 210
2616.130210  13 160 210
2616.140210  14 160 210
2616.150210  15 160 210
2616.160210  16 160 210
2616.180210  18 160 210
2616.190210  19 160 210
2616.200210  20 160 210
2616.220210  22 160 210
2616.240210  24 160 210
2616.250210  25 160 210
2616.260210  26 160 210
2616.280210  28 160 210
2616.050260  5 210 260
2616.055260  5.5 210 260
2616.060260  6 210 260
2616.065260  6.5 210 260
2616.070260  7 210 260
2616.080260  8 210 260
2616.090260  9 210 260
2616.100260  10 210 260
2616.110260  11 210 260
2616.120260  12 210 260
2616.130260  13 210 260
2616.140260  14 210 260
2616.150260  15 210 260
2616.160260  16 210 260
2616.180260  18 210 260
2616.190260  19 210 260
2616.200260  20 210 260
2616.220260  22 210 260
2616.240260  24 210 260
2616.250260  25 210 260
2616.260260  26 210 260
2616.280260  28 210 260
2616.050310  5 260 310
2616.055310  5.5 260 310
2616.060310  6 260 310
2616.065310  6.5 260 310
2616.070310  7 260 310
2616.080310  8 260 310
2616.090310  9 260 310
2616.100310  10 260 310
2616.110310  11 260 310
2616.120310  12 260 310
2616.130310  13 260 310
2616.140310  14 260 310
2616.150310  15 260 310
2616.160310  16 260 310
2616.180310  18 260 310
2616.190310  19 260 310
2616.200310  20 260 310
2616.220310  22 260 310
2616.240310  24 260 310
2616.250310  25 260 310
2616.260310  26 260 310
2616.280310  28 260 310
2616.050350  5 300 350
2616.055350  5.5 300 350
2616.060350  6 300 350
2616.065350  6.5 300 350
2616.070350  7 300 350
2616.080350  8 300 350
2616.090350  9 300 350
2616.100350  10 300 350
2616.110350  11 300 350
2616.120350  12 300 350
2616.130350  13 300 350
2616.140350  14 300 350
2616.150350  15 300 350
2616.160350  16 300 350
2616.180350  18 300 350
2616.190350  19 300 350
2616.200350  20 300 350
2616.220350  22 300 350
2616.240350  24 300 350
2616.250350  25 300 350
2616.260350  26 300 350
2616.280350  28 300 350
2616.050410  5 360 410
2616.055410  5.5 360 410
2616.060410  6 360 410
2616.065410  6.5 360 410
2616.070410  7 360 410
2616.080410  8 360 410
2616.090410  9 360 410
2616.100410  10 360 410
2616.110410  11 360 410
2616.120410  12 360 410
2616.130410  13 360 410
2616.140410  14 360 410
2616.150410  15 360 410
2616.160410  16 360 410
2616.180410  18 360 410
2616.190410  19 360 410
2616.200410  20 360 410
2616.220410  22 360 410
2616.240410  24 360 410
2616.250410  25 360 410
2616.260410  26 360 410
2616.280410  28 360 410
2616.050460  5 410 460
2616.055460  5.5 410 460
2616.060460  6 410 460
2616.065460  6.5 410 460
2616.070460  7 410 460
2616.080460  8 410 460
2616.090460  9 410 460
2616.100460  10 410 460
2616.110460  11 410 460
2616.120460  12 410 460
2616.130460  13 410 460
2616.140460  14 410 460
2616.150460  15 410 460
2616.160460  16 410 460
2616.180460  18 410 460
2616.190460  19 410 460
2616.200460  20 410 460
2616.220460  22 410 460
2616.240460  24 410 460
2616.250460  25 410 460
2616.260460  26 410 460
2616.280460  28 410 460

2616-6

2616-7
