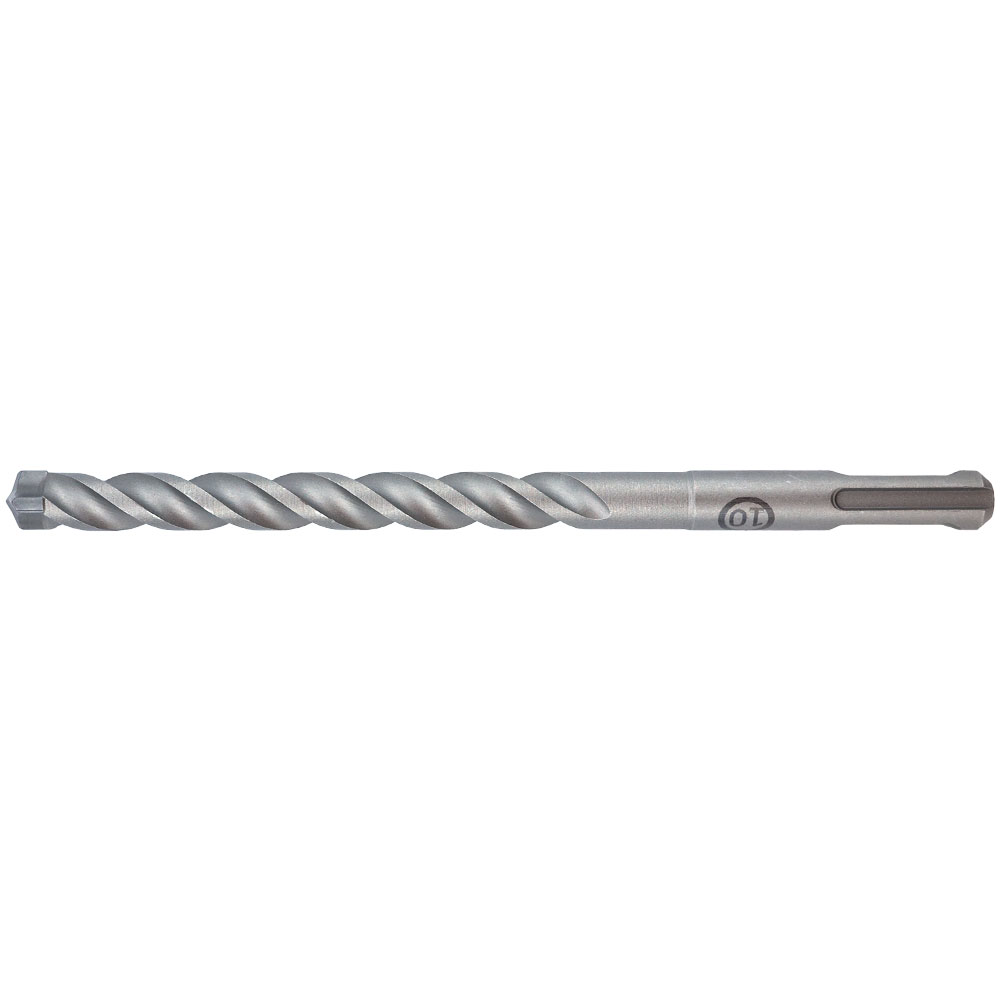

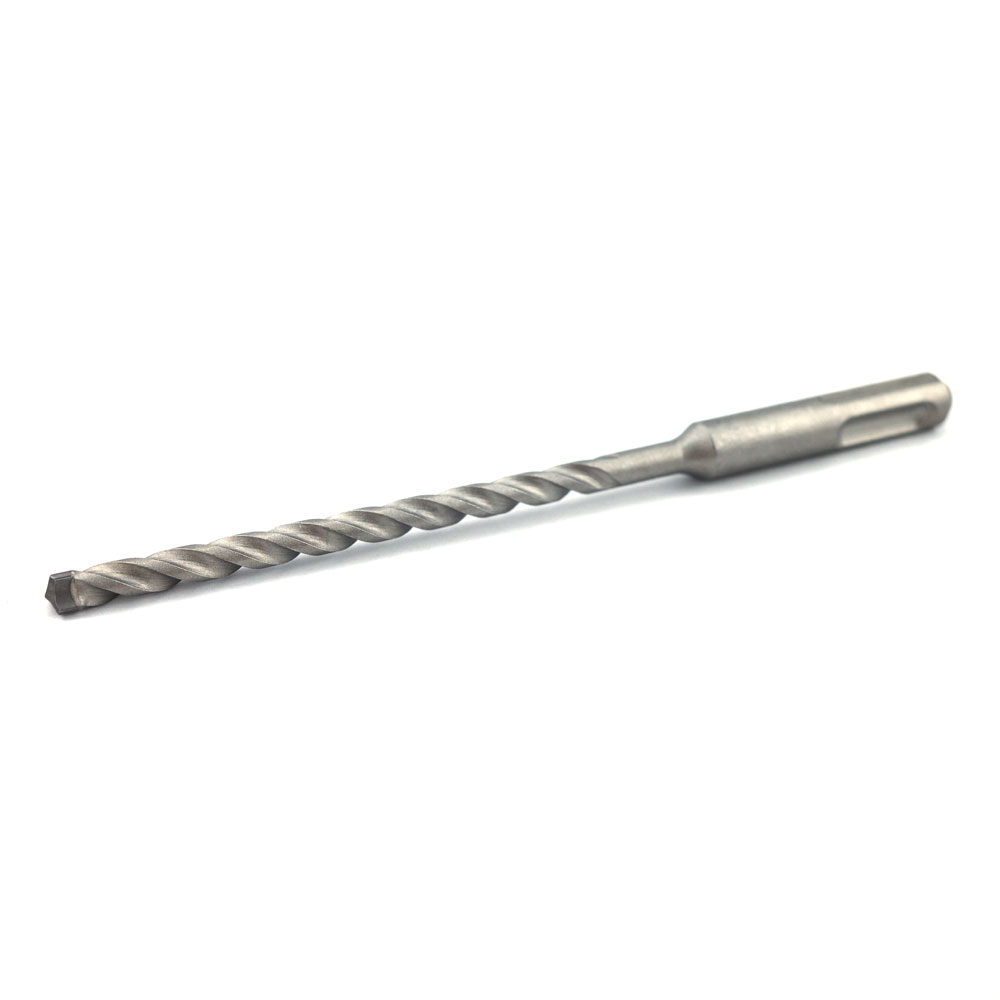

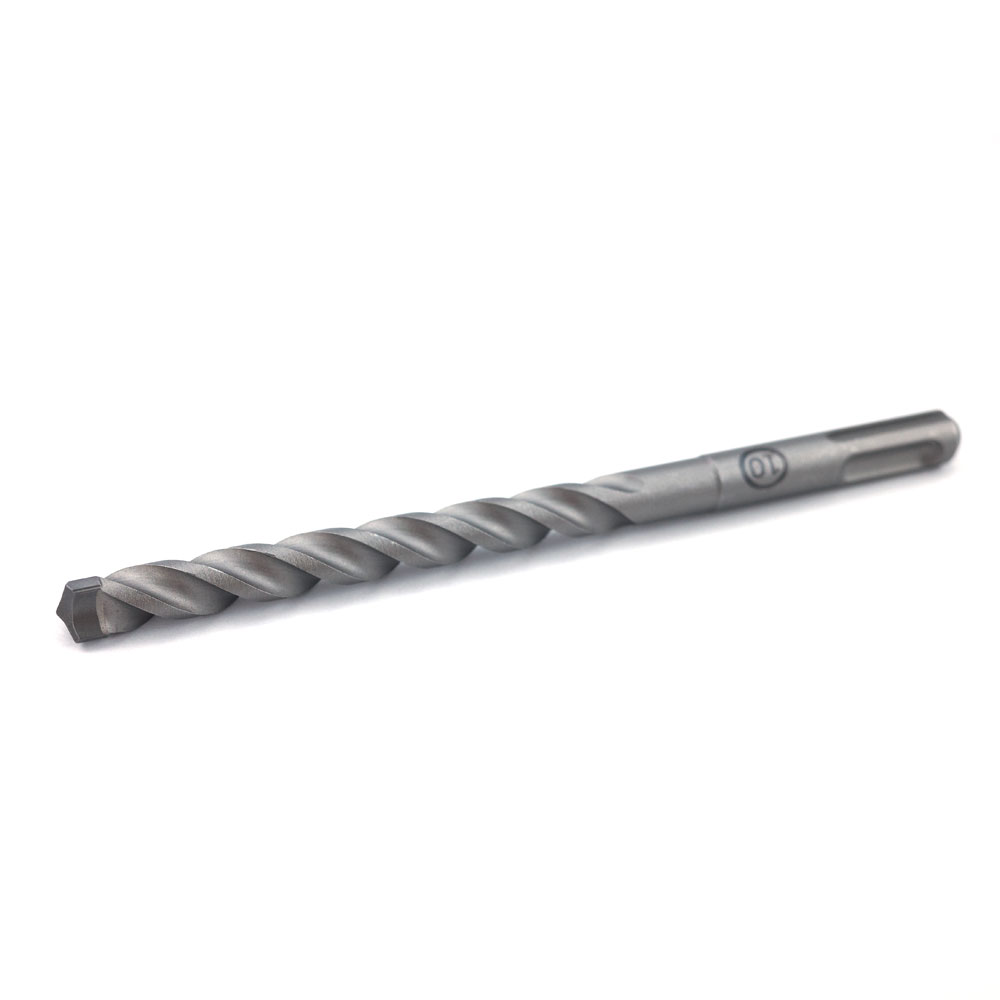

X3 Y Cutter Hammer Drill Bit SDS+

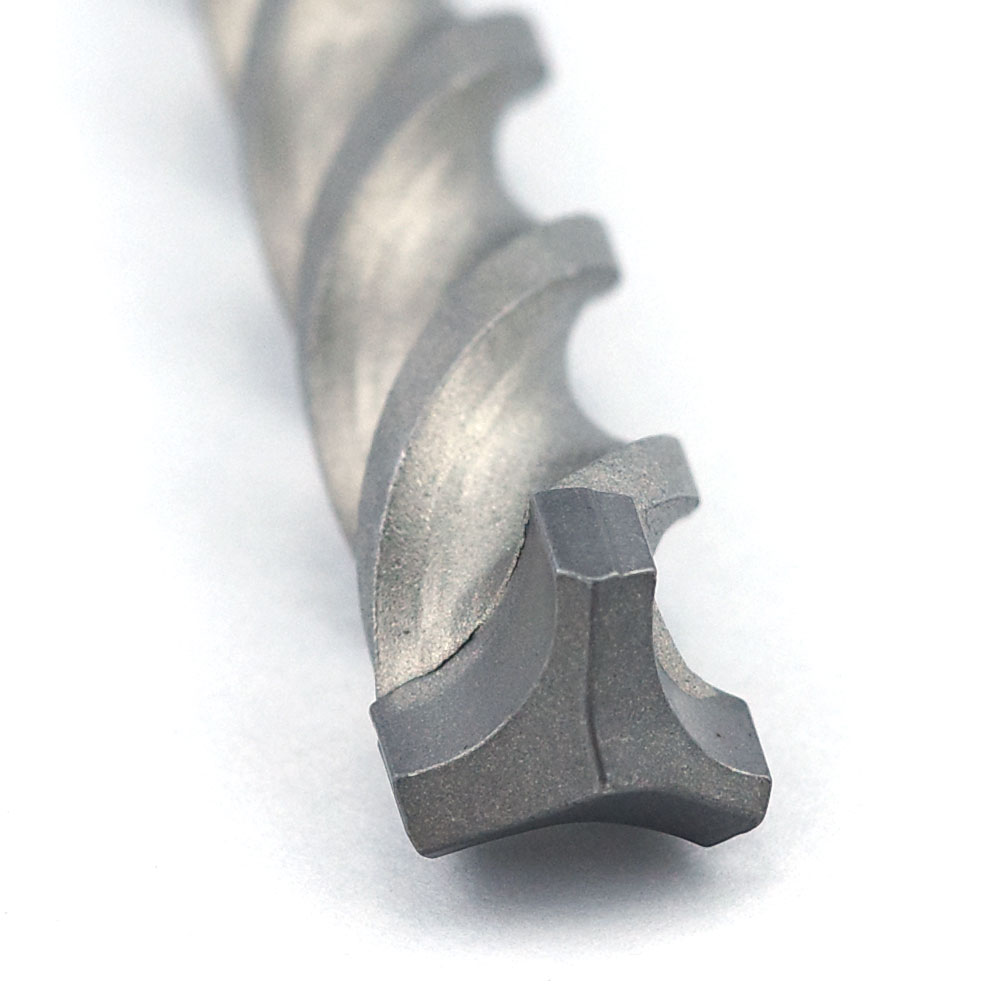

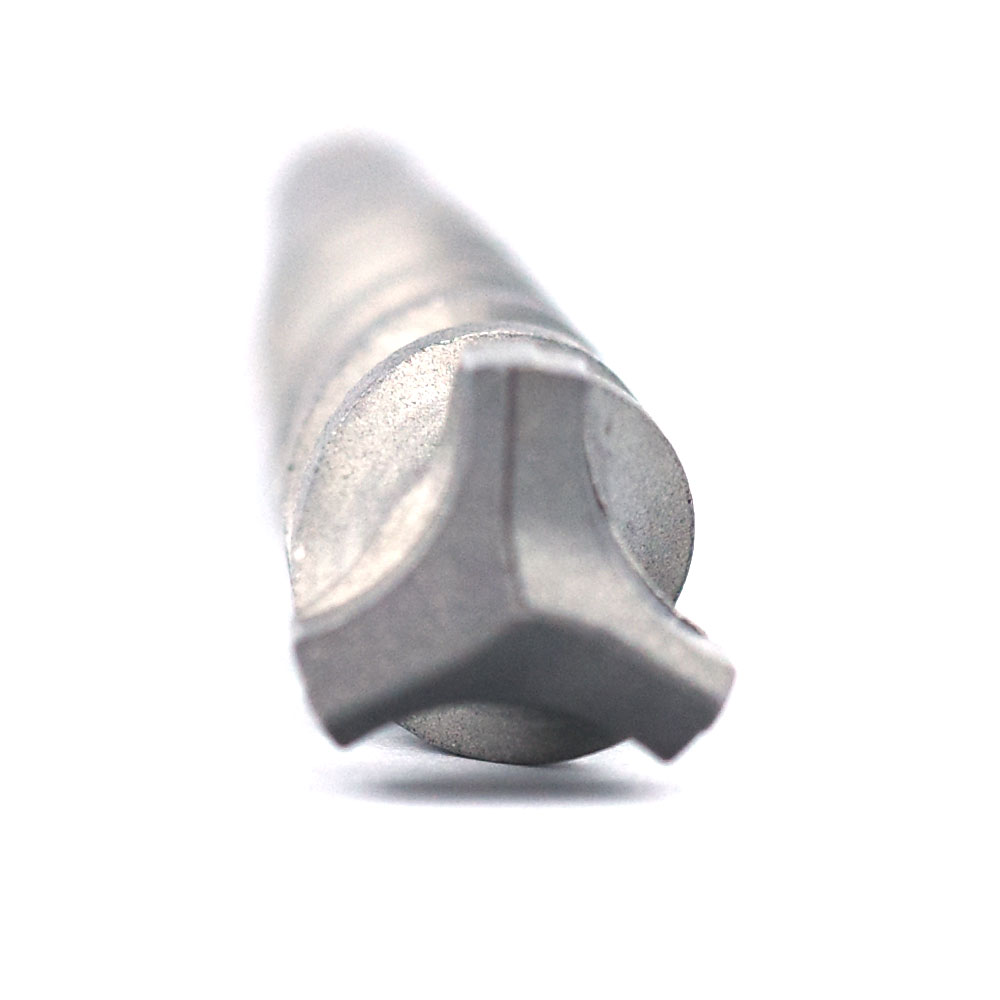

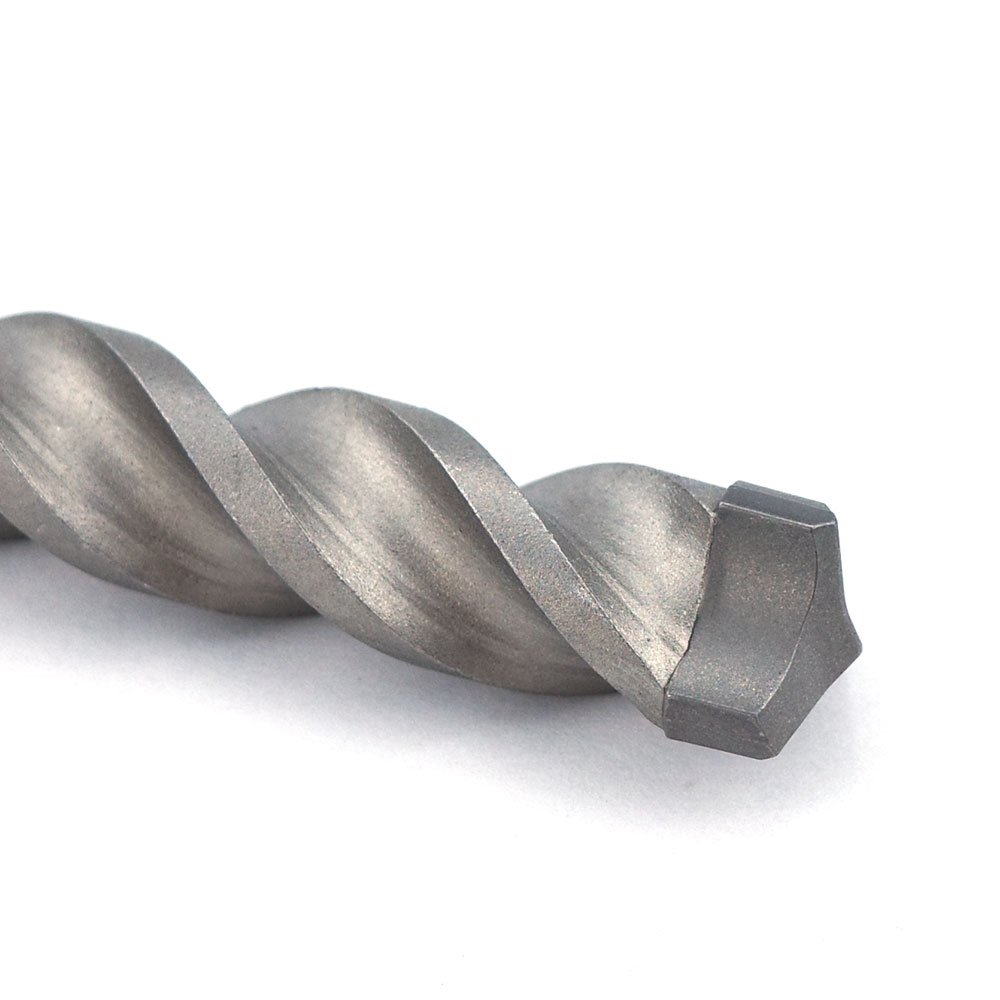

1, 3 Tungsten carbide cutting edges of full solid carbide head, no hooking when hitting reinforcement.
2, Problem-free drilling through iron reinforcements, concrete, brick, stone, etc.
3, Dowel length indicator for exact drilling depth.
4, Progressive spiral design for fast results.
5, Vibrationless running and fast removal of drilling dust.

  • 2716

  • OEM, 3WIN, HTT

  • MPP+

  • To drill holes in the reinforcements, concrete, brick, stone, granite, marble, etc.

  • 2716

  • 3-16mm

  • SDS-plus

  • Masonry work

Availability:
Quantity:
Inquire Add to Basket

Size Table:


Item Number Diameter(mm) Working Length(mm) Overall Length(mm
2716.034110 3.45 60 110
2716.040110 4 60 110
2716.040160 4 110 160
2716.050110 5 60 110
2716.050160 5 110 160
2716.050210 5 160 210
2716.060110 6 60 110
2716.060160 6 110 160
2716.060210 6 160 210
2716.060310 6 260 310
2716.065110 6.5 60 110
2716.065160 6.5 110 160
2716.065210 6.5 160 210
2716.065260 6.5 210 260
2716.065310 6.5 260 310
2716.070110 7 60 110
2716.070160 7 110 160
2716.070210 7 160 210
2716.070260 7 210 260
2716.070310 7 260 310
2716.080110 8 60 110
2716.080160 8 110 160
2716.080210 8 160 210
2716.080260 8 210 260
2716.080310 8 260 310
2716.080360 8 310 360
2716.080460 8 410 460
2716.085110 8.5 60 110
2716.085160 8.5 110 160
2716.085210 8.5 160 210
2716.085260 8.5 210 260
2716.085310 8.5 260 310
2716.085360 8.5 310 360
2716.085460 8.5 410 460
2716.095110 9.5 60 110
2716.095160 9.5 110 160
2716.095210 9.5 160 210
2716.095260 9.5 210 260
2716.095310 9.5 260 310
2716.095360 9.5 310 360
2716.095460 9.5 410 460
2716.100110 10 60 110
2716.100160 10 110 160
2716.100210 10 160 210
2716.100260 10 210 260
2716.100310
 10 260 310
2716.100360 10 310 360
2716.100460 10 410 460
2716.100600 10 550 600
2716.105160 10.5 110 160
2716.105210 10.5 160 210
2716.105260 10.5 210 260
2716.105310 10.5 260 310
2716.105360 10.5 310 360
2716.105460 10.5 410 460
2716.120160 12 110 160
2716.120210 12 160 210
2716.120260 12 210 260
2716.120310 12 260 310
2716.120360 12 310 360
2716.120460 12 410 460
2716.120600 12 550 600
2716.127160 12.7 110 160
2716.127210 12.7 160 210
2716.127260 12.7 210 260
2716.127310 12.7 260 310
2716.127360 12.7 310 360
2716.127460 12.7 410 460
2716.127600 12.7 550 600
2716.130160 13 110 160
2716.130210 13 160 210
2716.130310 13 260 310
2716.130360 13 310 360
2716.130460 13 410 460
2716.130600
 13 550 600
2716.140160 14 110 160
2716.140210 14 160 210
2716.140260 14 210 260
2716.140310 14 260 310
2716.140360 14 310 360
2716.140460
 14 410 460
2716.140600 14 550 600
2716.160160 16 110 160
2716.160210 16 160 210
2716.160260 16 210 260
2716.160310 16 260 310
2716.160360 16 310 360
2716.160460 16 410 460
2716.160600 16 550 600

2716-8
