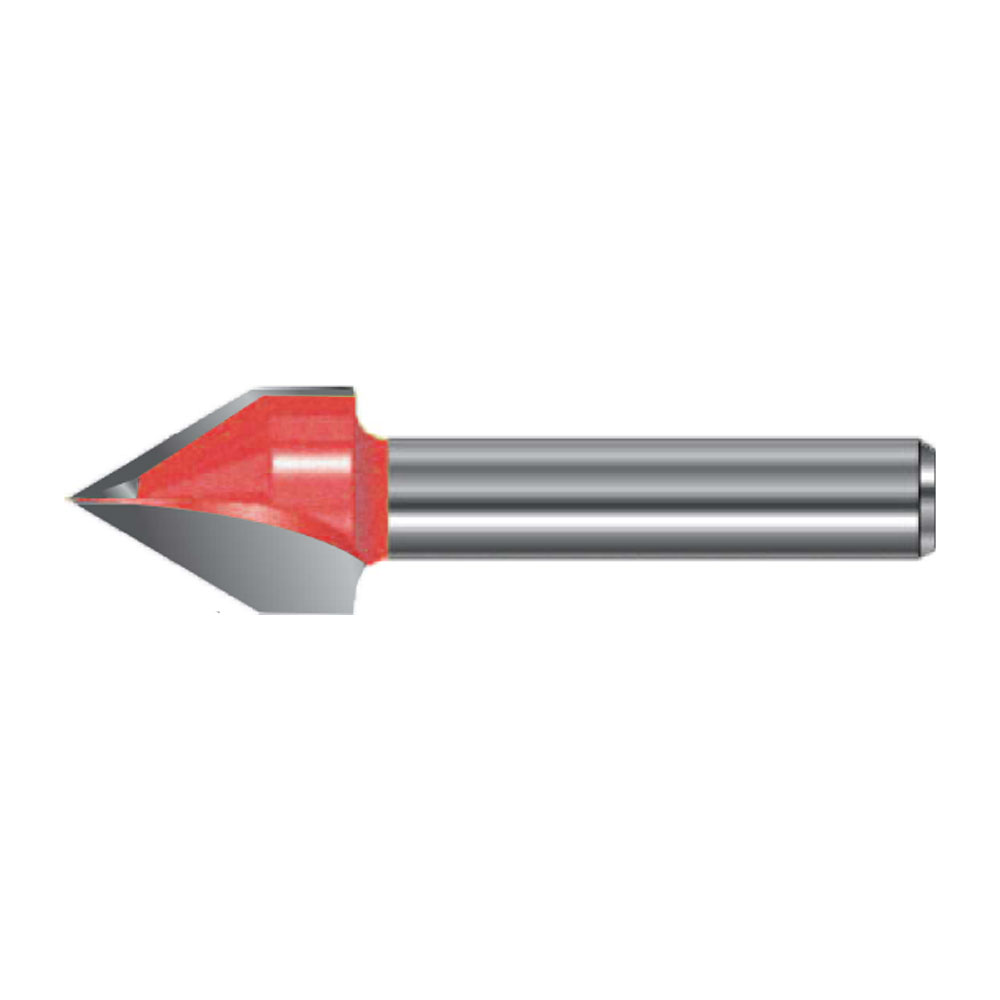

335-VGroove602F
OEM, 3WIN, HTT
MPP+
To do V groove cutting in various wood, chipboard, plywood, MDF, laminate, etc.
335
12.7mm to 19.05mm
Cylindrical
Wood work
| Quantity: | |
|---|---|

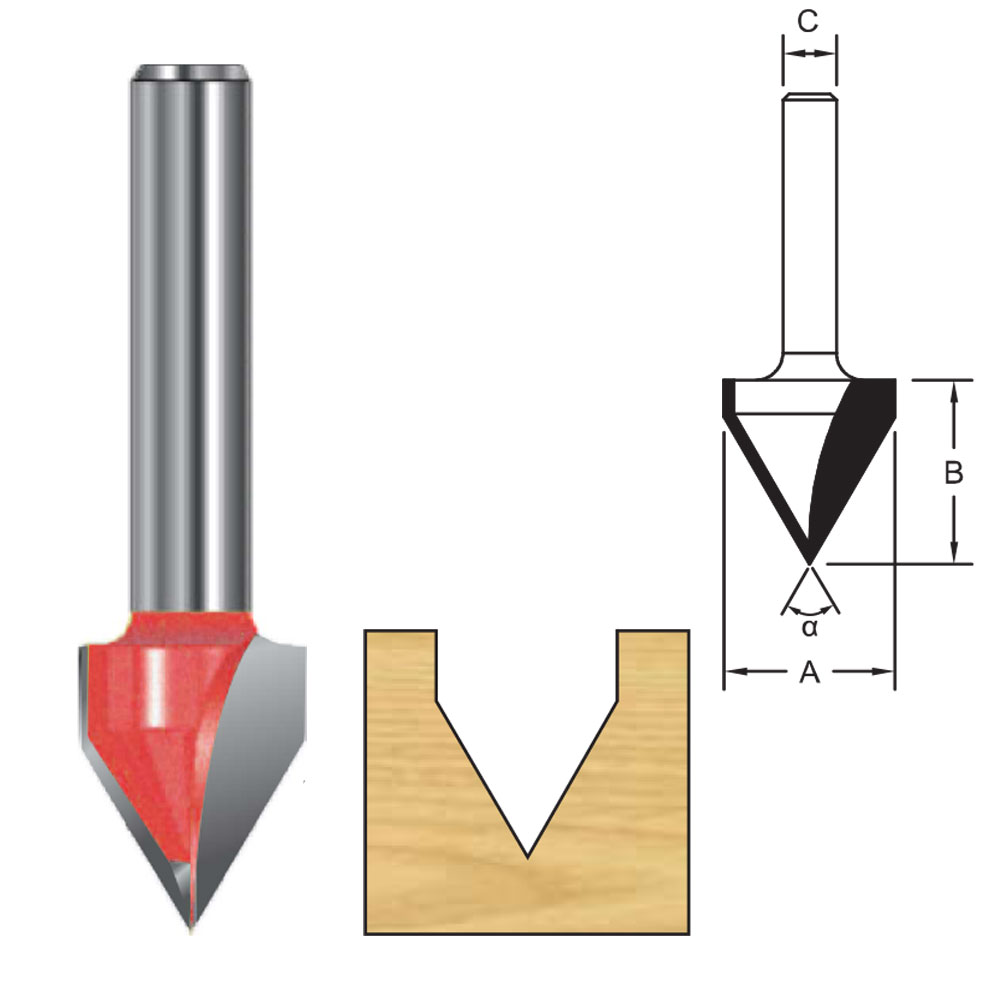

Size Table:
| Item Number | A (mm) | B (mm) | a (degrees) | C (mm) | Shank Length(mm) |
| 335.11813163206 | 12.7 | 15.9 | 60° | 6 | 32 |
| 335.11819203206 | 19.05 | 20.6 | 60° | 6 | 32 |
| 335.11813163208 | 12.7 | 15.9 | 60° | 8 | 32 |
| 335.11819203208 | 19.05 | 20.6 | 60° | 8 | 32 |
| 335.11819204012 | 19.05 | 20.6 | 60° | 12 | 40 |
Size Table:
| Item Number | A (mm) | B (mm) | a (degrees) | C (mm) | Shank Length(mm) |
| 335.11813163206 | 12.7 | 15.9 | 60° | 6 | 32 |
| 335.11819203206 | 19.05 | 20.6 | 60° | 6 | 32 |
| 335.11813163208 | 12.7 | 15.9 | 60° | 8 | 32 |
| 335.11819203208 | 19.05 | 20.6 | 60° | 8 | 32 |
| 335.11819204012 | 19.05 | 20.6 | 60° | 12 | 40 |
