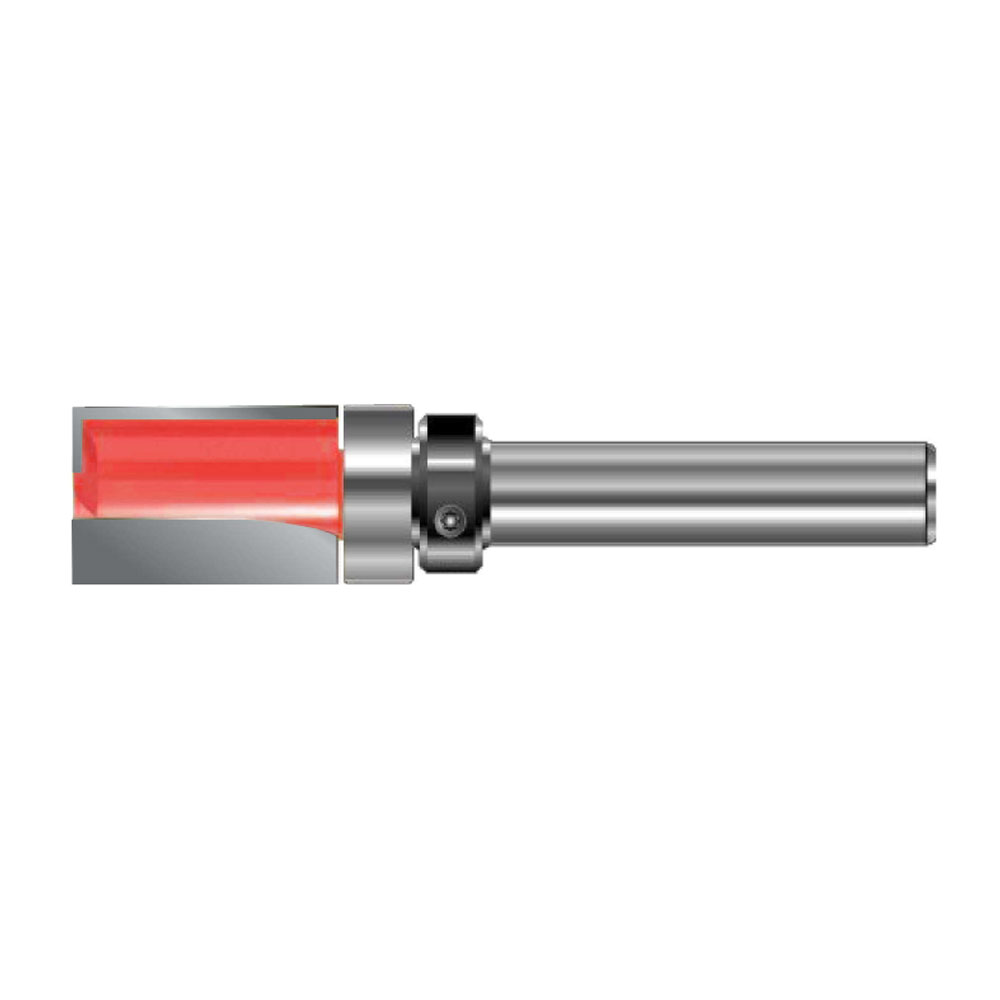

335-TrimmingCutterTBB2F
OEM, 3WIN, HTT
MPP+
To do trim cut and milling work in various wood, wood board, MDF ,etc.
335
10mm to 22mm
Cylindrical
Wood work
| Quantity: | |
|---|---|

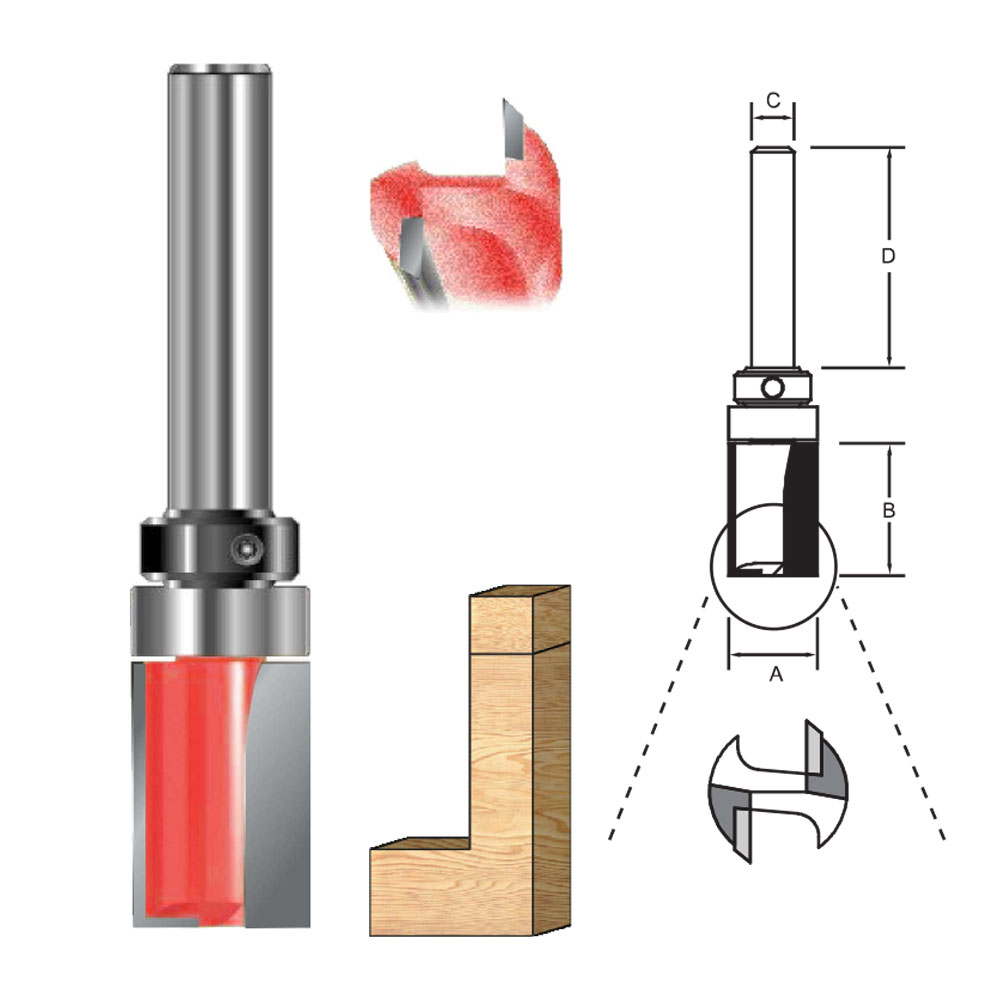

Size Table:
| Item Number | A (mm) | B (mm) | C (mm) | D (mm) | Bearing Size (OD x ID x Thickness) |
| 335.10910253208 | 10 | 25 | 8 | 32 | 22mm x 8mm x 7mm |
| 335.10912193208 | 12 | 19 | 8 | 32 | 12mm x 8mm x 3.5mm |
| 335.10912253208 | 12 | 25 | 8 | 32 | 12mm x 8mm x 3.5mm |
| 335.10916203208 | 16 | 20 | 8 | 32 | 16mm x 8mm x 5mm |
| 335.10922203208 | 22 | 20 | 8 | 32 | 22mm x 8mm x 7mm |
| 335.10916323208 | 16 | 31.7 | 8 | 32 | 16mm x 8mm x 5mm |
| 335.10919383208 | 19.05 | 38.1 | 8 | 32 | 3/4 x 1/2 x 5mm |
| 335.10912253206 | 12 | 25 | 6 | 32 | 12mm x 8mm x 3.5mm |
| 335.10913193206 | 12.7 | 19 | 6 | 32 | 1/2 x 1/4 x 3/16 |
| 335.10913253206 | 12.7 | 25.4 | 6 | 32 | 1/2 x 1/4 x 3/16 |
| 335.10913203206 | 13 | 20 | 6 | 32 | 13m x 6mm x 5mm |
| 335.10915203206 | 15 | 20 | 6 | 32 | 15mm x 6mm x 5mm |
| 335.10916193206 | 15.88 | 19 | 6 | 32 | 5/8 x 1/4 x 5mm |
| 335.10916253206 | 15.88 | 25.4 | 6 | 32 | 5/8 x 1/4 x 5mm |
| 335.10916203206 | 16 | 20 | 6 | 32 | 16mm x 8mm x 5mm |
| 335.10919203206 | 19 | 20 | 6 | 32 | 19mm x 6mm x 6mm |
| 335.10919253206 | 19 | 25 | 6 | 32 | 19mm x 8mm x 6mm |
| 335.10915323206 | 15 | 31.7 | 6 | 32 | 15mm x 6mm x 5mm |
| 335.10919384012 | 19.05 | 38.1 | 12 | 40 | 3/4 x 1/2 x 5mm |
| 335.10919514012 | 19.05 | 50.8 | 12 | 40 | 3/4 x 1/2 x 5mm |
