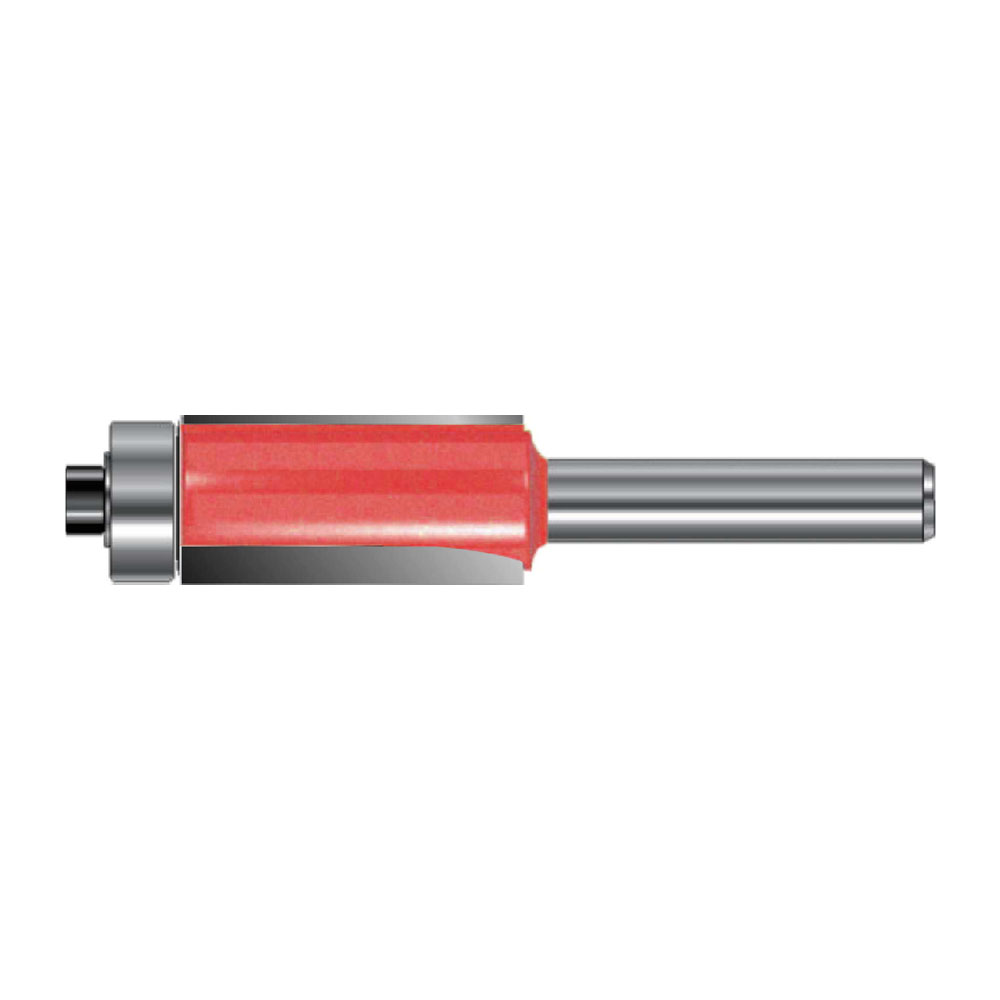

335-TrimmingCutter2F
OEM, 3WIN, HTT
MPP+
to do trim plunge cut and milling work in various wood, wood board, MDF ,etc.
335
6.35mm to 22mm
Cylindrical
Wood work
| Quantity: | |
|---|---|

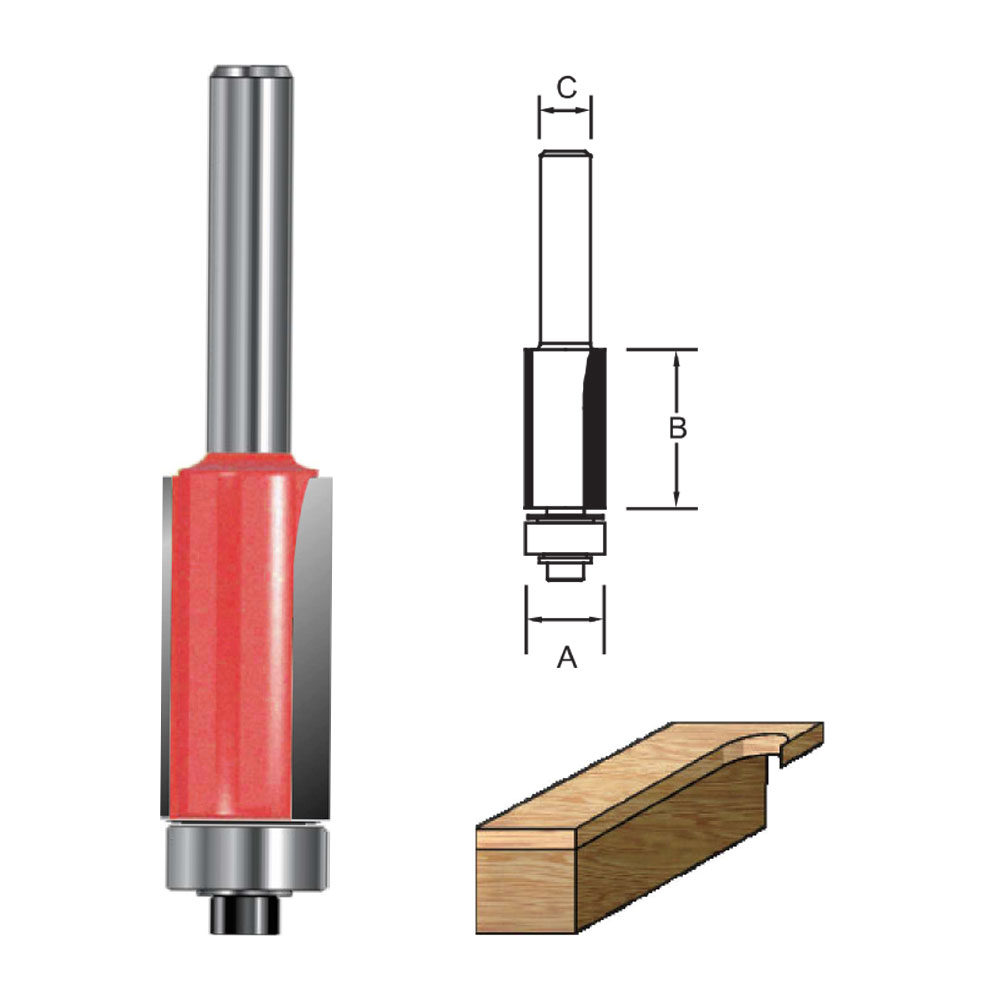

Size Table:
| Item Number | A (mm) | B (mm) | C (mm) | Shank Length(mm) | Bearing Size (OD x ID x Thickness) |
| 335.10606193206 | 6.35 | 19 | 6 | 32 | 1/4 x 1/8 x 7/64 |
| 335.10609123206 | 9.53 | 12.7 | 6 | 32 | 3/8 x 3/16 x 1/8 |
| 335.10609253206 | 9.53 | 25.4 | 6 | 32 | 3/8 x 3/16 x 1/8 |
| 335.10612123206 | 12.7 | 12.7 | 6 | 32 | 1/2 x 3/16 x 5mm |
| 335.10612253206 | 12.7 | 25.4 | 6 | 32 | 1/2 x 3/16 x 5mm |
| 335.10612323206 | 12.7 | 31.8 | 6 | 32 | 1/2 x 3/16 x 5mm |
| 335.10619163206 | 19 | 16 | 6 | 32 | 19mm x 6mm x 6mm |
| 335.10606193208 | 6.35 | 19 | 8 | 32 | 1/4 x 1/8 x 7/64 |
| 335.10609123208 | 9.53 | 12.7 | 8 | 32 | 3/8 x 3/16 x 1/8 |
| 335.10609253208 | 9.53 | 25.4 | 8 | 32 | 3/8 x 3/16 x 1/8 |
| 335.10612123208 | 12.7 | 12.7 | 8 | 32 | 1/2 x 3/16 x 5mm |
| 335.10612253208 | 12.7 | 25.4 | 8 | 32 | 1/2 x 3/16 x 5mm |
| 335.10612323208 | 12.7 | 31.8 | 8 | 32 | 1/2 x 3/16 x 5mm |
| 335.10612383208 | 12.7 | 38.1 | 8 | 32 | 1/2 x 3/16 x 5mm |
| 335.10619253208 | 19.05 | 25.4 | 8 | 32 | 3/4 x 1/4 x 9/32 |
| 335.10606194012 | 6.35 | 19 | 12 | 40 | 1/4 x 1/8 x 7/64 |
| 335.10609124012 | 9.53 | 12.7 | 12 | 40 | 3/8 x 3/16 x 1/8 |
| 335.10609254012 | 9.53 | 25.4 | 12 | 40 | 3/8 x 3/16 x 1/8 |
| 335.10612124012 | 12.7 | 12.7 | 12 | 40 | 1/2 x 3/16 x 5mm |
| 335.10612254012 | 12.7 | 25.4 | 12 | 40 | 1/2 x 3/16 x 5mm |
| 335.10612324012 | 12.7 | 31.8 | 12 | 40 | 1/2 x 3/16 x 5mm |
| 335.10612384012 | 12.7 | 38.1 | 12 | 40 | 1/2 x 3/16 x 5mm |
| 335.10612504012 | 12.7 | 50.8 | 12 | 40 | 1/2 x 3/16 x 5mm |
| 335.10612604012 | 12.7 | 60 | 12 | 40 | 1/2 x 3/16 x 5mm |
| 335.10619254012 | 19.05 | 25.4 | 12 | 40 | 3/4 x 1/4 x 9/32 |
| 335.10622254012 | 22 | 25.4 | 12 | 40 | 22mm x 8mm x 7mm |
