339 Series
HTT, OEM, 3WIN
MPP+

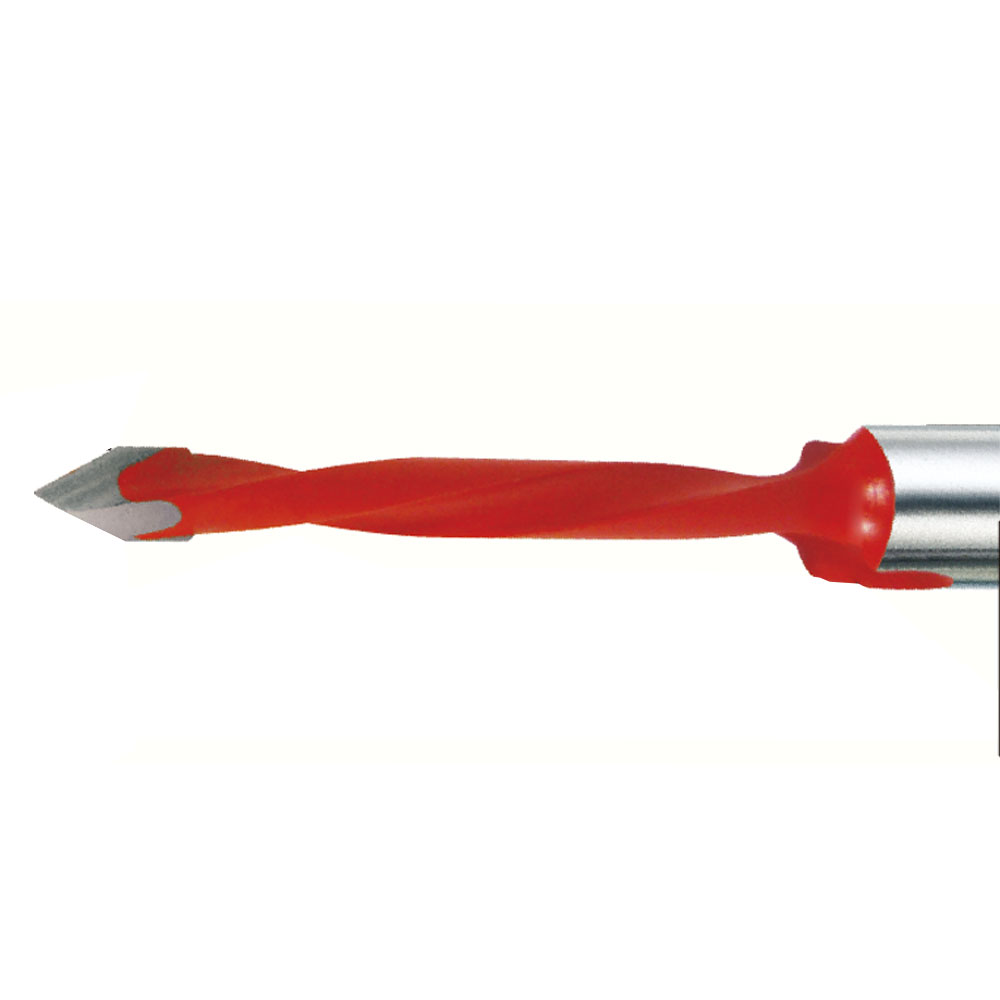

To drill through holes in various wood, plywood, chipboard, MDF, laminated, etc.
339 Series
4mm to 15mm
Cylindrical
Wood work
| Quantity: | |
|---|---|

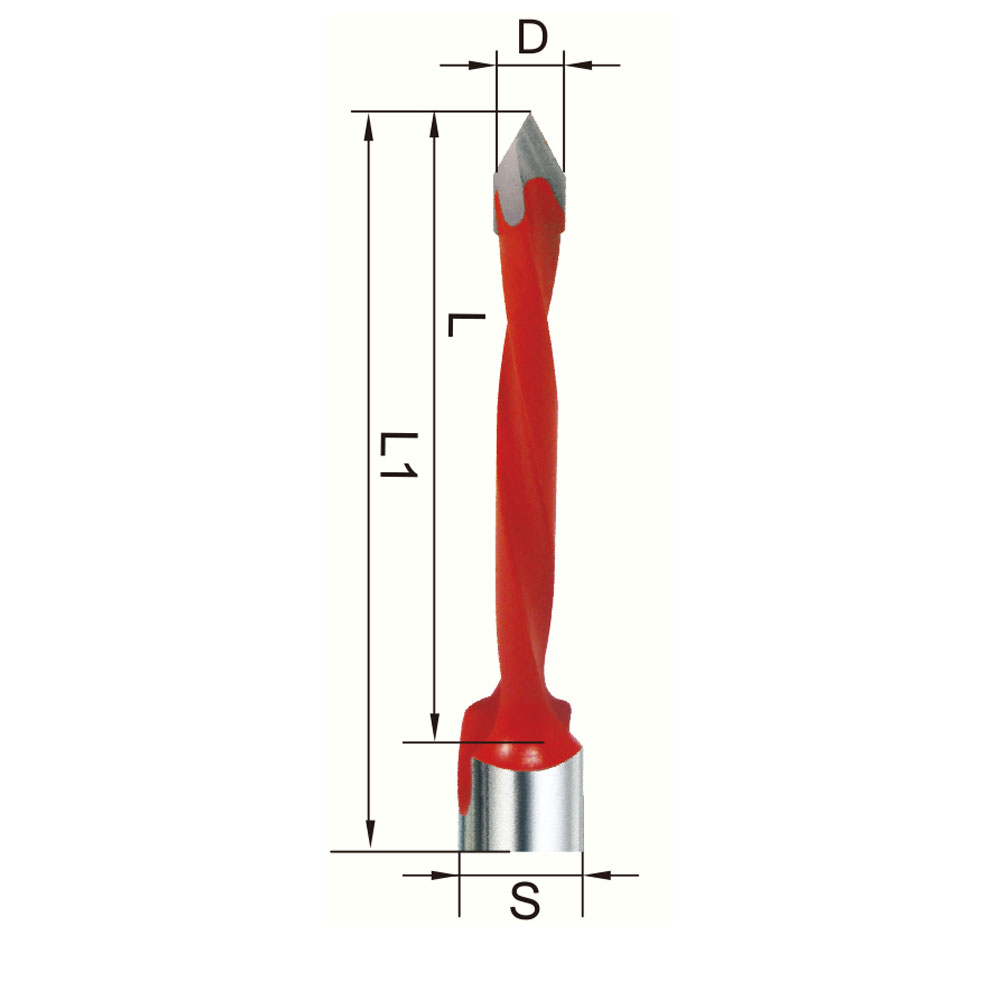

Size Table:
| Item Number | Rotation Direction | Diameter D(mm) | Working length L(mm) | Overall length L1(mm) | Shank Diameter S x Shank length(mm) |
| 339.R043057 | Right | 4 | 30 | 57.5 | 10 x 23 |
| 339.R053057 | Right | 5 | 30 | 57.5 | 10 x 23 |
| 339.R063057 | Right | 6 | 30 | 57.5 | 10 x 23 |
| 339.R083057 | Right | 8 | 30 | 57.5 | 10 x 23 |
| 339.R103057 | Right | 10 | 30 | 57.5 | 10 x 23 |
| 339.R123057 | Right | 12 | 30 | 57.5 | 10 x 23 |
| 339.R153057 | Right | 15 | 30 | 57.5 | 10 x 23 |
| 339.L043057 | Left | 4 | 30 | 57.5 | 10 x 23 |
| 339.L053057 | Left | 5 | 30 | 57.5 | 10 x 23 |
| 339.L063057 | Left | 6 | 30 | 57.5 | 10 x 23 |
| 339.L083057 | Left | 8 | 30 | 57.5 | 10 x 23 |
| 339.L103057 | Left | 10 | 30 | 57.5 | 10 x 23 |
| 339.L123057 | Left | 12 | 30 | 57.5 | 10 x 23 |
| 339.L153057 | Left | 15 | 30 | 57.5 | 10 x 23 |
| 339.R044370 | Right | 4 | 43 | 70 | 10 x 23 |
| 339.R054370 | Right | 5 | 43 | 70 | 10 x 23 |
| 339.R064370 | Right | 6 | 43 | 70 | 10 x 23 |
| 339.R084370 | Right | 8 | 43 | 70 | 10 x 23 |
| 339.R104370 | Right | 10 | 43 | 70 | 10 x 23 |
| 339.R124370 | Right | 12 | 43 | 70 | 10 x 23 |
| 339.R154370 | Right | 15 | 43 | 70 | 10 x 23 |
| 339.L044370 | Left | 4 | 43 | 70 | 10 x 23 |
| 339.L054370 | Left | 5 | 43 | 70 | 10 x 23 |
| 339.L064370 | Left | 6 | 43 | 70 | 10 x 23 |
| 339.L084370 | Left | 8 | 43 | 70 | 10 x 23 |
| 339.L104370 | Left | 10 | 43 | 70 | 10 x 23 |
| 339.L124370 | Left | 12 | 43 | 70 | 10 x 23 |
| 339.L154370 | Left | 15 | 43 | 70 | 10 x 23 |
