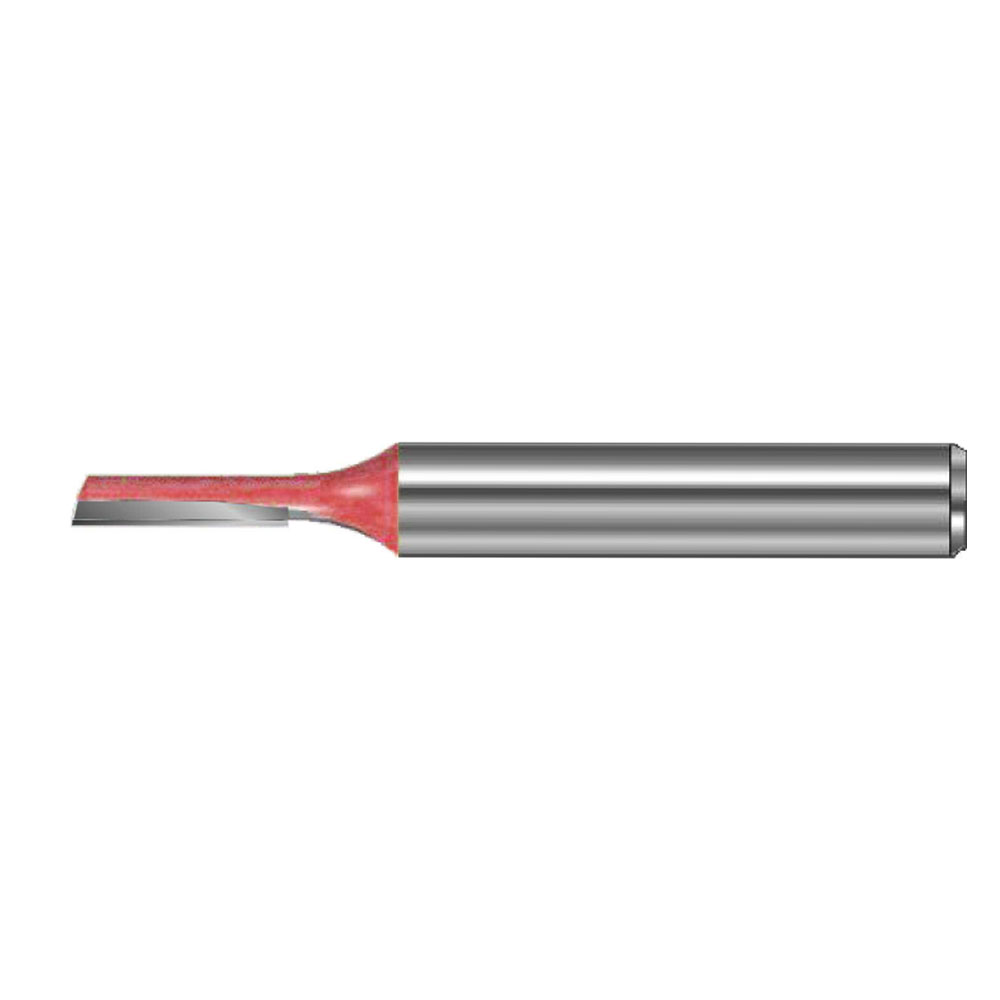

335-Straight 1F Trim Cut
OEM, HTT or 3WIN
MPP+
To do trim cut and milling work in various wood, wood board, MDF ,etc.
335
4mm to 10mm
Cylindrical
Wood work
| Quantity: | |
|---|---|

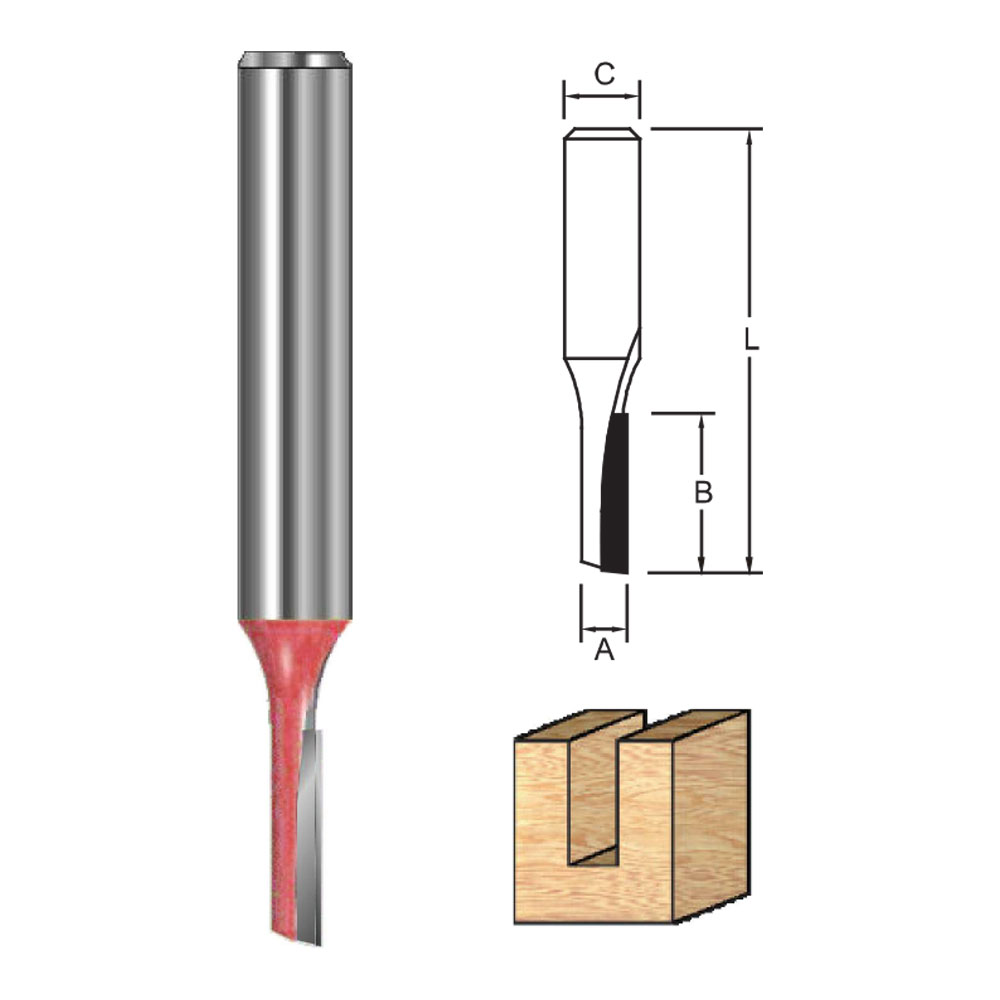

Size Table:
| Item Number | A(mm) | B(mm) | C(mm) | L(mm) | Length of C(mm) |
| 335.10004104808 | 4 | 10 | 8 | 48 | 32 |
| 335.10004125008 | 5 | 12.7 | 8 | 50 | 32 |
| 335.10006124908 | 6 | 12.7 | 8 | 49 | 32 |
| 335.10006195508 | 6 | 19 | 8 | 55 | 32 |
| 335.10008205508 | 8 | 20 | 8 | 55 | 32 |
| 335.10010255708 | 10 | 25 | 8 | 57 | 32 |
| 335.10004106012 | 4 | 10 | 12 | 60 | 40 |
| 335.10005126212 | 5 | 12.7 | 12 | 62 | 40 |
| 335.10006126112 | 6 | 12.7 | 12 | 61 | 40 |
| 335.10006196712 | 6 | 19 | 12 | 67 | 40 |
| 335.10008206712 | 8 | 20 | 12 | 67 | 40 |
| 335.10010257112 | 10 | 25 | 12 | 71 | 40 |
Size Table:
| Item Number | A(mm) | B(mm) | C(mm) | L(mm) | Length of C(mm) |
| 335.10004104808 | 4 | 10 | 8 | 48 | 32 |
| 335.10004125008 | 5 | 12.7 | 8 | 50 | 32 |
| 335.10006124908 | 6 | 12.7 | 8 | 49 | 32 |
| 335.10006195508 | 6 | 19 | 8 | 55 | 32 |
| 335.10008205508 | 8 | 20 | 8 | 55 | 32 |
| 335.10010255708 | 10 | 25 | 8 | 57 | 32 |
| 335.10004106012 | 4 | 10 | 12 | 60 | 40 |
| 335.10005126212 | 5 | 12.7 | 12 | 62 | 40 |
| 335.10006126112 | 6 | 12.7 | 12 | 61 | 40 |
| 335.10006196712 | 6 | 19 | 12 | 67 | 40 |
| 335.10008206712 | 8 | 20 | 12 | 67 | 40 |
| 335.10010257112 | 10 | 25 | 12 | 71 | 40 |
