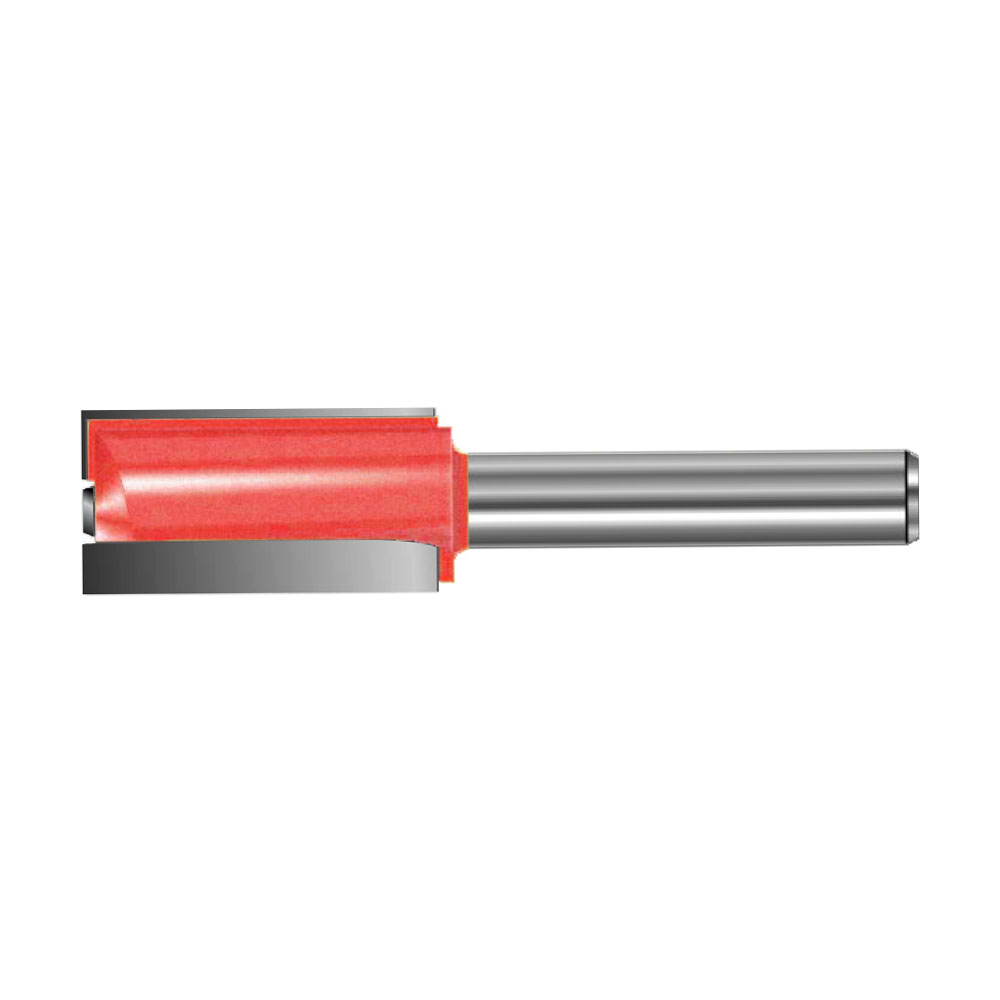

335-Straight 2F with End Cut Trim Cut
OEM, HTT or 3WIN
MPP+
To do trim plunge cut and milling work in various wood, wood board, MDF ,etc.
335
8mm to 30mm
Cylindrical
Wood work
| Quantity: | |
|---|---|

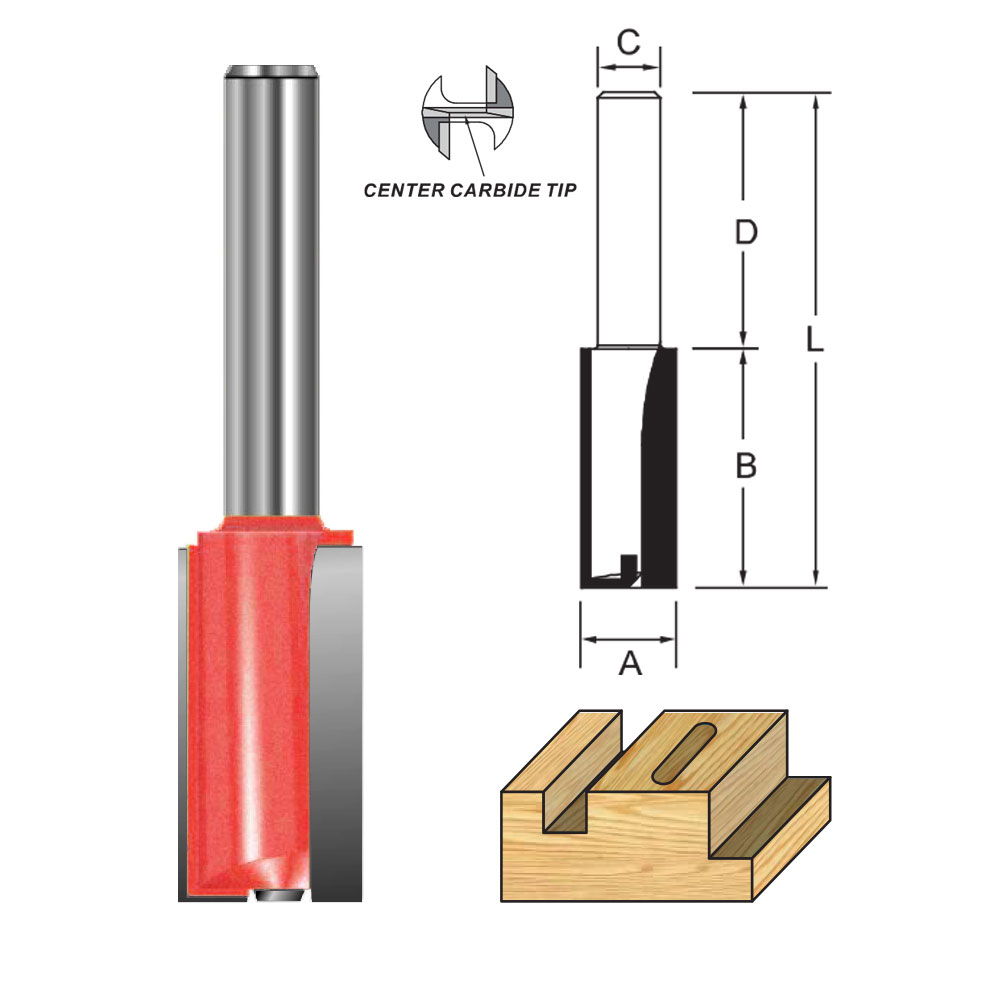

Size Table:
| Item Number | A (mm) | B(mm) | C(mm) | D (mm) | L (mm) |
| 335.10108205508 | 8 | 20 | 8 | 32 | 55 |
| 335.10108306508 | 8 | 30 | 8 | 32 | 65 |
| 335.10108309008 | 8 | 30 | 8 | 32 | 90 |
| 335.10109205508 | 9 | 20 | 8 | 32 | 55 |
| 335.10110205208 | 10 | 20 | 8 | 32 | 52 |
| 335.10110306208 | 10 | 30 | 8 | 32 | 62 |
| 335.10110309008 | 10 | 30 | 8 | 58 | 90 |
| 335.10111205208 | 11 | 20 | 8 | 32 | 52 |
| 335.10112205208 | 12 | 20 | 8 | 32 | 52 |
| 335.10112306208 | 12 | 30 | 8 | 32 | 62 |
| 335.10112305808 | 12 | 30 | 8 | 58 | 90 |
| 335.10112387008 | 12 | 38 | 8 | 32 | 70 |
| 335.10112508208 | 12 | 50 | 8 | 32 | 82 |
| 335.10112639208 | 12 | 63 | 8 | 29 | 92 |
| 335.10113205208 | 13 | 20 | 8 | 32 | 52 |
| 335.10114205208 | 14 | 20 | 8 | 32 | 52 |
| 335.10114306208 | 14 | 30 | 8 | 32 | 62 |
| 335.10114309008 | 14 | 30 | 8 | 58 | 90 |
| 335.10115205208 | 15 | 20 | 8 | 32 | 52 |
| 335.10116205208 | 16 | 20 | 8 | 32 | 52 |
| 335.10116207008 | 16 | 20 | 8 | 50 | 70 |
| 335.10116306208 | 16 | 30 | 8 | 32 | 62 |
| 335.10116309008 | 16 | 30 | 8 | 58 | 90 |
| 335.10116387008 | 16 | 38 | 8 | 32 | 70 |
| 335.10116508208 | 16 | 50 | 8 | 32 | 82 |
| 335.10118205208 | 18 | 20 | 8 | 32 | 52 |
| 335.10118207008 | 18 | 20 | 8 | 50 | 70 |
| 335.10118307008 | 18 | 30 | 8 | 40 | 70 |
| 335.10120205208 | 20 | 20 | 8 | 32 | 52 |
| 335.10120207008 | 20 | 20 | 8 | 50 | 70 |
| 335.10120326408 | 20 | 32 | 8 | 32 | 64 |
| 335.10122205208 | 22 | 20 | 8 | 32 | 52 |
| 335.10122207008 | 22 | 20 | 8 | 50 | 70 |
| 335.10122306208 | 22 | 30 | 8 | 32 | 62 |
| 335.10124205208 | 24 | 20 | 8 | 32 | 52 |
| 335.10125205208 | 25 | 20 | 8 | 32 | 52 |
| 335.10126206008 | 26 | 20 | 8 | 40 | 60 |
| 335.10128205208 | 28 | 20 | 8 | 32 | 52 |
| 335.10130205208 | 30 | 20 | 8 | 32 | 52 |
| 335.10108206712 | 8 | 20 | 12 | 40 | 67 |
| 335.10108307712 | 8 | 30 | 12 | 40 | 77 |
| 335.10110206612 | 10 | 20 | 12 | 40 | 66 |
| 335.10110307612 | 10 | 30 | 12 | 40 | 76 |
| 335.10110359512 | 10 | 35 | 12 | 55 | 95.5 |
| 335.10112206412 | 12 | 20 | 12 | 40 | 64 |
| 335.10112307412 | 12 | 30 | 12 | 40 | 74 |
| 335.10112388212 | 12 | 38 | 12 | 40 | 82 |
| 335.10112509412 | 12 | 50 | 12 | 40 | 94 |
| 335.101126310712 | 12 | 63 | 12 | 40 | 107 |
| 335.10114206212 | 14 | 20 | 12 | 40 | 62 |
| 335.10114307212 | 14 | 30 | 12 | 40 | 72 |
| 335.10114359012 | 14 | 35 | 12 | 55 | 90 |
| 335.10115206012 | 15 | 20 | 12 | 40 | 60 |
| 335.10115359012 | 15 | 35 | 12 | 55 | 90 |
| 335.10116206012 | 16 | 20 | 12 | 40 | 60 |
| 335.10116307012 | 16 | 30 | 12 | 40 | 70 |
| 335.10116387812 | 16 | 38 | 12 | 40 | 78 |
| 335.10116509012 | 16 | 50 | 12 | 40 | 90 |
| 335.101166011012 | 16 | 60 | 12 | 50 | 110 |
| 335.10118206012 | 18 | 20 | 12 | 40 | 60 |
| 335.10118359012 | 18 | 35 | 12 | 55 | 90 |
| 335.101186011012 | 18 | 60 | 12 | 50 | 110 |
| 335.10120206012 | 20 | 20 | 12 | 40 | 60 |
| 335.10120327212 | 20 | 32 | 12 | 40 | 72 |
| 335.10120359012 | 20 | 35 | 12 | 55 | 90 |
| 335.101206011012 | 20 | 60 | 12 | 50 | 110 |
| 335.10122206012 | 22 | 20 | 12 | 40 | 60 |
| 335.10122307012 | 22 | 30 | 12 | 40 | 70 |
| 335.10122359012 | 22 | 35 | 12 | 55 | 90 |
| 335.10122409212 | 22 | 40 | 12 | 50 | 92 |
| 335.101226011012 | 22 | 60 | 12 | 50 | 110 |
| 335.10124206012 | 24 | 20 | 12 | 40 | 60 |
| 335.10124359012 | 24 | 35 | 12 | 55 | 90 |
| 335.10124409212 | 24 | 40 | 12 | 50 | 92 |
| 335.10125206012 | 25 | 20 | 12 | 40 | 60 |
| 335.10125359012 | 25 | 35 | 12 | 55 | 90 |
| 335.10126429412 | 26 | 42 | 12 | 50 | 94 |
| 335.10128206012 | 28 | 20 | 12 | 40 | 60 |
| 335.10128429412 | 28 | 42 | 12 | 50 | 94 |
| 335.10130206012 | 30 | 20 | 12 | 40 | 60 |
| 335.10130359012 | 30 | 35 | 12 | 55 | 90 |
| 335.10135359012 | 35 | 35 | 12 | 55 | 90 |
