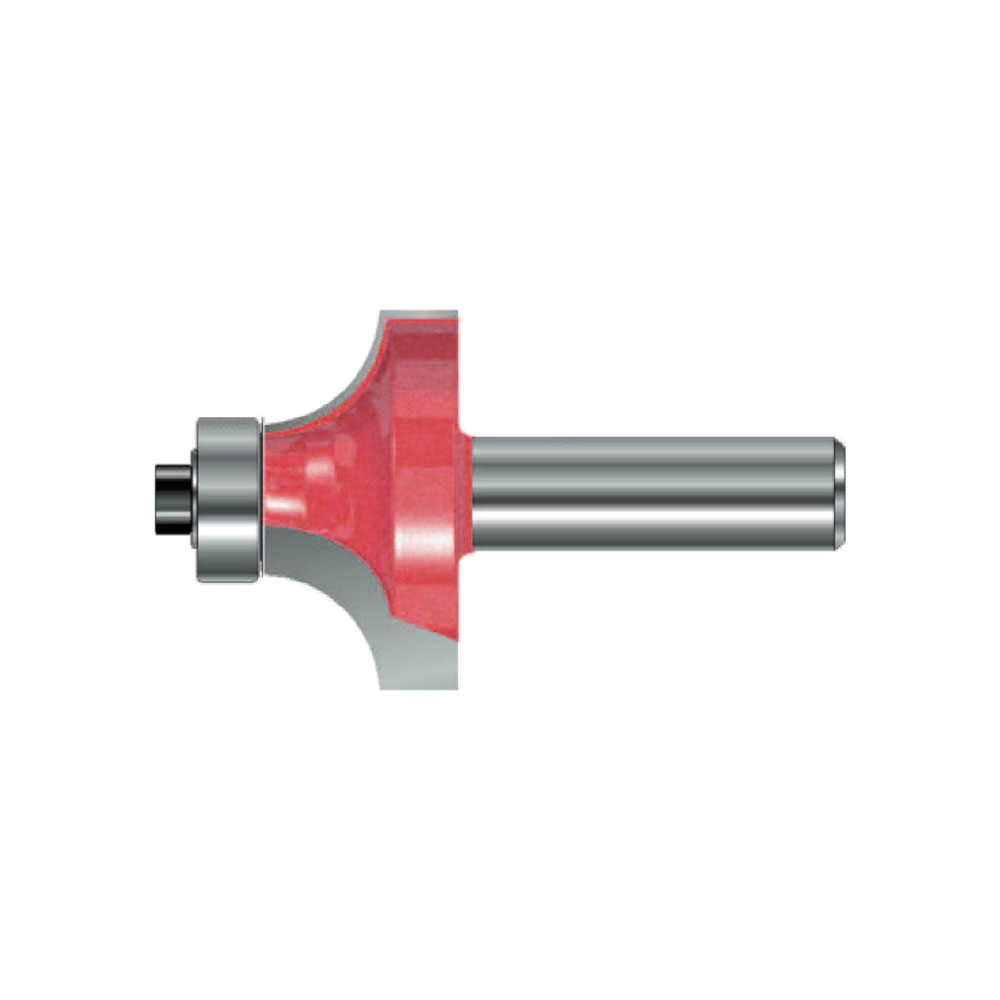

TCT Rounding Over Cutter Router Bit with Ball Bearing, Double Cutter, Right Rotation
You are here: Home » Products » Router Bit & Set » Router bit » TCT Rounding Over Cutter Router Bit with Ball Bearing, Double Cutter, Right Rotation
PRODUCTS

Categories

Search Products

Hot Keywords:
Product Inquiry

loading

Share to:
sharethis sharing button

TCT Rounding Over Cutter Router Bit with Ball Bearing, Double Cutter, Right Rotation

* Two flutes, carbide tipped with totally enclosed ball bearing guides.
* Ideal for decorative edges. Smooth rounded edges produced.
* Lower depth setting will produce a decorative bead.
* Also used for drop leaf table joints, molding, etc.
* Please use only on router table.

  • 335-ROCBEAR

  • OEM, 3WIN, HTT

  • MPP+

  • To do slotting grooves in various wood, chipboard, plywood, MDF, laminate, etc.

  • 335

  • 15.9mm to 25.4mm

  • Cylindrical

  • Wood work

Availability:
Quantity:
Inquire Add to Basket

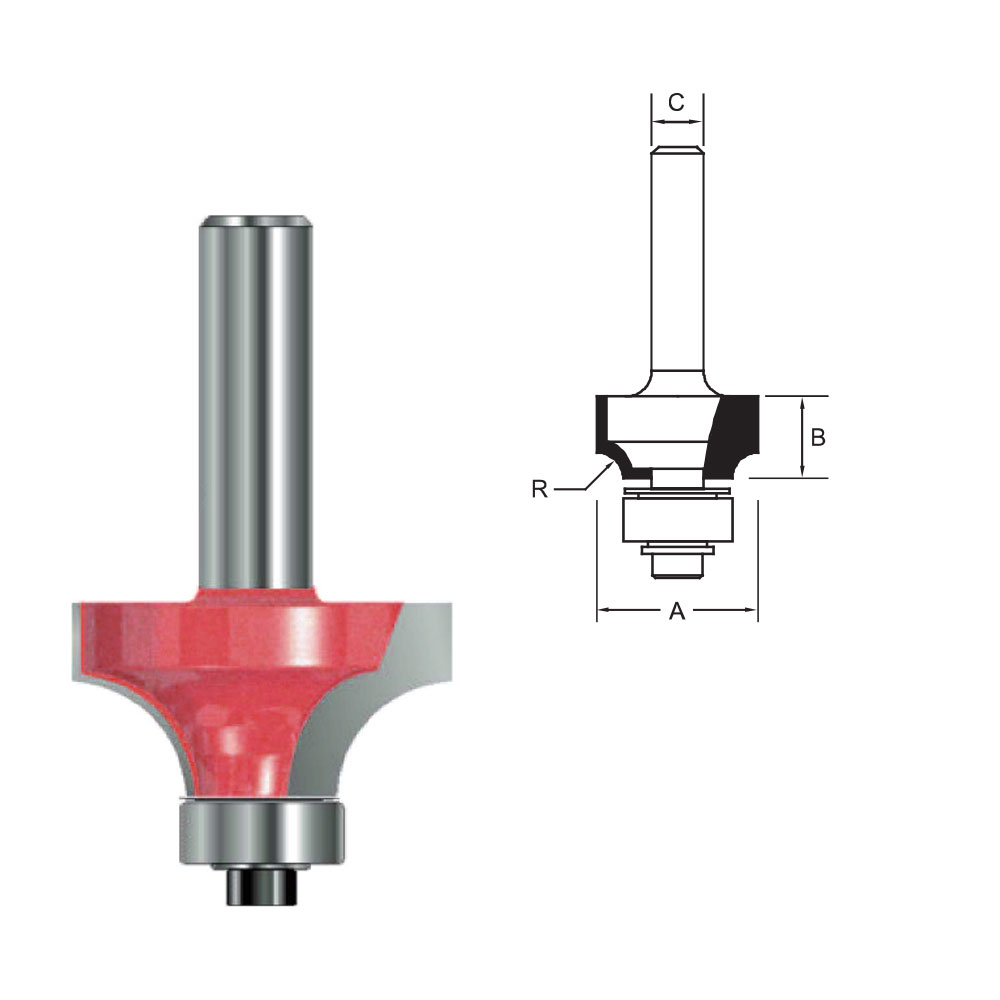

Size Table:

Item Number R (mm) A (mm) B (mm) Bearing Model Size Shank Diameter(mm) Shank Length(mm)
335.145161006 1.6 15.9 9.5 12.7mm x 18mm 6 32
335.145161306 1.6 15.9 12.7 12.7mm x 18mm 6 32
335.145171006 2 16.7 9.5 12.7mm x 18mm 6
 32
335.145171306 2 16.7 12.7 12.7mm x 18mm 6 32
335.145181006 3 18.7 9.5 12.7mm x 18mm 6 32
335.145181306 3 18.7 12.7 12.7mm x 18mm 6 32
335.145191306 3.18 19.1 12.7 12.7mm x 18mm 6 32
335.145201006 4 20.7 9.5 12.7mm x 18mm 6 32
335.145221306 4.76 22.2 12.7 12.7mm x 18mm 6 32
335.145231006 5 22.7 9.5 12.7mm x 18mm 6 32
335.145251306 6 24.7 12.7 12.7mm x 18mm 6 32
335.145221406 6.35 22.22 13.5 8mm x 14mm 6 32
335.145251106 6.35 25.4 11.11 12.7mm x 18mm 6 32
335.145251306 6.35 25.4 12.7 12.7mm x 18mm 6 32
335.145281306 8 28.6 12.7 12.7mm x 18mm 6 32
335.145321606 9.53 31.75 15.88 12.7mm x 18mm 6 32
335.145331606 10 32.7 16 12.7mm x 18mm 6 32
335.145371906 12 36.7 19 12.7mm x 18mm 6 32
335.145381906 12.7 38.1 19.05 12.7mm x 18mm 6 32
335.145442206 16 44.7 22 12.7mm x 18mm 6 32







335.145161008 1.6 15.9 9.5 12.7mm x 18mm 8 32
335.145161308 1.6 15.9 12.7 12.7mm x 18mm 8 32
335.145171008 2 16.7 9.5 12.7mm x 18mm 8
 32
335.145171308 2 16.7 12.7 12.7mm x 18mm 8 32
335.145181008 3 18.7 9.5 12.7mm x 18mm 8 32
335.145181308 3 18.7 12.7 12.7mm x 18mm 8 32
335.145191308 3.18 19.1 12.7 12.7mm x 18mm 8 32
335.145201008 4 20.7 9.5 12.7mm x 18mm 8 32
335.145221308 4.76 22.2 12.7 12.7mm x 18mm 8 32
335.145231008 5 22.7 9.5 12.7mm x 18mm 8 32
335.145251308 6 24.7 12.7 12.7mm x 18mm 8 32
335.145221408 6.35 22.22 13.5 8mm x 14mm 8 32
335.145251108 6.35 25.4 11.11 12.7mm x 18mm 8 32
335.145251308 6.35 25.4 12.7 12.7mm x 18mm 8 32
335.145281308 8 28.6 12.7 12.7mm x 18mm 8 32
335.145321608 9.53 31.75 15.88 12.7mm x 18mm 8 32
335.145331608 10 32.7 16 12.7mm x 18mm 8 32
335.145371908 12 36.7 19 12.7mm x 18mm 8 32
335.145381908 12.7 38.1 19.05 12.7mm x 18mm 8 32
335.145442208 16 44.7 22 12.7mm x 18mm 8 32







335.145161012 1.6 15.9 9.5 12.7mm x 18mm 12 40
335.145161312 1.6 15.9 12.7 12.7mm x 18mm 12 40
335.145171012 2 16.7 9.5 12.7mm x 18mm 12
 40
335.145171312 2 16.7 12.7 12.7mm x 18mm 12 40
335.145181012 3 18.7 9.5 12.7mm x 18mm 12 40
335.145181312 3 18.7 12.7 12.7mm x 18mm 12 40
335.145191312 3.18 19.1 12.7 12.7mm x 18mm 12 40
335.145201012 4 20.7 9.5 12.7mm x 18mm 12 40
335.145221312 4.76 22.2 12.7 12.7mm x 18mm 12 40
335.145231012 5 22.7 9.5 12.7mm x 18mm 12 40
335.145251312 6 24.7 12.7 12.7mm x 18mm 12 40
335.145221412 6.35 22.22 13.5 8mm x 14mm 12 40
335.145251112 6.35 25.4 11.11 12.7mm x 18mm 12 40
335.145251312 6.35 25.4 12.7 12.7mm x 18mm 12 40
335.145281312 8 28.6 12.7 12.7mm x 18mm 12 40
335.145321612 9.53 31.75 15.88 12.7mm x 18mm 12 40
335.145331612 10 32.7 16 12.7mm x 18mm 12 40
335.145371912 12 36.7 19 12.7mm x 18mm 12 40
335.145381912 12.7 38.1 19.05 12.7mm x 18mm 12 40
335.145442212 16 44.7 22 12.7mm x 18mm 12 40
335.145512512 19.05 50.8 25.4 12.7mm x 18mm 12 40
335.145572912 22.2 57.1 28.6 12.7mm x 18mm 12 40







335.145643212 25.4 63.5 31.8 12.7mm x 18mm 12 45
335.145703512 28.6 69.9 34.9 12.7mm x 18mm 12 45
335.145763812 31.75 76.2 38.1 12.7mm x 18mm 12 45
335.145834112 34.93 82.55 41.2 12.7mm x 18mm 12 45
335.145894412 38.1 88.9 44.45 12.7mm x 18mm 12 45

335-145-2
