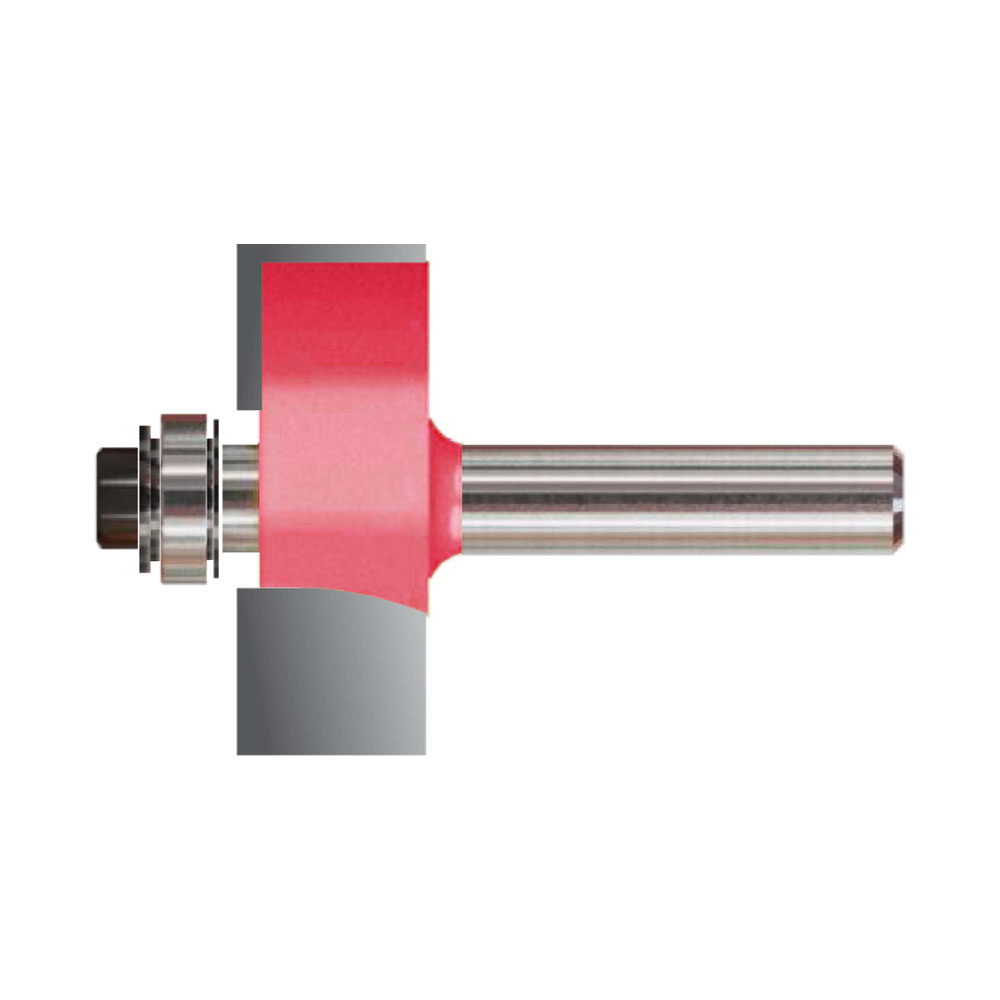

TCT Rabbeting Router Bit with Set of Ball Bearings, Double Cutter, Right Rotation

* Two flutes, carbide tipped with totally enclosed ball bearing guide.
* Use for shiplap joints, tongue & groove joints, T-molding, Rabbeting, etc.

Model:
335-SBSRB
Brand:
OEM, 3WIN, HTT
Quality Rank:
MPP+
Applications:
To do slotting grooves in various wood, chipboard, plywood, MDF, laminate, etc.
Series:
335
Diameter Range:
34.9mm
Shank Type:
Cylindrical
Drilling Purposes:
Wood work

Size Table:

Item Number	H (mm)	A (mm)	B (mm)	Bearing Model Size	Shank Diameter(mm)	Shank Length(mm)
335.1543506	0-12.7	34.9	12.7	3/8"x3/16"x1/8", 7/8"x3/16"x5mm, 1/2"x3/16"x5mm, 1-1/8"x3/16"x5mm, 5/8"x3/16"x5mm, 1-3/8"x3/16"x5mm, 3/4"x3/16"x5mm	6	32
335.1543508	0-12.7	34.9	12.7	3/8"x3/16"x1/8", 7/8"x3/16"x5mm, 1/2"x3/16"x5mm, 1-1/8"x3/16"x5mm, 5/8"x3/16"x5mm, 1-3/8"x3/16"x5mm, 3/4"x3/16"x5mm	8	32
335.1543512	0-12.7	34.9	12.7	3/8"x3/16"x1/8", 7/8"x3/16"x5mm, 1/2"x3/16"x5mm, 1-1/8"x3/16"x5mm, 5/8"x3/16"x5mm, 1-3/8"x3/16"x5mm, 3/4"x3/16"x5mm	12	40
335.1543606	0-12.7	34.9	19	3/8"x3/16"x1/8", 7/8"x3/16"x5mm, 1/2"x3/16"x5mm, 1-1/8"x3/16"x5mm, 5/8"x3/16"x5mm, 1-3/8"x3/16"x5mm, 3/4"x3/16"x5mm	12	40

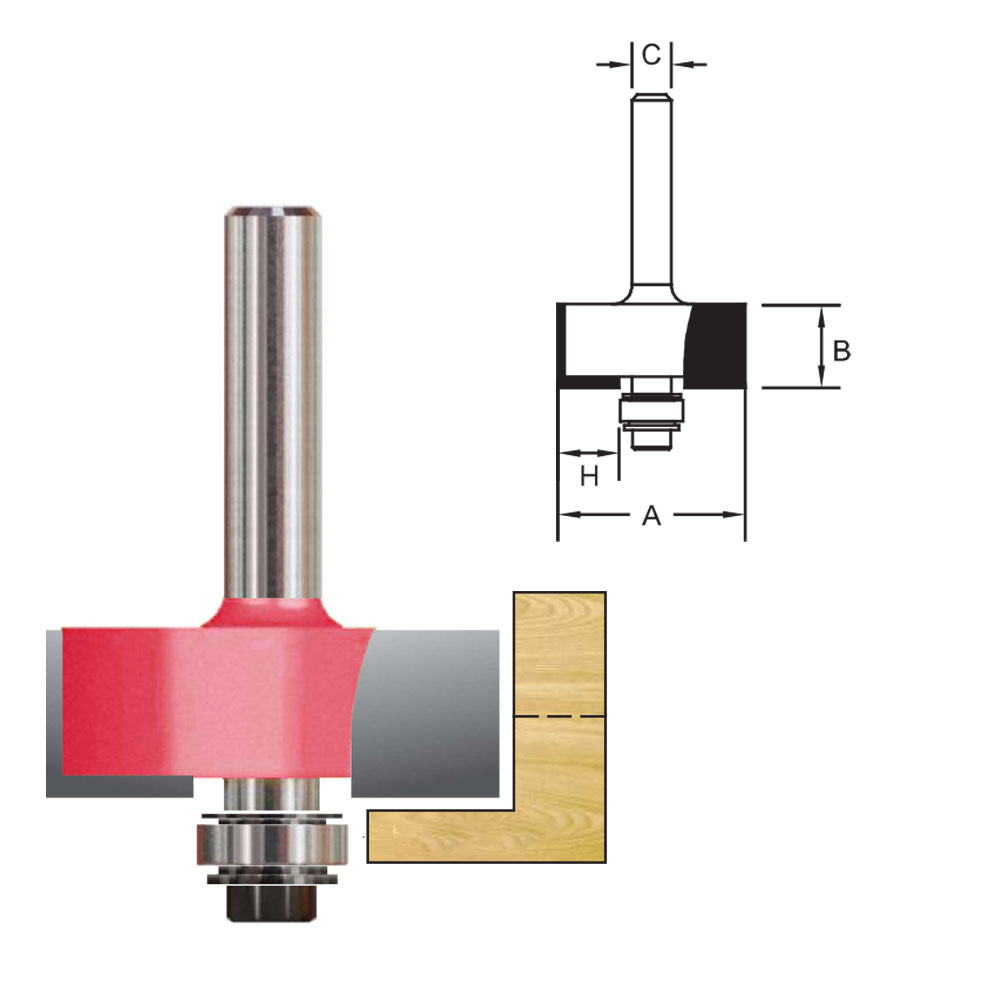

335-154-2
