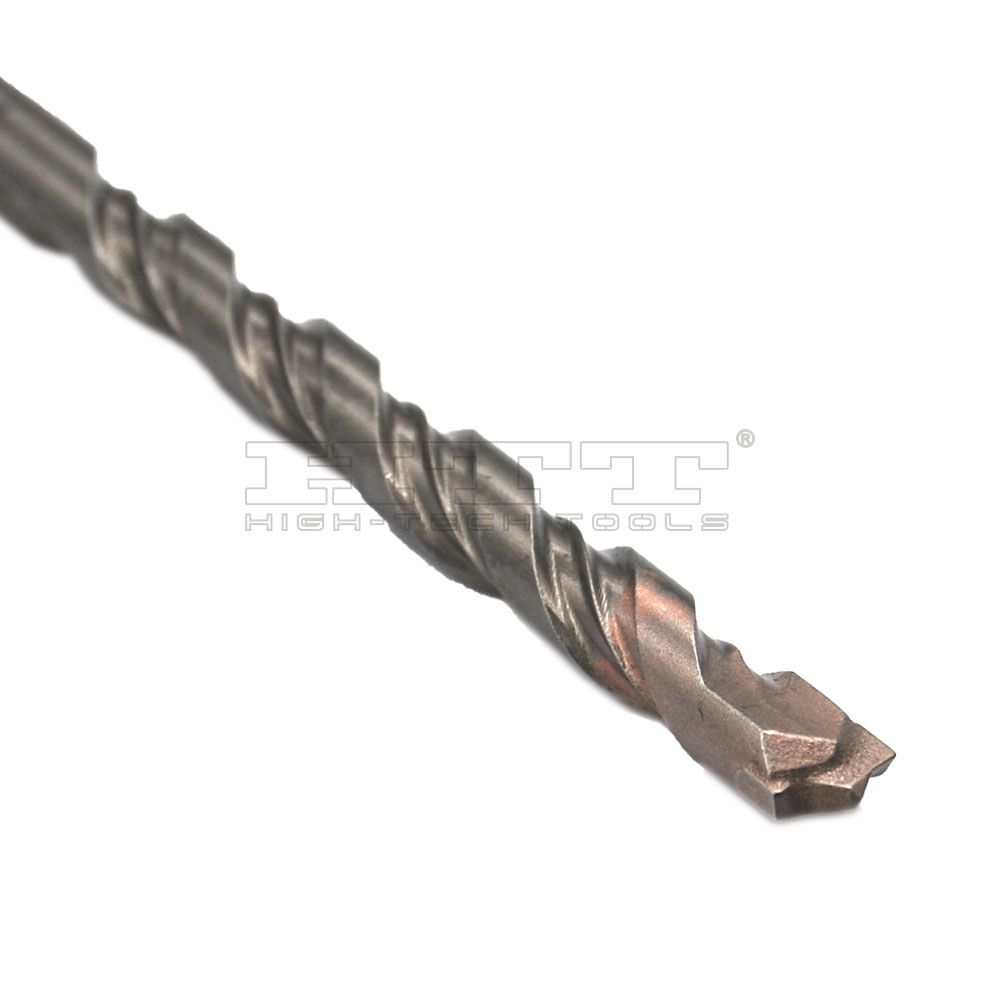

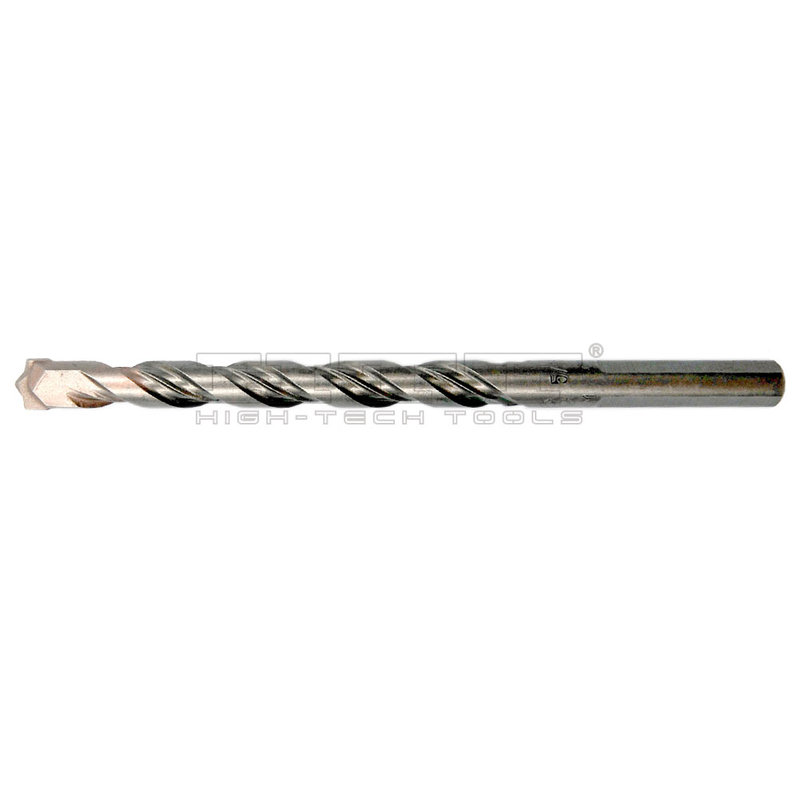

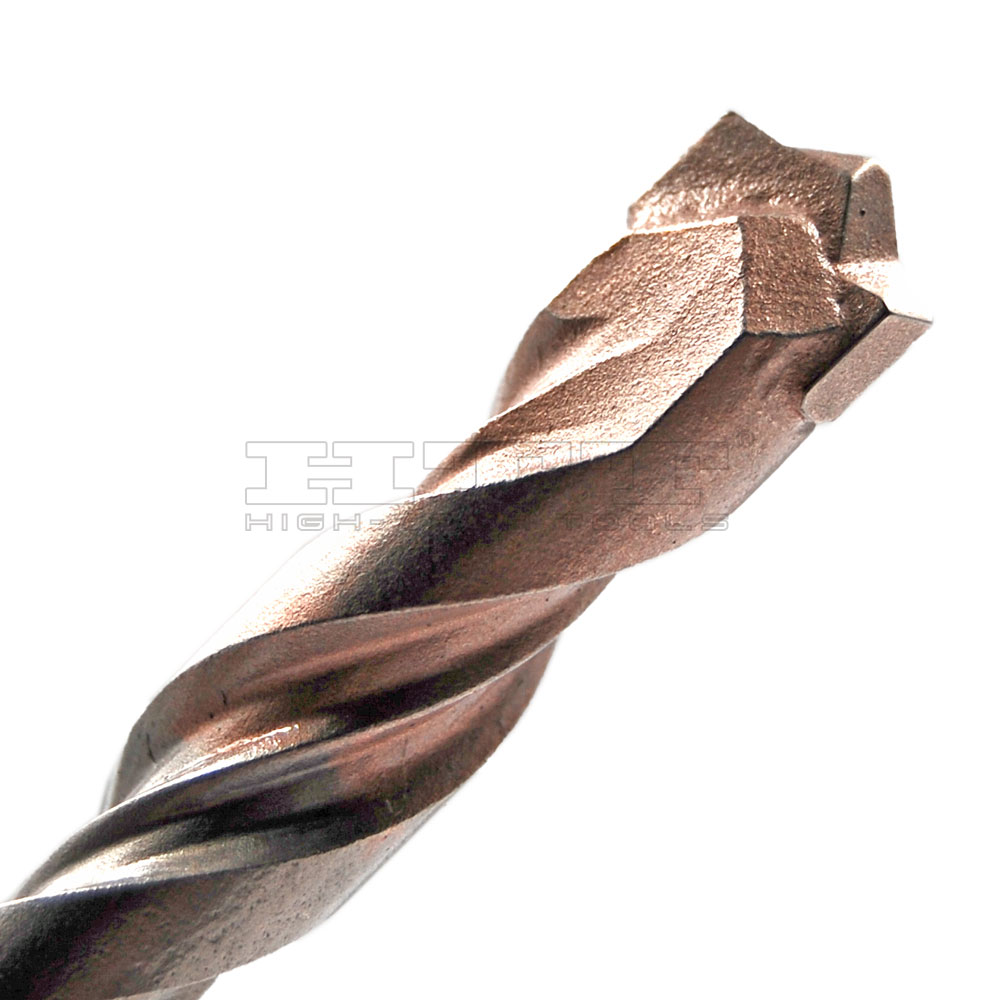

3338 Series
HTT, or OEM job
HPP
To drill holes in various concrete, stone, masonry building material, wood, chipboard, laminated board, plywood, plaster, non-ferrous metal, steel, Aluminium, tile, ceramics, etc.
3338
4mm to 20mm
Tri-flat
Masonry work, Metal work, Wood work
| Quantity: | |
|---|---|
Size Table:
*Note:
3mm to 5.5mm ones with cylinder shank
6mm to 12mm ones with tri-flat shank
13mm to 20mm ones with reduced tri-flat shank.
| Item No. | Diameter(mm) | Working Length(mm) | Overall Length(mm) | Shank Diameter(mm) |
| 3338.040085 | 4 | 45 | 85 | 3.75 |
| 3338.050085 | 5 | 45 | 85 | 4.50 |
| 3338.055095 | 5.5 | 50 | 95 | 4.50 |
| 3338.060100 | 6 | 60 | 100 | 5.50 |
| 3338.065100 | 6.5 | 60 | 100 | 6.00 |
| 3338.070100 | 7 | 60 | 100 | 6.50 |
| 3338.080120 | 8 | 80 | 120 | 7.60 |
| 3338.090120 | 9 | 80 | 120 | 7.60 |
| 3338.100120 | 10 | 80 | 120 | 9.00 |
| 3338.120130 | 12 | 80 | 130 | 9.98 |
| 3338.130150 | 13 | 90 | 150 | 10 |
| 3338.140150 | 14 | 90 | 150 | 10 |
| 3338.160150 | 16 | 90 | 150 | 10 |
| 3338.180160 | 18 | 100 | 160 | 10 |
| 3338.200160 | 20 | 100 | 160 | 10 |
