335-DovetailBB2F
OEM, 3WIN, HTT
MPP+
To do dovetail grooving in various wood, chipboard, plywood, MDF, laminate, etc.
335
9.5mm to 12.7mm
Cylindrical
Wood work
| Quantity: | |
|---|---|

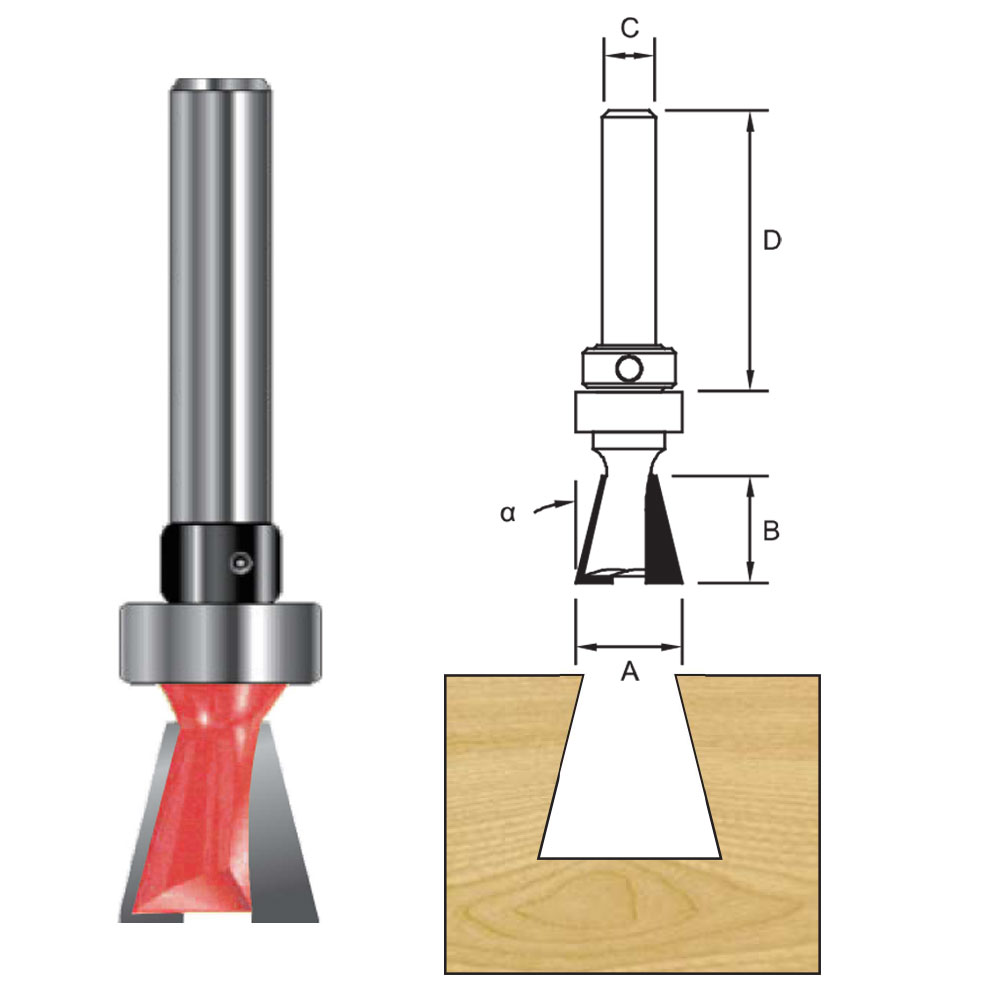

Size Table:
| Item Number | a (degrees) | A (mm) | B (mm) | C (mm) | D (mm) | Bearing Size (OD x ID x Thickness) |
| 335.13209093206 | 14° | 9.5 | 9.5 | 6 | 32 | 5/8 x 1/4 x 5mm |
| 335.13213133206 | 14° | 12.7 | 12.7 | 6 | 32 | 1/2 x 1/4 x 3/16 |
Size Table:
| Item Number | a (degrees) | A (mm) | B (mm) | C (mm) | D (mm) | Bearing Size (OD x ID x Thickness) |
| 335.13209093206 | 14° | 9.5 | 9.5 | 6 | 32 | 5/8 x 1/4 x 5mm |
| 335.13213133206 | 14° | 12.7 | 12.7 | 6 | 32 | 1/2 x 1/4 x 3/16 |
