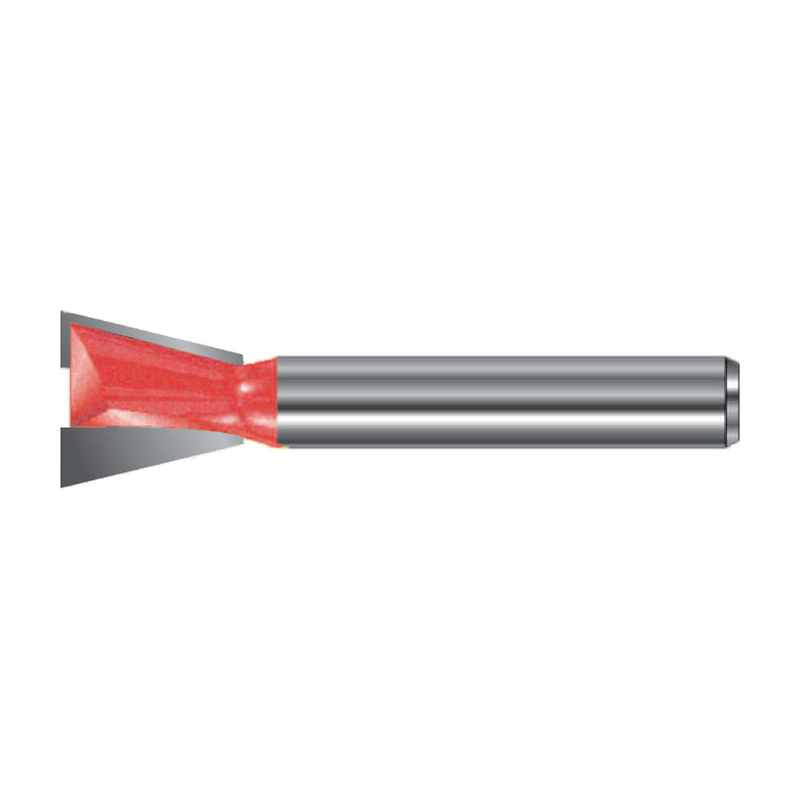

TCT Dovetail Cutter Router Bit, Double Cutter, Right Rotation

* Two flutes dovetail cutter without spurs for an easy construction of dovetails.

  • 335-Dovetail2F

  • OEM, 3WIN, HTT

  • MPP+

  • To do dovetail grooving in various wood, chipboard, plywood, MDF, laminate, etc.

  • 335

  • 6.35mm to 25.4mm

  • Cylindrical

  • Wood work

Availability:
Quantity:
Inquire Add to Basket

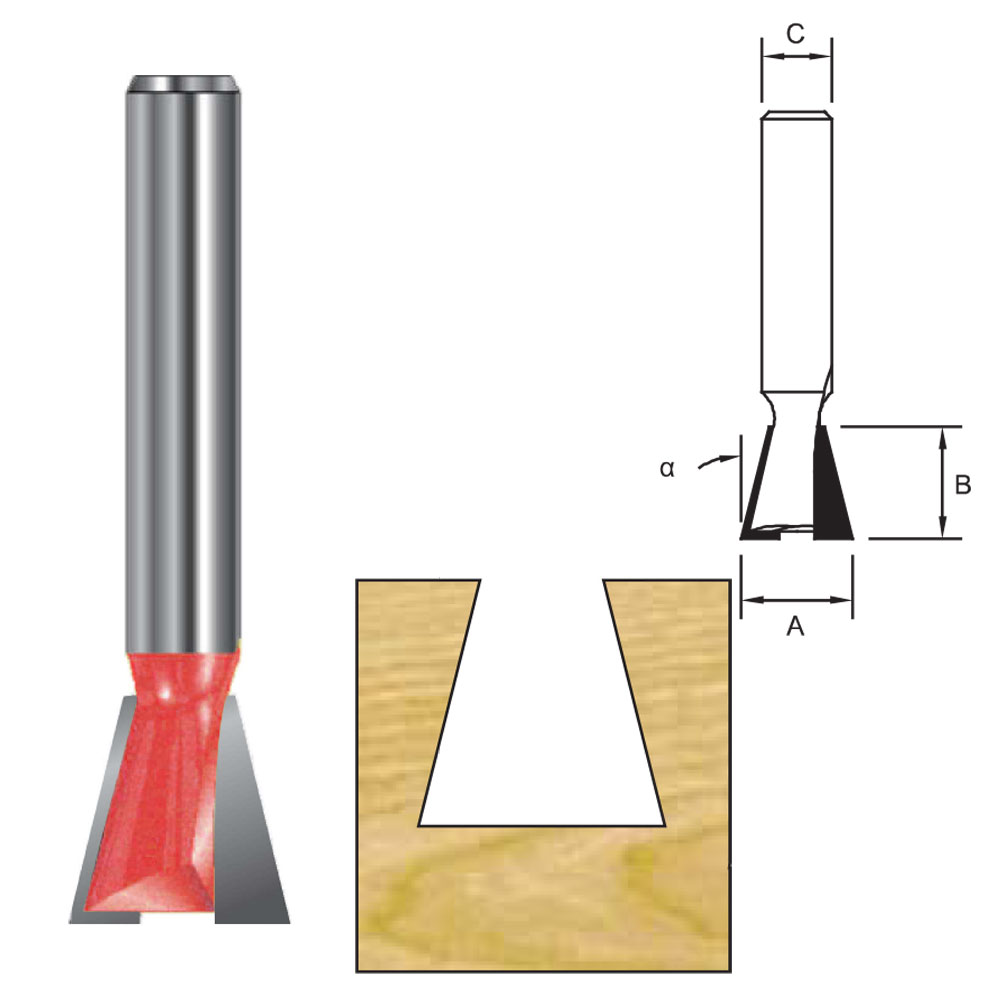

Size Table:

Item Number a(degrees) A (mm) B (mm) C (mm) Shank Length(mm)
335.12106083206 7.5° 6.35 7.9 6 32
335.12109093206 9° 9.5 9.5 6 32
335.12109083206 12° 9.5 8.5 6 32
335.12113133206 14° 12.7 12.7 6 32
335.12113213206 8° 12.7 20.6 6 32
335.12114133206 14° 14.3 12.7 6 32
335.12116163206 14° 15.9 15.9 6 32
335.12114143206 15° 14.3 13.5 6 32
335.12116223206 7° 15.9 22.2 6 32
335.12119193206 14° 19 19 6 32
335.12119223206 7° 19 22.2 6 32






335.12106083208 7.5° 6.35 7.9 8 32
335.12109093208 9° 9.5 9.5 8 32
335.12109083208 12° 9.5 8.5 8 32
335.12113133208 14° 12.7 12.7 8 32
335.12113213208 8° 12.7 20.6 8 32
335.12114133208 14° 14.3 12.7 8 32
335.12116163208 14° 15.9 15.9 8 32
335.12114143208 15° 14.3 13.5 8 32
335.12116223208 7° 15.9 22.2 8 32
335.12119193208 14° 19 19 8 32
335.12119223208 7° 19 22.2 8 32
335.12122223208 15° 22 22 8 32






335.12109094012 9° 9.5 9.5 12 40
335.12109084012 12° 9.5 8.5 12 40
335.12113134012 14° 12.7 12.7 12 40
335.12113214012 8° 12.7 20.6 12 40
335.12114134012 14° 14.3 12.7 12 40
335.12116164012 14° 15.9 15.9 12 40
335.12114144012 15° 14.3 13.5 12 40
335.12116224012 7° 15.9 22.2 12 40
335.12119194012 14° 19 19 12 40
335.12119224012 7° 19 22.2 12 40
335.12122224012 15° 22 22 12 40
335.12125224012 14° 25.4 22.2 12 40
335-121-Dovetail2F-2
