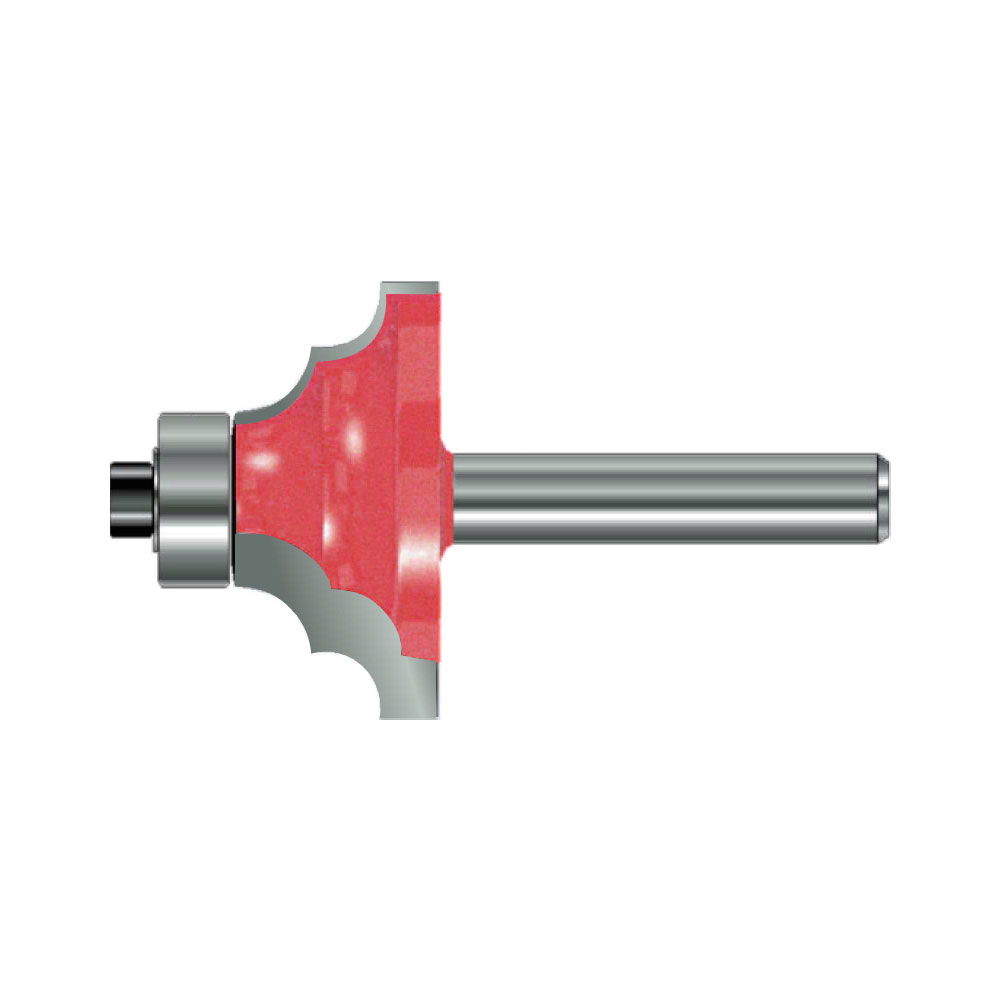

335-DRCB
OEM, 3WIN, HTT
MPP+
To do slotting grooves in various wood, chipboard, plywood, MDF, laminate, etc.
335
28.6mm to 38.1mm
Cylindrical
Wood work
| Quantity: | |
|---|---|

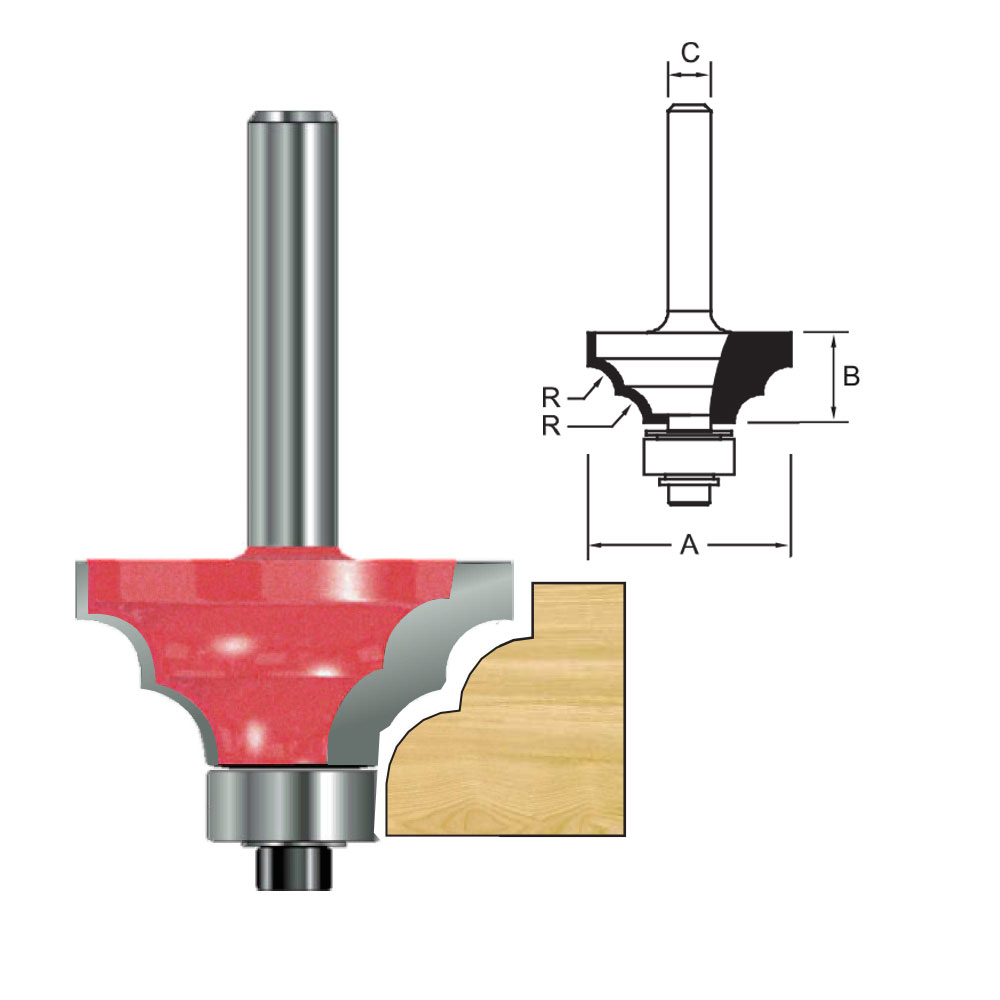

Size Table:
| Item Number | R (mm) | A (mm) | B (mm) | Bearing Model Size | Shank Diameter(mm) | Shank Length(mm) |
| 335.148291306 | 3.97 | 28.6 | 12.7 | 12.7mm x 18mm | 6 | 32 |
| 335.148321406 | 4.76 | 31.8 | 14.28 | 12.7mm x 18mm | 6 | 32 |
| 335.148381706 | 6.35 | 38.1 | 17.46 | 12.7mm x 18mm | 6 | 32 |
| 335.148291308 | 3.97 | 28.6 | 12.7 | 12.7mm x 18mm | 8 | 32 |
| 335.148321408 | 4.76 | 31.8 | 14.28 | 12.7mm x 18mm | 8 | 32 |
| 335.148381708 | 6.35 | 38.1 | 17.46 | 12.7mm x 18mm | 8 | 32 |
| 335.148291312 | 3.97 | 28.6 | 12.7 | 12.7mm x 18mm | 12 | 40 |
| 335.148321412 | 4.76 | 31.8 | 14.28 | 12.7mm x 18mm | 12 | 40 |
| 335.148381712 | 6.35 | 38.1 | 17.46 | 12.7mm x 18mm | 12 | 40 |
