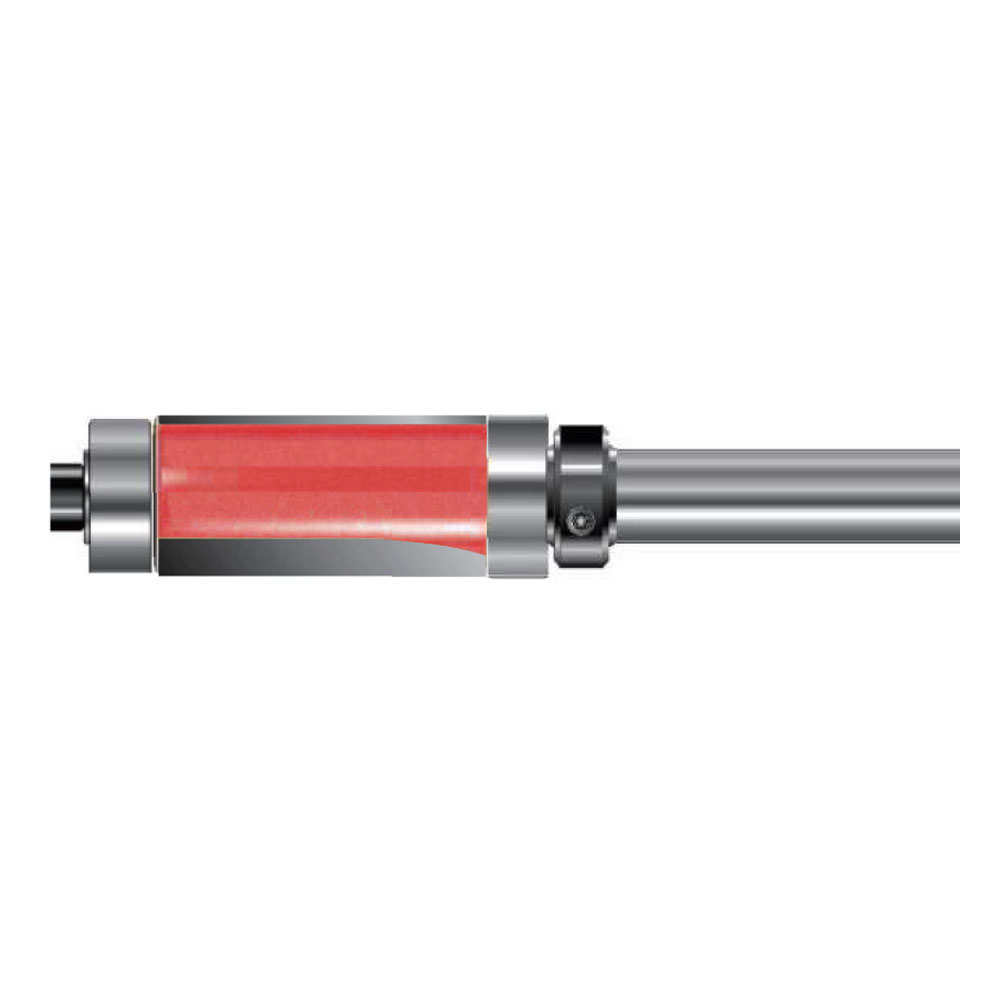

335-DBearingTrim2F
OEM, 3WIN, HTT
MPP+
To do trim plunge cut and milling work in various wood, wood board, MDF ,etc.
335
12.7mm to 22mm
Cylindrical
Wood work
| Quantity: | |
|---|---|

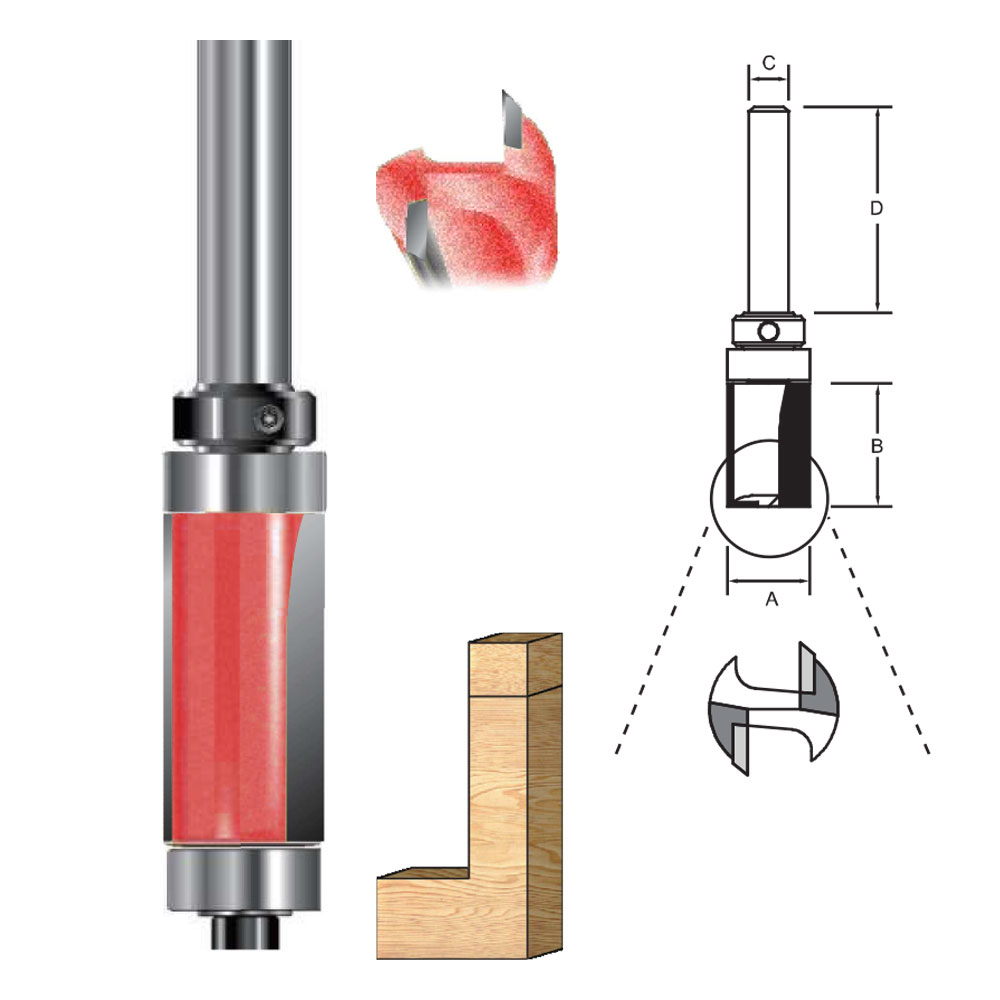

Size Table:
| Item Number | A (mm) | B (mm) | C (mm) | D (mm) | Bearing Size(OD x ID x Thickness) |
| 335.10812193206 | 12.7 | 19 | 6 | 32 | 22mm x 8mm x 7mm |
| 335.10819253208 | 19 | 25 | 8 | 32 | 12mm x 8mm x 3.5mm |
| 335.10819403208 | 19 | 40 | 8 | 32 | 12mm x 8mm x 3.5mm |
| 335.10822304012 | 22 | 30 | 12 | 40 | 1/2 x 1/4 x 3/16 |
Size Table:
| Item Number | A (mm) | B (mm) | C (mm) | D (mm) | Bearing Size(OD x ID x Thickness) |
| 335.10812193206 | 12.7 | 19 | 6 | 32 | 22mm x 8mm x 7mm |
| 335.10819253208 | 19 | 25 | 8 | 32 | 12mm x 8mm x 3.5mm |
| 335.10819403208 | 19 | 40 | 8 | 32 | 12mm x 8mm x 3.5mm |
| 335.10822304012 | 22 | 30 | 12 | 40 | 1/2 x 1/4 x 3/16 |
