335-CCB45
OEM, 3WIN, HTT
MPP+
To do slotting grooves in various wood, chipboard, plywood, MDF, laminate, etc.
335
25.4mm to 57.15mm
Cylindrical
Wood work
| Quantity: | |
|---|---|

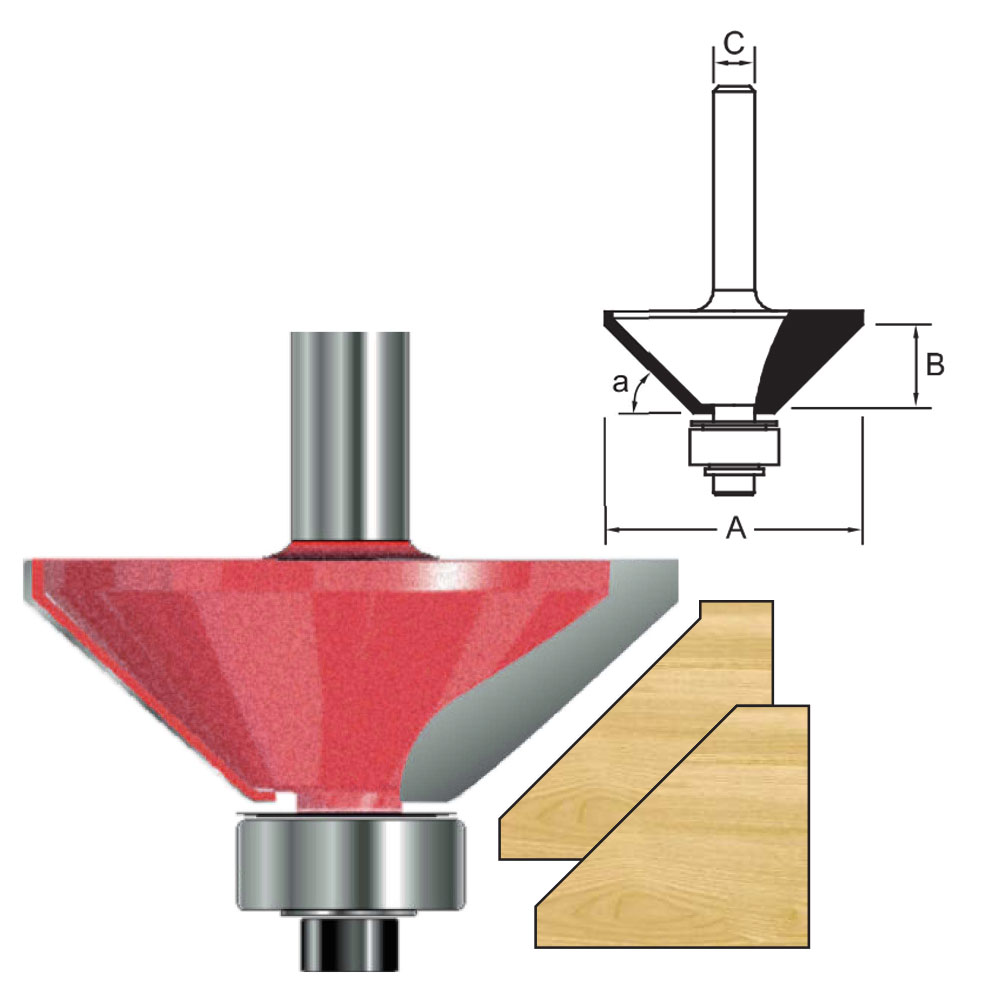

Size Table:
| Item Number | a | A (mm) | B (mm) | Bearing Model Size | Shank Diameter(mm) | Shank Length(mm) |
| 335.1502506 | 45° | 25.4 | 6.35 | 12.7mm x 18mm | 6 | 32 |
| 335.1502806 | 45° | 28.6 | 9.53 | 12.7mm x 18mm | 6 | 32 |
| 335.1503006 | 45° | 30.16 | 8.73 | 12.7mm x 18mm | 6 | 32 |
| 335.1503606 | 45° | 36.5 | 11.9 | 12.7mm x 18mm | 6 | 32 |
| 335.1502508 | 45° | 25.4 | 6.35 | 12.7mm x 18mm | 8 | 32 |
| 335.1502808 | 45° | 28.6 | 9.53 | 12.7mm x 18mm | 8 | 32 |
| 335.1503008 | 45° | 30.16 | 8.73 | 12.7mm x 18mm | 8 | 32 |
| 335.1503608 | 45° | 36.5 | 11.9 | 12.7mm x 18mm | 8 | 32 |
| 335.1502512 | 45° | 25.4 | 6.35 | 12.7mm x 18mm | 12 | 40 |
| 335.1502812 | 45° | 28.6 | 9.53 | 12.7mm x 18mm | 12 | 40 |
| 335.1503012 | 45° | 30.16 | 8.73 | 12.7mm x 18mm | 12 | 40 |
| 335.1503612 | 45° | 36.5 | 11.9 | 12.7mm x 18mm | 12 | 40 |
| 335.1504412 | 45° | 44.5 | 15.88 | 12.7mm x 18mm | 12 | 40 |
| 335.1504712 | 45° | 47.6 | 17.46 | 12.7mm x 18mm | 12 | 40 |
| 335.1505012 | 45° | 50.8 | 19.05 | 12.7mm x 18mm | 12 | 40 |
| 335.1505712 | 45° | 57.15 | 22.2 | 12.7mm x 18mm | 12 | 40 |
