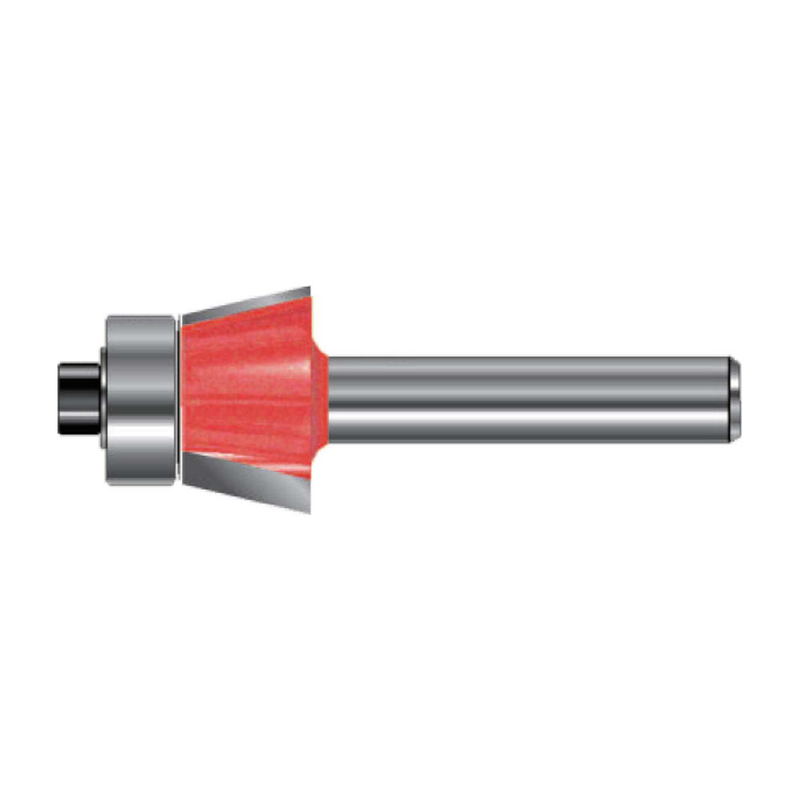

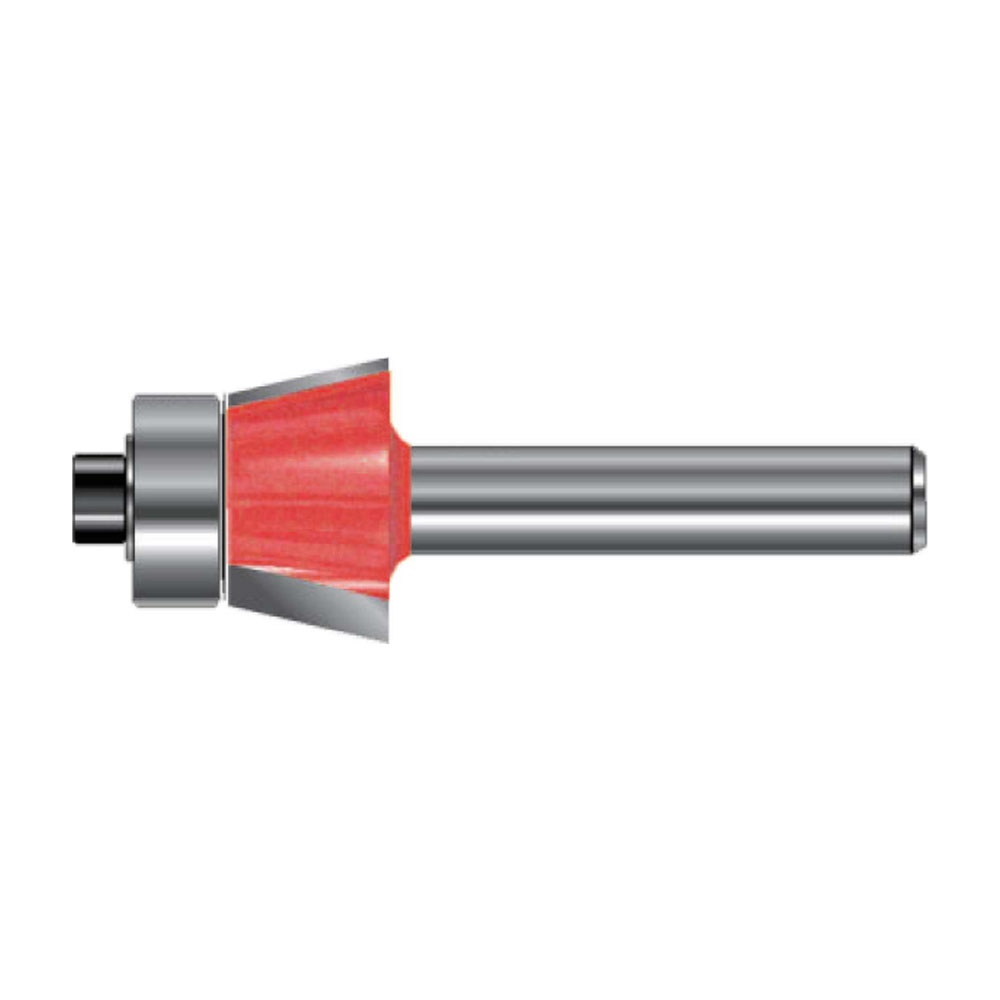

335-BevelTrim2F
OEM, 3WIN, HTT
MPP+
To do chamfering and bevel trimming in various wood, chipboard, plywood, MDF, laminates, etc.
335
17.2mm to 65mm
Cylindrical
Wood work
| Quantity: | |
|---|---|

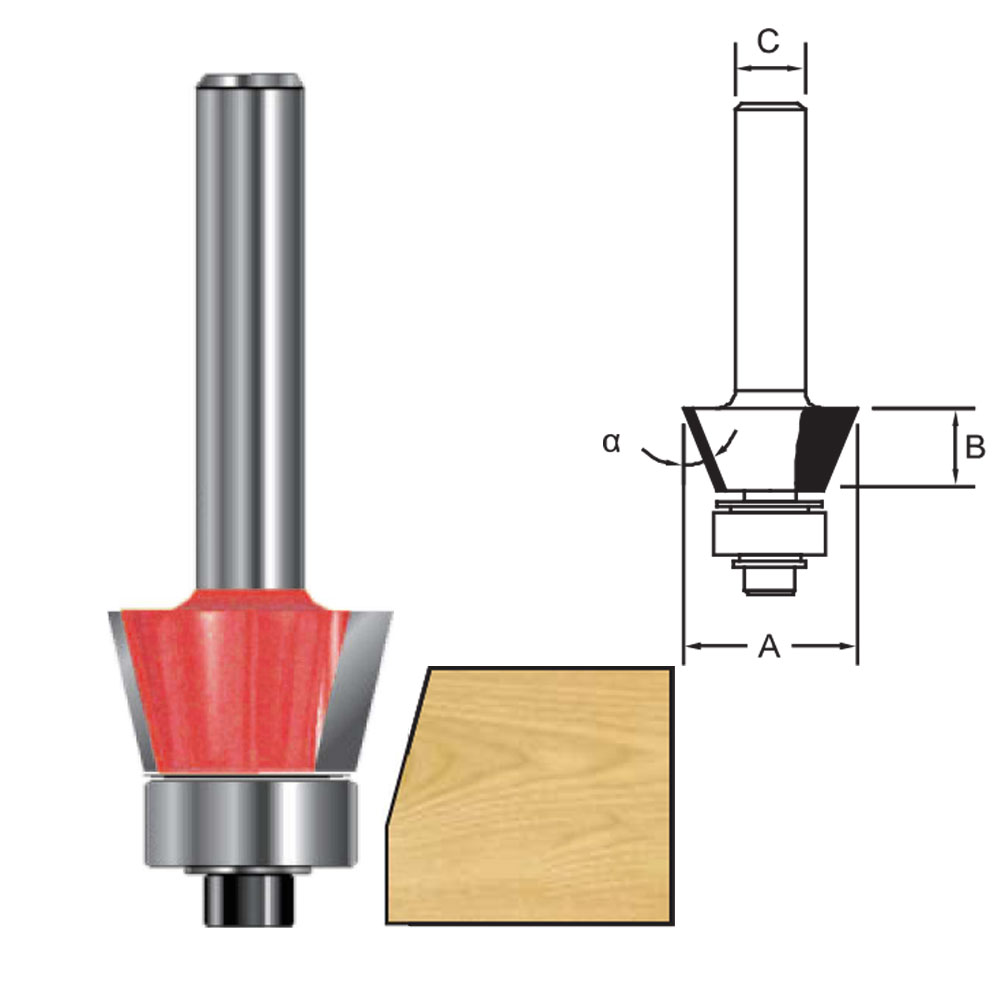

Size Table:
| Item Number | A (mm) | B (mm) | a (degrees) | C (mm) | Shank Length(mm) | Bearing Size(OD x ID x Thickness) |
| 335.11317953206 | 17.2 | 9.53 | 15° | 6 | 32 | 1/2 x 3/16 x 5mm |
| 335.11320953206 | 19.8 | 9.53 | 22° | 6 | 32 | 1/2 x 3/16 x 5mm |
| 335.11323953206 | 23 | 9.53 | 30° | 6 | 32 | 1/2 x 3/16 x 5mm |
| 335.11336123206 | 35.9 | 11.95 | 45° | 6 | 32 | 1/2 x 3/16 x 5mm |
| 335.11332953206 | 31.7 | 9.5 | 45° | 6 | 32 | 1/2 x 3/16 x 5mm |
| 335.11317953208 | 17.2 | 9.53 | 15° | 8 | 32 | 1/2 x 3/16 x 5mm |
| 335.11320953208 | 19.8 | 9.53 | 22° | 8 | 32 | 1/2 x 3/16 x 5mm |
| 335.11323953208 | 23 | 9.53 | 30° | 8 | 32 | 1/2 x 3/16 x 5mm |
| 335.11336123208 | 35.9 | 11.95 | 45° | 8 | 32 | 1/2 x 3/16 x 5mm |
| 335.11332953208 | 31.7 | 9.5 | 45° | 8 | 32 | 1/2 x 3/16 x 5mm |
| 335.11317954012 | 17.2 | 9.53 | 15° | 12 | 40 | 1/2 x 3/16 x 5mm |
| 335.11320954012 | 19.8 | 9.53 | 22° | 12 | 40 | 1/2 x 3/16 x 5mm |
| 335.11323954012 | 23 | 9.53 | 30° | 12 | 40 | 1/2 x 3/16 x 5mm |
| 335.11336124012 | 35.9 | 11.95 | 45° | 12 | 40 | 1/2 x 3/16 x 5mm |
| 335.11332954012 | 31.7 | 9.5 | 45° | 12 | 40 | 1/2 x 3/16 x 5mm |
| 335.11365264012 | 65 | 26 | 45° | 12 | 40 | 1/2 x 3/16 x 5mm |
