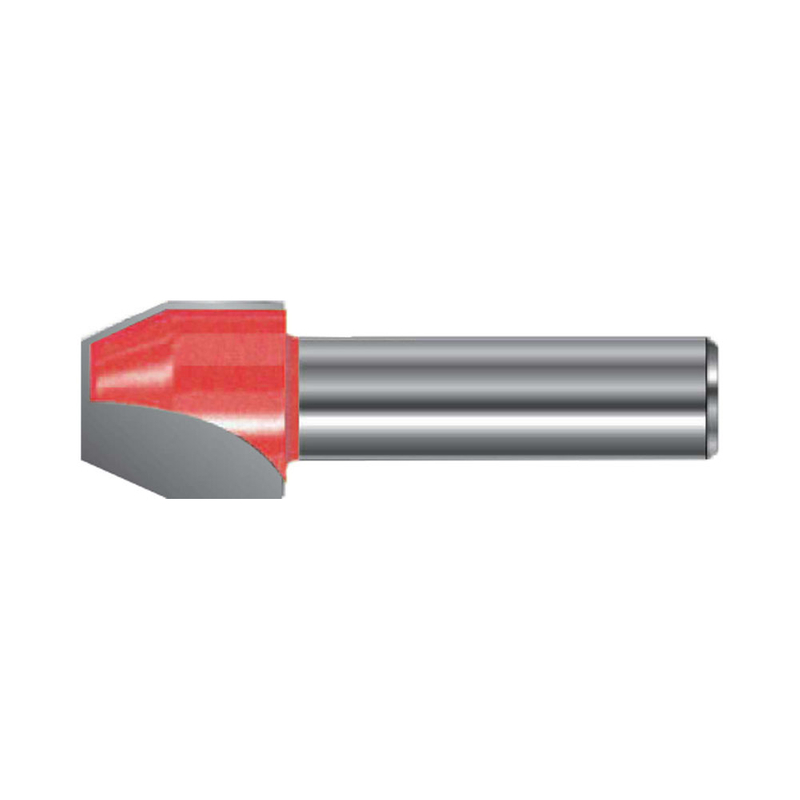

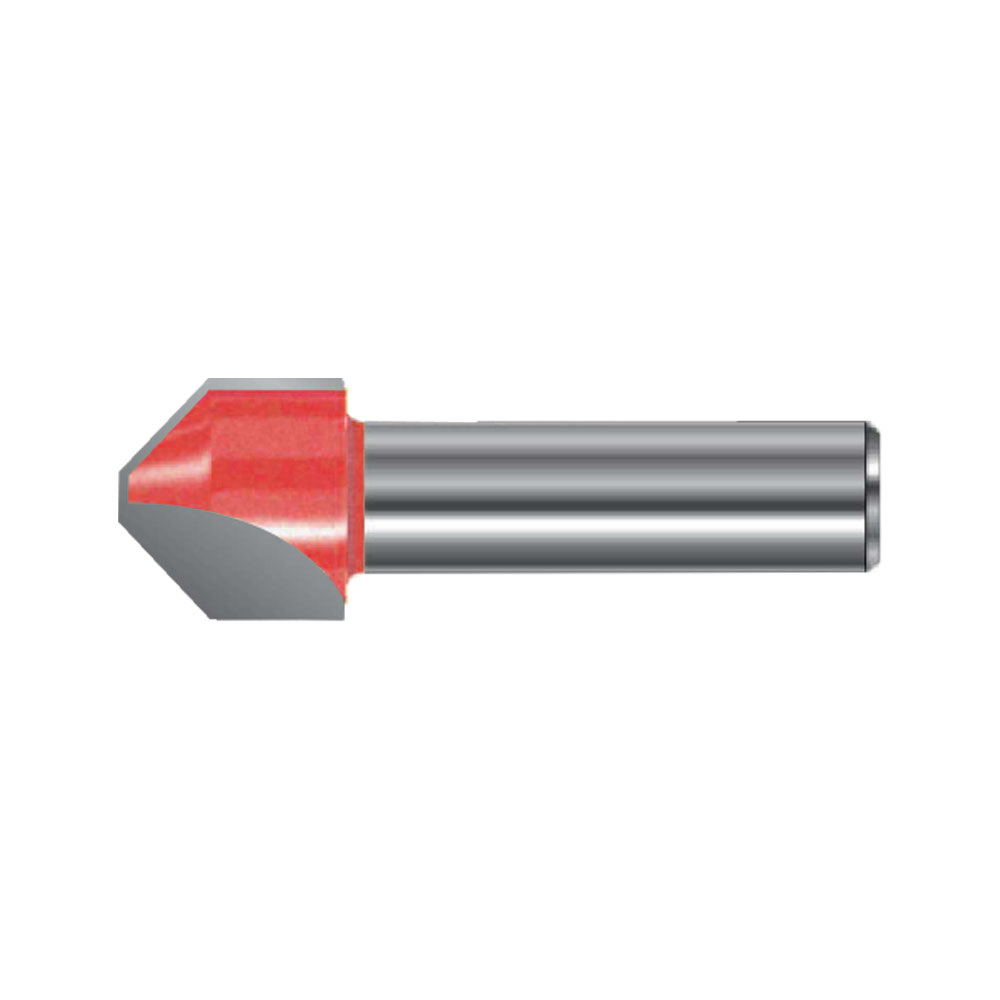

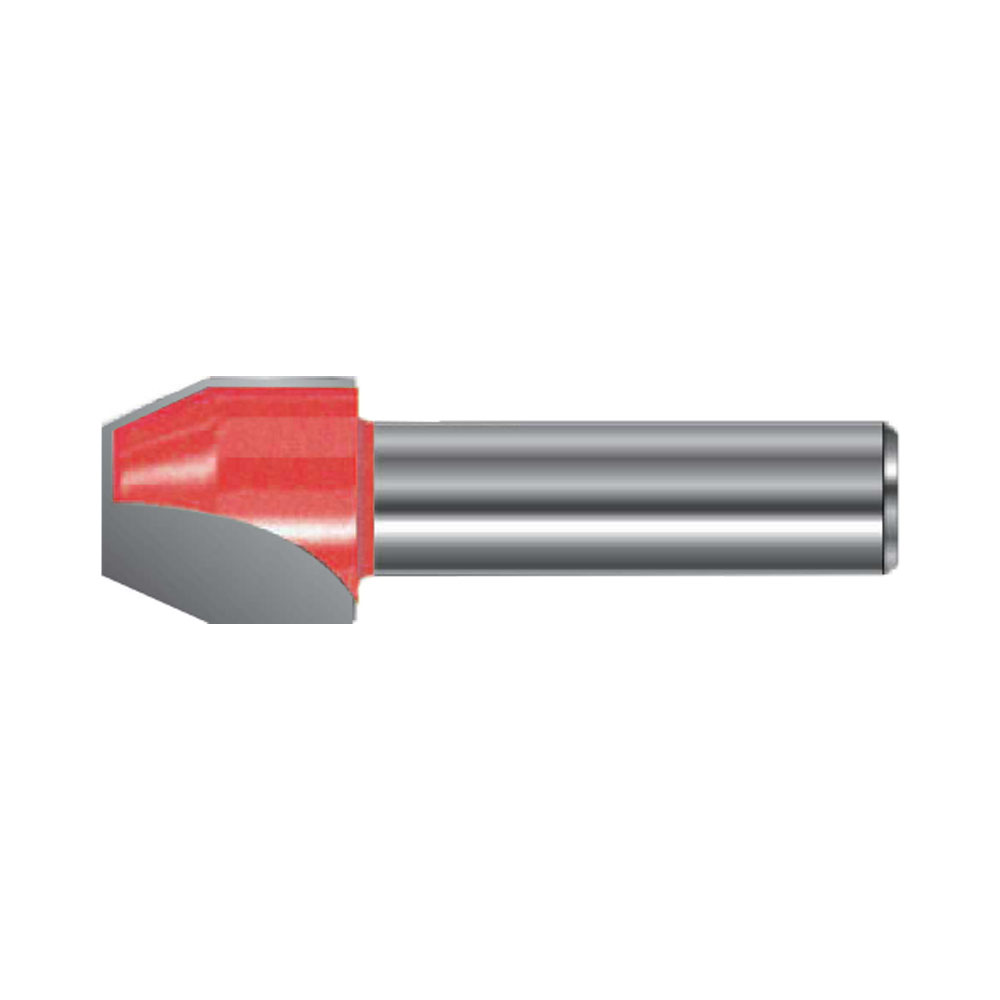

335-BevelFlushTrim2F
OEM, 3WIN, HTT
MPP+
To do bevel flush trimming in various wood, chipboard, plywood, MDF, laminates, etc.
335
12mm to 12.7mm
Cylindrical
Wood work
| Quantity: | |
|---|---|

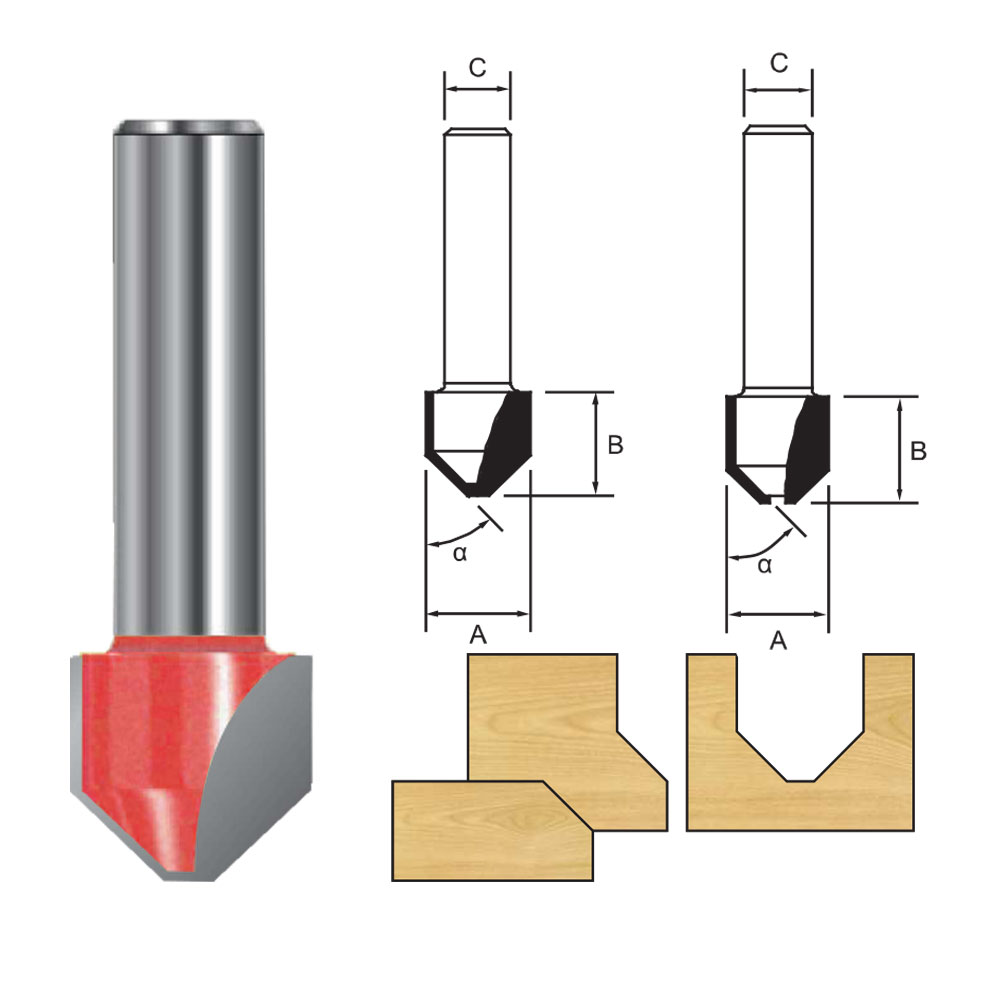

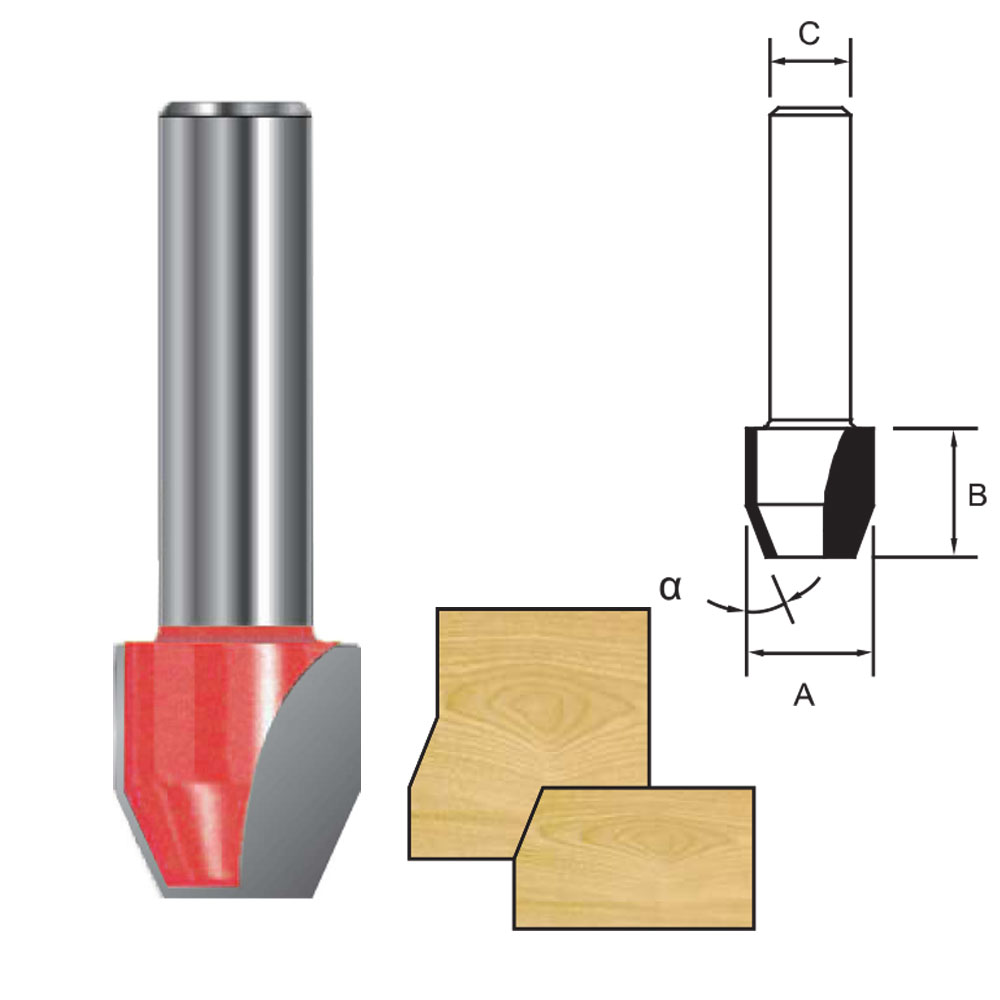

Size Table:
| Item Number | A (mm) | B (mm) | a(degrees) | C (mm) | Shank Length(mm) |
| 335.11513133226 | 12.7 | 12.7 | 22° | 6 | 32 |
| 335.11513133236 | 12.7 | 12.7 | 30° | 6 | 32 |
| 335.11513133246 | 12.7 | 12.7 | 45° | 6 | 32 |
| 335.11512133226 | 12 | 12.7 | 0°-22° | 6 | 32 |
| 335.11512133236 | 12 | 12.7 | 0°-30° | 6 | 32 |
| 335.11512133246 | 12 | 12.7 | 0°-45° | 6 | 32 |
| 335.11513133228 | 12.7 | 12.7 | 22° | 8 | 32 |
| 335.11513133238 | 12.7 | 12.7 | 30° | 8 | 32 |
| 335.11513133248 | 12.7 | 12.7 | 45° | 8 | 32 |
| 335.11512133228 | 12 | 12.7 | 0°-22° | 8 | 32 |
| 335.11512133238 | 12 | 12.7 | 0°-30° | 8 | 32 |
| 335.11512133248 | 12 | 12.7 | 0°-45° | 8 | 32 |
| 335.11513134012 | 12.7 | 12.7 | 22° | 12 | 40 |
| 335.11513134012 | 12.7 | 12.7 | 30° | 12 | 40 |
| 335.11513134012 | 12.7 | 12.7 | 45° | 12 | 40 |
