335-BVGroove2F
OEM, 3WIN, HTT
MPP+

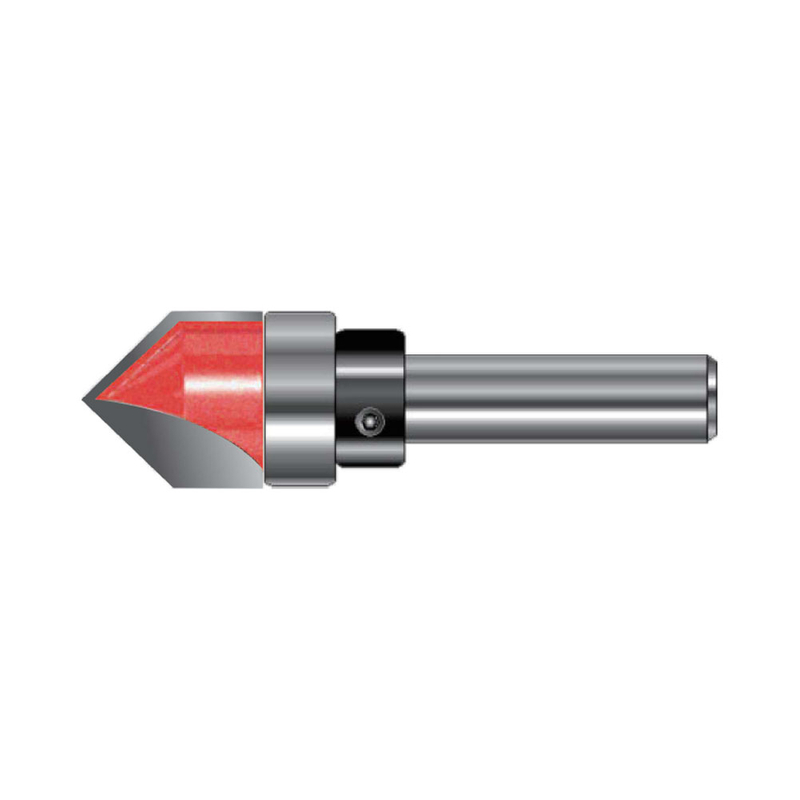

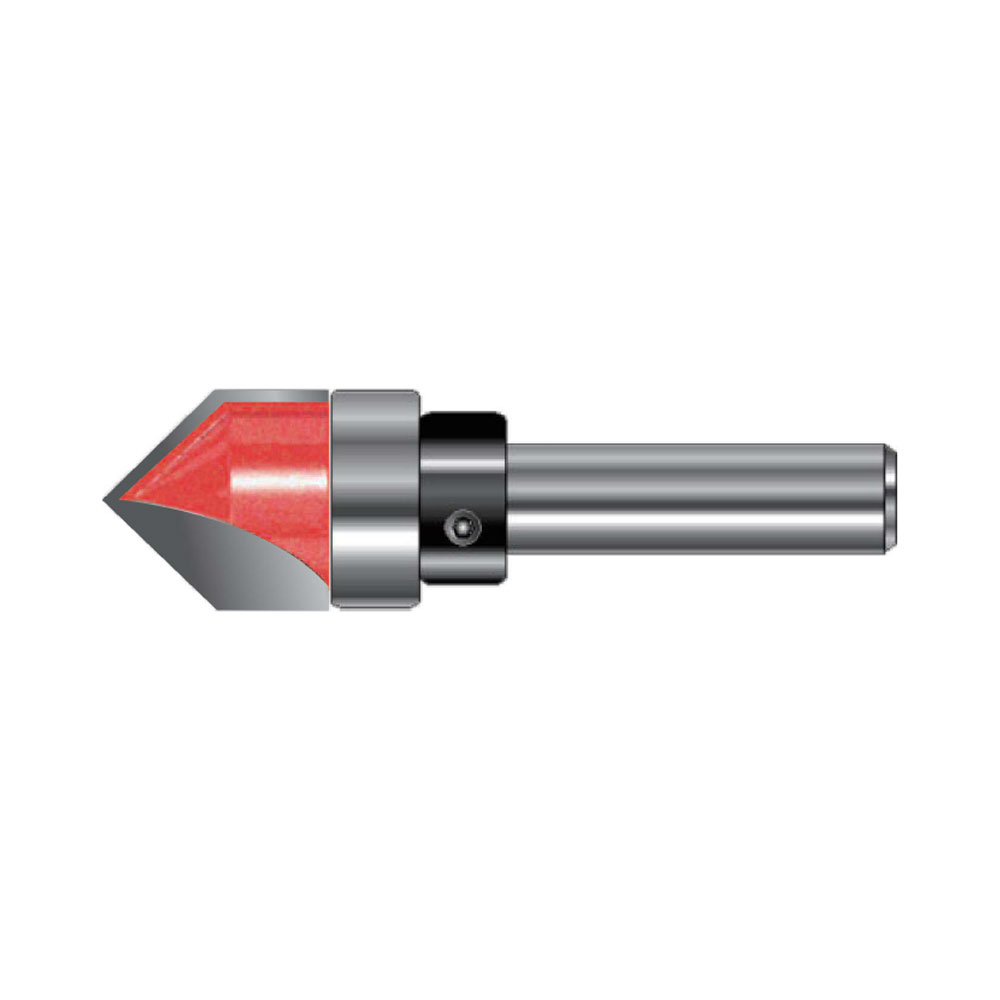

To do V grooving in various wood, chipboard, plywood, MDF, laminate, etc.
335
12mm to 19mm
Cylindrical
Wood work
| Quantity: | |
|---|---|
Size Table:

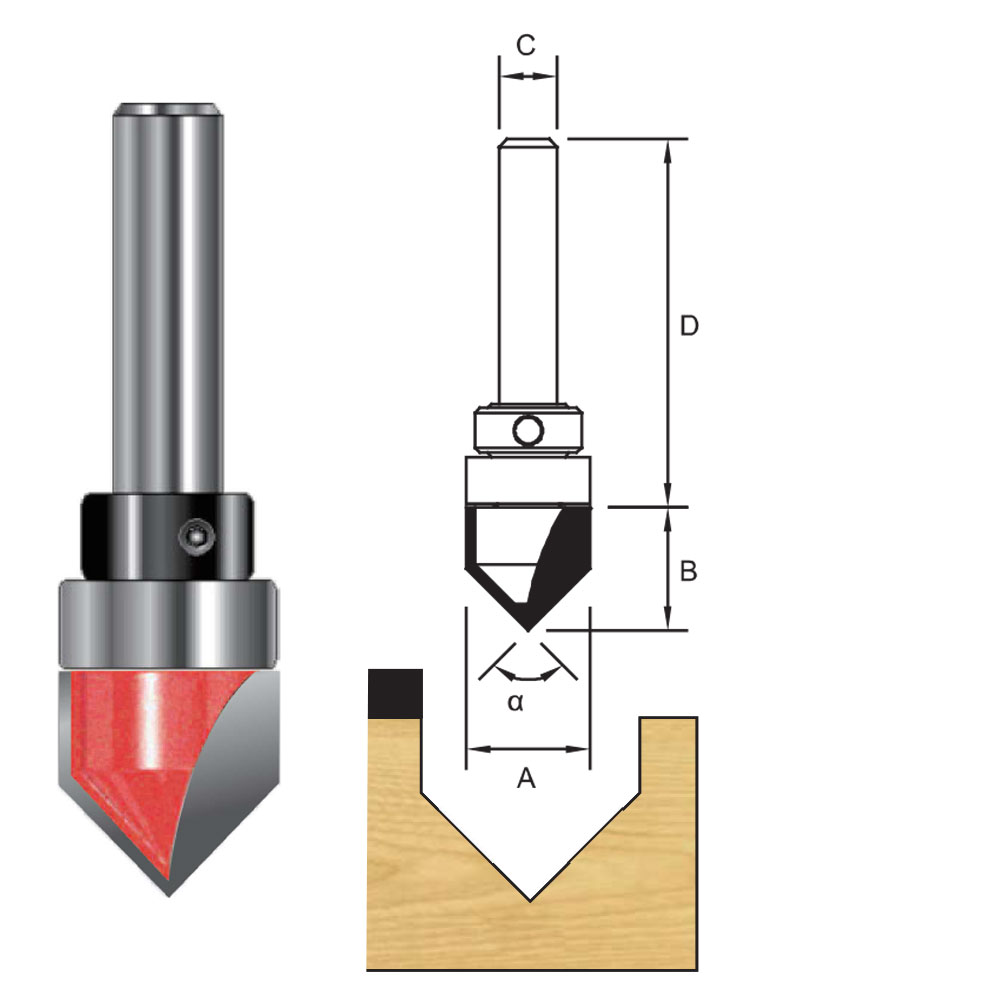

| Item Number | a (degrees) | A (mm) | B (mm) | C (mm) | D (mm) | Bearing Size (OD x ID x Thickness) |
| 335.13312123806 | 90° | 12 | 12 | 6 | 38 | 12mm x 6mm x 4mm |
| 335.13313133806 | 90° | 12.7 | 12.7 | 6 | 38 | 1/2 x 1/4 x 3/16 |
| 335.13319163806 | 90° | 19 | 16 | 6 | 38 | 19mm x 6mm x 6mm |
| 335.13312123808 | 90° | 12 | 12 | 8 | 38 | 12mm x 8mm x 3.5mm |
| 335.13316133808 | 90° | 16 | 12.7 | 8 | 38 | 16mm x 8mm x 5mm |
| 335.13319163808 | 90° | 19 | 16 | 8 | 38 | 19mm x 8mm x 6mm |
Size Table:
| Item Number | a (degrees) | A (mm) | B (mm) | C (mm) | D (mm) | Bearing Size (OD x ID x Thickness) |
| 335.13312123806 | 90° | 12 | 12 | 6 | 38 | 12mm x 6mm x 4mm |
| 335.13313133806 | 90° | 12.7 | 12.7 | 6 | 38 | 1/2 x 1/4 x 3/16 |
| 335.13319163806 | 90° | 19 | 16 | 6 | 38 | 19mm x 6mm x 6mm |
| 335.13312123808 | 90° | 12 | 12 | 8 | 38 | 12mm x 8mm x 3.5mm |
| 335.13316133808 | 90° | 16 | 12.7 | 8 | 38 | 16mm x 8mm x 5mm |
| 335.13319163808 | 90° | 19 | 16 | 8 | 38 | 19mm x 8mm x 6mm |
