335-BearingPO2F
OEM, 3WIN, HTT
MPP+

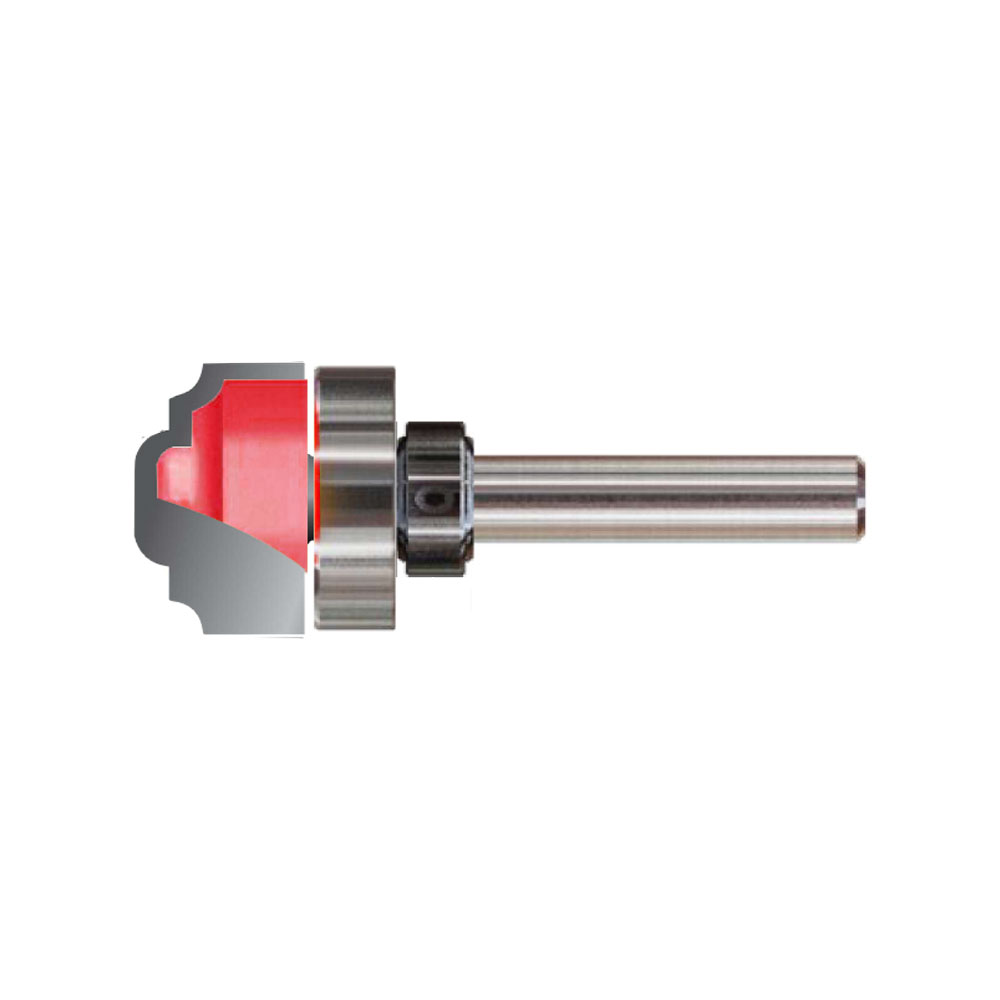

To do plange Ogee groove in various wood, chipboard, plywood, MDF, laminate, etc.
335
19mm to 31.7mm
Cylindrical
| Quantity: | |
|---|---|
Size Table:

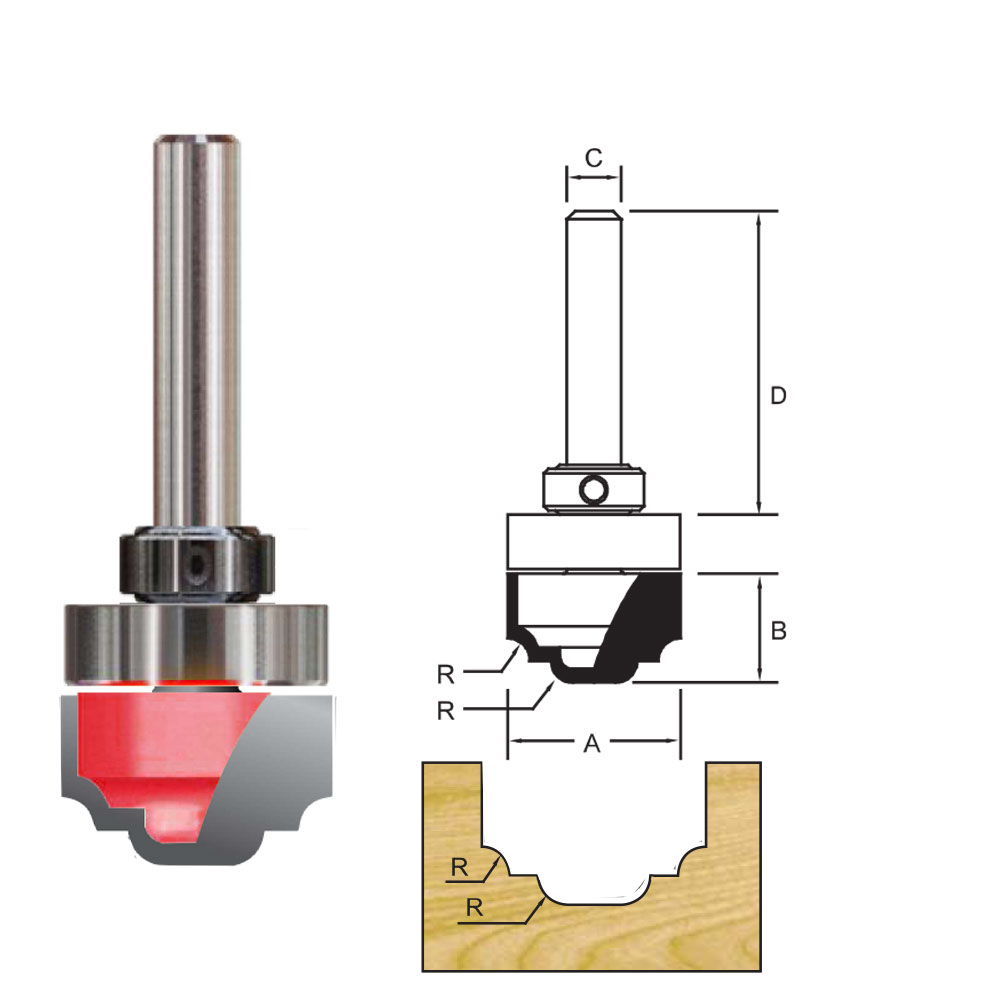

| Item Number | A (mm) | B (mm) | R (mm) | C (mm) | D (mm) | Bearing Size (OD x ID x Thickness) |
| 335.14019124006 | 19 | 12 | 2.4 | 6 | 40 | 19mm x 6mm x 6mm |
| 335.14019124008 | 19 | 12 | 2.4 | 8 | 40 | 3/4 x 1/4 x 9/32 |
| 335.14032134008 | 31.7 | 13 | 4 | 8 | 40 | 1-1/4 x 1/2 x 5/16 |
| 335.14019124012 | 19 | 12 | 2.4 | 12 | 40 | 3/4 x 1/2 x 5mm |
| 335.14032134012 | 31.7 | 13 | 4 | 12 | 40 | 1-1/4 x 1/2 x 5/16 |
Size Table:
| Item Number | A (mm) | B (mm) | R (mm) | C (mm) | D (mm) | Bearing Size (OD x ID x Thickness) |
| 335.14019124006 | 19 | 12 | 2.4 | 6 | 40 | 19mm x 6mm x 6mm |
| 335.14019124008 | 19 | 12 | 2.4 | 8 | 40 | 3/4 x 1/4 x 9/32 |
| 335.14032134008 | 31.7 | 13 | 4 | 8 | 40 | 1-1/4 x 1/2 x 5/16 |
| 335.14019124012 | 19 | 12 | 2.4 | 12 | 40 | 3/4 x 1/2 x 5mm |
| 335.14032134012 | 31.7 | 13 | 4 | 12 | 40 | 1-1/4 x 1/2 x 5/16 |
