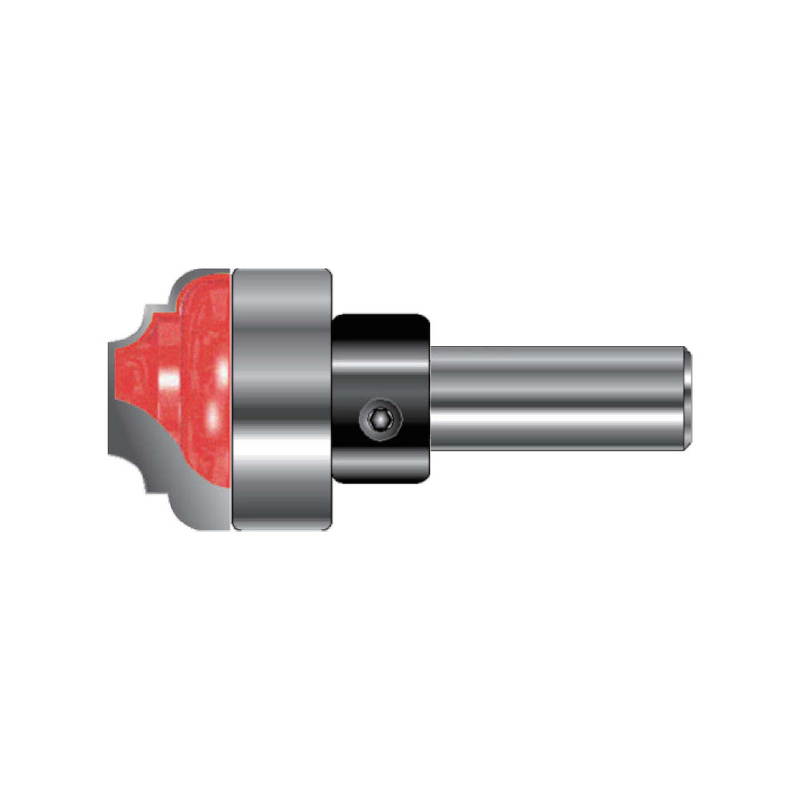

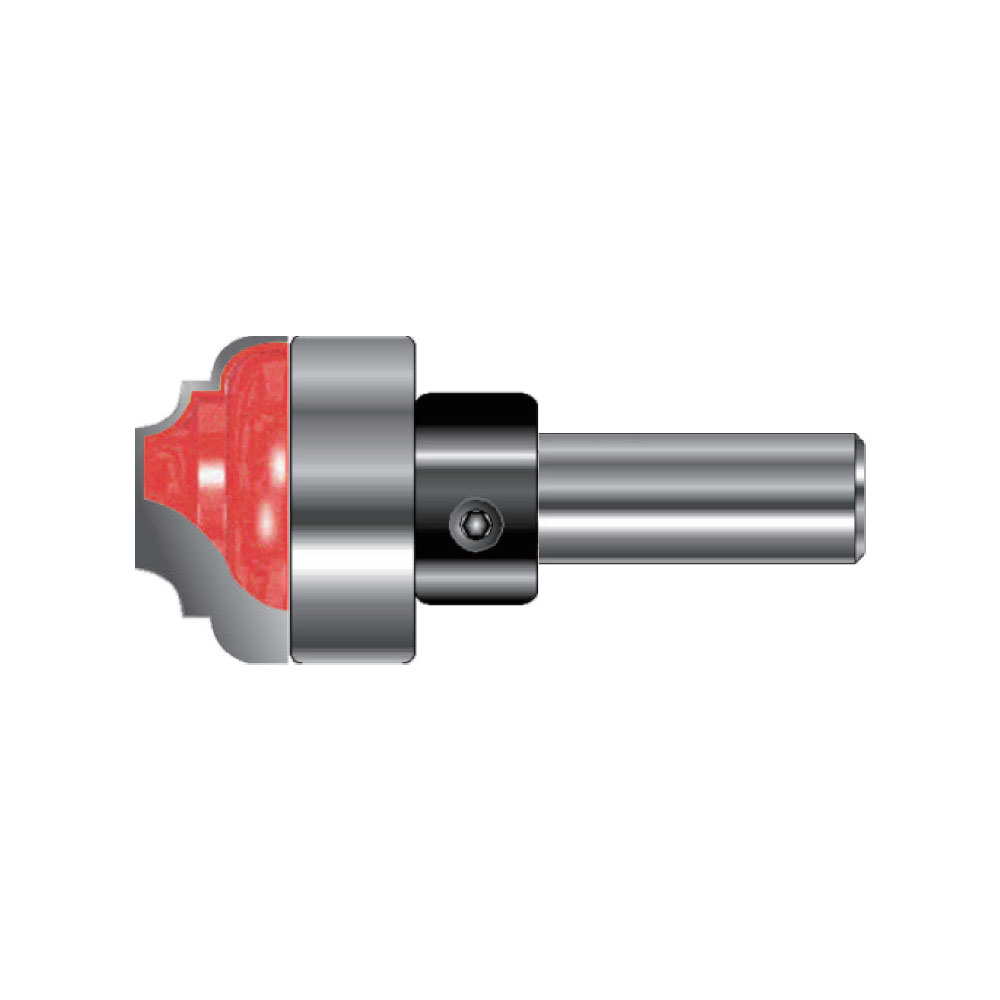

335-BearingCB2F
OEM, 3WIN, HTT
MPP+
To do Cove Bead grooving in various wood, chipboard, plywood, MDF, laminate, etc.
335
22mm to 35mm
Cylindrical
Wood work
| Quantity: | |
|---|---|

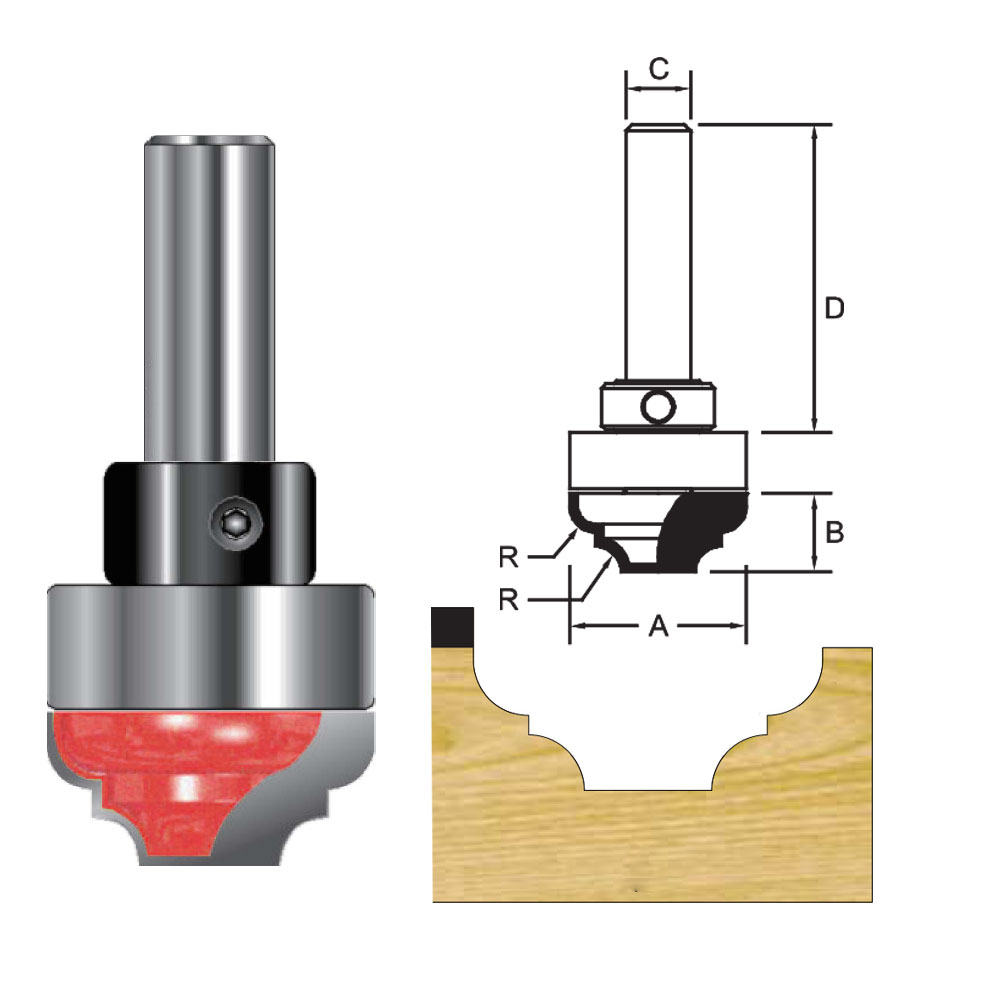

Size Table:
| Item Number | R (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Bearing Size ( OD x ID x Thickness) |
| 335.13622104006 | 3.175 | 22 | 9.9 | 6 | 40 | 22mm x 6mm x 7mm |
| 335.13622104008 | 3.175 | 22 | 9.9 | 8 | 40 | 22mm x 8mm x 7mm |
| 335.13629134008 | 4 | 28.6 | 13.3 | 8 | 40 | 1-1/8 x 1/2 x 5/16 |
| 335.13635194008 | 4.76+6.35 | 35 | 18.5 | 8 | 40 | 35mm x 10mm x 11mm |
| 335.13635144008 | 5.55 | 35 | 14.3 | 8 | 40 | 35mm x 15mm x 11mm |
| 335.13622104012 | 3.175 | 22 | 9.9 | 12 | 40 | 22mm x 16mm x 4mm |
| 335.13629134012 | 4 | 28.6 | 13.3 | 12 | 40 | 1-1/8 x 1/2 x 5/16 |
| 335.13635144012 | 5.55 | 35 | 14.3 | 12 | 40 | 35mm x 15mm x 11mm |
Size Table:
| Item Number | R (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Bearing Size ( OD x ID x Thickness) |
| 335.13622104006 | 3.175 | 22 | 9.9 | 6 | 40 | 22mm x 6mm x 7mm |
| 335.13622104008 | 3.175 | 22 | 9.9 | 8 | 40 | 22mm x 8mm x 7mm |
| 335.13629134008 | 4 | 28.6 | 13.3 | 8 | 40 | 1-1/8 x 1/2 x 5/16 |
| 335.13635194008 | 4.76+6.35 | 35 | 18.5 | 8 | 40 | 35mm x 10mm x 11mm |
| 335.13635144008 | 5.55 | 35 | 14.3 | 8 | 40 | 35mm x 15mm x 11mm |
| 335.13622104012 | 3.175 | 22 | 9.9 | 12 | 40 | 22mm x 16mm x 4mm |
| 335.13629134012 | 4 | 28.6 | 13.3 | 12 | 40 | 1-1/8 x 1/2 x 5/16 |
| 335.13635144012 | 5.55 | 35 | 14.3 | 12 | 40 | 35mm x 15mm x 11mm |
