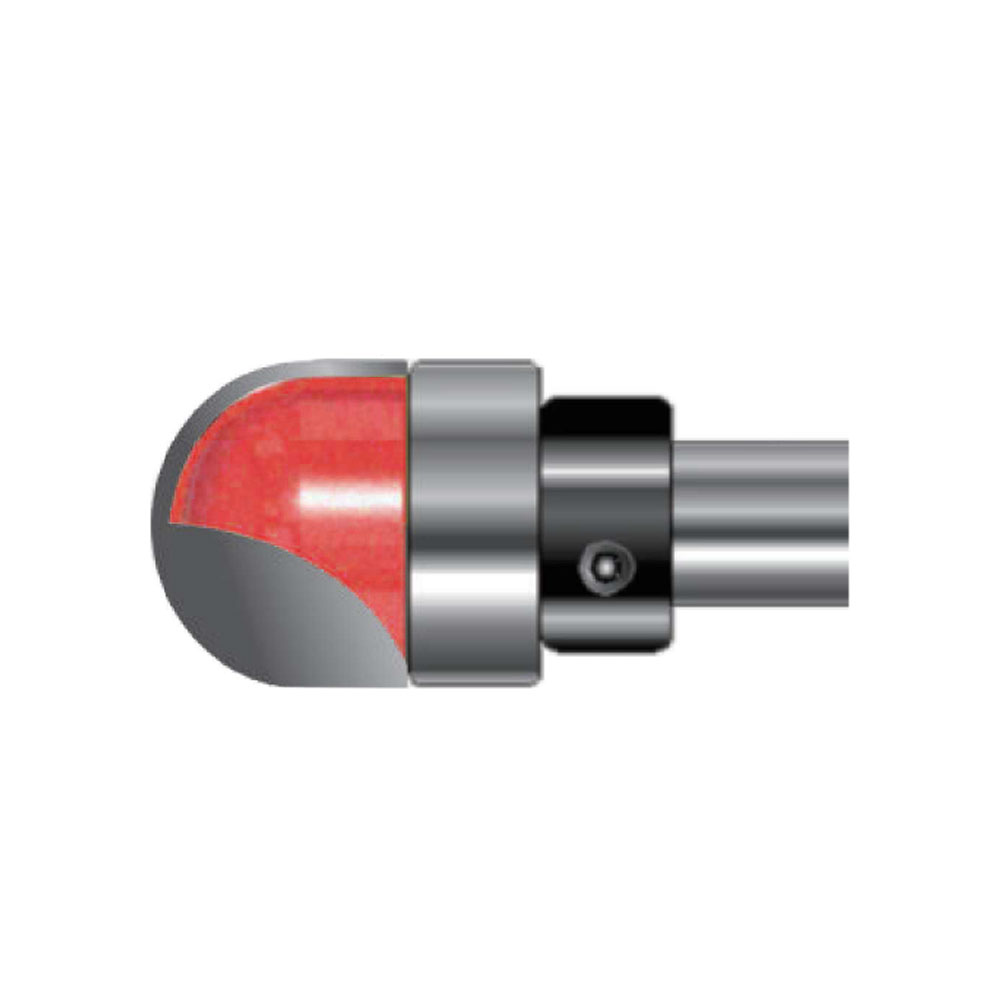

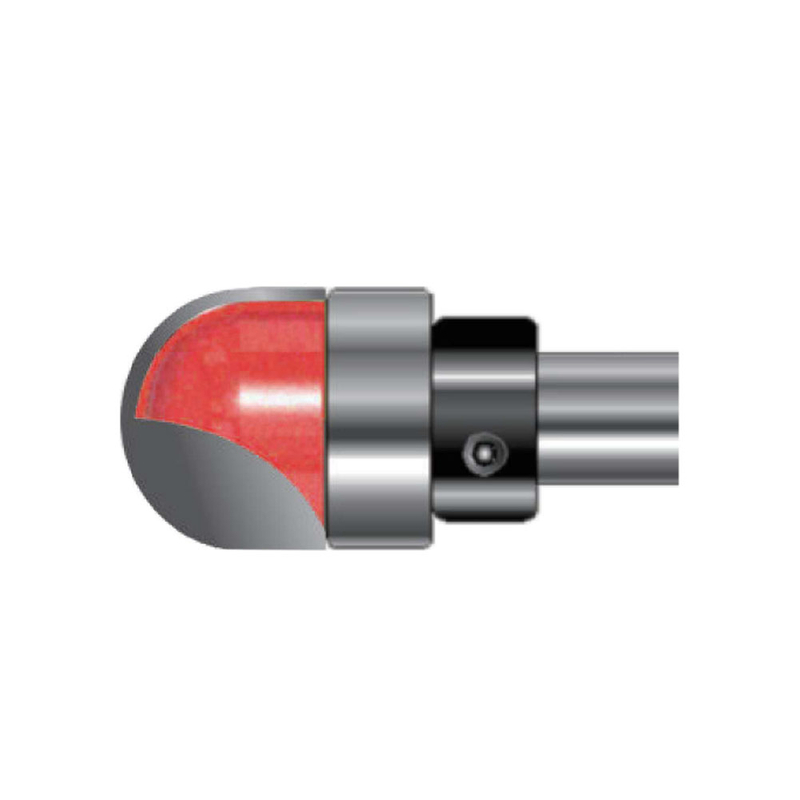

335-BearingCoreBRN2F
OEM, 3WIN, HTT
MPP+
To do round grooving in various wood, chipboard, plywood, MDF, laminate, etc.
335
12mm to 25.4mm
Cylindrical
Wood work
| Quantity: | |
|---|---|

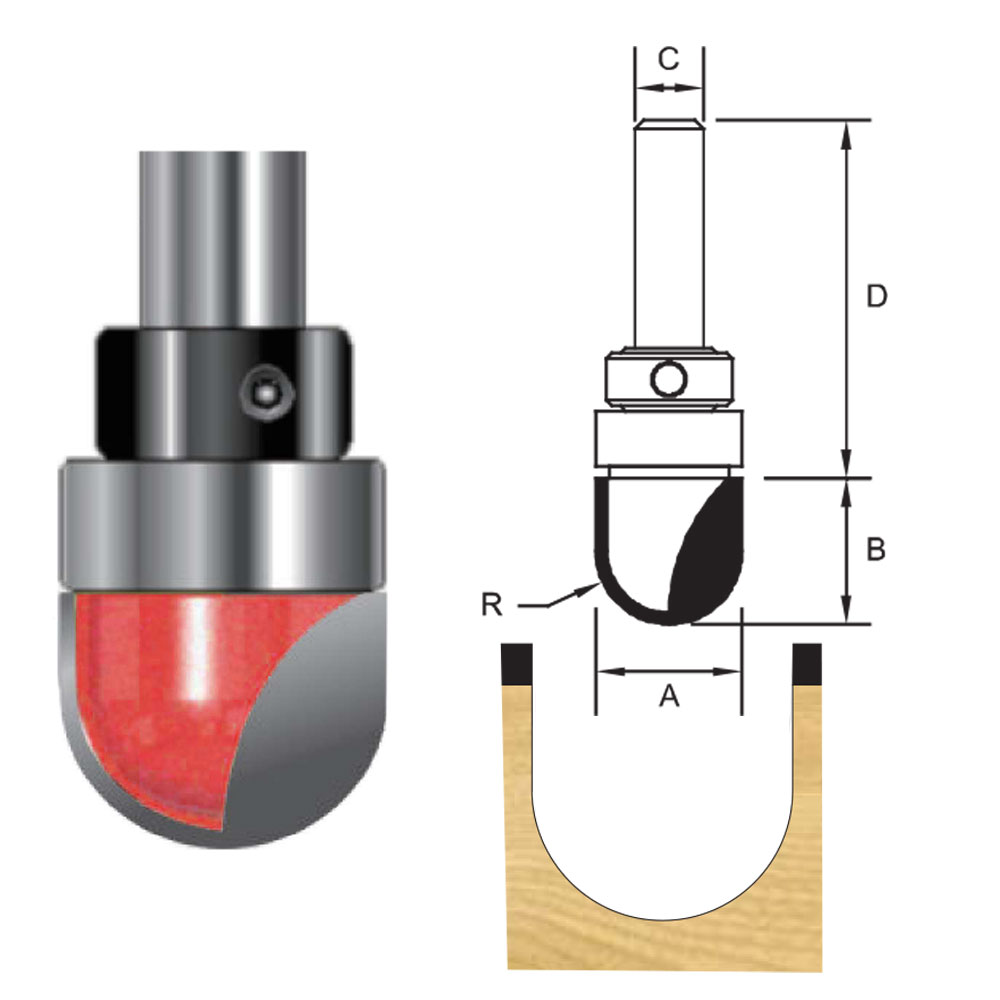

Size Table:
| Item Number | R (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Bearing Size ( OD x ID x Thickness) |
| 335.13412123806 | 6 | 12 | 12 | 6 | 38 | 12mm x 6mm x 4mm |
| 335.13412163806 | 6 | 12 | 16 | 6 | 38 | 12mm x 6mm x 4mm |
| 335.13413133806 | 6.35 | 12.7 | 12.7 | 6 | 38 | 1/2 x 1/4 x 3/16 |
| 335.13412123808 | 6 | 12 | 12 | 8 | 38 | 12mm x 8mm x 3.5mm |
| 335.13412163808 | 6 | 12 | 16 | 8 | 38 | 12mm x 8mm x 3.5mm |
| 335.13416093808 | 8 | 16 | 9.5 | 8 | 38 | 16mm x 8mm x 5mm |
| 335.13425194012 | 12.7 | 25.4 | 19 | 12 | 40 | 1 x 1/2 x 5mm |
| 335.13425324012 | 12.7 | 25.4 | 31.8 | 12 | 40 | 1 x 1/2 x 5mm |
