335-60Letter2F
OEM, 3WIN, HTT
MPP+

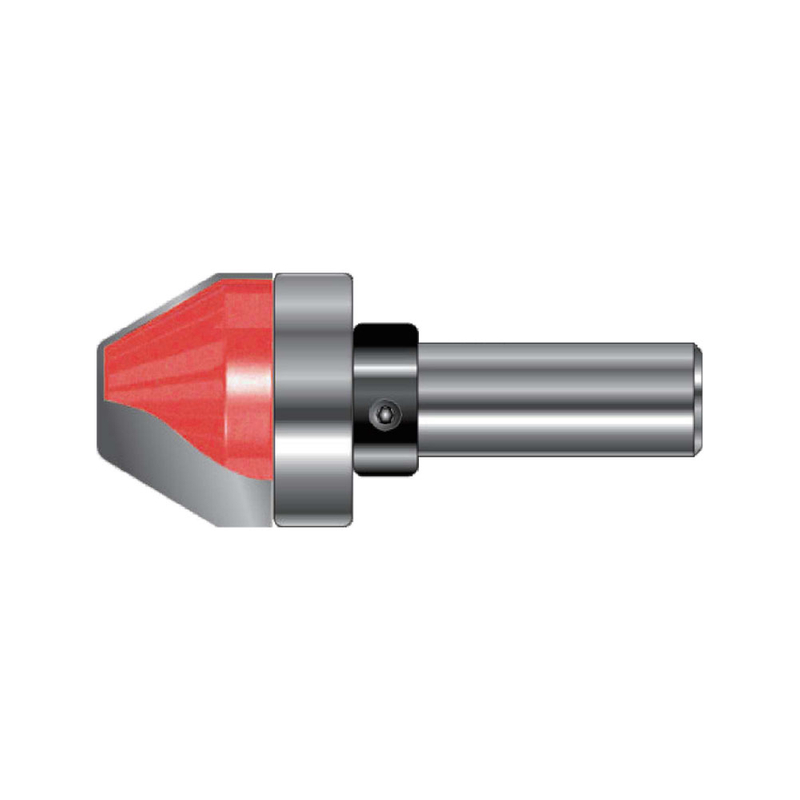

To do 60degrees letter groove in various wood, chipboard, plywood, MDF, laminate, etc.
335
25.4mm to 28.6mm
Cylindrical
Wood work
| Quantity: | |
|---|---|

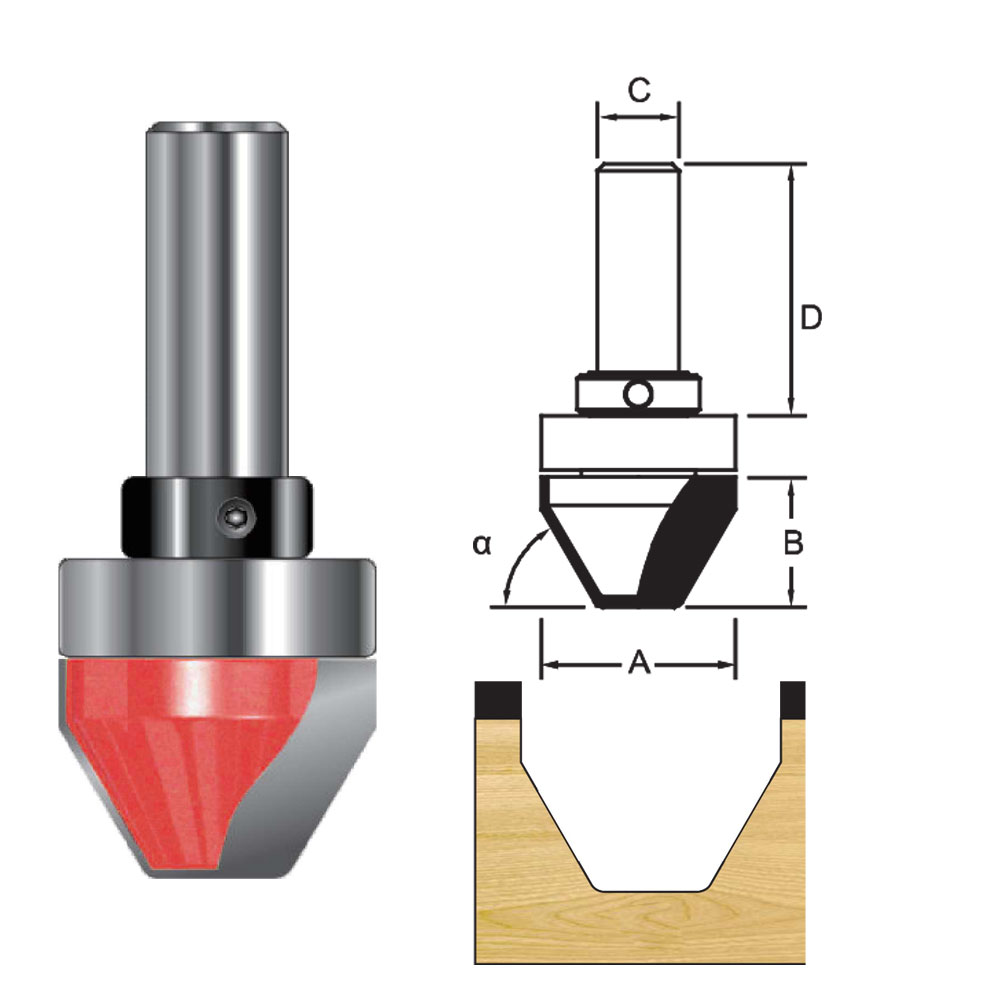

Size Table:
| Item Number | a (degrees) | A (mm) | B (mm) | C (mm) | D (mm) | Bearing Size (OD x ID x Thickness) |
| 335.13529194006 | 60° | 28.6 | 19 | 6 | 40 | 1-1/8 x 1/2 x 5/16 |
| 335.13525194006 | 60° | 25.4 | 19 | 6 | 40 | 1 x 1/2 x 5mm |
| 335.13529194012 | 60° | 28.6 | 19 | 12 | 40 | 1-1/8 x 1/2 x 5/16 |
| 335.13525194012 | 60° | 25.4 | 19 | 12 | 40 | 1 x 1/2 x 5mm |
Size Table:
| Item Number | a (degrees) | A (mm) | B (mm) | C (mm) | D (mm) | Bearing Size (OD x ID x Thickness) |
| 335.13529194006 | 60° | 28.6 | 19 | 6 | 40 | 1-1/8 x 1/2 x 5/16 |
| 335.13525194006 | 60° | 25.4 | 19 | 6 | 40 | 1 x 1/2 x 5mm |
| 335.13529194012 | 60° | 28.6 | 19 | 12 | 40 | 1-1/8 x 1/2 x 5/16 |
| 335.13525194012 | 60° | 25.4 | 19 | 12 | 40 | 1 x 1/2 x 5mm |
