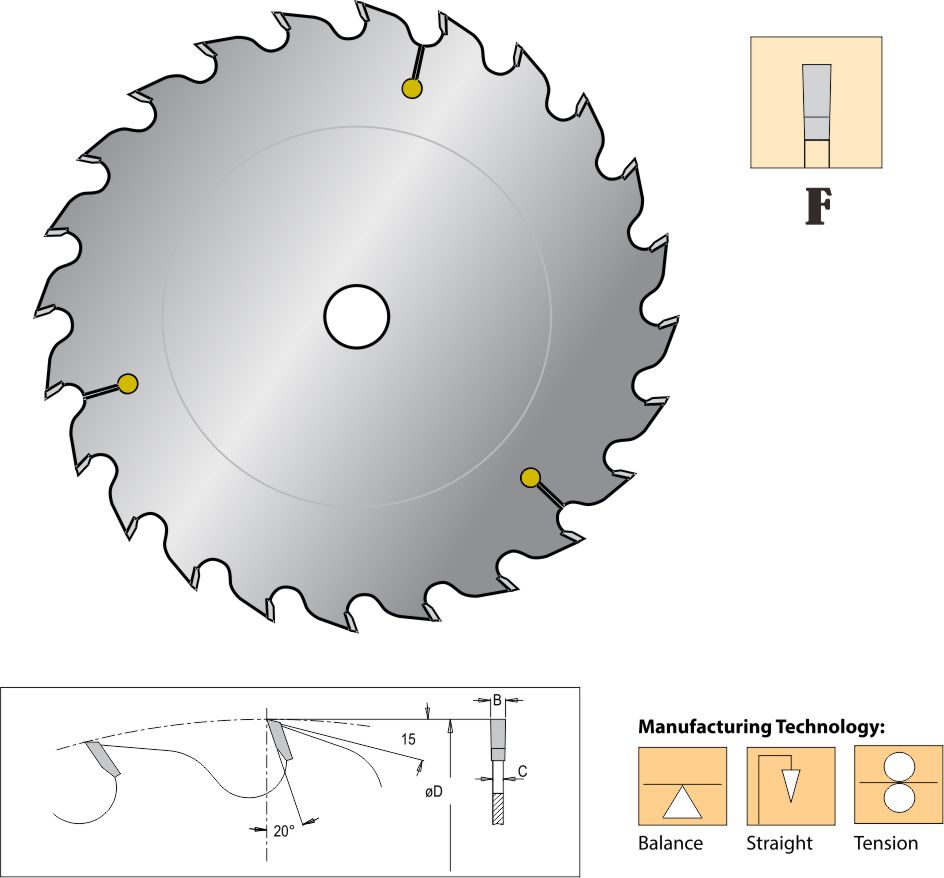

701-RF
OEM, 3WIN, HTT
MPP+
To rip cut hard & soft wood.
701-RF
200mm - 400mm
Bushings available on customers' request
Wood work
| Quantity: | |
|---|---|
Size Table:
| Item Number | Diameter(mm) | Diameter(inch) | Teeth QTY. | Kerf | Bore(inch) | Form |
| 701.RF2001416 | 200 | 8" | 14 | 0.118"(3.0mm) | 5/8" | Flat |
| 701.RF2002416 | 200 | 8" | 24 | 0.118"(3.0mm) | 5/8" | Flat |
| 701.RF2302416 | 230 | 9" | 24 | 0.118"(3.0mm) | 5/8" | Flat |
| 701.RF2502416 | 250 | 10" | 24 | 0.126"(3.2mm) | 5/8" | Flat |
| 701.RF2512416 | 250 | 10" | 24 | 0.094"(2.4mm) | 5/8" | Flat |
| 701.RF3002425 | 300 | 12" | 24 | 0.126"(3.2mm) | 1" | Flat |
| 701.RF3003025 | 300 | 12" | 30 | 0.126"(3.2mm) | 1" | Flat |
| 701.RF3003625 | 300 | 12" | 36 | 0.126"(3.2mm) | 1" | Flat |
| 701.RF3003680 | 300 | 12" | 36 | 0.126"(3.2mm) | 80mm+2 KEYWAY | Flat |
| 701.RF3502825 | 350 | 14" | 28 | 0.138"(3.5mm) | 1" | Flat |
| 701.RF3504225 | 350 | 14" | 42 | 0.138"(3.5mm) | 1" | Flat |
| 701.RF3012425 | 300 | 12" | 24 | 0.157"(4.0mm) | 1" | Flat |
| 701.RF3512825 | 350 | 14" | 28 | 0.157"(4.0mm) | 1" | Flat |
| 701.RF4003225 | 400 | 16" | 32 | 0.138"(3.5mm) | 1" | Flat |
| 701.RF4013225 | 400 | 16" | 32 | 0.157"(4.0mm) | 1" | Flat |
| 701.RF4004825 | 400 | 16" | 48 | 0.138"(3.5mm) | 1" | Flat |
