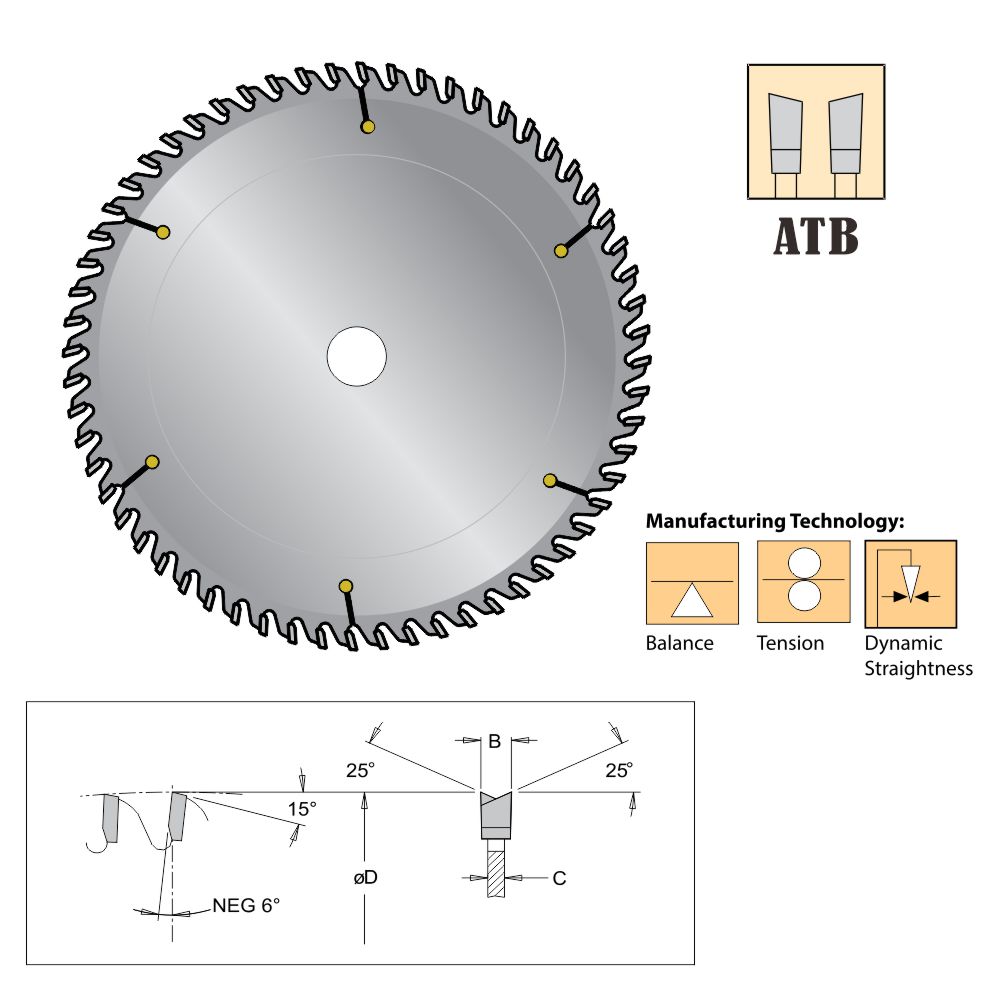

701-AN
OEM, 3WIN, HTT
HPP
To cut the materials of Melamine
701-AN
200mm - 400mm
Bushings available on customers' request
Wood work
| Quantity: | |
|---|---|
Size Table:
| Item Number | Diameter(mm) | Diameter(inch) | Teeth QTY. | Kerf | Bore(inch) | Form |
| 701.AN2004816 | 200 | 8" | 48 | 0.118"(3.0mm) | 5/8" | ATB |
| 701.AN2508016 | 250 | 10" | 80 | 0.134"(3.4mm) | 5/8" | ATB |
| 701.AN2518016 | 250 | 10" | 80 | 0.126"(3.2mm) | 5/8" | ATB |
| 701.AN3009625 | 300 | 12" | 96 | 0.134"(3.4mm) | 1" | ATB |
| 701.AN35010825 | 350 | 14" | 108 | 0.134"(3.4mm) | 1" | ATB |
| 701.ANS40012025 | 400 | 16" | 120 | 0.157"(4.0mm) | 1" | ATB |
