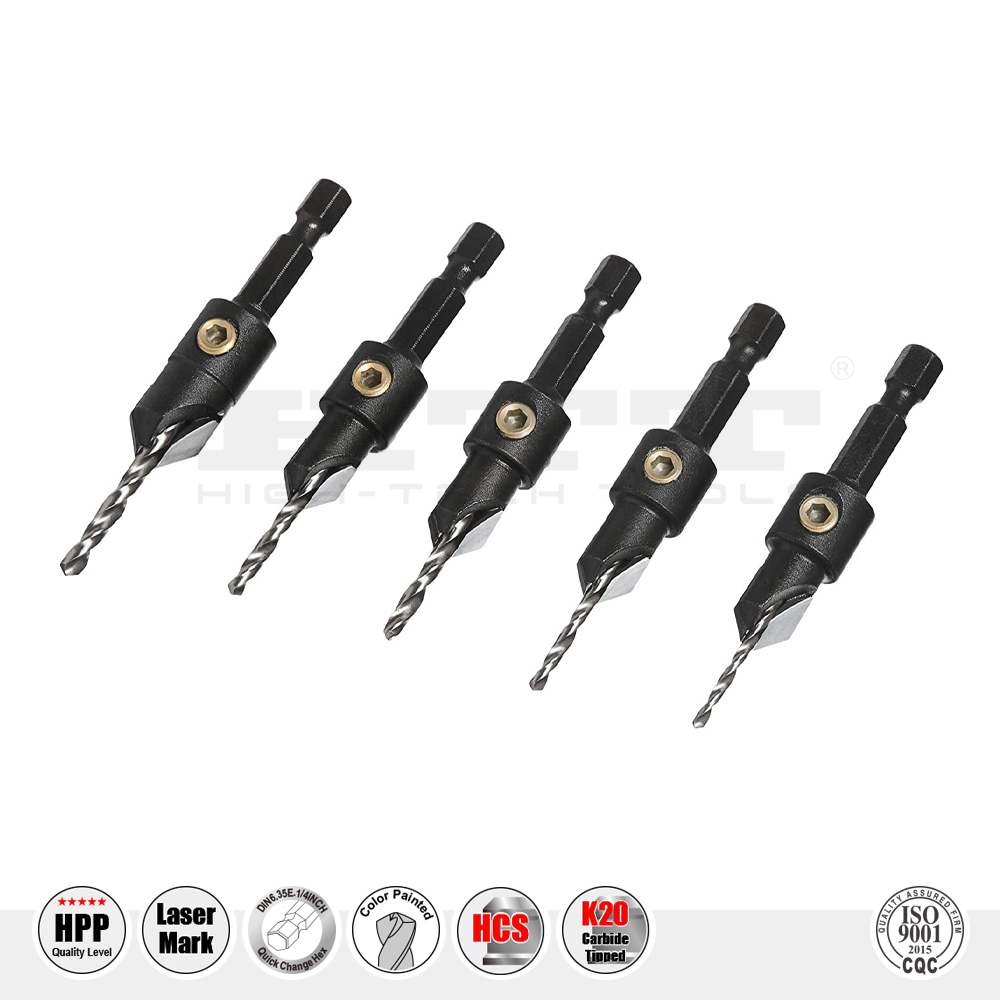

328-T
OEM, HTT, 3WIN
HPP
To drill&chamfering in various wood, timbers, MDF, chipboard, plywood, etc.
328-T
2mm to 6mm
DIN6.35E
Wood work
| Quantity: | |
|---|---|
Size Table:
| Item Number | Countersink Bore Diameter(mm) | Countersink Bore Diameter (inch) | HSS pilot drill Diameter(mm) | HSS pilot drill Diameter(inch) | Type / Grade |
| 328T.03080564 | 9.5 | 3/8 | 2 | 5/64 | For No. 4 H/W |
| 328T.03080332 | 9.5 | 3/8 | 2.5 | 3/32 | For No.6 S/W |
| 328T.03080764 | 9.5 | 3/8 | 2.75 | 7/64 | For No.6 S/W |
| 328T.03080003 | 9.5 | 3/8 | 3 | For 5mm S/W | |
| 328T.03080108 | 9.5 | 3/8 | 3.25 | 1/8 | For No.10 S/W |
| 328T.01020964 | 12.7 | 1/2 | 3.5 | 9/64 | For No.12 S/W |
| 328T.03080004 | 9.5 | 3/8 | 4 | For M4 clearance | |
| 328T.01020005 | 12.7 | 1/2 | 5 | For M5 clearance | |
| 328T.01020006 | 12.7 | 1/2 | 6 | For M6 clearance |
