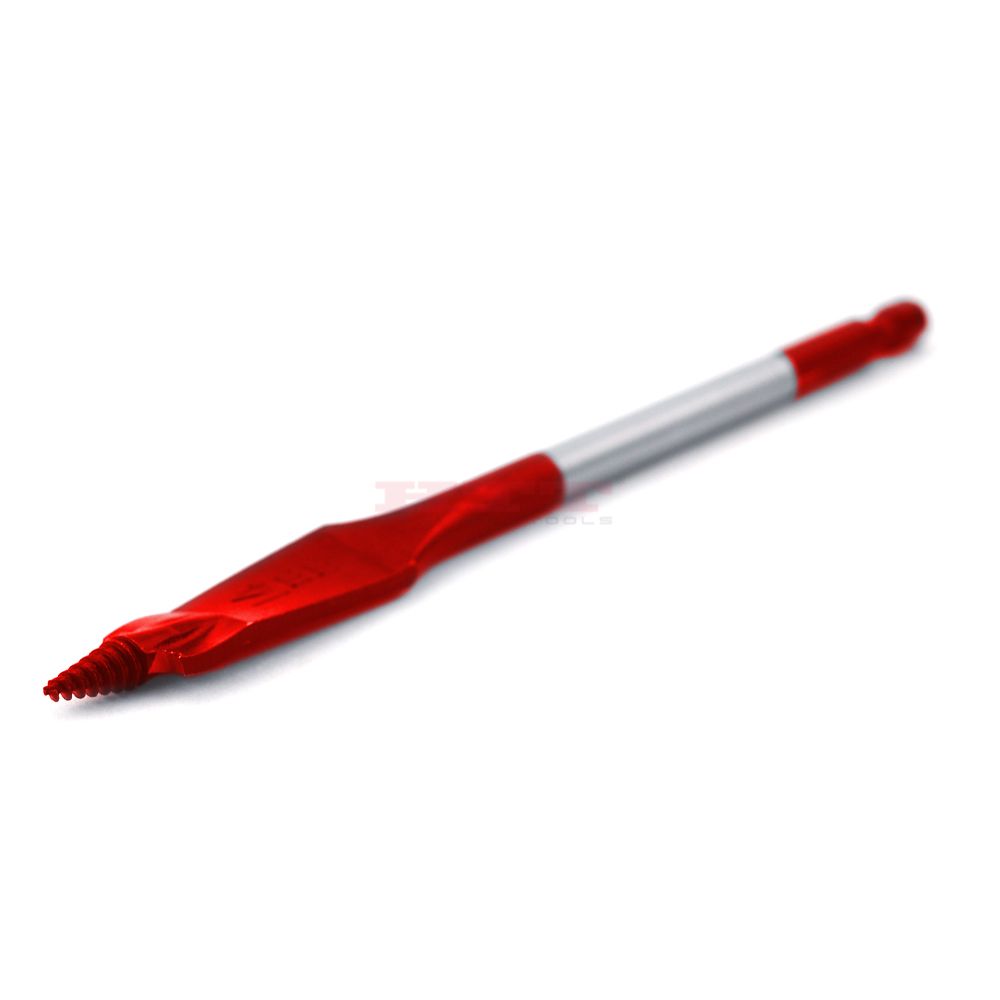

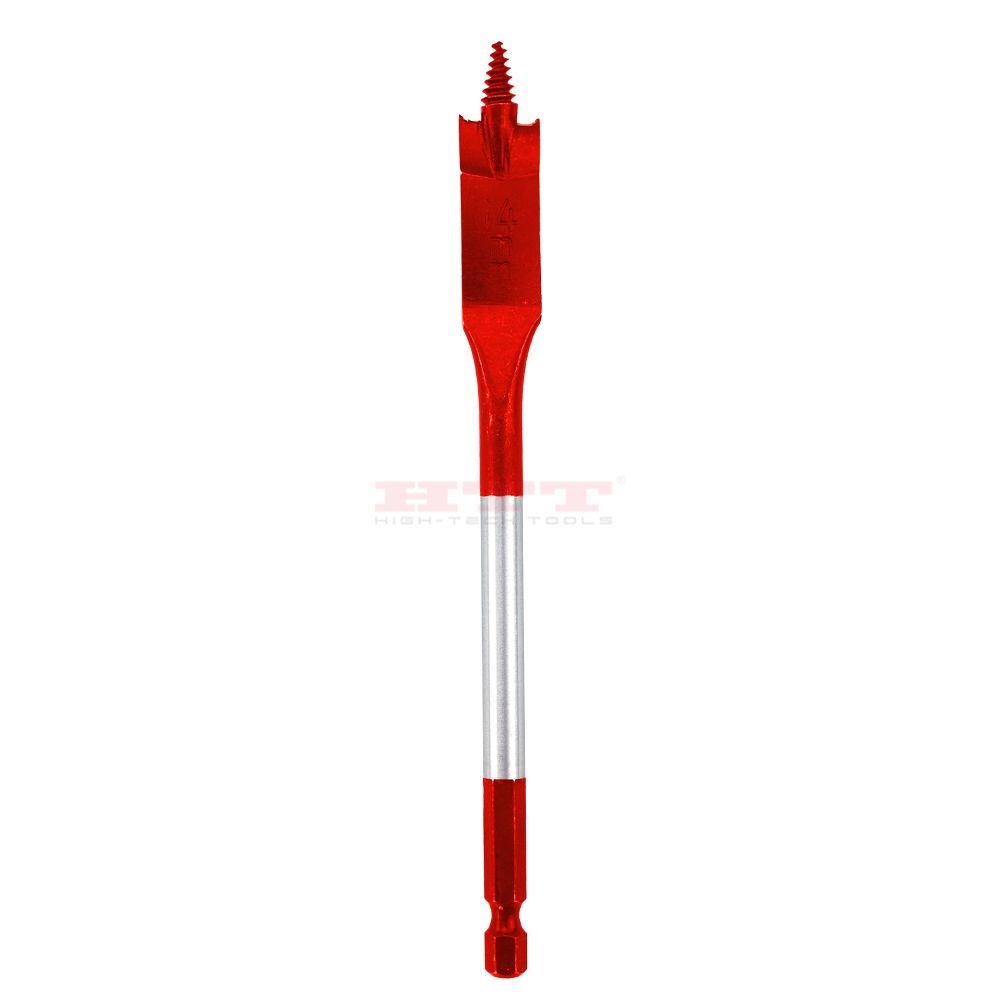

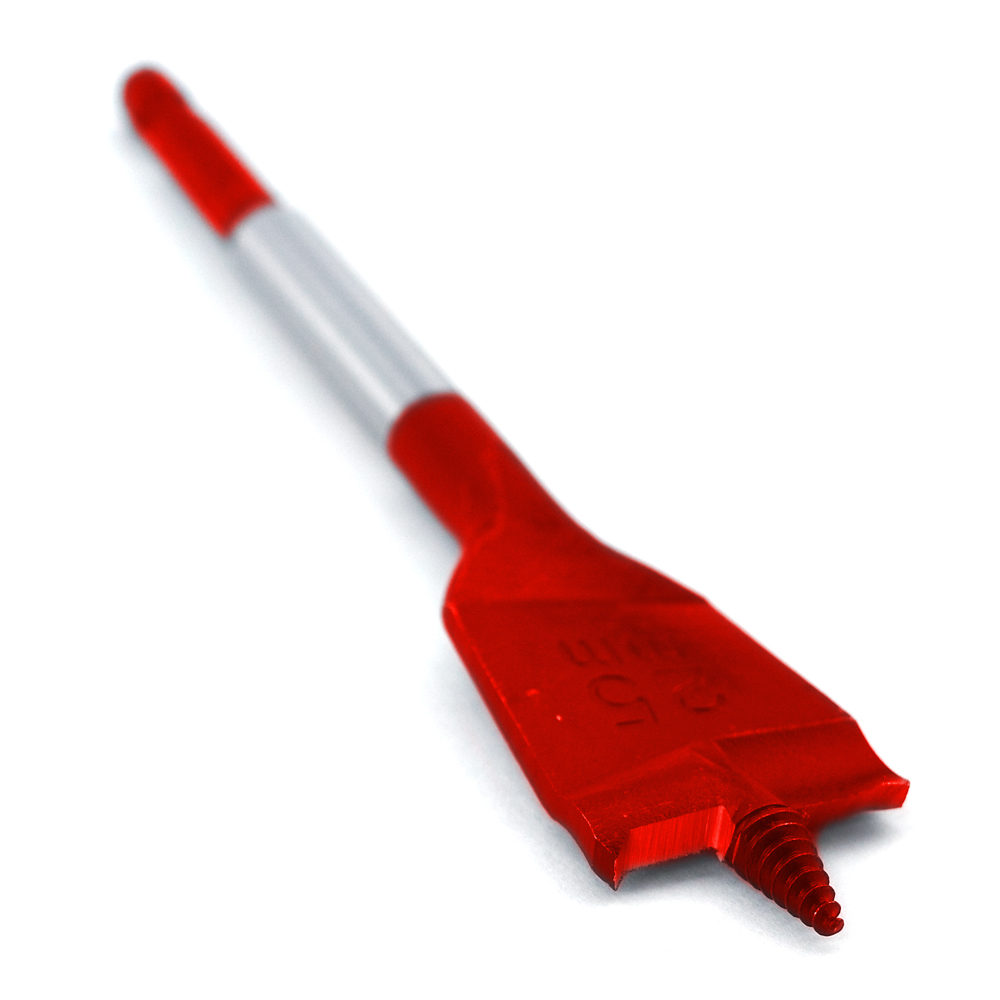

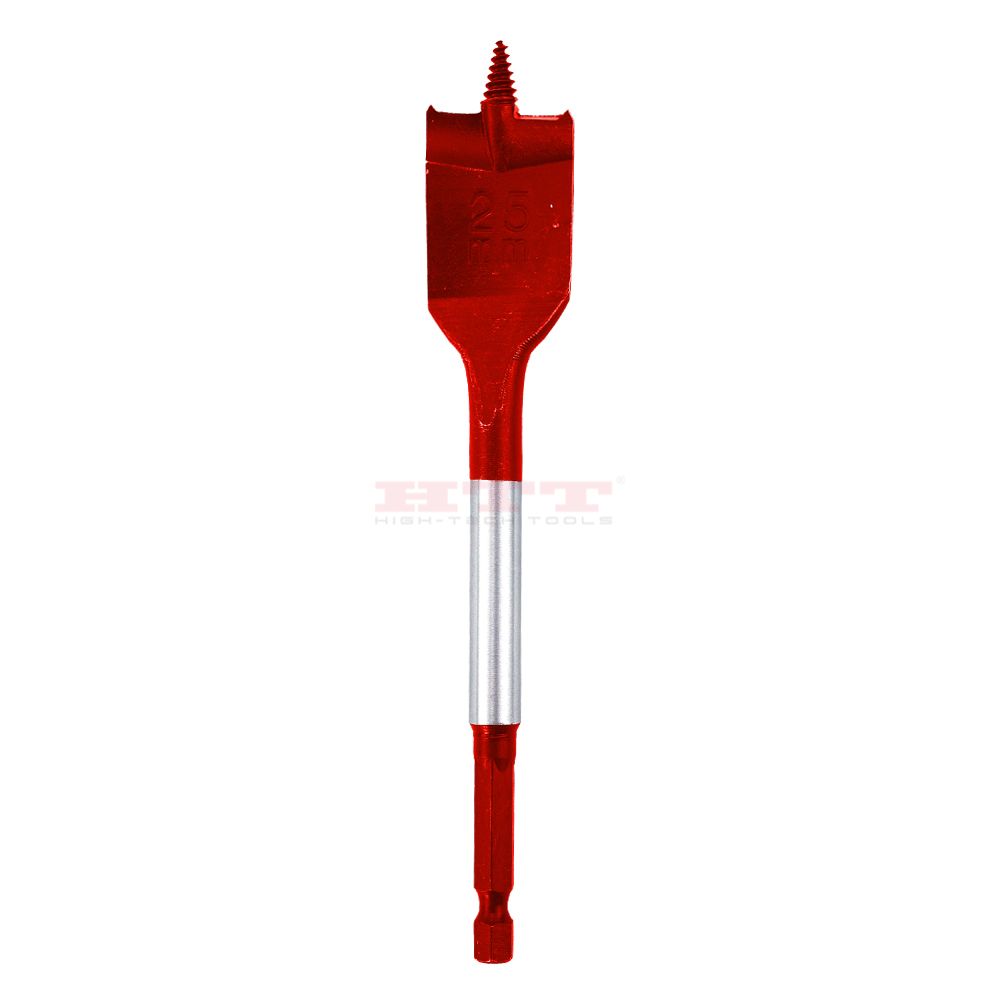

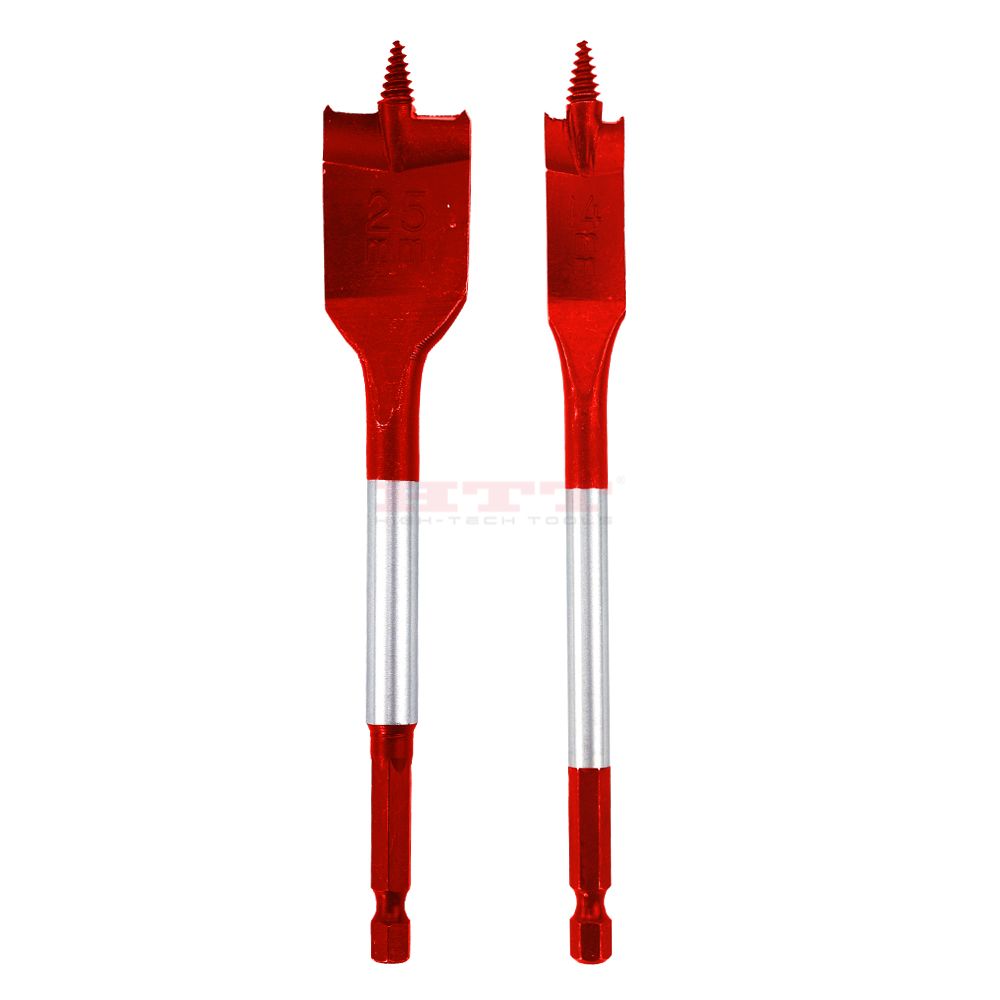

Screw Tip Self-feed Flat Wood Drill Bit

1, Screw tip for self feeding drill bit easier and more comfortable, suitable for drilling in the natural hard and soft wood, chipboard.
2, Ideal for door locks, mortising, electrical and plumbing work.
3, DIN6.35E shank for direct insertion into the power tool or for secure chuck grip.
4, Screw tip point for accurate positioning and sharp wings for improved cutting performance.

  • 337-S Series

  • HTT, OEM job

  • HPP

  • To drill holes in various wood, chipboard, laminated wood, fibre wood, rough wood, rubber wood,etc.

  • 337-S

  • 6mm to 50mm

  • DIN6.35E

  • Wood work

Availability:
Quantity:
Inquire Add to Basket

Size Table:

Item Number Diameter(mm) Diameter(inch) Overall Length(mm)
337.10615201S 6 1/4 152
337.10815201S 8 5/16 152
337.11015201S 10 3/8 152
337.11115201S 11 7/16 152
337.11215201S 12 1/2 152
337.11415201S 14 9/16 152
337.11615201S 16 5/8 152
337.11815201S 18 23/32 152
337.11915201S 19 49/64 152
337.12015201S 20 3/4 152
337.12215201S 22 7/8 152
337.12415201S 24 15/16 152
337.12515201S 25 1 152
337.12615201S 26 1-1/32 152
337.12815201S 28 1-1/8 152
337.13015201S 30 1-3/16 152
337.13215201S 32 1-1/4 152
337.13415201S 34 1-5/16 152
337.13515201S 35 1-3/8 152
337.13615201S 36 1-7/16 152
337.13815201S 38 1-1/2 152
337.14015201S 40 1-9/16 152
337.14515201S 45 1-3/4 152
337.14815201S 48 1-7/8 152
337.15015201S 50 2 152
337.10630001S 6 1/4 300
337.10830001S 8 5/16 300
337.11030001S 10 3/8 300
337.11130001S 11 7/16 300
337.11230001S 12 1/2 300
337.11430001S 14 9/16 300
337.11630001S 16 5/8 300
337.11830001S 18 23/32 300
337.11930001S 19 49/64 300
337.12030001S 20 3/4 300
337.12230001S 22 7/8 300
337.12430001S 24 15/16 300
337.12530001S 25 1 300
337.12630001S 26 1-1/32 300
337.12830001S 28 1-1/8 300
337.13030001S 30 1-3/16 300
337.13230001S 32 1-1/4 300
337.13430001S 34 1-5/16 300
337.13530001S 35 1-3/8 300
337.13630001S 36 1-7/16 300
337.13830001S 38 1-1/2 300
337.14030001S 40 1-9/16 300
337.14530001S 45 1-3/4 300
337.14830001S 48 1-7/8 300
337.15030001S 50 2 300
337.10640001S 6 1/4 400
337.10840001S 8 5/16 400
337.11040001S 10 3/8 400
337.11140001S 11 7/16 400
337.11240001S 12 1/2 400
337.11440001S 14 9/16 400
337.11640001S 16 5/8 400
337.11840001S 18 23/32 400
337.11940001S 19 49/64 400
337.12040001S 20 3/4 400
337.12240001S 22 7/8 400
337.12440001S 24 15/16 400
337.12540001S 25 1 400
337.12640001S 26 1-1/32 400
337.12840001S 28 1-1/8 400
337.13040001S 30 1-3/16 400
337.13240001S 32 1-1/4 400
337.13440001S 34 1-5/16 400
337.13540001S 35 1-3/8 400
337.13640001S 36 1-7/16 400
337.13840001S 38 1-1/2 400
337.14040001S 40 1-9/16 400
337.14540001S 45 1-3/4 400
337.14840001S 48 1-7/8 400
337.15040001S 50 2 400

337-S-2
