978
OEM, HTT or 3WIN
MPP+

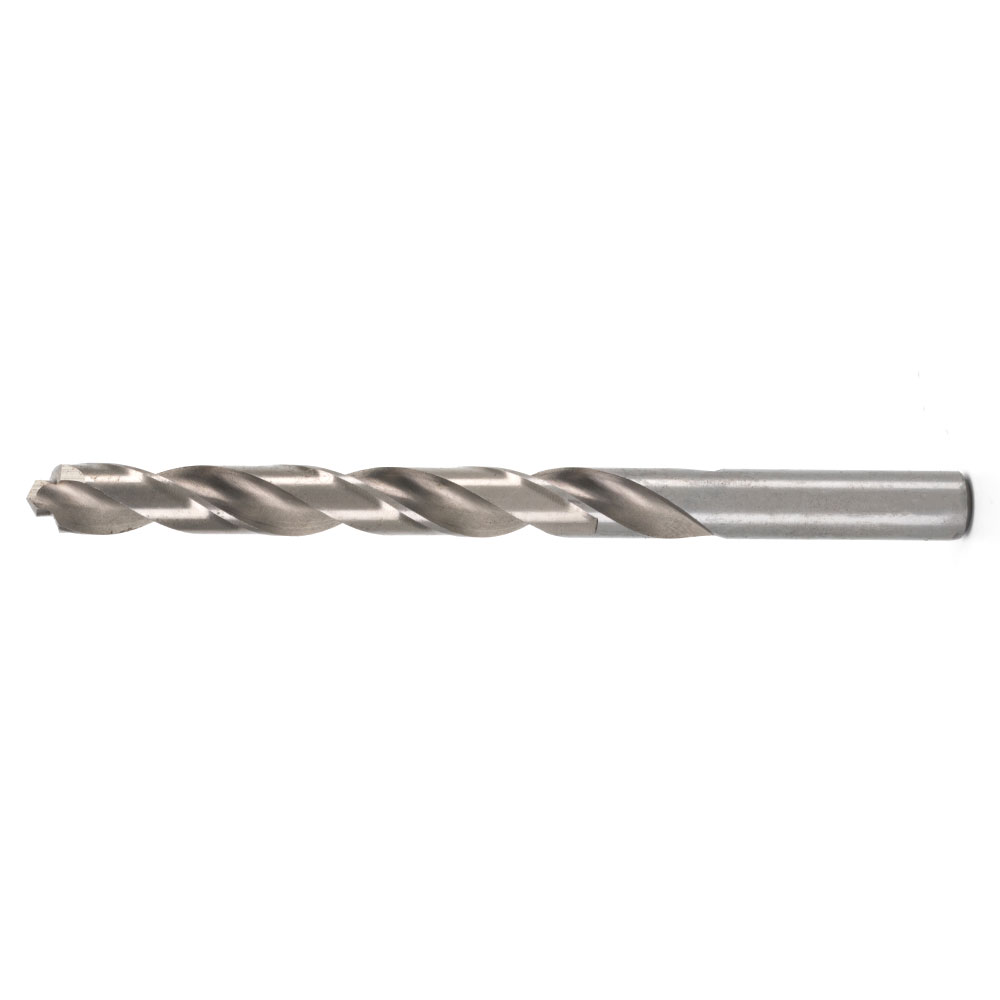

To drill holes in various metal, steel, alloyed steel, non-alloy steel, non-ferrous metal, etc.
978
4.8mm to 13mm
Cylindrical
Metal work
| Quantity: | |
|---|---|
Size Table:
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
| 978.338045 | 4.8 | 52 | 86 |
| 978.338050 | 5 | 52 | 86 |
| 978.338052 | 5.2 | 52 | 86 |
| 978.338055 | 5.5 | 57 | 93 |
| 978.338060 | 6 | 57 | 93 |
| 978.338062 | 6.2 | 63 | 101 |
| 978.338065 | 6.5 | 68 | 109 |
| 978.338070 | 7 | 69 | 109 |
| 978.338075 | 7.5 | 75 | 117 |
| 978.338080 | 8 | 75 | 117 |
| 978.338085 | 8.5 | 81 | 125 |
| 978.338090 | 9 | 81 | 125 |
| 978.338095 | 9.5 | 87 | 133 |
| 978.338100 | 10 | 87 | 133 |
| 978.338105 | 10.5 | 94 | 142 |
| 978.338110 | 11 | 94 | 142 |
| 978.338115 | 11.5 | 101 | 151 |
| 978.338120 | 12 | 101 | 151 |
| 978.338125 | 12.5 | 101 | 151 |
| 978.338130 | 13 | 101 | 151 |
