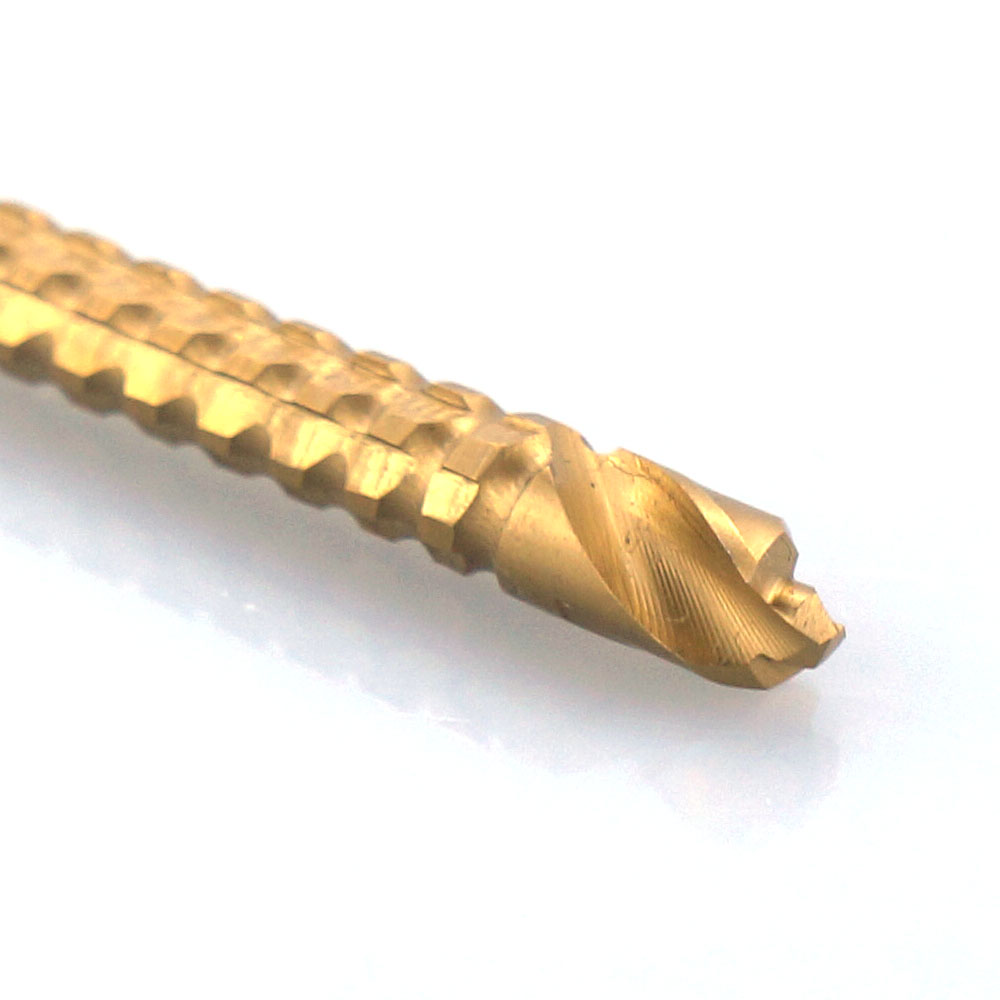

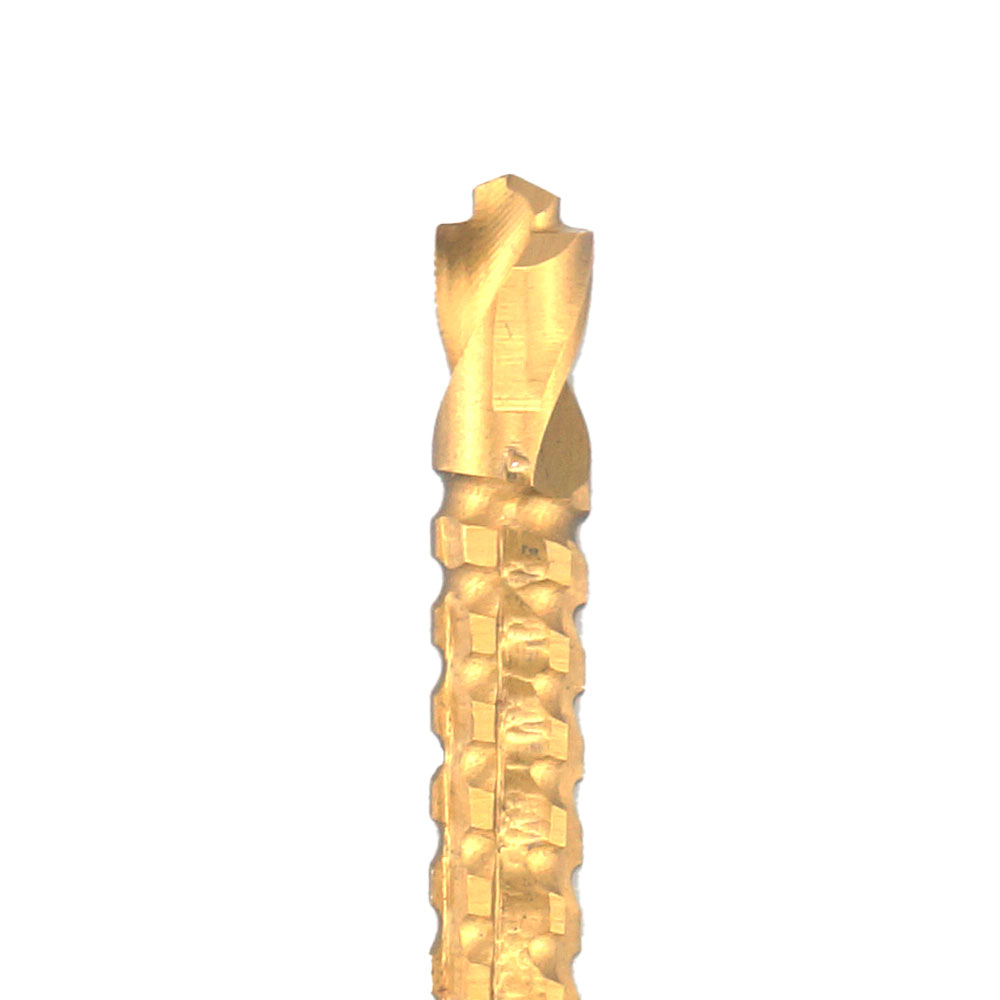

350-T
OEM, HTT or 3WIN
MPP+
To drill and mill slot holes in various wood, plywood, MDF , chipboard, etc.
350-T
2mm to 13mm
Tri-flat
Wood work
| Quantity: | |
|---|---|
Size Table:
*Other special sizes and raw material types are also available on the customers' special requests.
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
| 350.30226050 | 2.0 | 26 | 50 |
| 350.32531055 | 2.5 | 31 | 55 |
| 350.30338060 | 3.0 | 38 | 60 |
| 350.30451075 | 4.0 | 51 | 75 |
| 350.30561086 | 5.0 | 61 | 86 |
| 350.30667090 | 6.0 | 67 | 90 |
| 350.36567090 | 6.5 | 67 | 90 |
| 350.30869095 | 8.0 | 69 | 95 |
| 350.30969103 | 9.0 | 69 | 103 |
| 350.31077105 | 10.0 | 77 | 105 |
| 350.31278118 | 12.0 | 78 | 118 |
| 350.31390130 | 13.0 | 90 | 130 |
