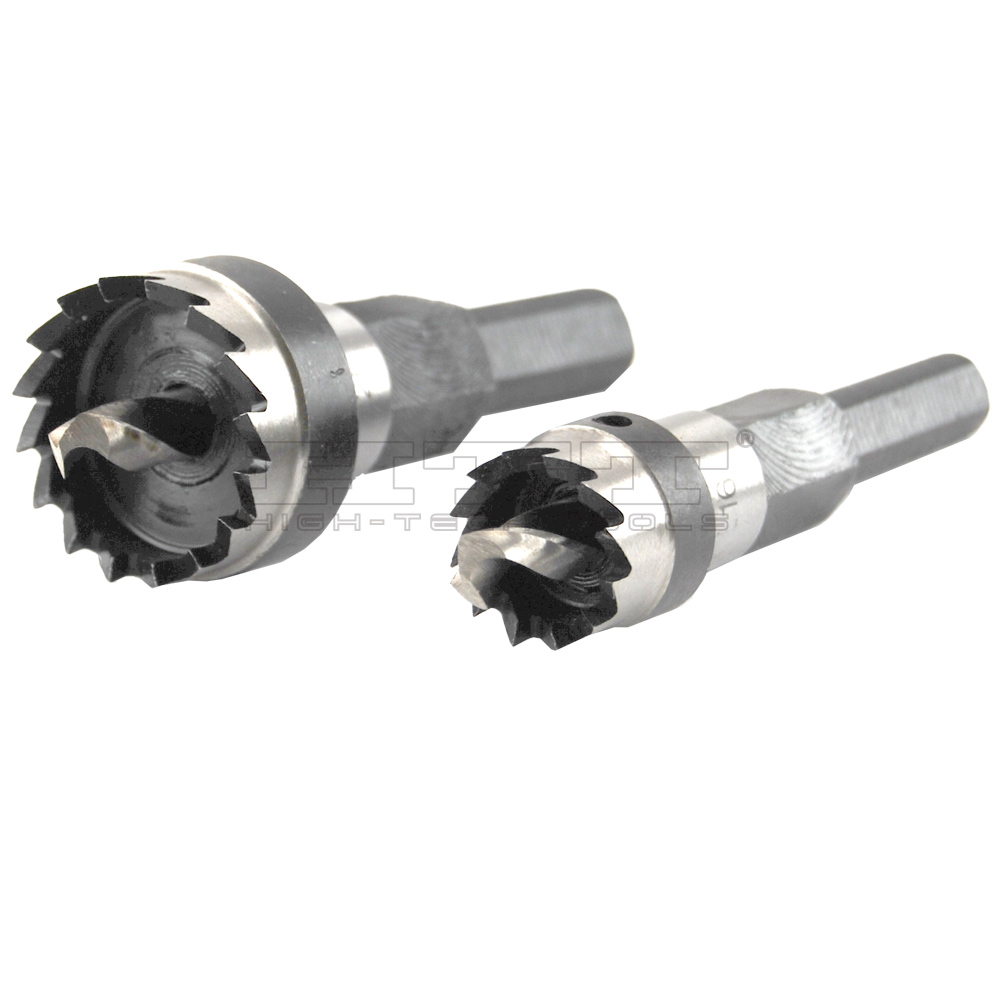

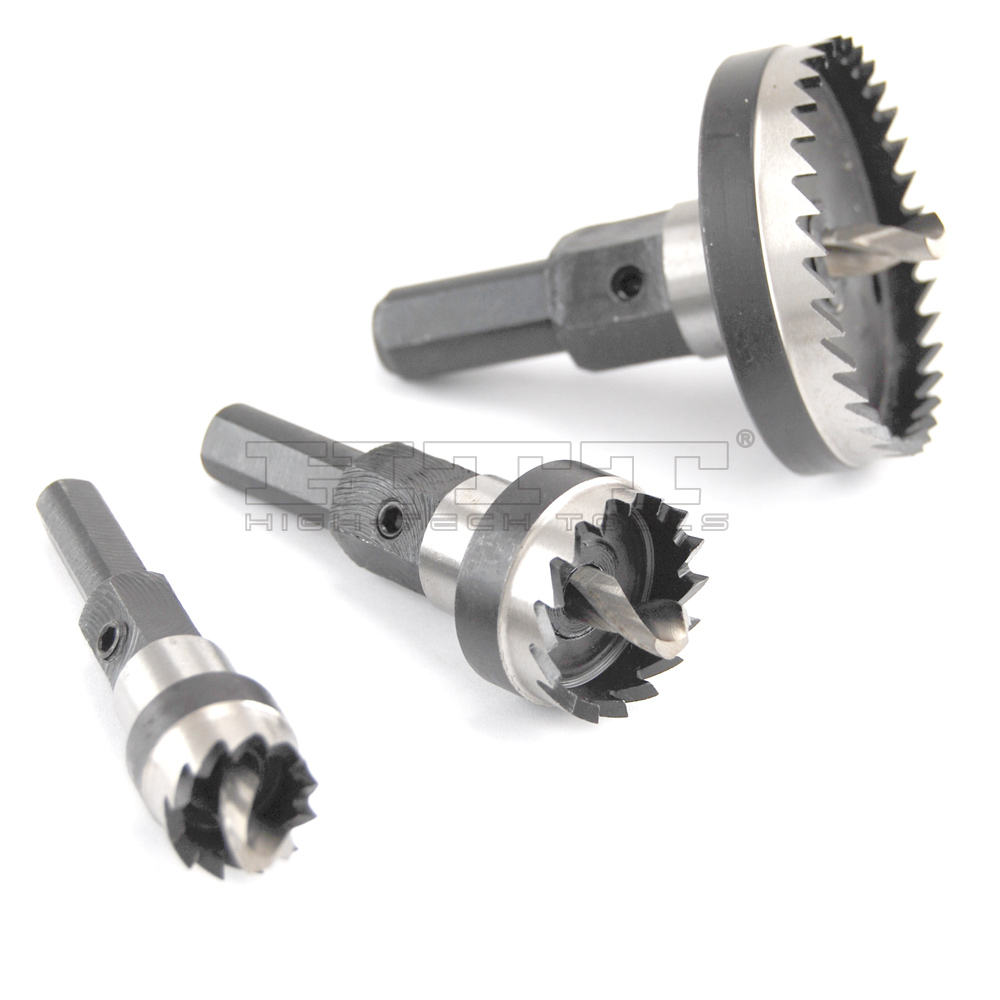

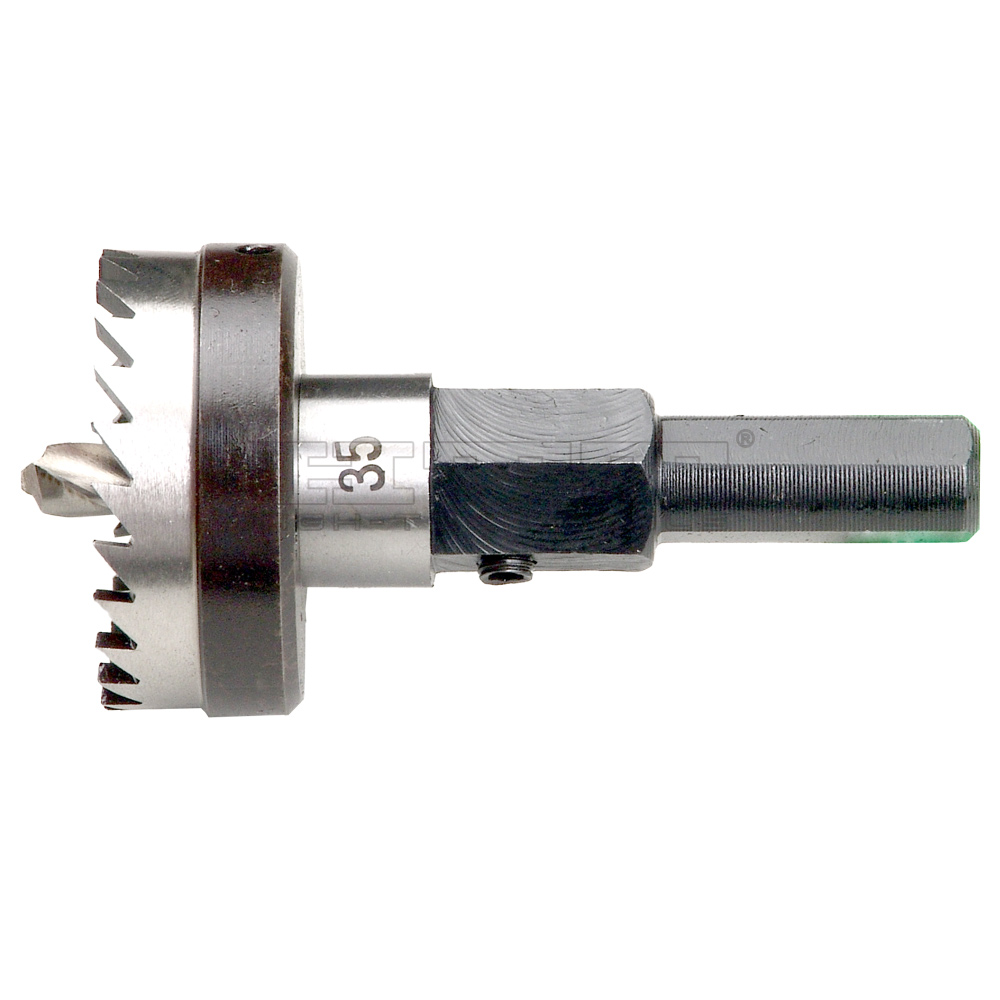

924 Series
HTT, OEM job
HPP
To cut various alloyed steel, unalloyed steel, stainless steel, iron, etc.
924
15 to 105mm
Hex.
| Quantity: | |
|---|---|
Size table:
| Item No. | Diameter(mm) | Overall Length(mm) | Shank Diameter(mm) |
| 924.1507501 | 15 | 75 | 8 |
| 924.1607501 | 16 | 75 | 8 |
| 924.1807501 | 18 | 75 | 8 |
| 924.1907501 | 19 | 75 | 8 |
| 924.2007501 | 20 | 75 | 8 |
| 924.2207501 | 22 | 75 | 8 |
| 924.2307501 | 23 | 75 | 8 |
| 924.2407501 | 24 | 75 | 10 |
| 924.2507501 | 25 | 75 | 10 |
| 924.2607501 | 26 | 75 | 10 |
| 924.2807501 | 28 | 75 | 10 |
| 924.3007501 | 30 | 75 | 10 |
| 924.3207501 | 32 | 75 | 10 |
| 924.3407501 | 34 | 75 | 10 |
| 924.3507501 | 35 | 75 | 10 |
| 924.3607501 | 36 | 75 | 12 |
| 924.3807501 | 38 | 75 | 12 |
| 924.4007501 | 40 | 75 | 12 |
| 924.4107501 | 41 | 75 | 12 |
| 924.4207501 | 42 | 75 | 12 |
| 924.4507501 | 45 | 75 | 12 |
| 924.5007501 | 50 | 75 | 12 |
| 924.5307501 | 53 | 75 | 12 |
| 924.5407501 | 54 | 75 | 12 |
| 924.5707501 | 57 | 75 | 12 |
| 924.6007501 | 60 | 75 | 12 |
| 924.6507501 | 65 | 75 | 14 |
| 924.7007501 | 70 | 75 | 14 |
| 924.7507501 | 75 | 75 | 14 |
| 924.8007501 | 80 | 75 | 14 |
| 924.8507501 | 85 | 75 | 14 |
| 924.9007501 | 90 | 75 | 14 |
| 924.9507501 | 95 | 75 | 14 |
| 924.1007501 | 100 | 75 | 14 |
| 924.1057501 | 105 | 75 | 14 |
